Product Overview
The SMC ITVX2030-31F3CL3 is a high-precision electro-pneumatic proportional valve engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This advanced valve functions as an electronic pressure regulator, converting a variable electrical input signal into a linearly proportional pneumatic output pressure. Unlike conventional on/off solenoid valves, the ITVX series utilizes a closed-loop feedback mechanism with an integrated pressure sensor, ensuring exceptional output pressure stability and repeatability regardless of fluctuations in supply pressure or downstream flow demand. The ITVX2030-31F3CL3 is specifically configured with a 0-10V DC analog command signal and delivers a regulated output pressure range of 0.05 to 0.9 MPa, making it an ideal choice for precision industrial processes requiring accurate, dynamic electro-pneumatic pressure control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITVX2030-31F3CL3 |
| Manufacturer | SMC Corporation |
| Control Method | Electronic proportional control with closed-loop pressure feedback |
| Command Signal | Analog input (0–10V DC / 4–20 mA configurable) |
| Output Pressure Range | 0.05 – 0.9 MPa (set pressure) |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Operating Pressure | Standard Industrial Grade (Up to rated MPa) |
| Port Size | 1/4 (Rc/NPT/G thread per configuration) |
| Mounting & Connection | Standard ISO / SMC bracket mount with threaded port interface |
| Power Supply | 24V DC ±10% |
| Hysteresis / Repeatability | ≤1% F.S. / ±0.5% F.S. |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic proportional valve (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 0.05 – 0.9 MPa (set pressure), supporting stable operation across the full working range.
Typical Industrial Applications
The ITVX2030-31F3CL3 is specifically configured with a 0-10V DC analog command signal and delivers a regulated output pressure range of 0.05 to 0.9 MPa, making it an ideal choice for precision industrial processes requiring accurate, dynamic electro-pneumatic pressure control.
PRODUCT IMAGES

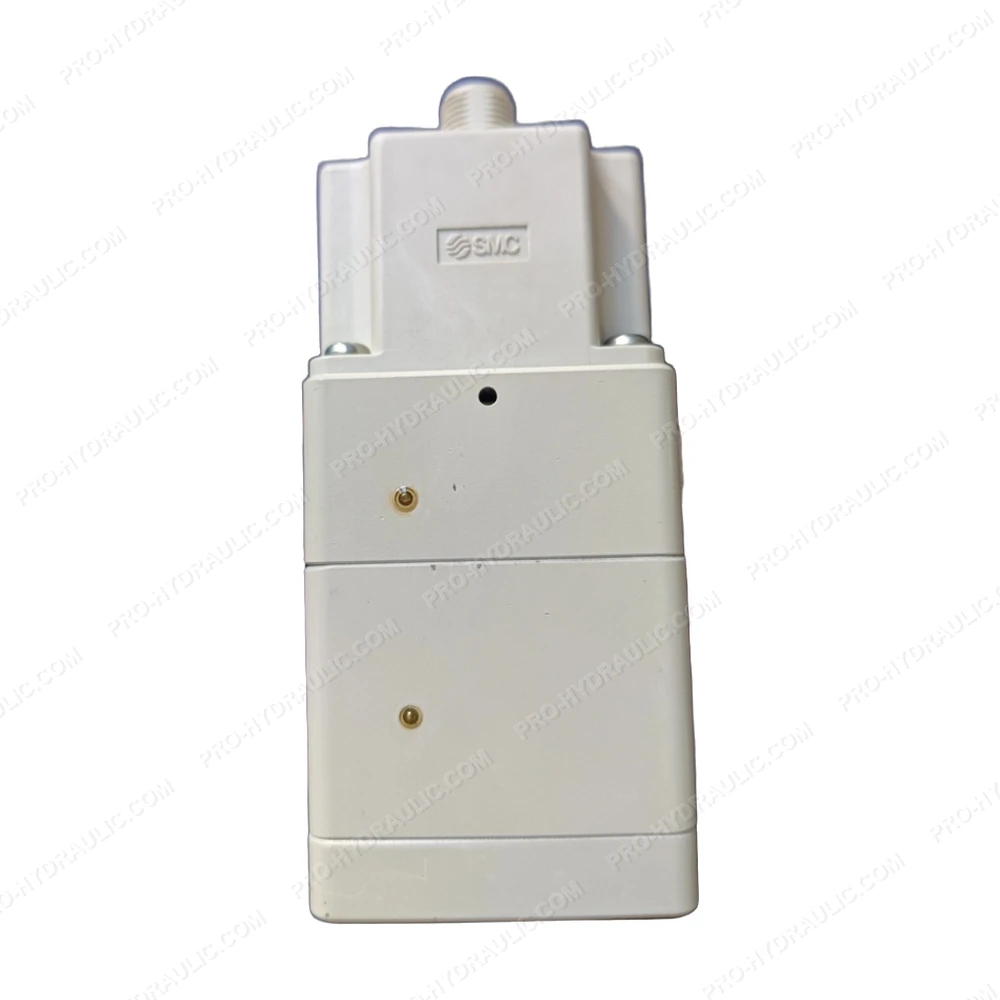

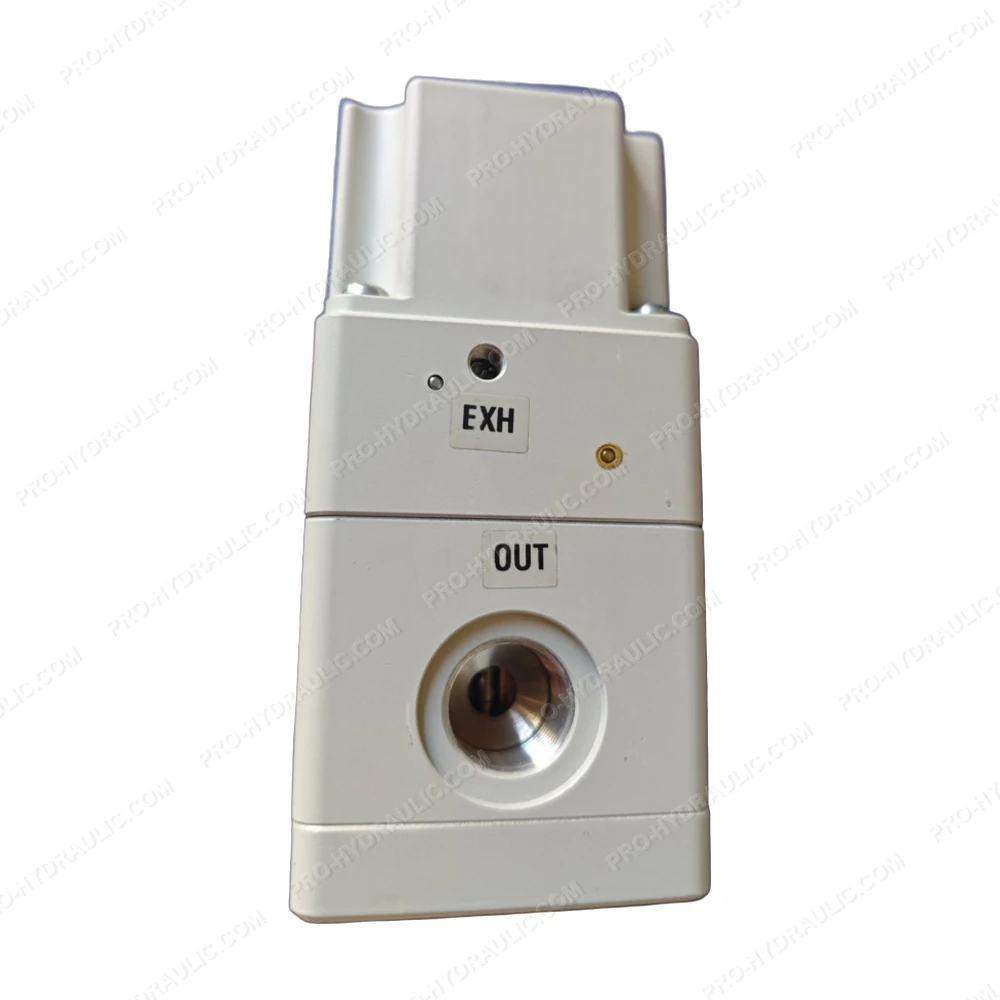

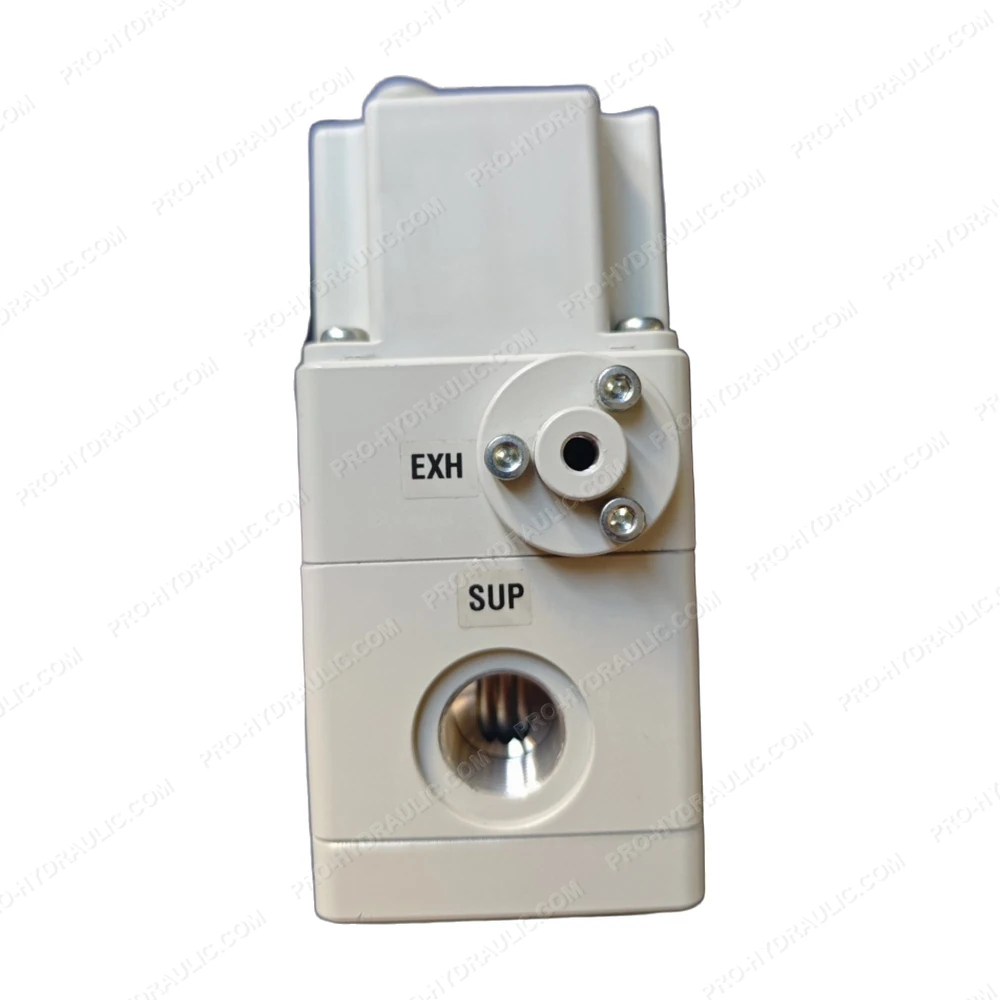

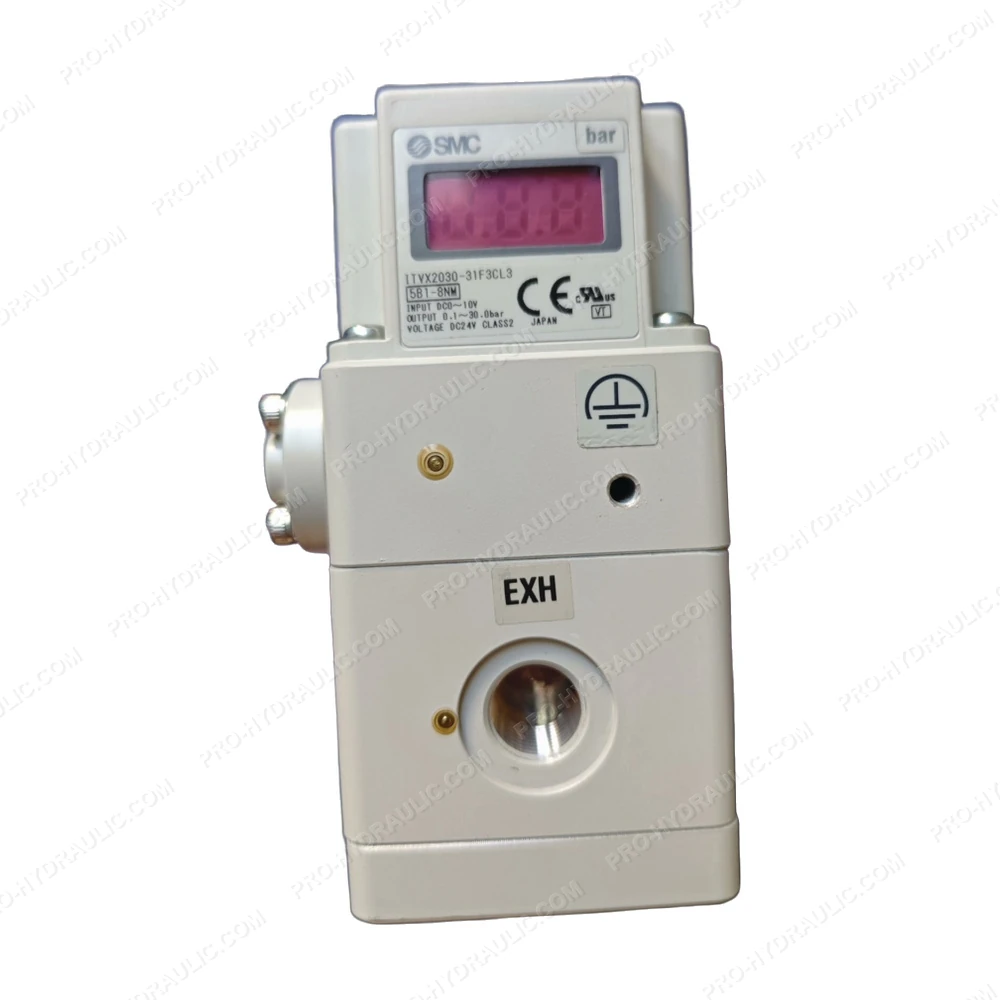

SMC ITVX2030-31F3CL3 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITVX2030-31F3CL3 Electro-Pneumatic Regulator Valve. This Japan-made precision valve features a digital display and analog input, delivering precise pressure control for industrial automation systems.
