Product Overview
The SMC PAF5410S-3S13N-N is a precision fluororesin diaphragm pump engineered for high-purity fluid handling in demanding industrial environments. Manufactured by SMC Corporation, a global leader in pneumatic and fluid control technology, this pump utilizes a reciprocating diaphragm mechanism driven by an internal air or motor circuit to displace media through positive displacement action. Unlike conventional hydraulic pumps that rely on pistons, vanes, or gears, the PAF5410S-3S13N-N employs a chemically inert fluororesin (PTFE/PFA) diaphragm and wetted path, making it ideal for transferring aggressive chemicals, ultrapure water, and corrosive process fluids without contamination or leakage. Its sealless design eliminates shaft seal wear and fugitive emissions, ensuring long-term reliability in critical industrial fluid circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Fluororesin Diaphragm Pump (Hydraulic Pump Category) |
| Model Designation | PAF5410S-3S13N-N |
| Operating Pressure | Standard Industrial Grade (Up to rated bar; consult factory for specific pressure curve) |
| Mounting & Connection | Standard ISO / SMC Interface (threaded port connections) |
| Wetted Materials | Fluororesin (PTFE/PFA) diaphragm and fluid contact surfaces |
| Drive Mechanism | Reciprocating diaphragm, sealless positive displacement |
Engineering Features & Advantages
- Precision Performance: Fluororesin diaphragm delivers pulseless, shear-sensitive fluid transfer with excellent chemical resistance and zero metal ion contamination.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a sealless design that eliminates leakage paths and reduces maintenance downtime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in installation without system modification.
- Chemical Inertness: PTFE/PFA wetted path withstands aggressive acids, bases, solvents, and ultrapure fluids where standard elastomers fail.
- Low Pulsation Output: Optimized diaphragm geometry and internal damping provide smooth flow, protecting downstream filters, sensors, and process instrumentation.
Typical Industrial Applications
This fluororesin diaphragm pump is widely deployed in semiconductor wet processing (CMP slurry and chemical delivery), pharmaceutical and biotech fluid transfer, chemical dosing and metering systems, and high-purity water treatment plants. It is also suitable for laboratory and pilot-scale process lines requiring contamination-free, corrosion-resistant pumping of aggressive media.
PRODUCT IMAGES

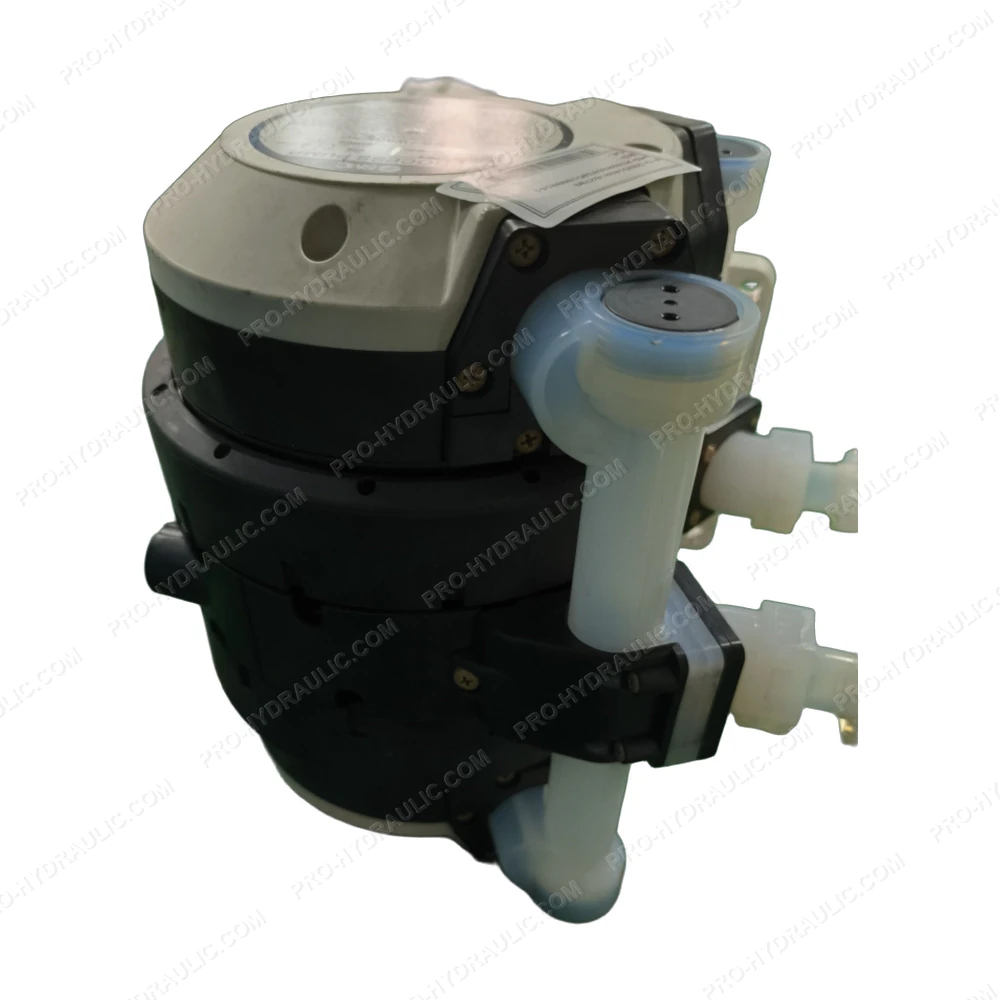

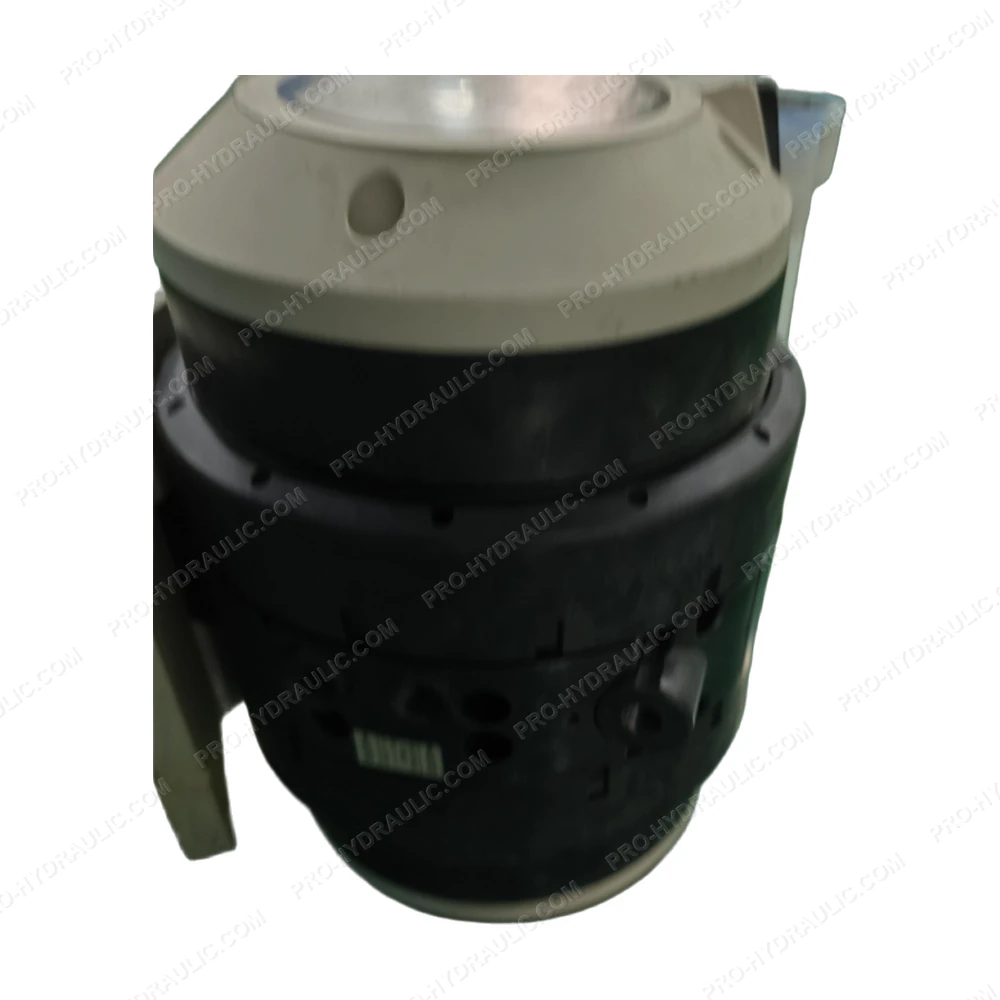

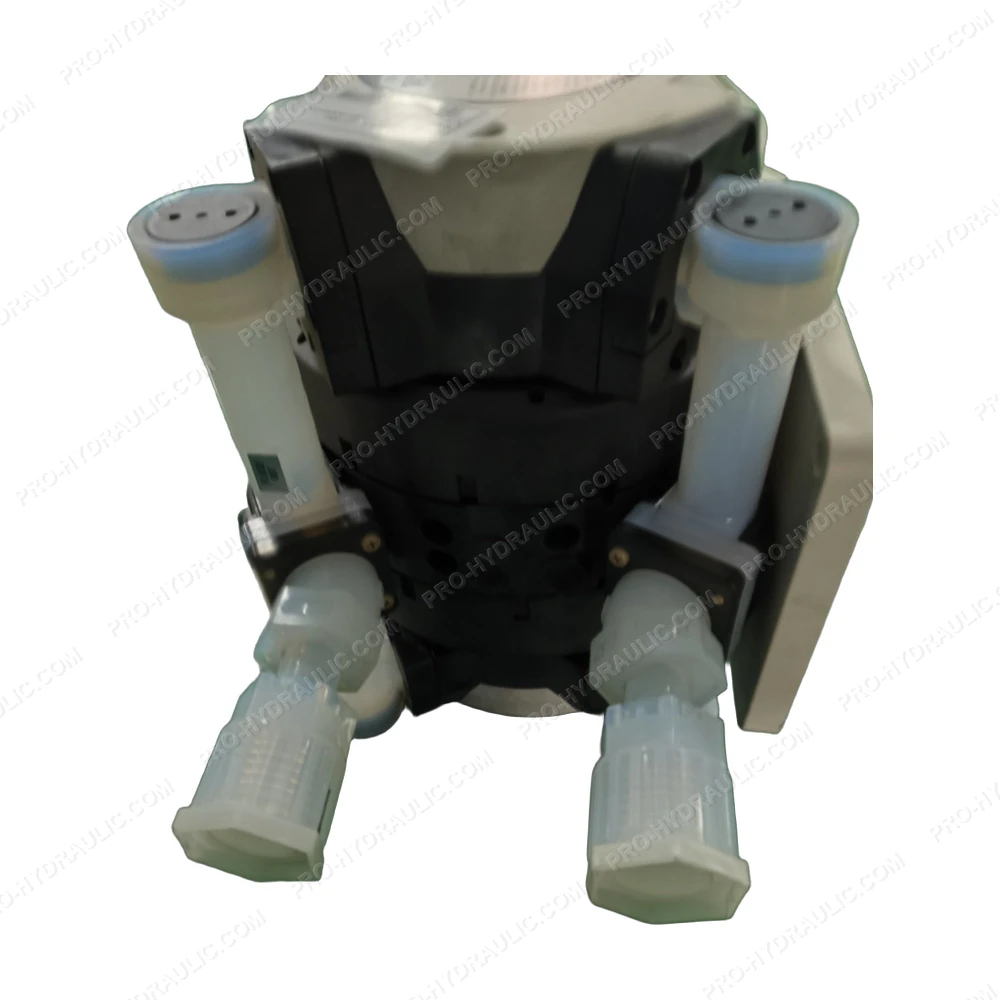

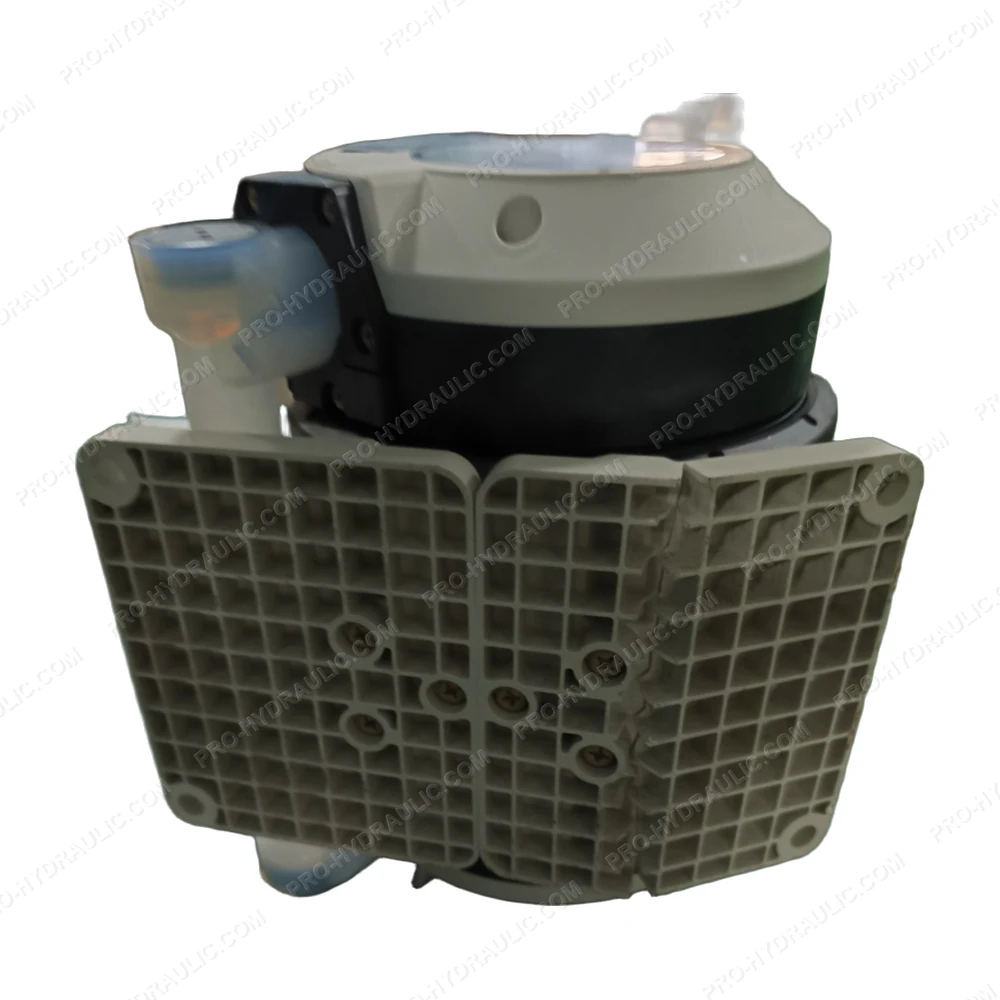

SMC PAF5410S-3S13N-N Fluororesin Diaphragm Pump
