Product Overview
The SMC SS0750-08C4N9FD3-D is a precision-engineered solenoid valve manifold from the SMC SS0750 series, designed for centralized control of multiple pneumatic or process fluid circuits within a compact, modular assembly. As a manifold-mounted valve solution, it consolidates several solenoid-actuated valve stations onto a single common supply and exhaust gallery, reducing external piping, minimizing leak points, and simplifying installation in dense control cabinets. The unit operates on the principle of electromagnetic spool actuation, where an energized solenoid coil shifts an internal spool to redirect flow between ports, delivering fast, repeatable switching for industrial automation and process control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Valve Manifold (Process & Pneumatic Valve) |
| Model Designation | SS0750-08C4N9FD3-D |
| Manufacturer Series | SMC SS0750 Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, per SMC manifold specification) |
| Actuation Type | Solenoid Pilot / Direct Solenoid Actuation |
| Mounting & Connection | Standard ISO / SMC Manifold Interface with Common Supply & Exhaust Gallery |
| Fluid Compatibility | Filtered Air / Inert Gas and Compatible Process Media |
Engineering Features & Advantages
- Precision Performance: Fast-response solenoid actuation with consistent spool shifting ensures accurate flow switching and repeatable cycle timing across all manifold stations.
- Compact Modular Architecture: Integrated manifold design consolidates multiple valve functions into a single footprint, dramatically reducing tubing runs, fittings, and potential leakage paths.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and wear-resistant spool and seal materials.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in interchangeability without modification.
- Simplified Maintenance: Individual valve stations can be serviced or replaced without disturbing the common manifold body or adjacent circuits.
Typical Industrial Applications
The SMC SS0750-08C4N9FD3-D solenoid valve manifold is widely deployed in automated manufacturing and process environments, including plastic injection molding machines, CNC machine tools and machining centers, packaging and assembly automation lines, and general pneumatic control panels within metallurgical and material handling systems. Its centralized manifold configuration is particularly suited to applications requiring coordinated multi-actuator control with minimal installation complexity.
PRODUCT IMAGES

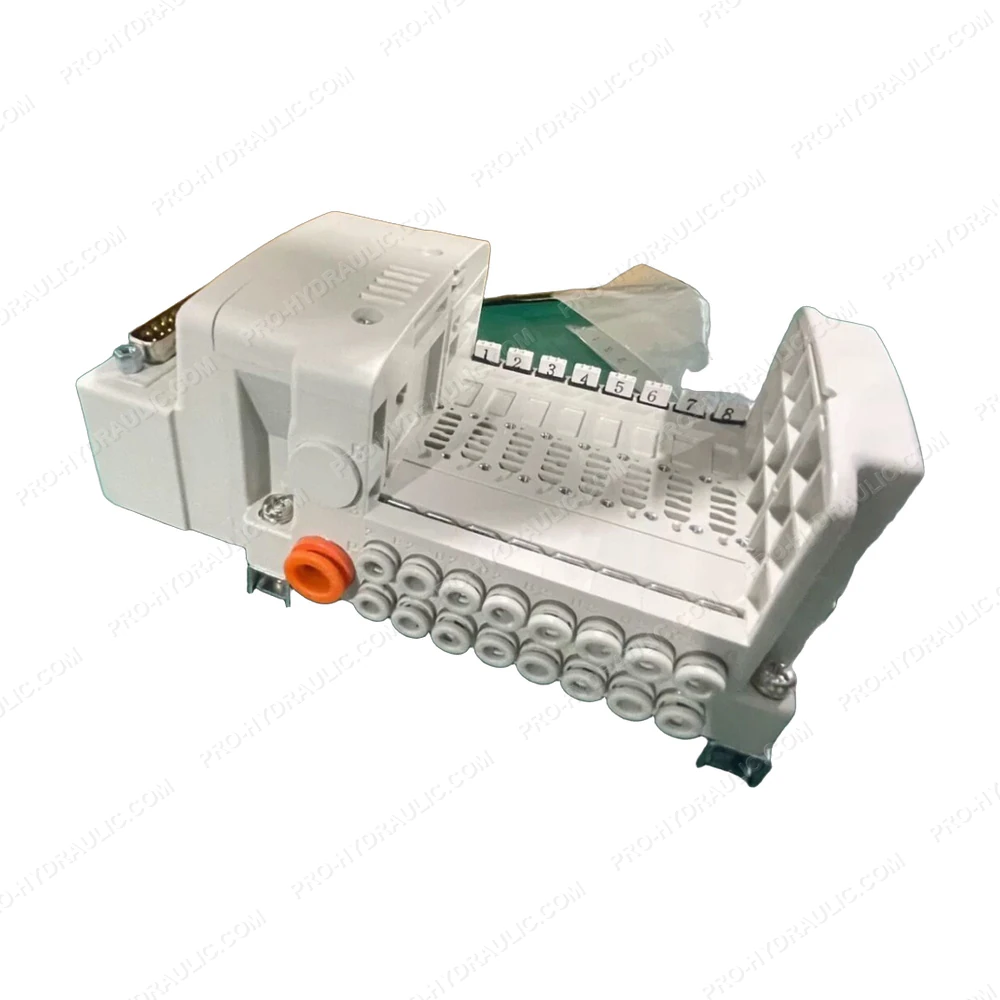

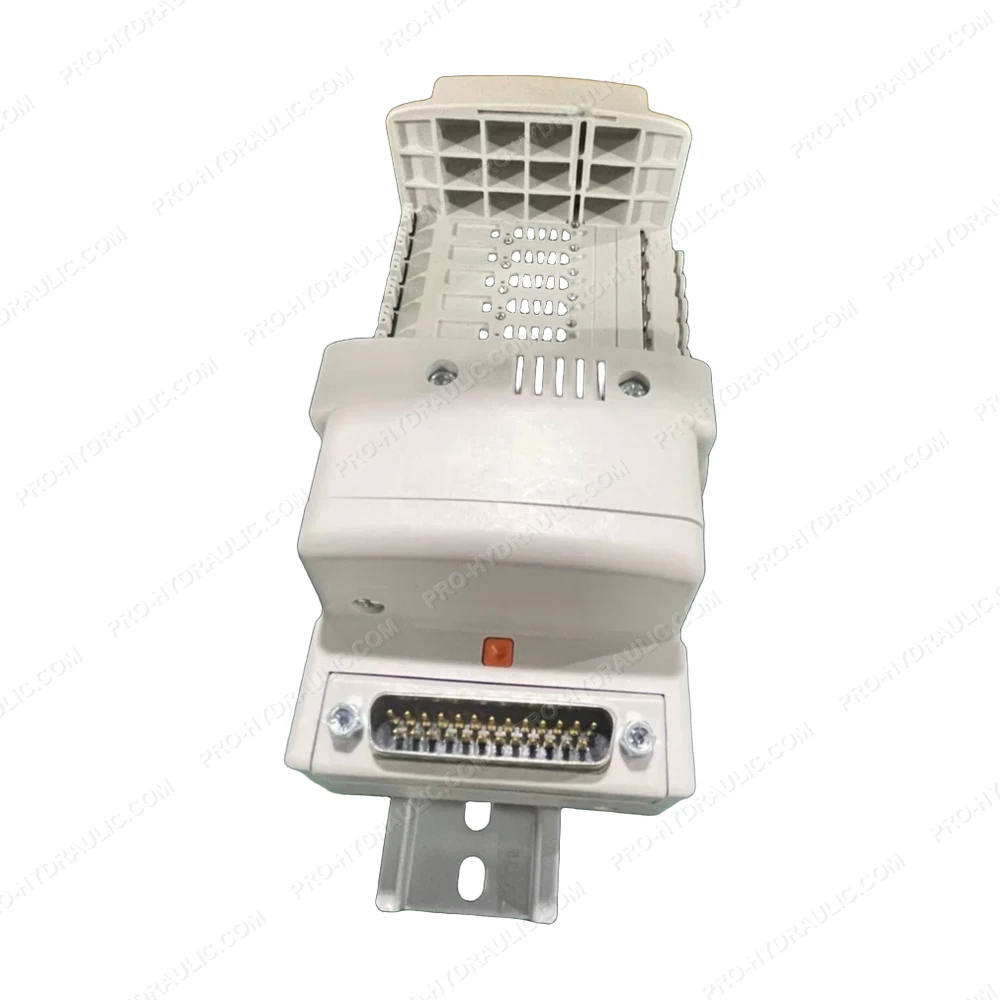

SMC SS0750-08C4N9FD3-D Solenoid Valve Manifold
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SS0750-08C4N9FD3-D Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
