Product Overview
The SMC SS5YJ3-DUI00249 is a precision-engineered solenoid valve manifold assembly from the SMC SY series, designed to consolidate multiple pneumatic directional control valves into a single, compact base-mounted platform. This manifold serves as the central fluid distribution hub within a pneumatic control circuit, directing compressed air to and from individual solenoid valves while eliminating the need for separate fittings and extensive tubing runs. Manufactured by SMC Corporation, a global leader in pneumatic and process automation components, the SS5YJ3-DUI00249 is engineered for high-density valve integration, offering reliable, repeatable actuation for complex industrial automation sequences. Its modular construction allows for flexible valve station configuration, simplified maintenance, and reduced installation footprint in control cabinets and machine frames.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Valve Manifold (Pneumatic Directional Control Valve Base) |
| Model Designation | SS5YJ3-DUI00249 |
| Series / Family | SMC SY Series (SY3000 / SY5000 compatible platform) |
| Operating Pressure | Standard Industrial Grade (0.1 to 0.7 MPa typical pneumatic range) |
| Fluid Medium | Filtered Compressed Air (non-lubricated or lubricated) |
| Mounting & Connection | Base-mounted manifold with standard SMC valve station interface; ISO-compliant port threading |
| Valve Stations | Configurable multi-station platform (model code dependent) |
| Body Material | Die-cast aluminum alloy with corrosion-resistant surface treatment |
Engineering Features & Advantages
- Precision Performance: The SS5YJ3-DUI00249 manifold provides uniform pressure distribution across all valve stations, ensuring consistent spool actuation and repeatable response times critical for high-cycle pneumatic automation.
- Compact Modular Architecture: Integrated base-mounted design eliminates individual valve fittings and reduces tubing complexity, saving significant panel space and installation labor in dense control cabinets.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust aluminum construction and sealed internal galleries that resist contamination and pressure fluctuation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC SY series valve stations and OEM manifold standards, ensuring drop-in replacement without modification.
- Simplified Maintenance: Individual solenoid valves can be removed or replaced without disturbing adjacent stations or the manifold base, minimizing downtime during service intervals.
Typical Industrial Applications
The SMC SS5YJ3-DUI00249 solenoid valve manifold is widely deployed in automated manufacturing and process control environments, including plastic injection molding machines, CNC machine tool pneumatic clamping and tool-changing systems, packaging and assembly line actuators, and general factory automation valve islands. Its reliable multi-station air distribution makes it equally suited for metall
PRODUCT IMAGES

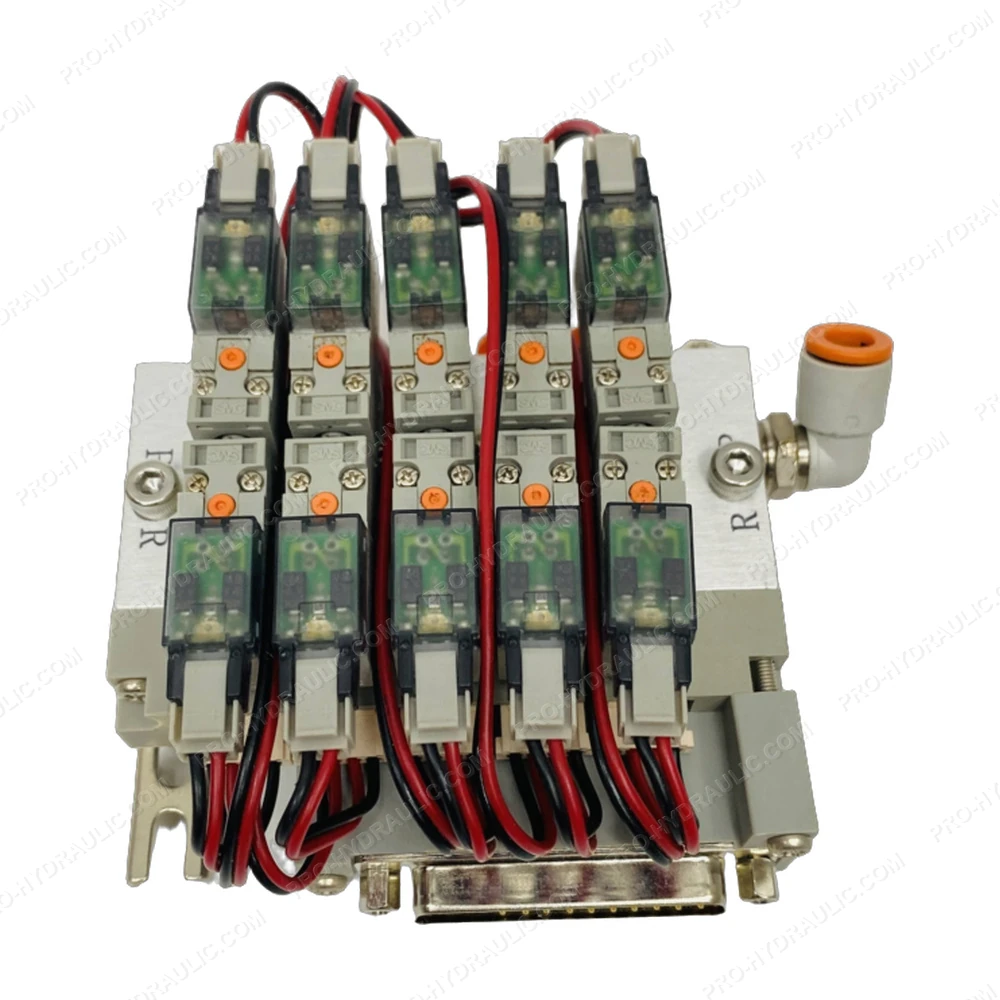

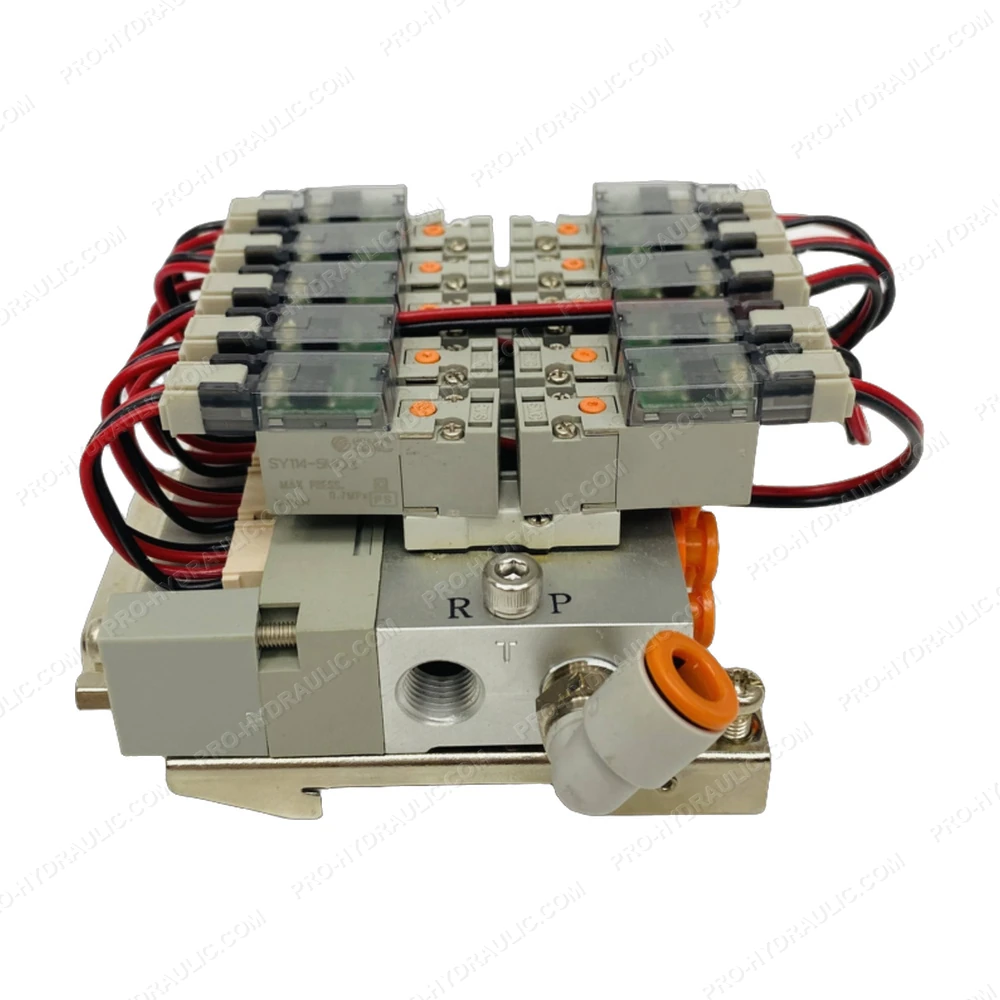

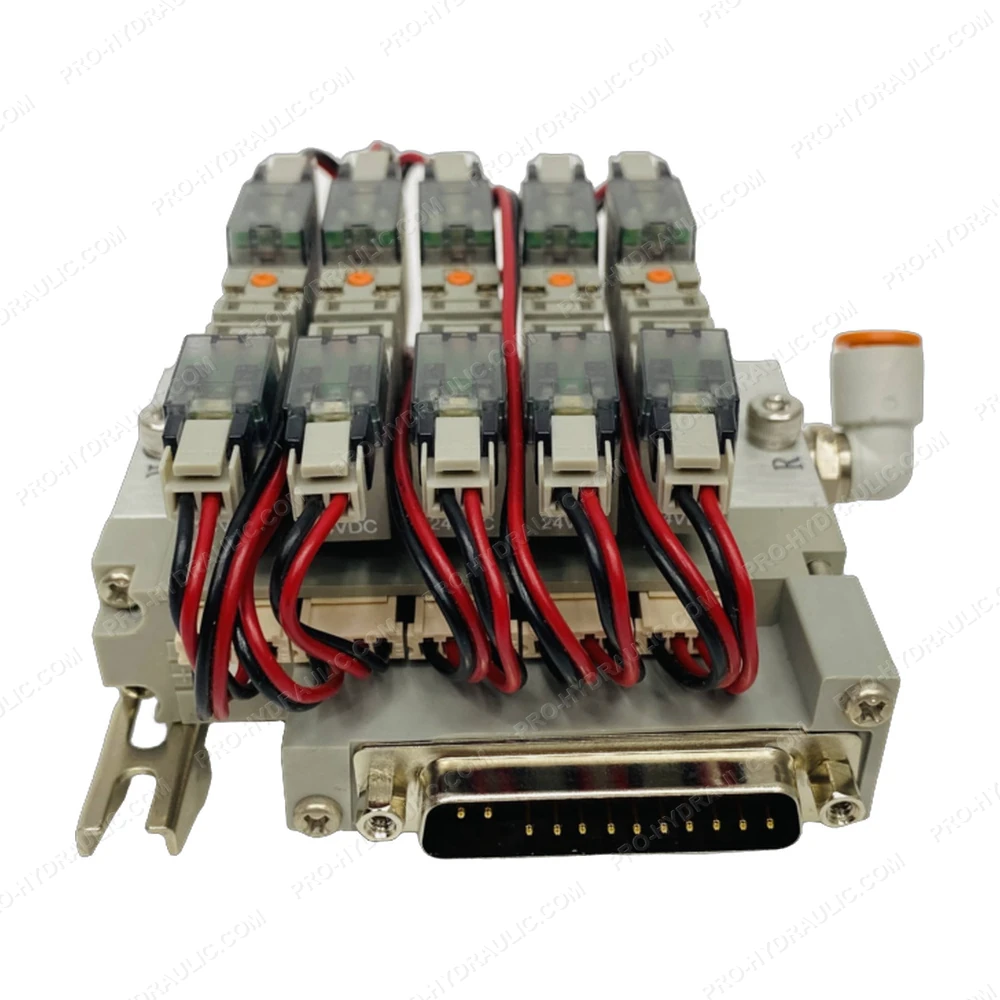

SMC SS5YJ3-DUI00249 Solenoid Valve Manifold
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SS5YJ3-DUI00249 Solenoid Valve Manifold. This Japan-made 24V DC pneumatic component features a compact, modular design, delivering reliable, leak-free air control for heavy-duty industrial automation systems.
