Product Overview
The SMC SS5YJ3-DUK02255 is a pneumatic valve manifold base engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This manifold base serves as the central mounting and distribution platform for SMC SY series solenoid valves, enabling the consolidation of multiple pneumatic valve stations into a single, compact assembly. By integrating supply and exhaust galleries directly into the base body, the SS5YJ3-DUK02255 eliminates the need for individual fittings and tubing runs at each valve position, significantly reducing installation complexity, leak potential, and overall system footprint. It is designed for use in centralized pneumatic control panels and valve islands where precise air distribution, rapid maintenance, and space-efficient layout are critical to overall system performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Valve Manifold Base (Process & Pneumatic Valve Accessory) |
| Model Designation | SS5YJ3-DUK02255 |
| Series Compatibility | SMC SY Series Solenoid Valves (SY3000 / SY5000 class manifold platform) |
| Operating Pressure | Standard Industrial Grade (typically 0.1 to 0.7 MPa / approx. 1 to 7 bar, depending on valve configuration) |
| Mounting & Connection | Standard SMC manifold interface with integrated supply/exhaust ports and valve station mounting positions |
| Fluid Medium | Filtered compressed air (non-lubricated or lubricated, per valve specification) |
| Body Material | Die-cast aluminum alloy with corrosion-resistant surface treatment |
Engineering Features & Advantages
- Precision Performance: Machined internal galleries deliver balanced air supply and exhaust flow to each valve station, ensuring consistent actuation response and stable pressure across all mounted valves.
- Integrated Modular Architecture: Consolidates multiple valve positions onto a single base, dramatically reducing tubing, fittings, and panel space compared to individually plumbed valves.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a rigid die-cast body that resists vibration, thermal cycling, and mechanical stress in demanding automation environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, allowing drop-in replacement or expansion of existing SY series valve manifold installations.
- Simplified Maintenance: Individual valves can be removed or replaced without disturbing adjacent stations or the manifold’s common supply and exhaust connections, minimizing downtime.
Typical Industrial Applications
The SMC SS5YJ3-DUK02255 pneumatic valve manifold base is widely deployed in centralized pneumatic control systems across heavy industry. Common applications include plastic injection molding machines requiring multi-actuator sequencing, automated assembly and packaging lines with dense valve clusters, CNC machine tools and machining centers utilizing pneumatic clamping and tool-change circuits, and general factory automation panels where compact, high-density valve islands are essential for space-efficient control cabinet design.
PRODUCT IMAGES

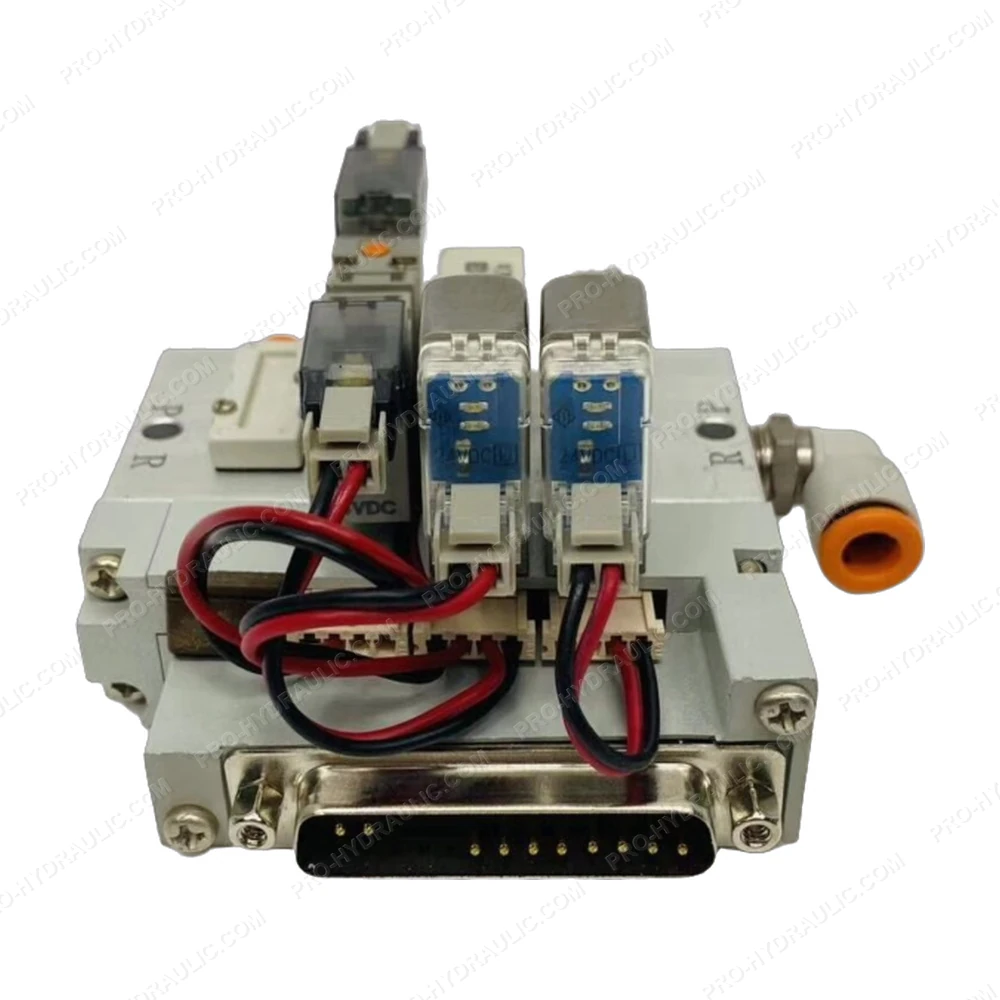

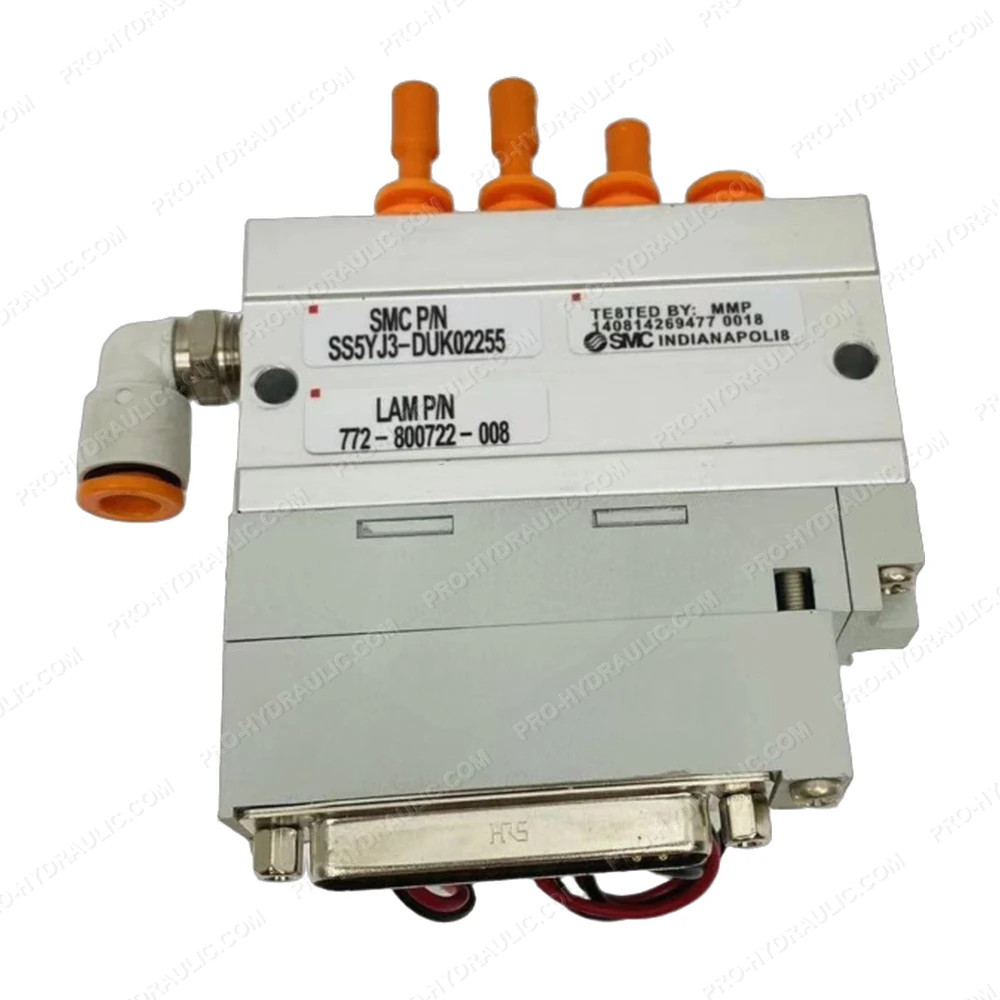

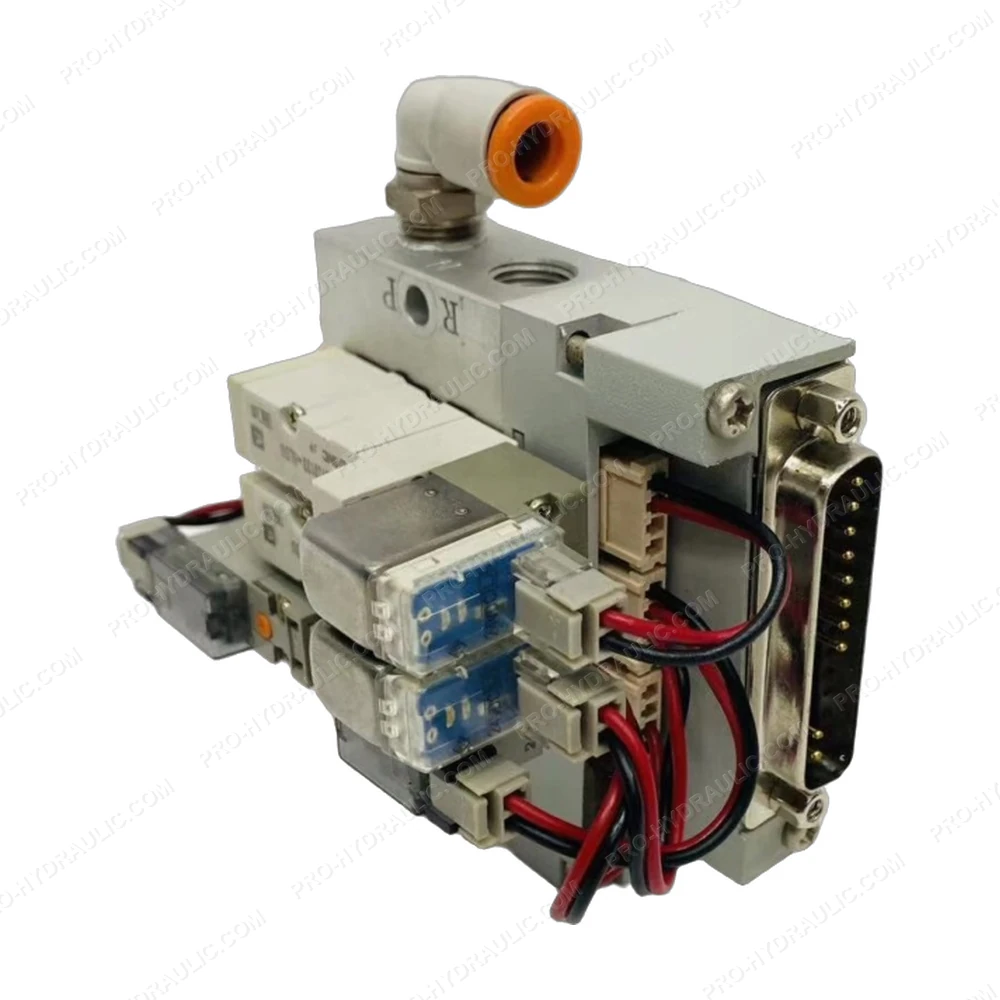

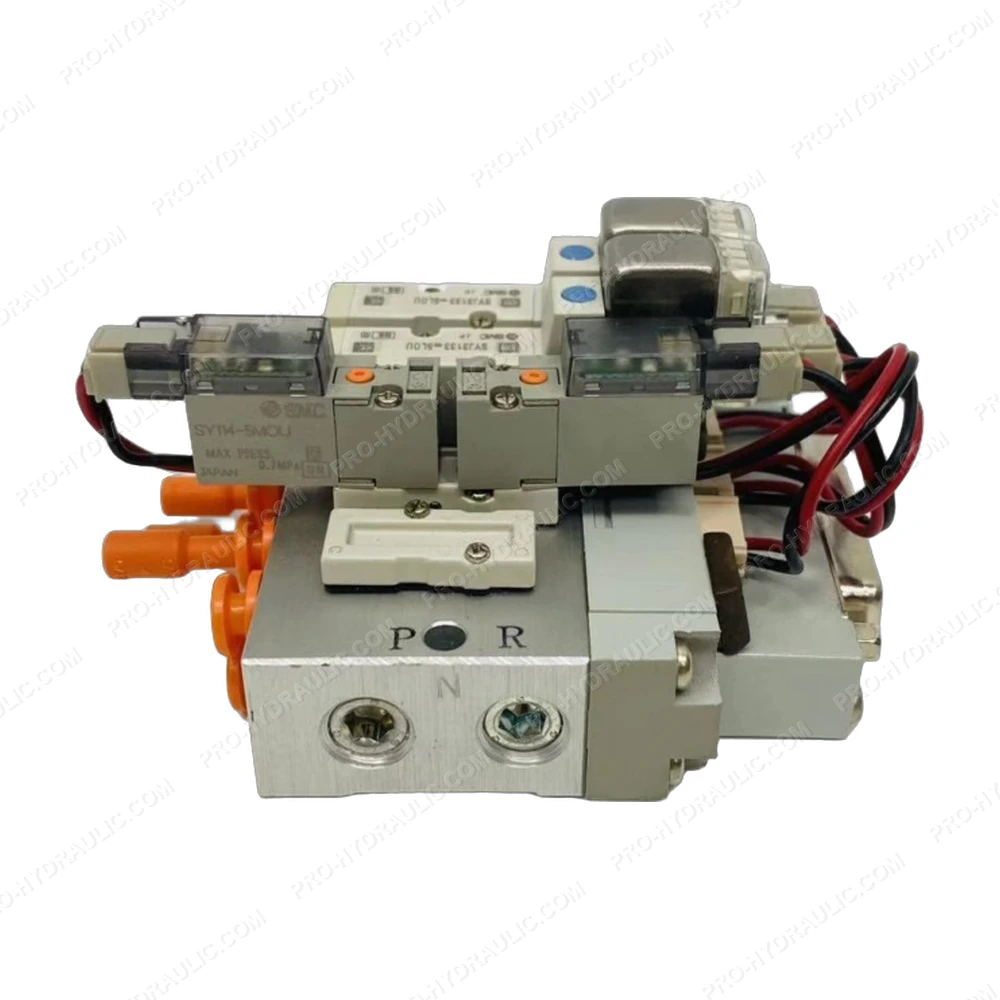

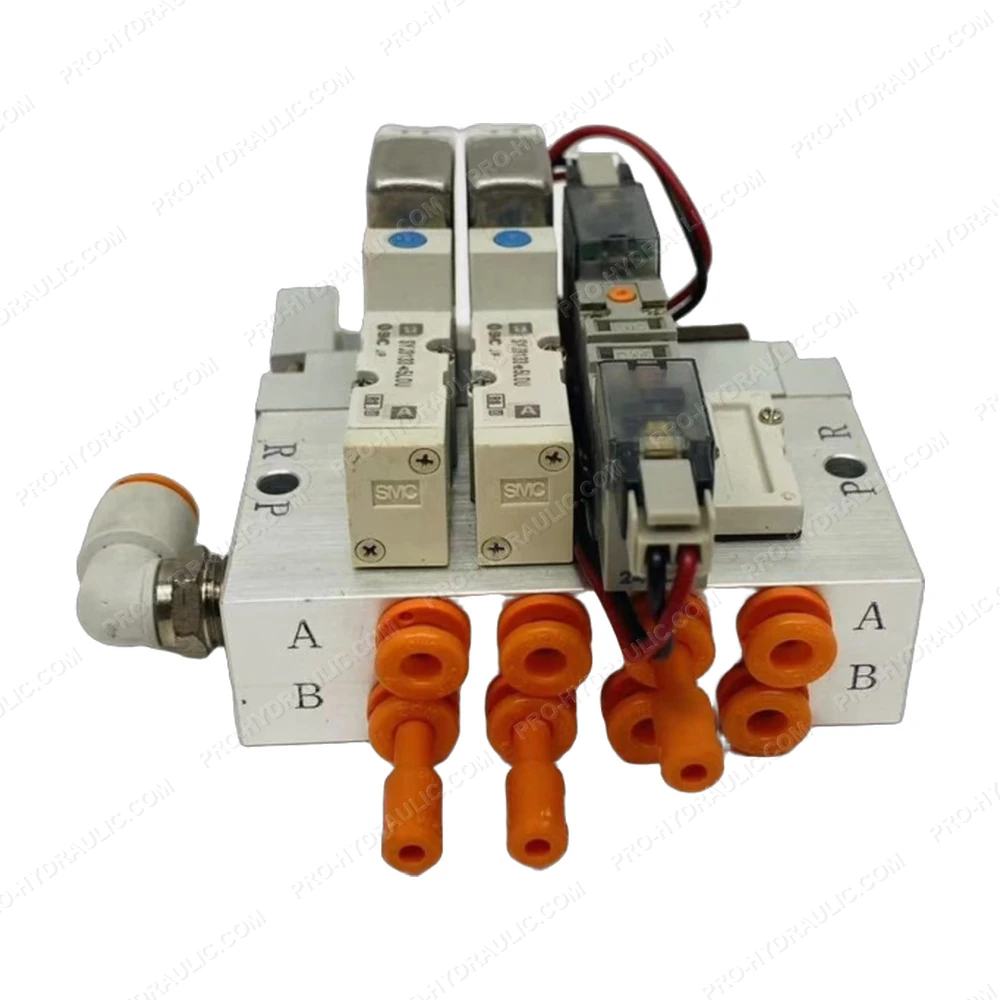

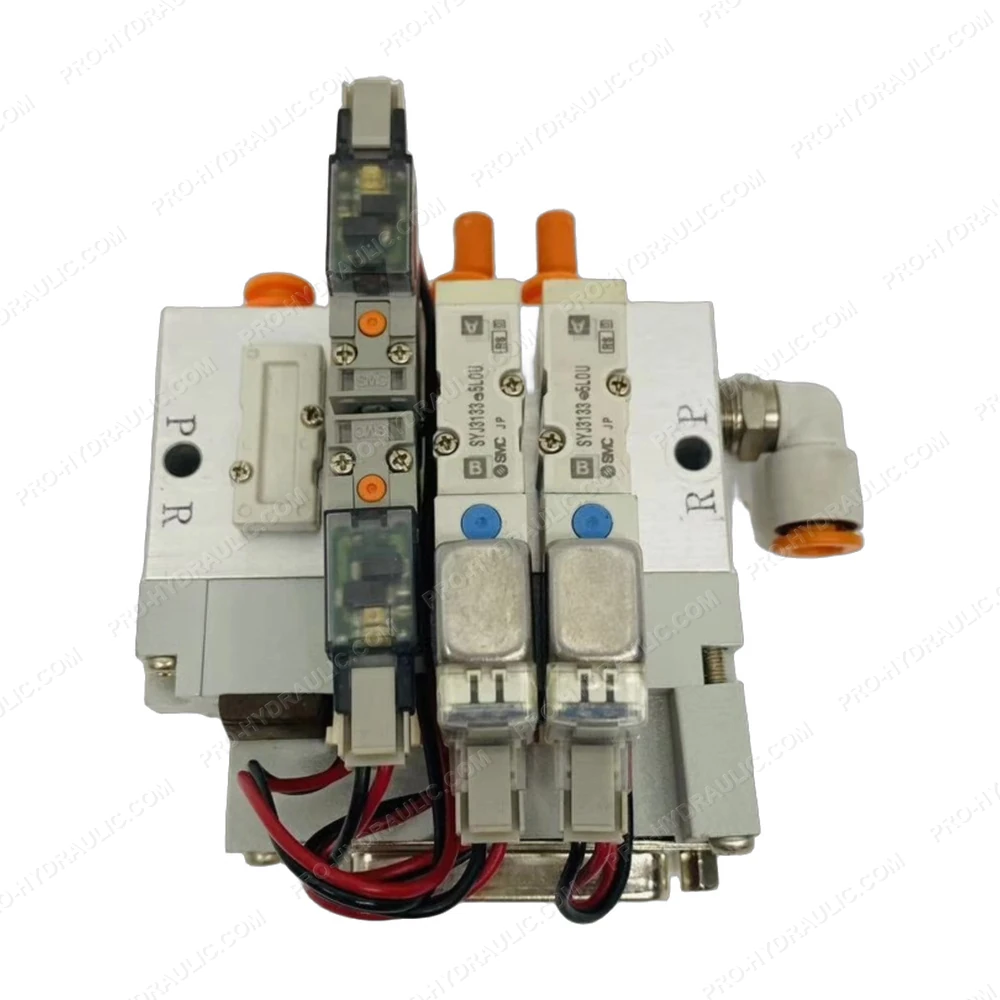

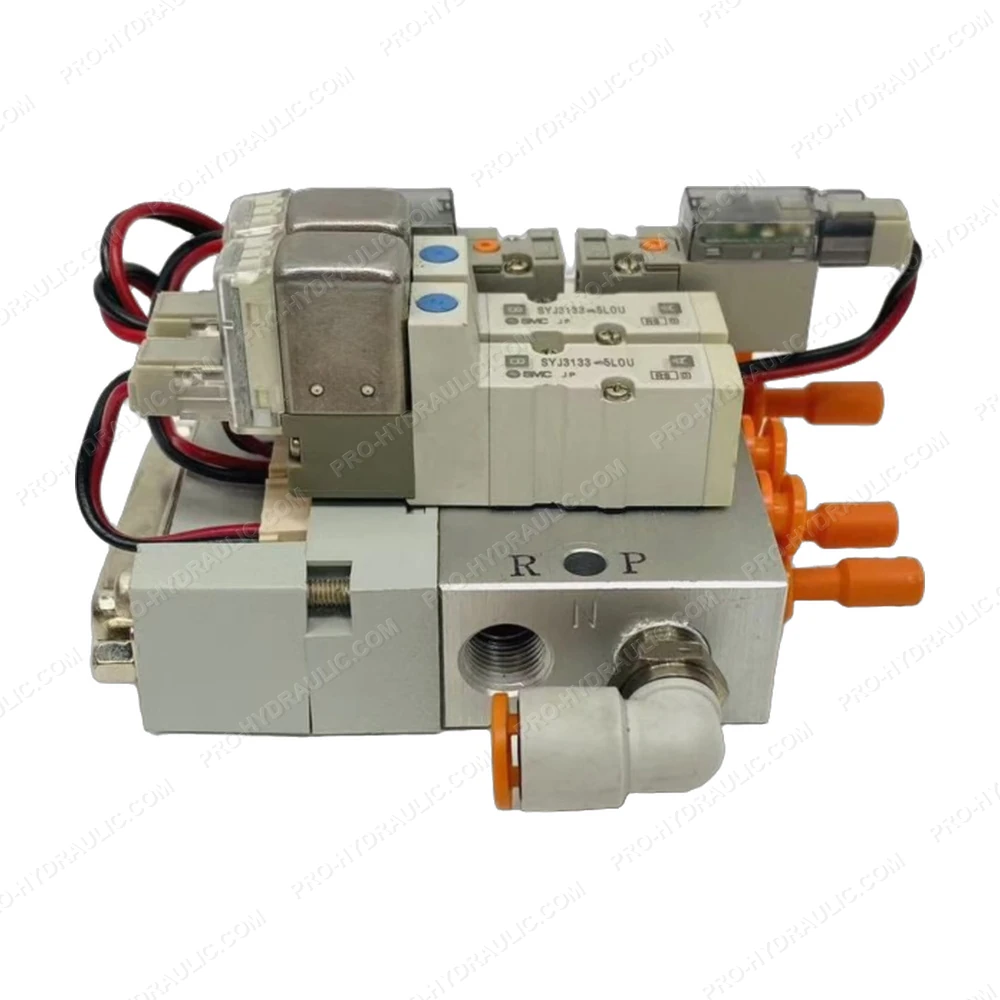

SMC SS5YJ3-DUK02255 Pneumatic Valve Manifold Base
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SS5YJ3-DUK02255 Solenoid Valve Manifold. This Japan-made 24VDC pneumatic component features a compact, modular design, delivering reliable, leak-free air control for heavy-duty industrial automation systems.
