Product Overview
The SMC SY3200-5U1 is a 5-port solenoid-operated directional control valve from the SMC SY3000 series, engineered for precise pneumatic circuit control in industrial automation systems. Utilizing a balanced spool and sleeve design, this valve directs compressed air through five ports (one pressure supply, two exhaust, and two cylinder ports) to actuate double-acting cylinders and other pneumatic actuators. The 5U1 configuration denotes a single solenoid, spring-return, 5/2-way function, providing reliable directional control with automatic return to the de-energized position upon power loss. Its compact body, high cycle life, and fast response time make it a standard choice for manifold-mounted valve banks in factory automation, packaging, and assembly equipment.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Solenoid Valve (5/2-Way Directional Control Valve) |
| Model Designation | SY3200-5U1 |
| Valve Function | 5/2-Way, Single Solenoid, Spring Return |
| Operating Pressure | 0.1 to 0.7 MPa (standard pneumatic supply range) |
| Port Size | M5 / 1/8 (metric threaded ports, SY3000 body size) |
| Coil Voltage | 24 VDC (standard; other voltages available per configuration) |
| Mounting & Connection | Manifold / Sub-base mount, SMC SY3000 series interface |
| Seal Material | NBR (Nitrile) standard, suitable for filtered dry air |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: Balanced spool construction ensures consistent shifting force, minimal leakage, and stable directional control across the full operating pressure range.
- Fast Response & High Cycle Life: Optimized solenoid and return spring deliver rapid actuation and reliable performance over millions of switching cycles in continuous-duty automation.
- Compact Manifold-Mount Body: Space-efficient SY3000 footprint allows dense valve bank installation, reducing cabinet size and simplifying pneumatic circuit routing.
- Industrial Reliability: Built for continuous operation under demanding factory conditions, with robust coil insulation and durable internal sealing.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC SY3000 series manifolds and original OEM specifications.
Typical Industrial Applications
The SMC SY3200-5U1 is widely deployed in factory automation and process control systems, including packaging and labeling machinery, assembly and pick-and-place equipment, CNC machine tool pneumatic clamping and tool-change circuits, and general double-acting cylinder actuation in plastic injection molding, material handling, and automated production lines.
PRODUCT IMAGES

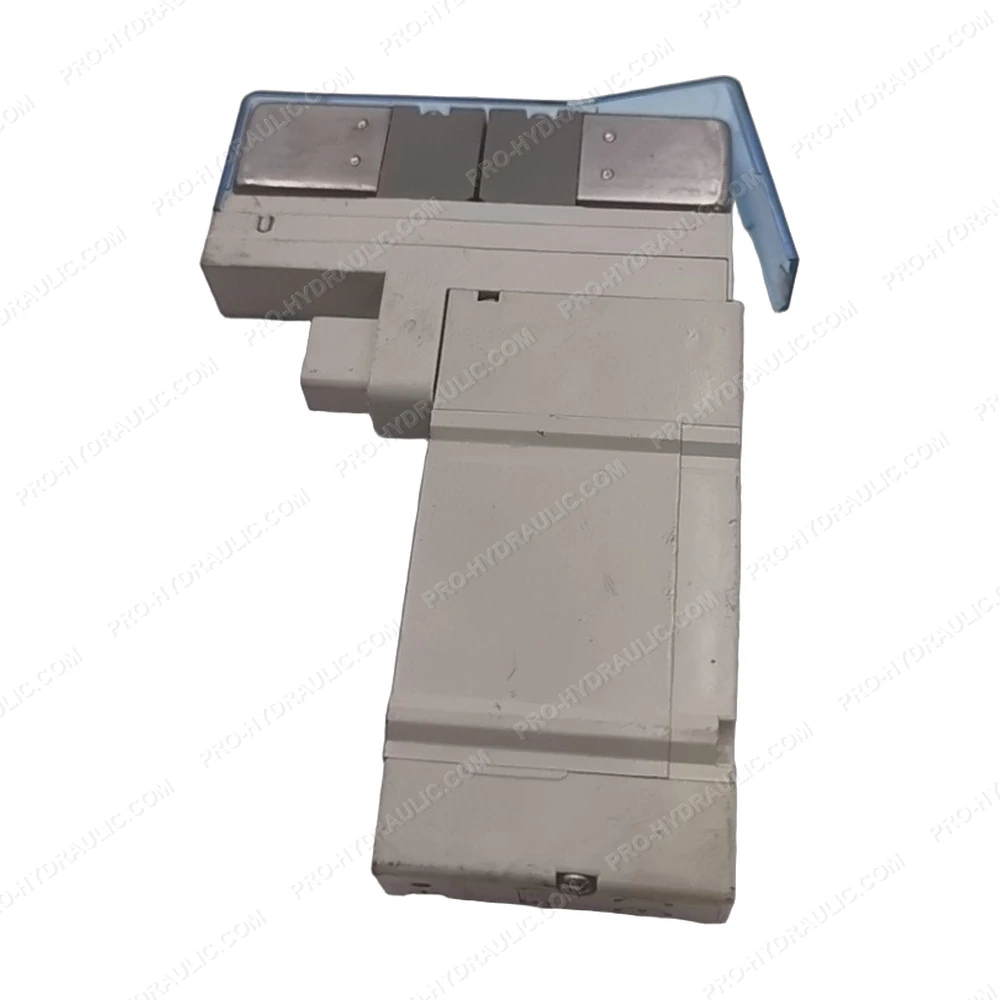

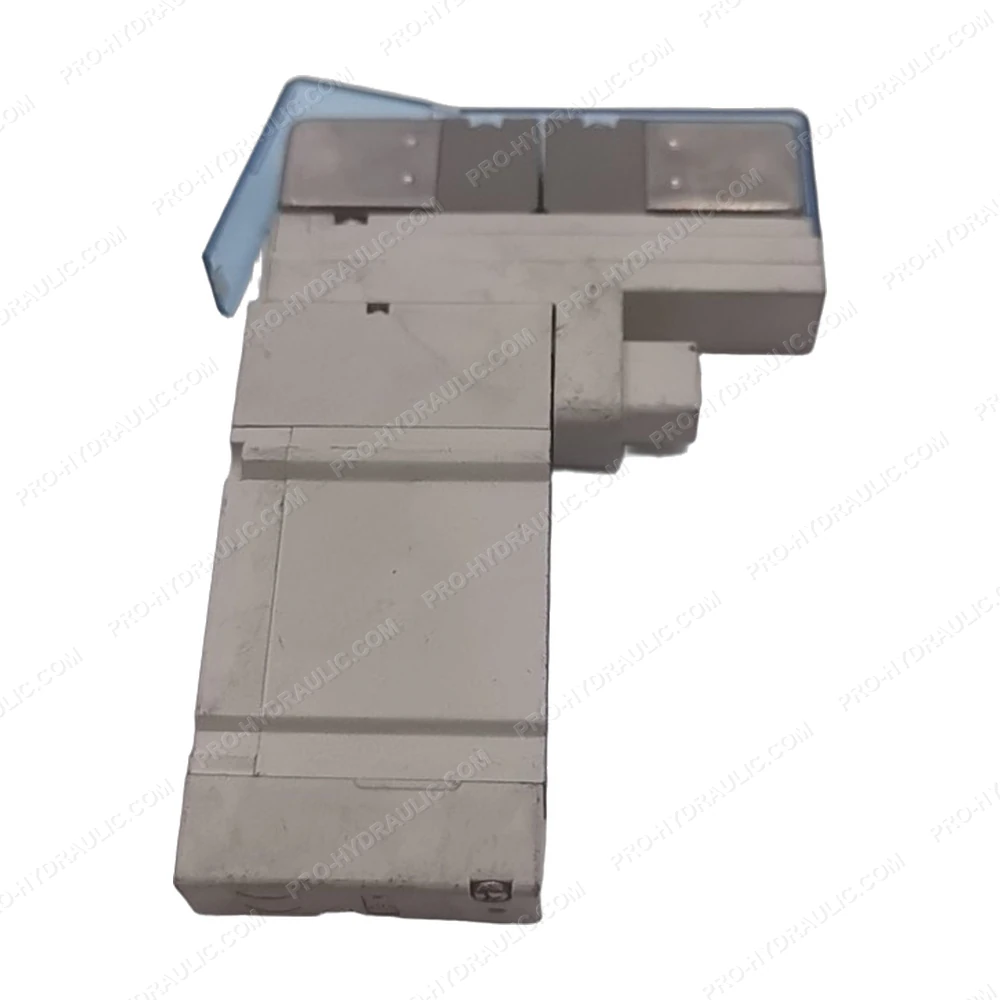

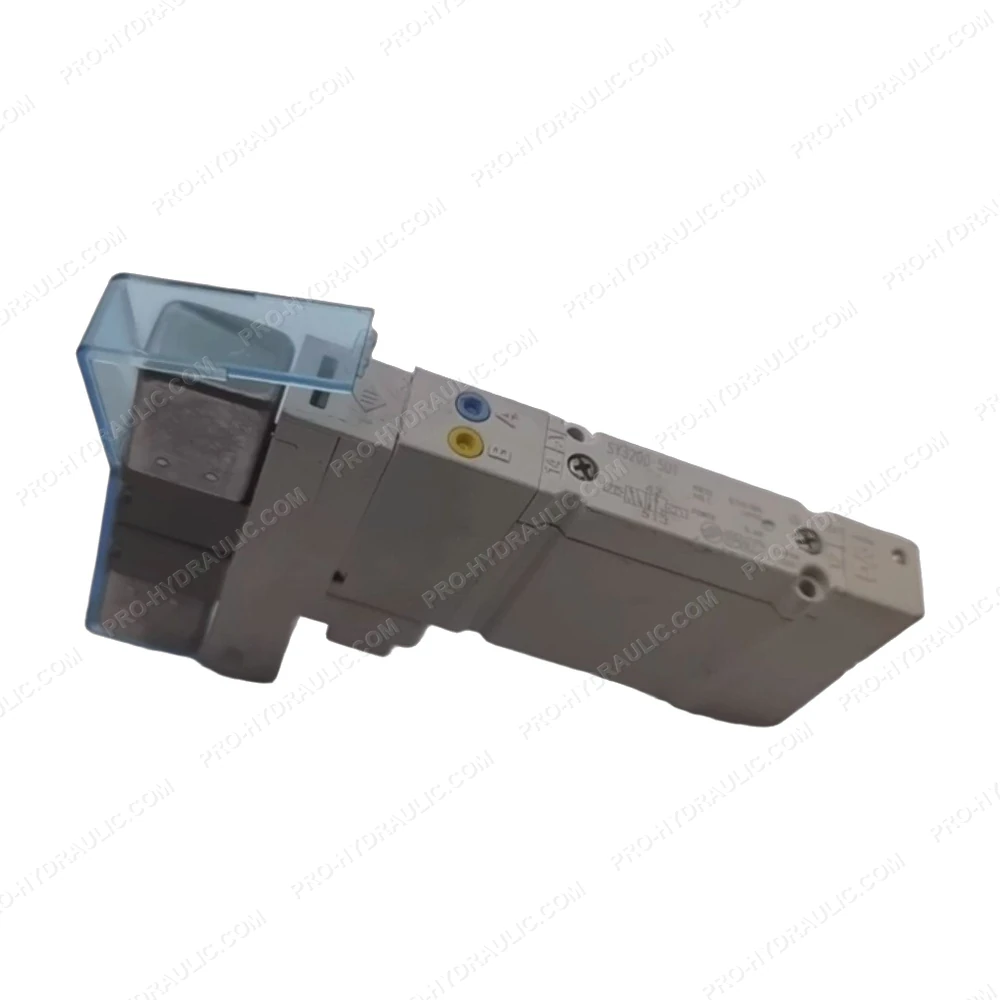

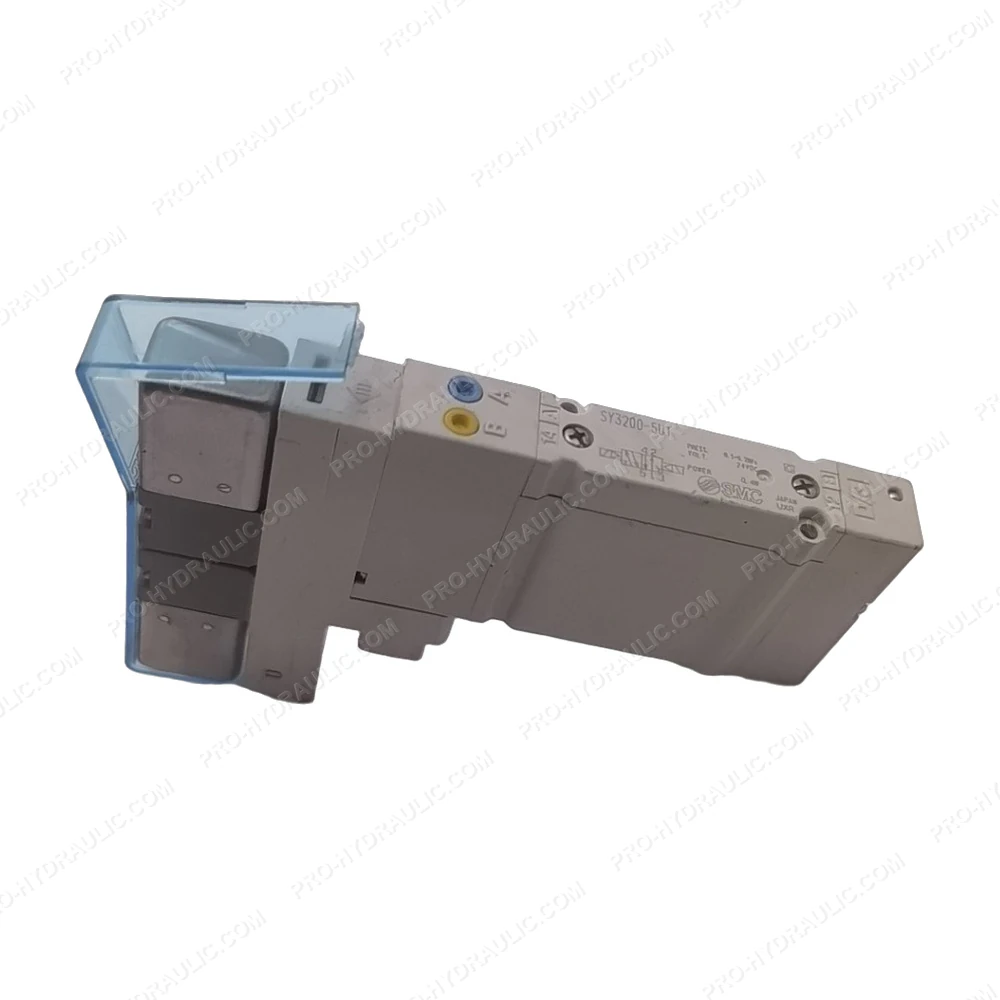

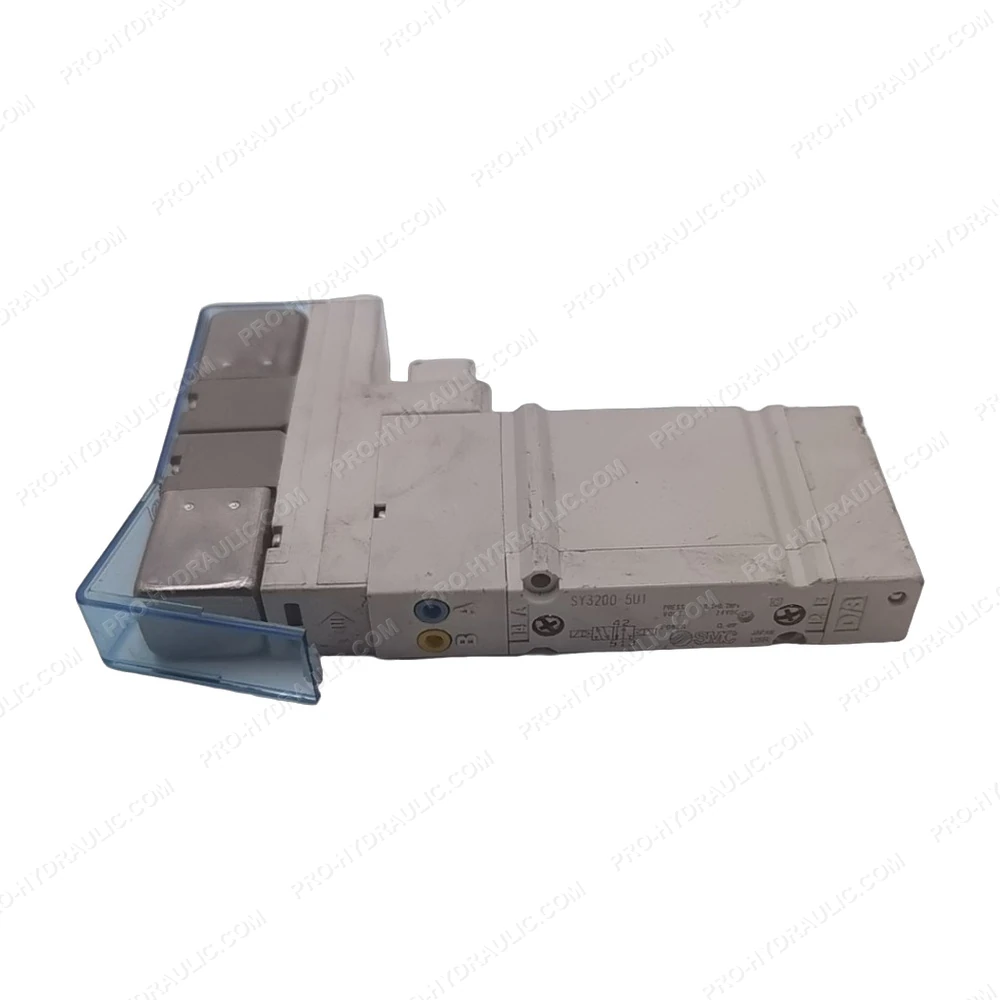

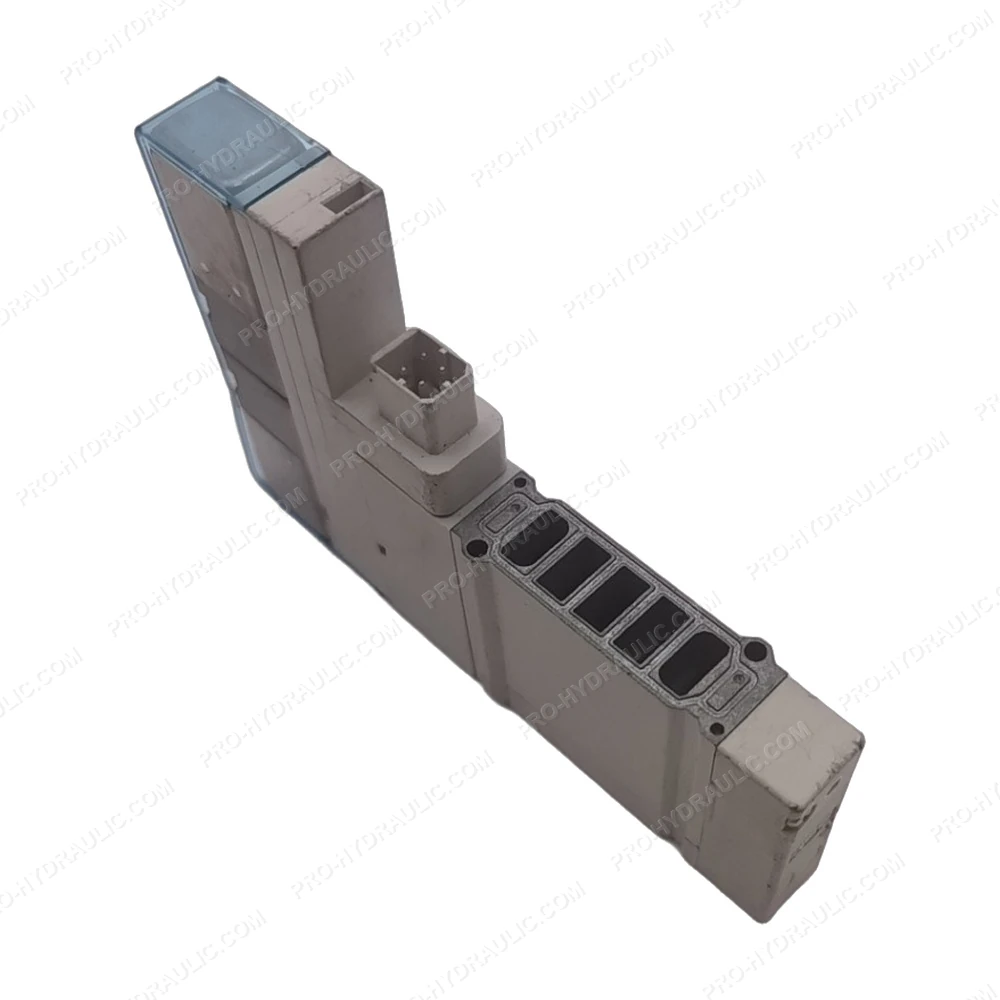

SMC SY3200-5U1 5-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY3200-5U1 Solenoid Valve. This Japan-made 24V DC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
