Product Overview
The SMC SY5120-5D-01 is a 5-port pneumatic solenoid valve from the SMC SY5000 series, engineered for precise directional control of compressed air in industrial automation and process systems. Utilizing a balanced spool and sleeve design, this valve delivers reliable 5/2-way directional function with fast response and consistent shifting performance. The SY5120-5D-01 features a single solenoid, spring-return configuration with a 24 VDC solenoid coil, making it ideal for controlling double-acting pneumatic cylinders, actuators, and air-operated process equipment. Its compact body, high flow capacity, and robust construction ensure dependable operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Pneumatic Solenoid Valve (5/2-Way) |
| Model Designation | SY5120-5D-01 |
| Operating Pressure | 0.1 to 0.7 MPa (1 to 7 bar) standard pneumatic range |
| Mounting & Connection | 1/8″ port size, manifold or individual mounting, ISO standard interface |
| Solenoid Voltage | 24 VDC |
| Valve Function | 5/2-way, single solenoid, spring return |
| Flow Rate | High flow capacity suitable for double-acting actuators |
| Operating Temperature | -10°C to +50°C (standard industrial range) |
Engineering Features & Advantages
- Precision Performance: Balanced spool and sleeve design ensures fast, consistent shifting and precise directional control of pneumatic flow with minimal pressure drop.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with durable seals and a robust solenoid coil rated for millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC SY5000 series valves, ensuring drop-in replacement without modification.
- Compact & Lightweight: Space-saving body design allows high-density manifold mounting, reducing installation footprint and air line complexity.
- Low Power Consumption: Energy-efficient 24 VDC solenoid minimizes heat generation and electrical load in control panels.
Typical Industrial Applications
This SMC SY5120-5D-01 solenoid valve is widely used in automated manufacturing and process industries, including: plastic injection molding machines for mold opening/closing and ejector control; packaging and assembly lines for actuating pneumatic grippers and indexers; CNC machine tools for tool clamping and coolant control; and general factory automation systems requiring reliable directional control of double-acting pneumatic cylinders and air-operated valves.
PRODUCT IMAGES

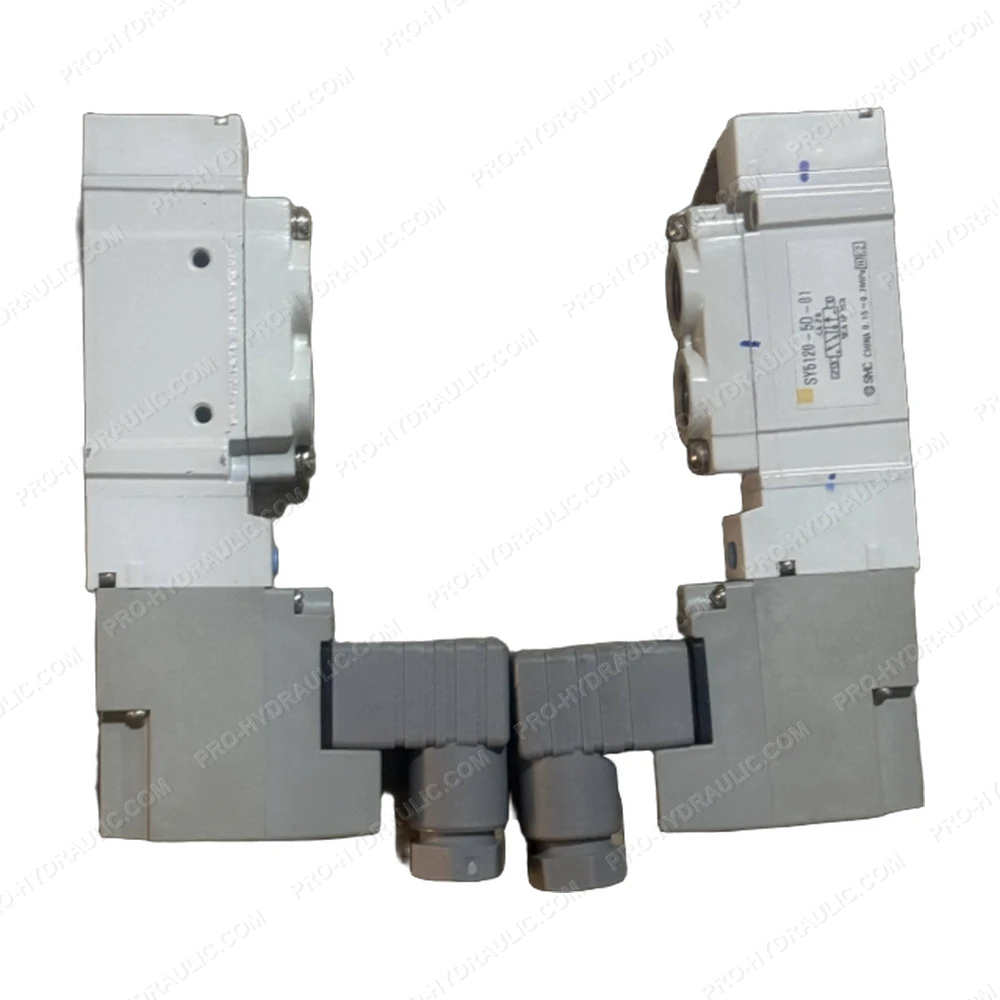

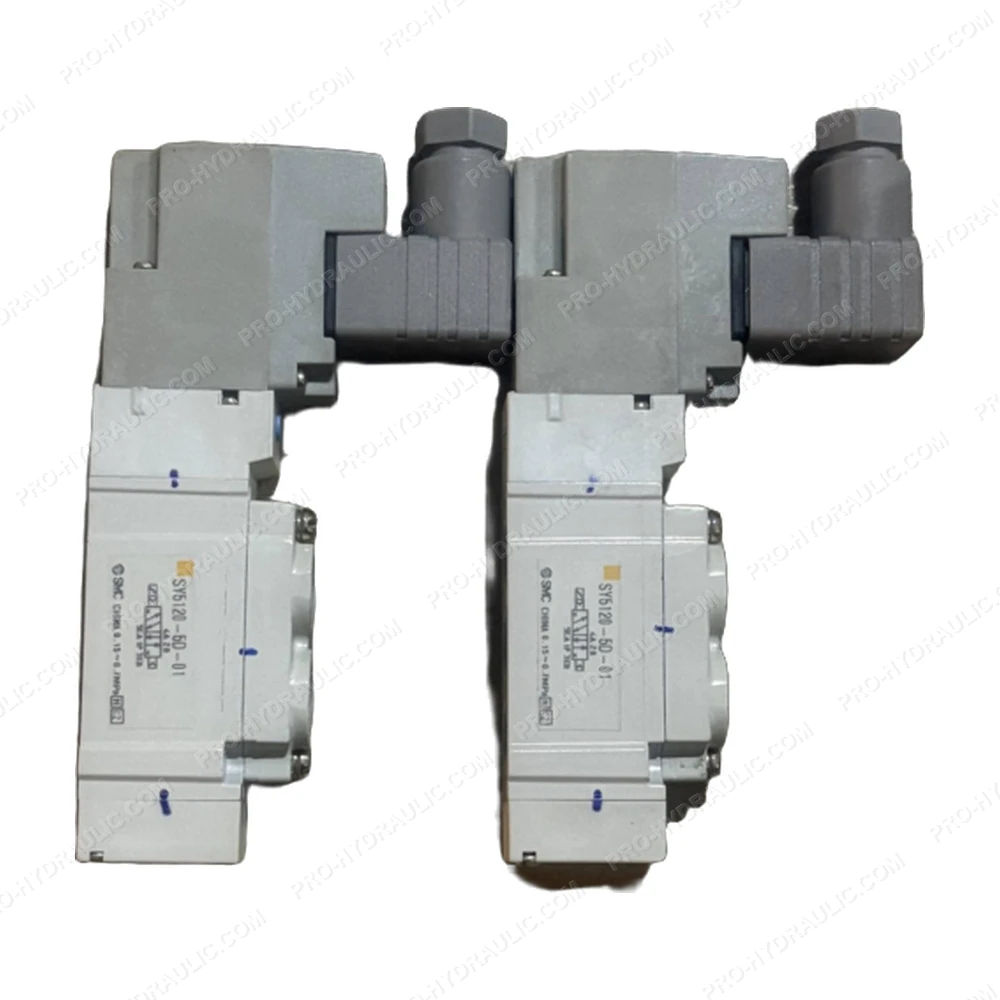

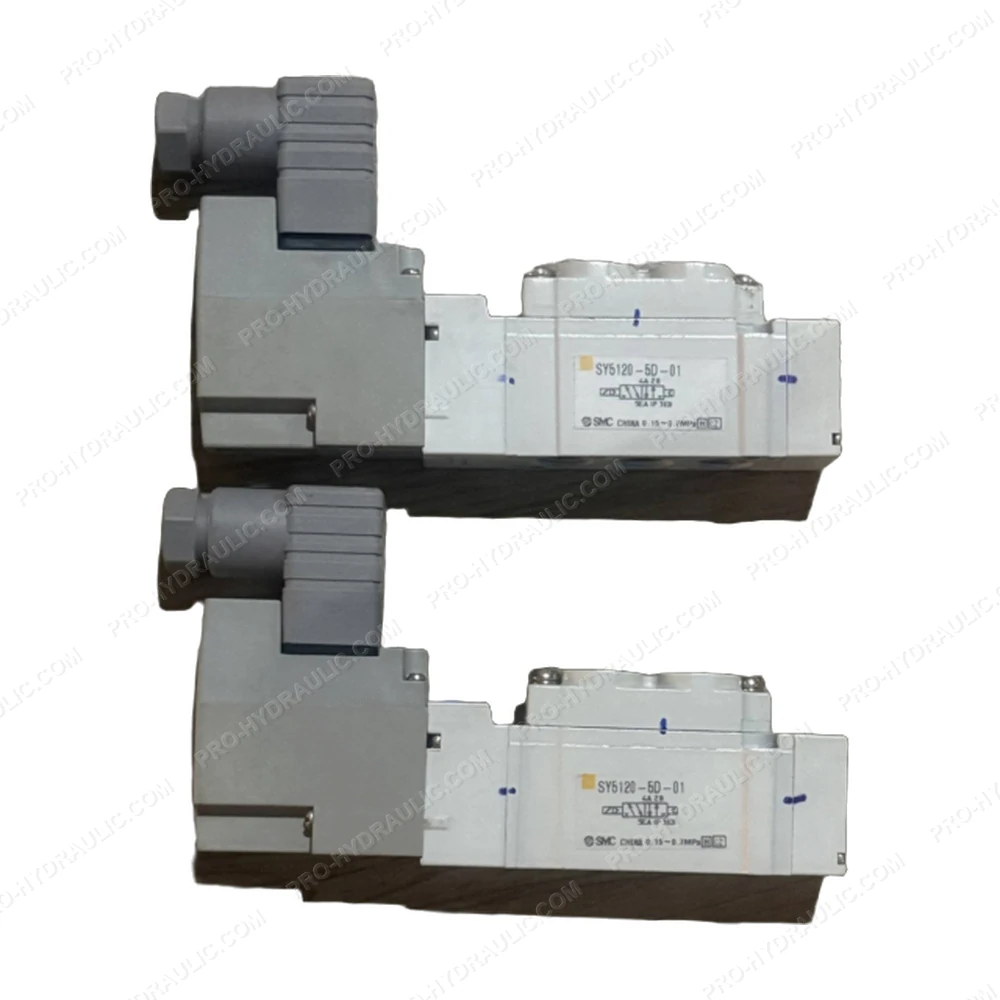

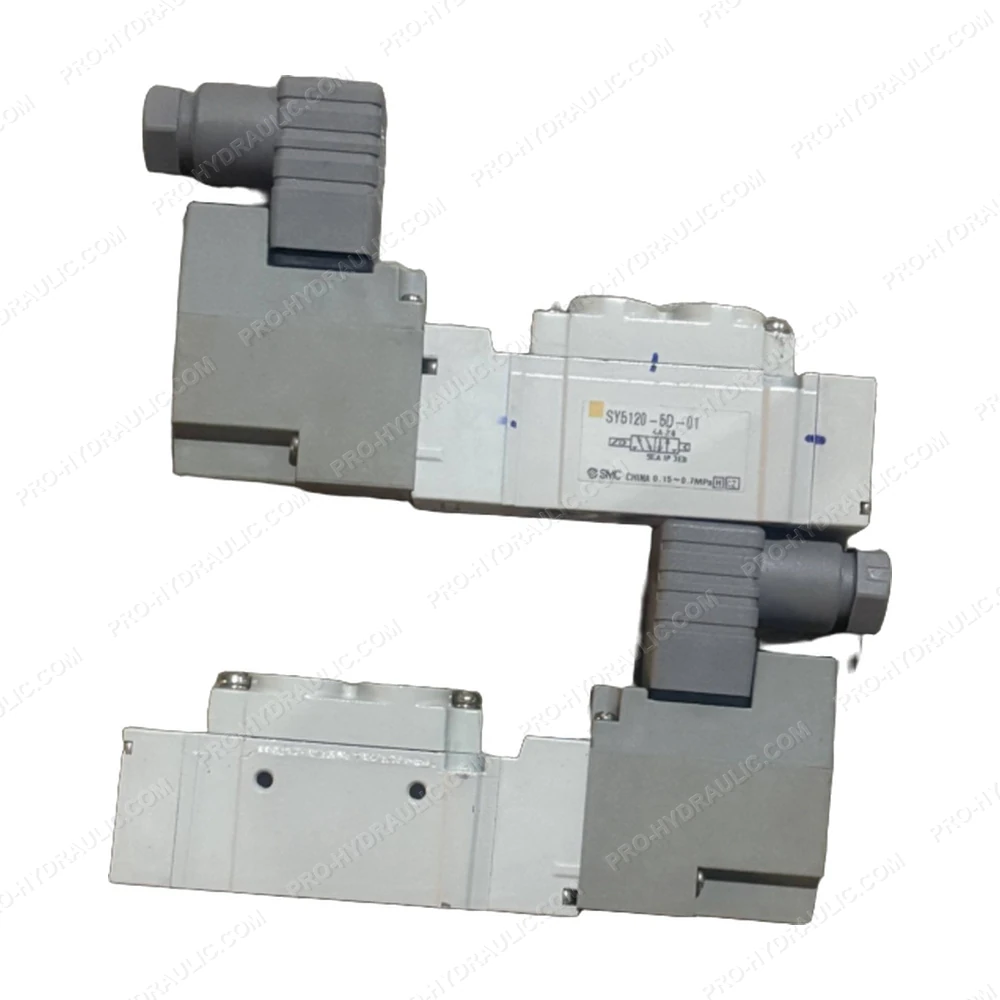

SMC SY5120-5D-01 5-Port Pneumatic Solenoid Valve
