Product Overview
The SMC SY5140-5DD is a high-performance 5-port solenoid valve from the SY5000 series, engineered by SMC Pneumatics for precise directional control of compressed air in industrial automation systems. Utilizing a spool-and-sleeve actuation principle, this valve directs airflow through five distinct ports (one pressure supply, two exhaust, and two cylinder output ports) to extend, retract, or hold pneumatic actuators. Its compact body, high flow capacity, and low power consumption make it a preferred choice for manifold-mounted valve banks in modern factory automation, packaging machinery, and process control equipment.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Solenoid Valve (Process & Pneumatic Valve) |
| Model Designation | SY5140-5DD |
| Operating Pressure | 0.15 – 0.7 MPa (1.5 – 7 bar) standard pneumatic range |
| Mounting & Connection | Manifold / sub-base mounting, M5 or 1/8 port thread interface |
Engineering Features & Advantages
- Precision Performance: Balanced spool design ensures rapid, repeatable response times and consistent flow metering for accurate actuator positioning.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with a durable solenoid coil rated for high cycle life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC SY5000 series manifold and sub-base standards.
Typical Industrial Applications
Commonly deployed in automated assembly lines, packaging and labeling machinery, plastic injection molding machines, and general pneumatic control panels requiring reliable 5-port directional valving.
PRODUCT IMAGES

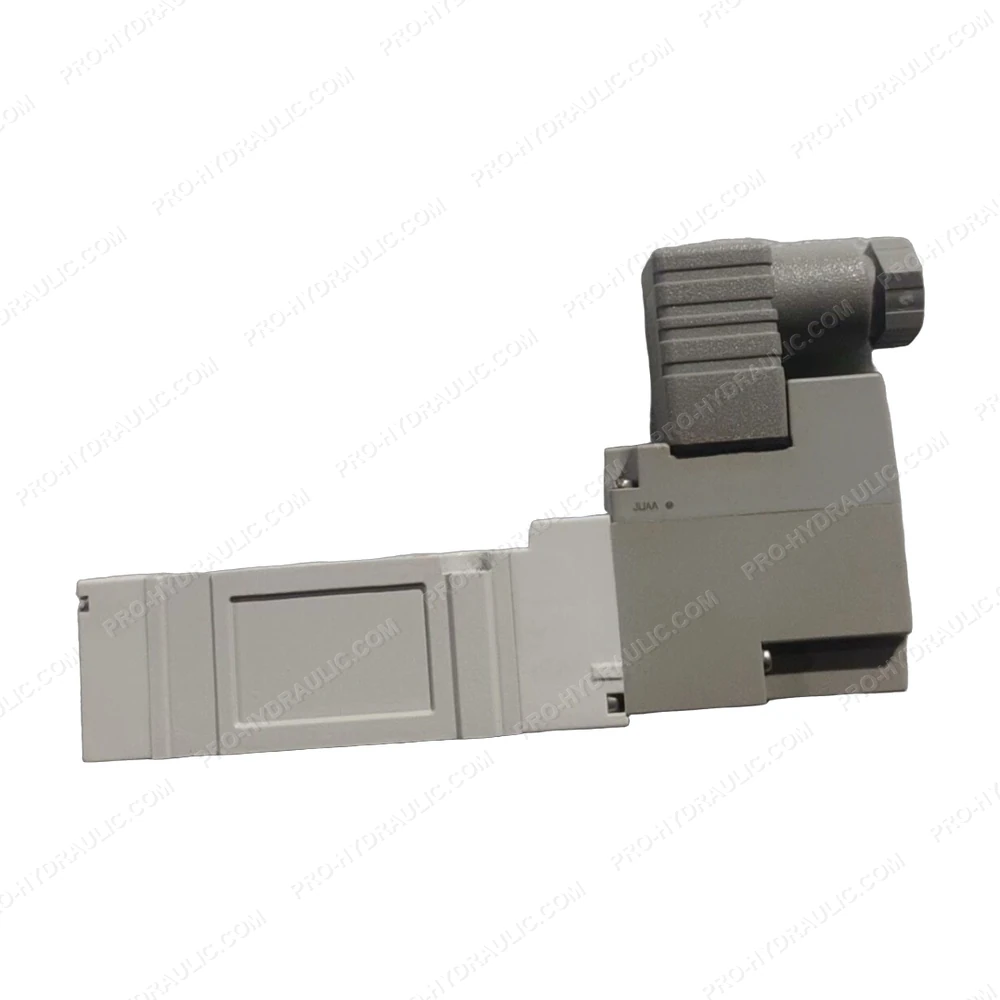

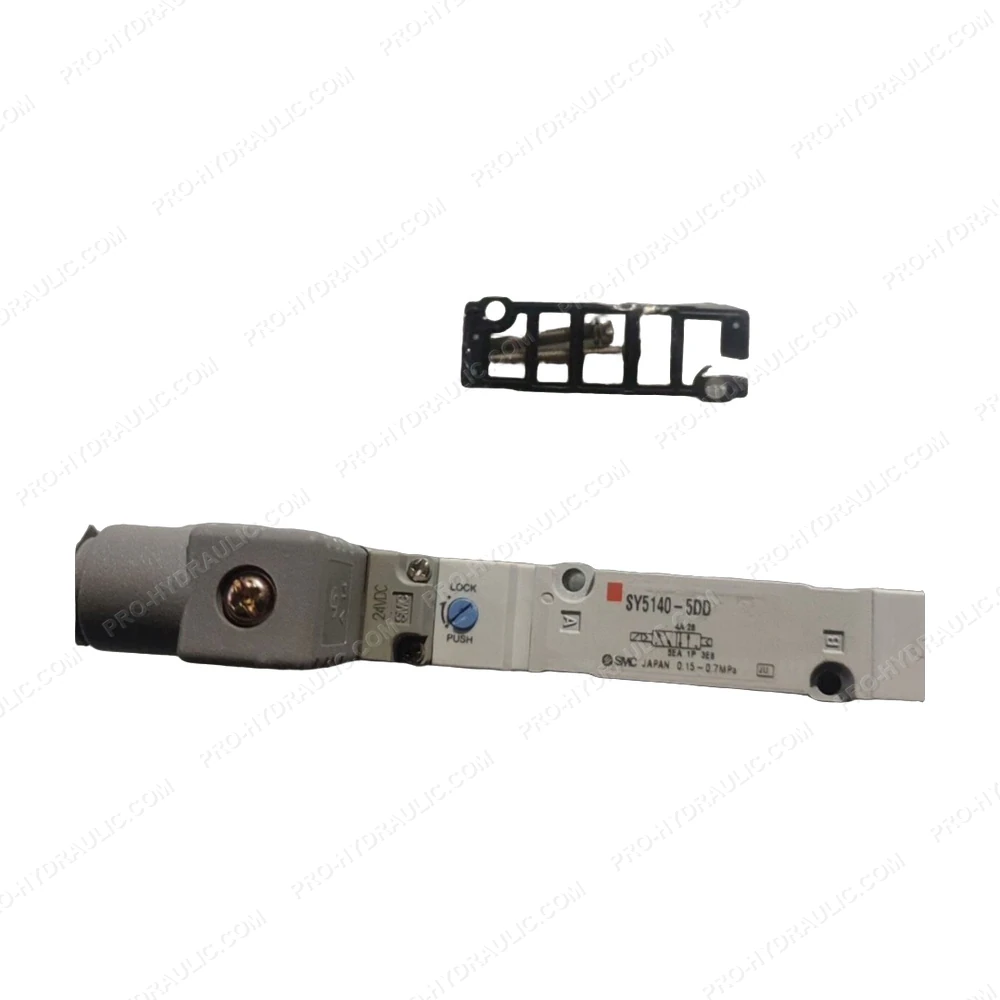

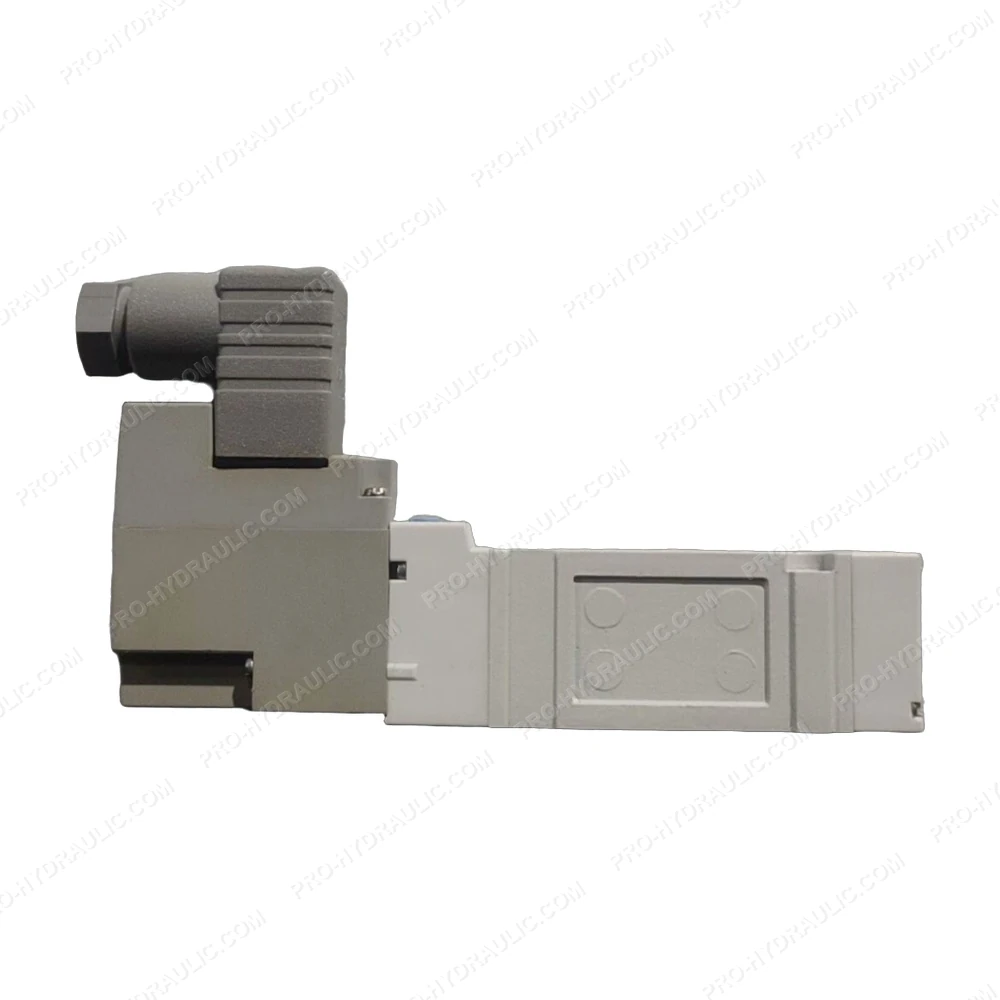

SMC SY5140-5DD 5-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY5140-5DD Solenoid Valve. This Japan-made 24V DC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
