Product Overview
The SMC SY5140-5FUE is a 5-port pneumatic solenoid valve from the SMC SY5000 series, engineered for precise directional control of compressed air in industrial automation systems. Utilizing a spool-and-sleeve actuation principle, this valve directs airflow between five ports (one pressure supply, two exhaust, and two cylinder ports) to extend and retract double-acting pneumatic actuators. The SY5140-5FUE features a single solenoid, spring-return configuration with a 24VDC solenoid coil, delivering fast, repeatable response for high-cycle pneumatic control tasks. Its compact body design and plug-in electrical connection make it a direct-fit solution for manifold-mounted and standalone pneumatic circuits in factory automation, packaging, and process equipment.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | SY5140-5FUE |
| Valve Function | 5/2 Single Solenoid, Spring Return |
| Operating Pressure | 0.15 to 0.7 MPa (Pneumatic, filtered dry air) |
| Solenoid Voltage | 24VDC |
| Port Size | 1/8 (Rc/NPT/G thread per suffix) |
| Mounting & Connection | Manifold / Body Ported, Plug-in Electrical Connector |
| Response Time | Fast actuation, suitable for high-cycle automation |
Engineering Features & Advantages
- Precision Spool Actuation: Balanced spool-and-sleeve design ensures consistent directional control and minimal leakage across the full operating pressure range.
- Fast Response & High Cycle Life: Optimized solenoid and return spring deliver rapid shifting for high-frequency pneumatic sequencing tasks.
- Compact Modular Design: SY5000 series body integrates with SMC manifold bases for space-saving multi-valve installations.
- Industrial Reliability: Built for continuous operation under demanding factory automation conditions with long service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC SY series manifold and OEM specifications.
Typical Industrial Applications
Commonly deployed in automated assembly lines for double-acting cylinder control, packaging and labeling machinery, plastic injection molding machine auxiliary circuits, CNC machine tool pneumatic clamping systems, and general factory automation requiring reliable 5/2 directional air control.
PRODUCT IMAGES

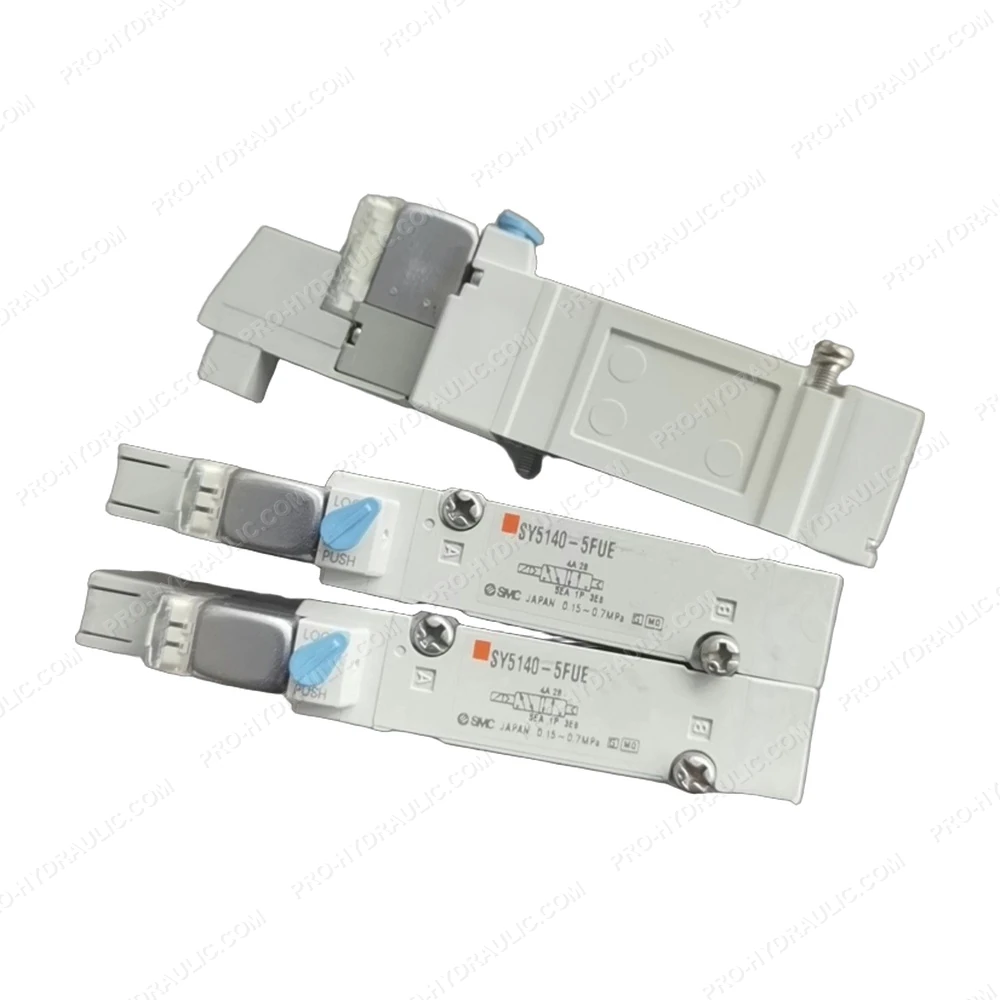

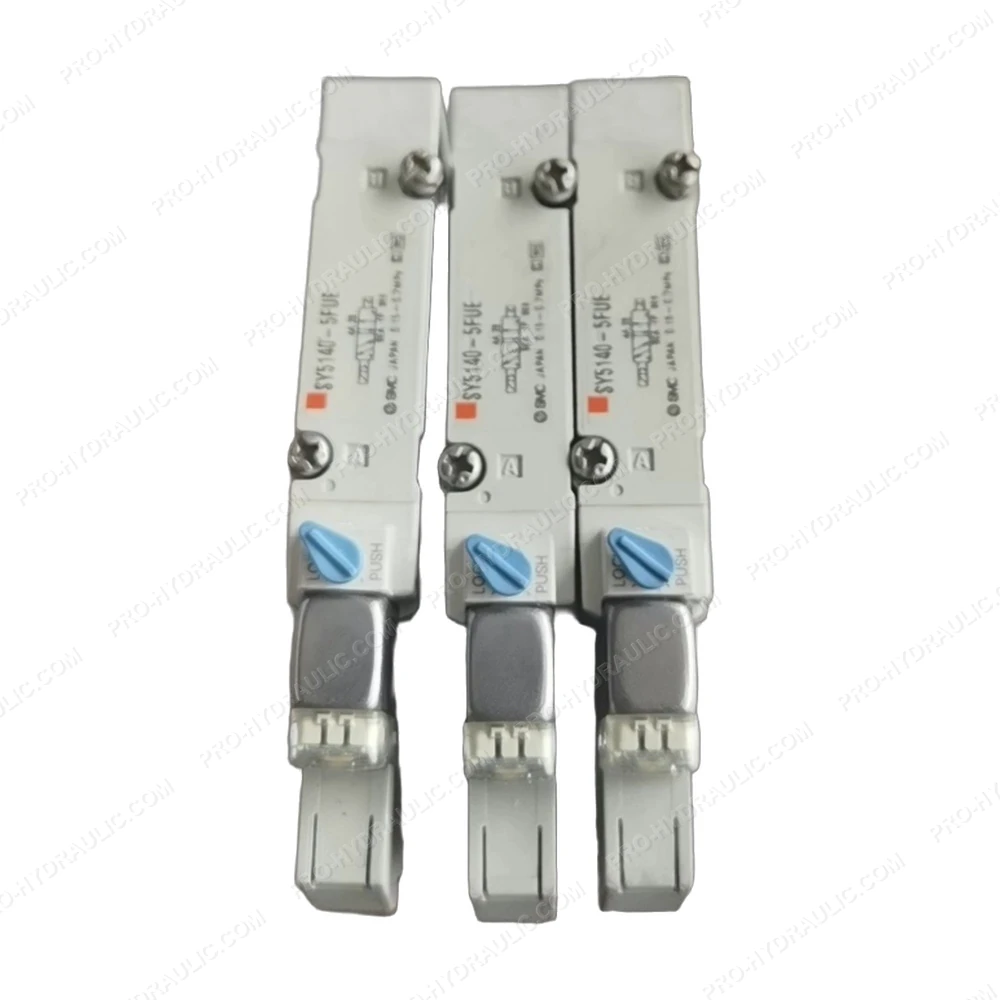

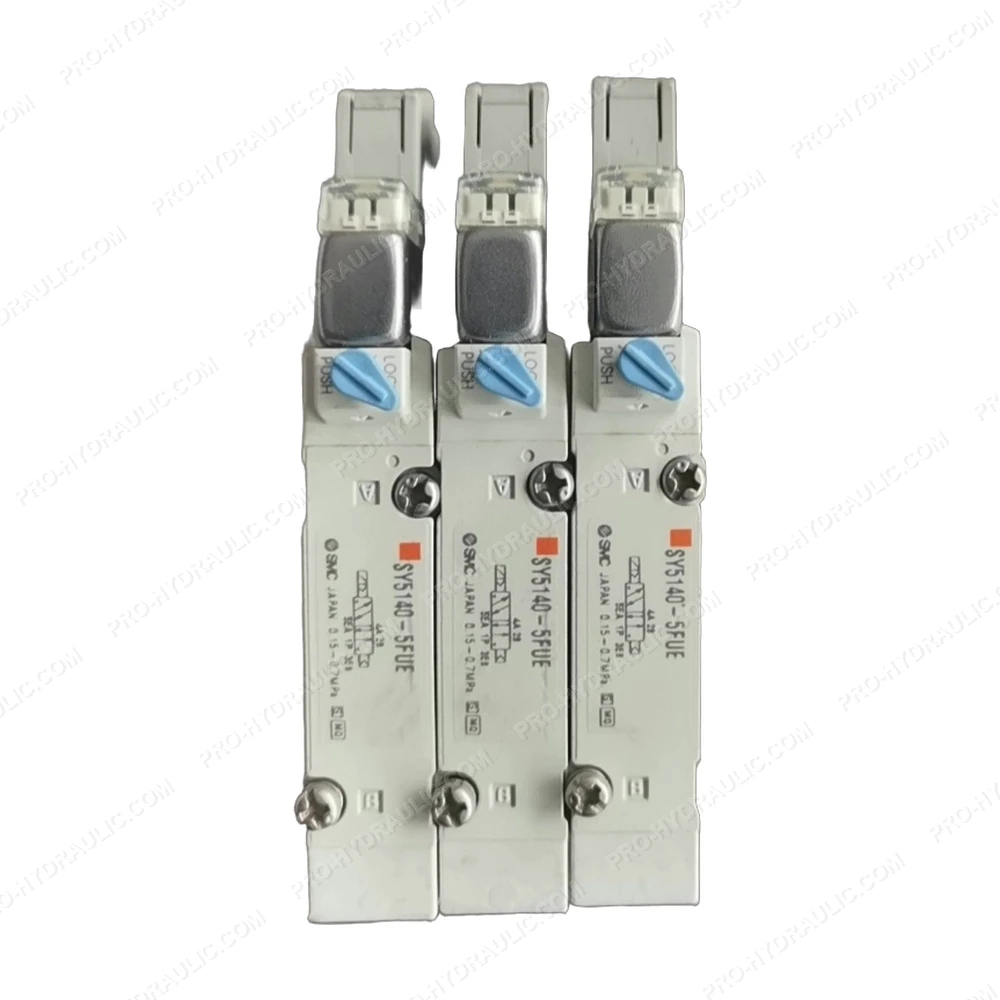

SMC SY5140-5FUE 5-Port Pneumatic Solenoid Valve
