Product Overview
The SMC SY5220-5DZ-C8 is a high-performance 5-port pneumatic solenoid valve from the SMC SY5000 series, engineered for precise directional control of compressed air in industrial automation systems. Utilizing a spool-and-sleeve actuation principle, this valve features a 5/2 (five-port, two-position) configuration with a single solenoid pilot and spring return mechanism. The SY5220-5DZ-C8 is designed to deliver rapid, repeatable switching of pneumatic actuators, cylinders, and air-operated process equipment. Its compact body, high flow capacity, and low power consumption make it a preferred choice for manifold-mounted valve banks in demanding factory automation environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Pneumatic Solenoid Valve (5/2 Directional Control) |
| Model Designation | SY5220-5DZ-C8 |
| Series | SMC SY5000 Series |
| Valve Function | 5/2 Single Solenoid, Spring Return |
| Operating Pressure Range | 0.15 – 0.7 MPa (1.5 – 7 bar) |
| Proof Pressure | 1.05 MPa (10.5 bar) |
| Coil Voltage | 24 VDC (standard; consult factory for other voltages) |
| Power Consumption | 0.35 W (with power saving circuit) |
| Port Connection | C8 – Push-in fitting for 8 mm O.D. tubing |
| Mounting & Connection | Manifold / Sub-base Mounting, ISO 15407-1 compliant interface |
| Operating Temperature Range | -10°C to +50°C (non-freezing) |
| Media | Filtered compressed air (40 µm filtration recommended) |
Engineering Features & Advantages
- Precision Performance: The 5-port pneumatic solenoid valve (5/2 directional control) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 0.15 – 0.7 MPa (1.5 – 7 bar), supporting stable operation across the full working range.
Typical Industrial Applications
The SMC SY5220-5DZ-C8 is a high-performance 5-port pneumatic solenoid valve from the SMC SY5000 series, engineered for precise directional control of compressed air in industrial automation systems.
PRODUCT IMAGES

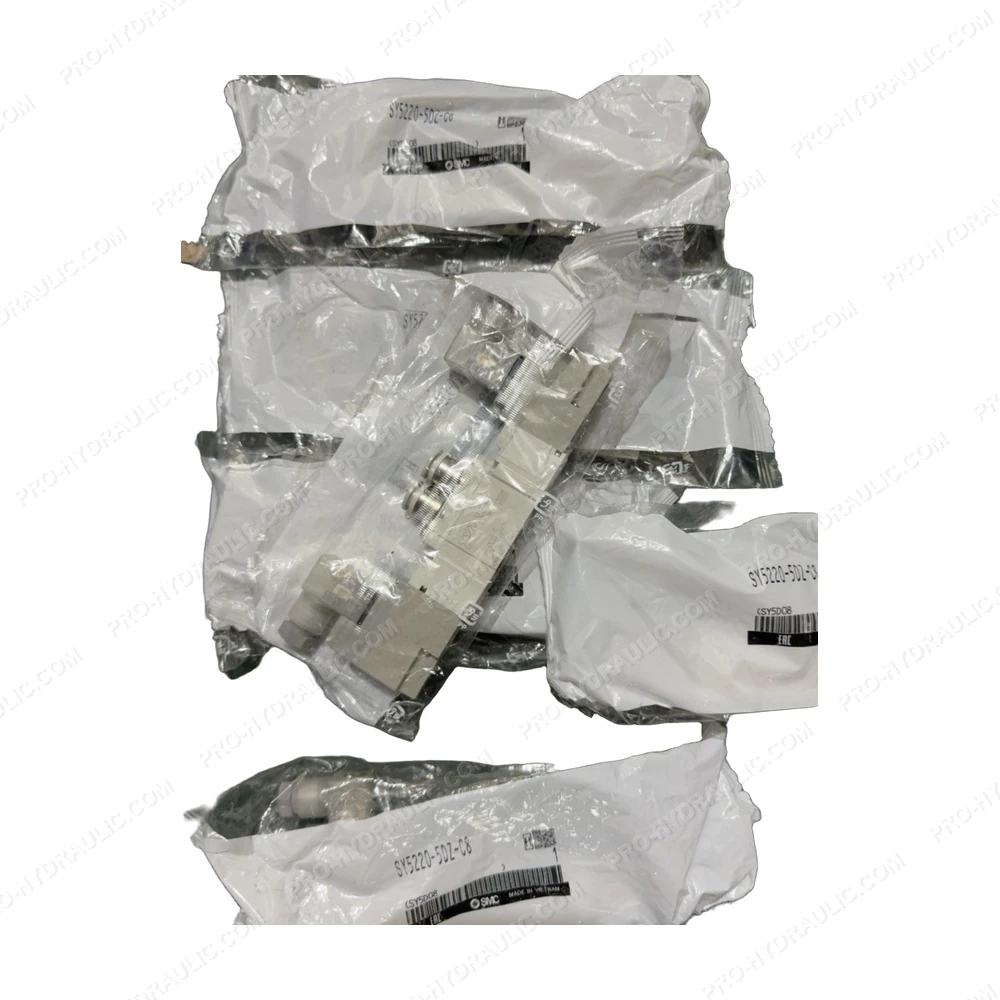

SMC SY5220-5DZ-C8 5-Port Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY5220-5DZ-C8 Solenoid Valve. This Japan-made 24VDC hydraulic component features a 5/2-way solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
