Product Overview
The SMC SY5A00-5ZD1-NA is a high-performance 5-port solenoid valve from the SMC SY series, engineered for precise directional control of compressed air and neutral gases in industrial pneumatic systems. Utilizing a balanced spool and sleeve design, this valve delivers reliable 5/2-way directional control with fast response times and consistent flow characteristics. The SY5A00 series is widely recognized for its compact body, high cycle life, and low power consumption, making it an ideal choice for demanding automation, packaging, and process control applications. The “NA” suffix indicates a non-plug-in electrical connection style, providing robust hardwired terminal connectivity for permanent installations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Solenoid Valve (Pneumatic Directional Control Valve) |
| Model Designation | SY5A00-5ZD1-NA |
| Valve Function | 5/2-Way, Single Solenoid, Spring Return |
| Operating Pressure | 0.15 – 0.7 MPa (1.5 – 7 bar) Standard Pneumatic Range |
| Coil Voltage | 24 VDC (Standard Industrial Solenoid Rating) |
| Port Size | M5 / 1/8″ (Metric / Imperial Thread Options) |
| Mounting & Connection | Manifold / Sub-base Mounted, Non-Plug-in Terminal (NA) |
| Body Material | Aluminum Alloy / Resin Composite |
| Seal Material | NBR (Nitrile Rubber) Standard |
| Response Time | ≤ 20 ms (Typical at Rated Pressure) |
| Operating Temperature | -10°C to +50°C (Non-Freezing) |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The balanced spool mechanism ensures minimal friction, precise directional control, and consistent shifting performance over millions of cycles, reducing downtime and maintenance costs.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The SY5A00 series is widely recognized for its compact body, high cycle life, and low power consumption, making it an ideal choice for demanding automation, packaging, and process control applications.
PRODUCT IMAGES

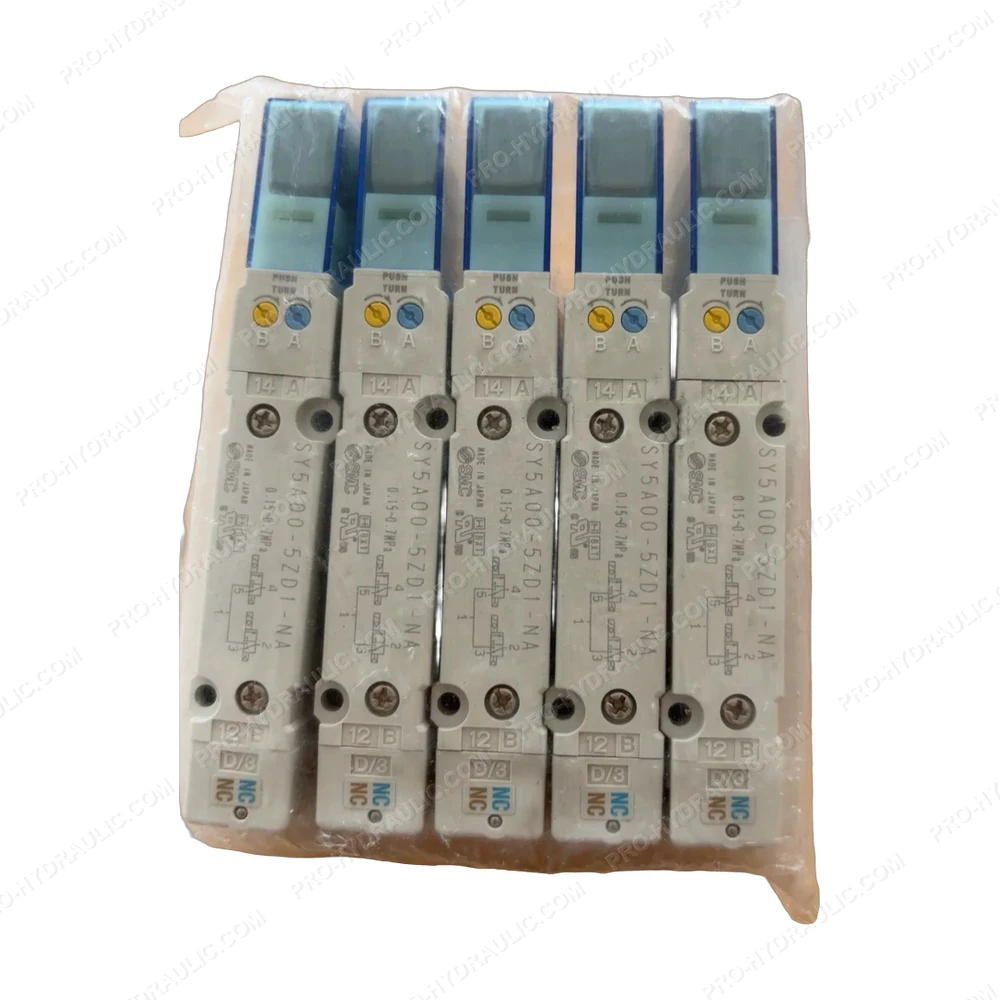

SMC SY5A00-5ZD1-NA 5-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY5A00-5ZD1-NA Solenoid Valve. This Japan-made 24V DC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
