Product Overview
The SMC SY7220-5DZD-02 is a 5-port solenoid-operated directional control valve from the SMC SY series, engineered for precise pneumatic circuit control in automated industrial systems. Utilizing a balanced spool and sleeve design, this valve directs compressed air through five ports (pressure supply, dual exhaust, and dual cylinder outlets) to actuate double-acting cylinders and other pneumatic actuators. Its compact body, fast solenoid response, and reliable sealing architecture make it a standard choice for machine builders requiring repeatable directional control, low leakage, and long service life in high-cycle automation environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Solenoid Valve (Pneumatic Directional Control Valve) |
| Model Designation | SY7220-5DZD-02 |
| Operating Pressure | Standard Pneumatic Grade (0.1 – 0.7 MPa typical operating range) |
| Mounting & Connection | Body-ported / manifold mounting with 1/4″ port size (02 designation) |
| Valve Function | 5-port, 2-position directional control |
| Actuation | Solenoid pilot actuated, spring return |
| Voltage | 24 VDC (standard DZ coil designation) |
Engineering Features & Advantages
- Precision Performance: Balanced spool and sleeve construction delivers consistent shifting force, minimal leakage, and stable flow characteristics across the full operating pressure range.
- Fast Solenoid Response: High-efficiency solenoid pilot design ensures rapid actuation and release, supporting high-cycle automation and precise sequence control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with durable seals and a robust body rated for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC SY series standards, including manifold and body-ported mounting interfaces.
- Compact Modular Design: Space-efficient footprint allows dense manifold stacking and simplified integration into existing pneumatic control panels.
Typical Industrial Applications
Commonly deployed in automated assembly and pick-and-place systems, packaging and labeling machinery, CNC machine tool pneumatic clamping and tool-change circuits, and general factory automation where reliable 5-port directional control of double-acting actuators is required. Also widely used in material handling, semiconductor manufacturing equipment, and process valve actuation skids.
PRODUCT IMAGES

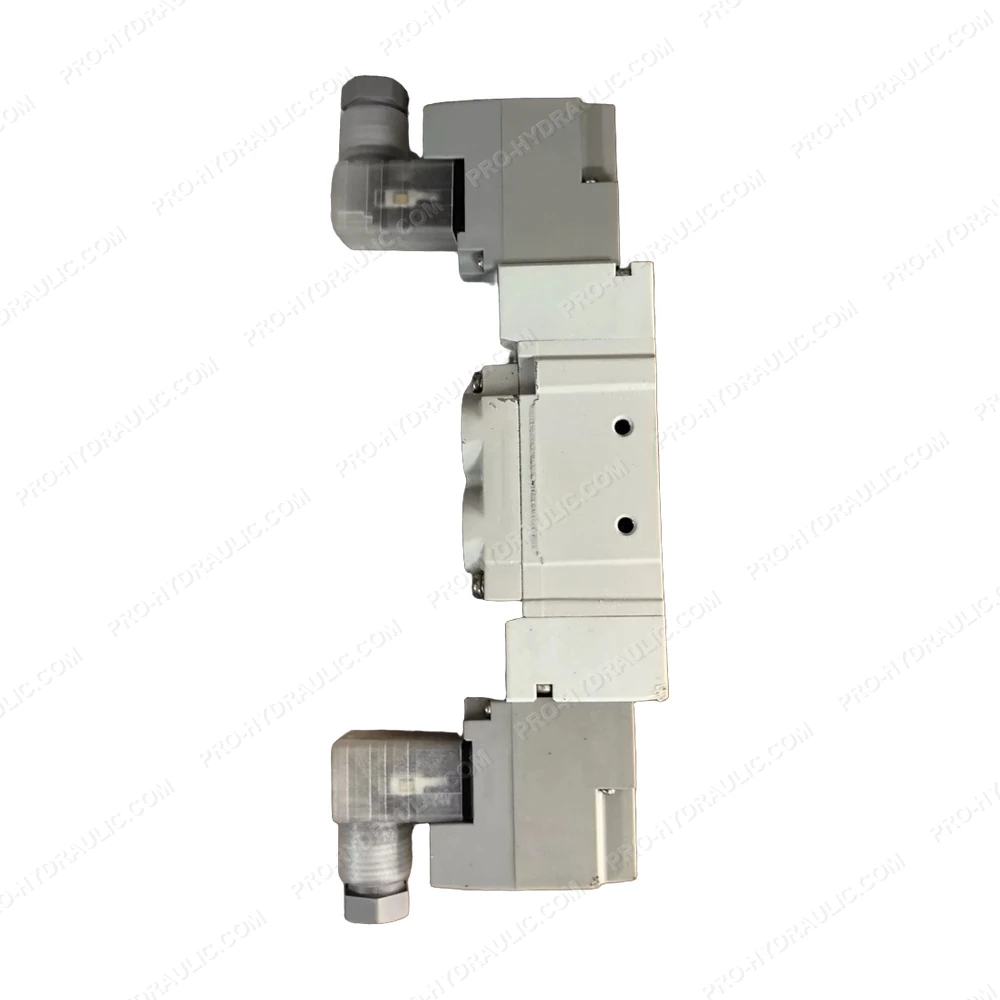

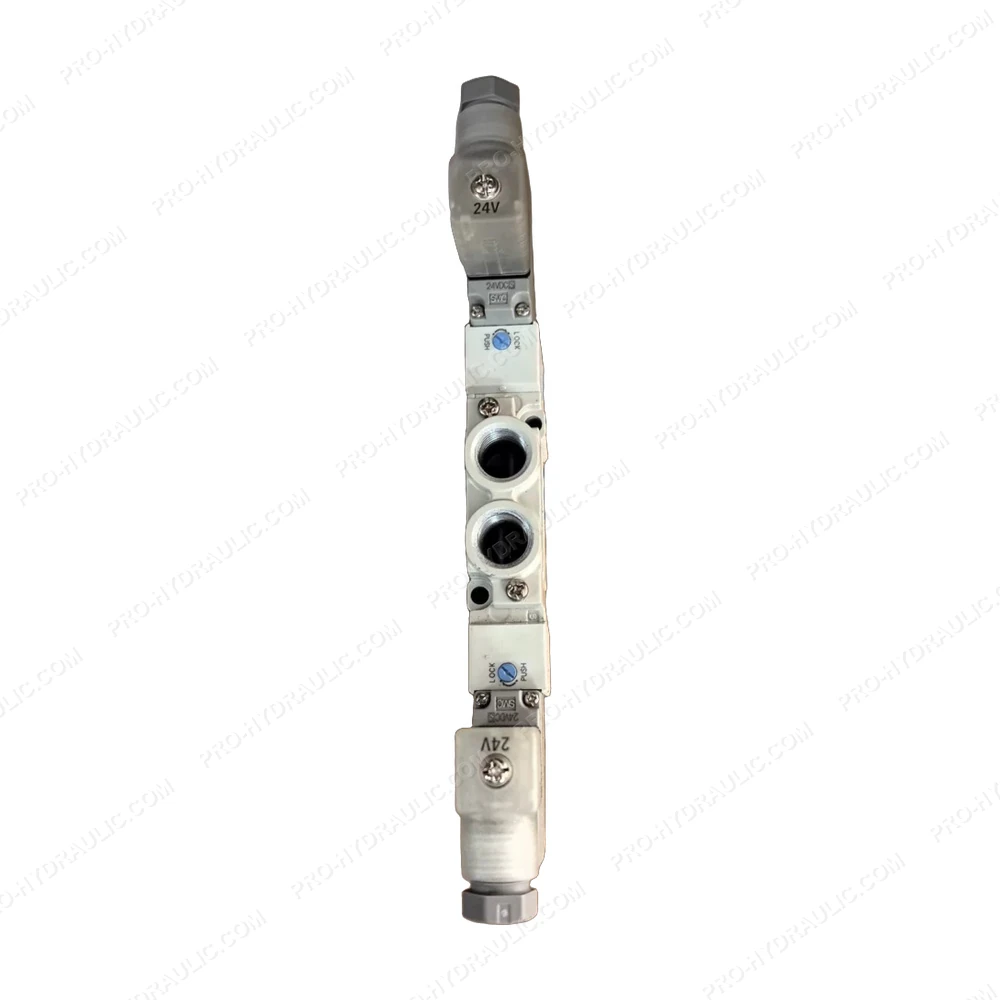

SMC SY7220-5DZD-02 5-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY7220-5DZD-02 Solenoid Valve. This Japan-made 24V DC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
