Product Overview
The SMC SY7220-5LZD-C8 is a high-performance 5-port solenoid valve from the SMC SY series, engineered for precise directional control of compressed air and neutral gases in industrial automation systems. Utilizing a spool-and-sleeve pilot-operated design, this valve delivers fast, repeatable switching with minimal pressure drop and excellent flow characteristics. The SY7220-5LZD-C8 features a 24 VDC solenoid with a compact body and a durable resin manifold-compatible construction, making it an ideal choice for centralized pneumatic control panels, valve manifolds, and space-constrained machinery. Its balanced spool design ensures consistent actuation regardless of supply pressure fluctuations, providing reliable performance in demanding process environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Solenoid Valve (Pneumatic Directional Control Valve) |
| Model Designation | SY7220-5LZD-C8 |
| Operating Pressure | 0.1 to 0.7 MPa (1 to 7 bar) — standard industrial pneumatic range |
| Valve Function | 5/2-way, single solenoid, spring return |
| Solenoid Voltage | 24 VDC (LZ coil class, low power consumption) |
| Port Size | C8 — 8 mm push-in fitting (One-touch) for tubing connection |
| Mounting & Connection | Manifold / body ported, ISO 15407-1 compatible interface |
| Operating Temperature | -10°C to +50°C (no freezing) |
| Media | Filtered compressed air (40 µm or finer), neutral gases |
| Seal Material | NBR (Nitrile Rubber) — standard industrial grade |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The balanced spool mechanism ensures rapid, consistent response times and minimal internal leakage, delivering precise directional control for critical pneumatic circuits.
- Compact & Lightweight Construction: The SY series body is engineered for high-density manifold mounting, reducing panel space and simplifying centralized valve bank installations.
- Low Power Consumption Solenoid: The LZ coil class draws minimal current, enabling direct PLC drive without intermediate relays and reducing overall control cabinet heat generation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The SMC SY7220-5LZD-C8 is a high-performance 5-port solenoid valve from the SMC SY series, engineered for precise directional control of compressed air and neutral gases in industrial automation systems.
PRODUCT IMAGES

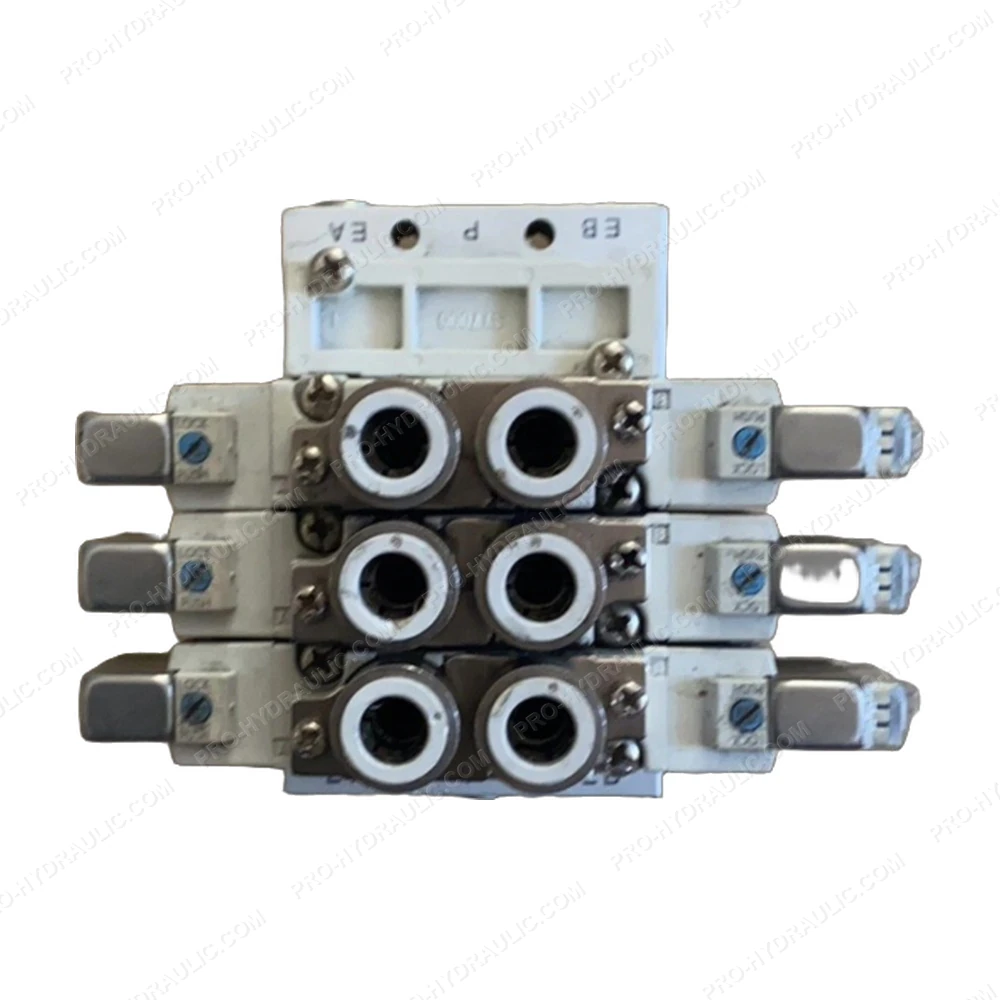

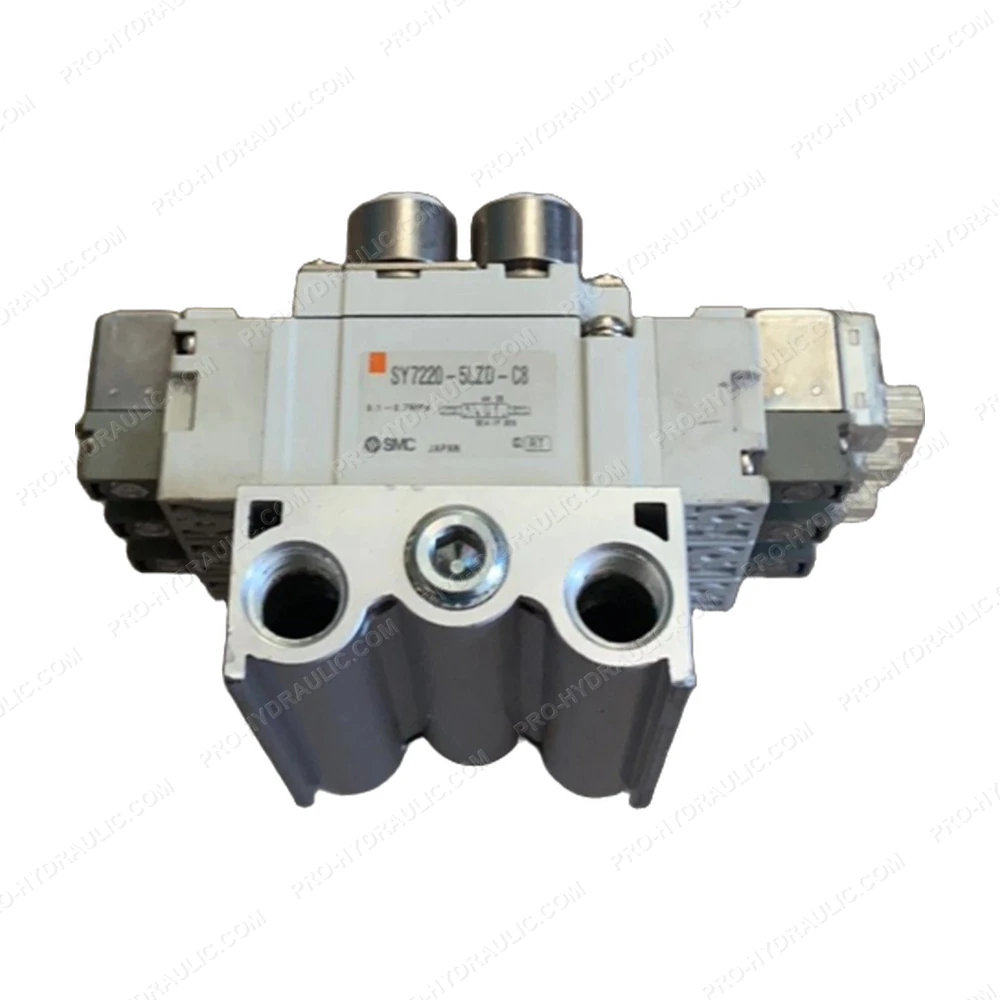

SMC SY7220-5LZD-C8 5-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY7220-5LZD-C8 Solenoid Directional Control Valve. This Japan-made 24VDC hydraulic component features a 5-port, 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
