Product Overview
The SMC SY7320-5DZ-C8 is a high-performance 5-port pneumatic solenoid valve from the SMC SY series, engineered for precise directional control of compressed air in automated industrial systems. Utilizing a spool-and-sleeve actuation principle, this valve directs airflow between five ports (one pressure supply, two exhaust, and two cylinder ports) to extend and retract double-acting pneumatic actuators. The SY7320-5DZ-C8 features a compact body design with a 24 VDC solenoid pilot, delivering fast response times and reliable shifting even under demanding duty cycles. As a core component in pneumatic control circuits, it serves as the interface between the electrical control system (PLC or relay logic) and the pneumatic power section, enabling accurate sequencing, positioning, and motion control of cylinders and rotary actuators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | SY7320-5DZ-C8 |
| Valve Function | 5/2-way, single solenoid, spring return |
| Operating Pressure | 0.1 to 0.7 MPa (1 to 7 bar) — standard industrial pneumatic range |
| Solenoid Voltage | 24 VDC (standard industrial control voltage) |
| Port Connection | C8 — push-in fitting for 8 mm OD tubing (SMC One-touch system) |
| Mounting & Connection | Manifold or individual mounting, SMC SY series standard interface |
| Body Material | Aluminum alloy body with resin/engineering plastic components |
| Seal Material | NBR (Nitrile Butadiene Rubber) — standard pneumatic media compatibility |
| Response Time | Fast pilot-assisted actuation (typically < 20 ms at rated pressure) |
| Operating Temperature | -10°C to +50°C (standard industrial ambient range) |
Engineering Features & Advantages
- Precision Performance: The 5-port pneumatic solenoid valve (directional control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The SMC SY7320-5DZ-C8 is a high-performance 5-port pneumatic solenoid valve from the SMC SY series, engineered for precise directional control of compressed air in automated industrial systems.
PRODUCT IMAGES

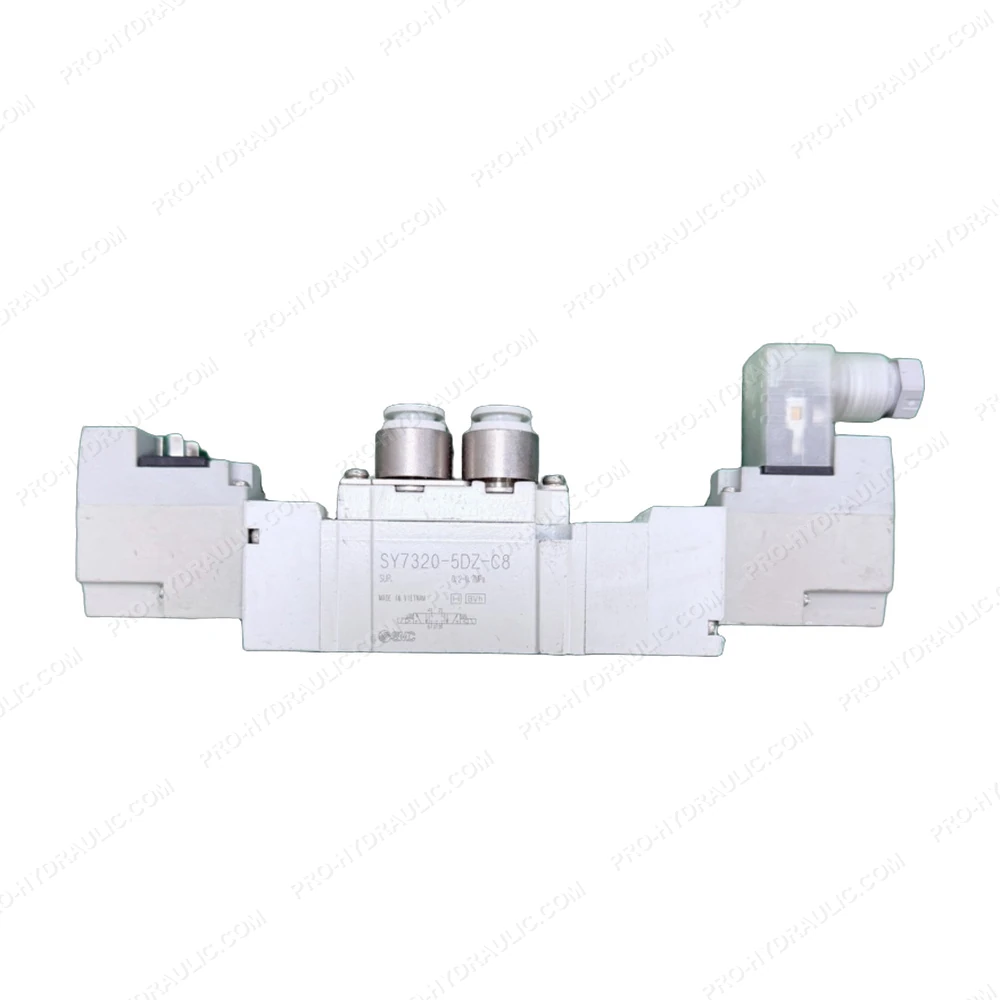

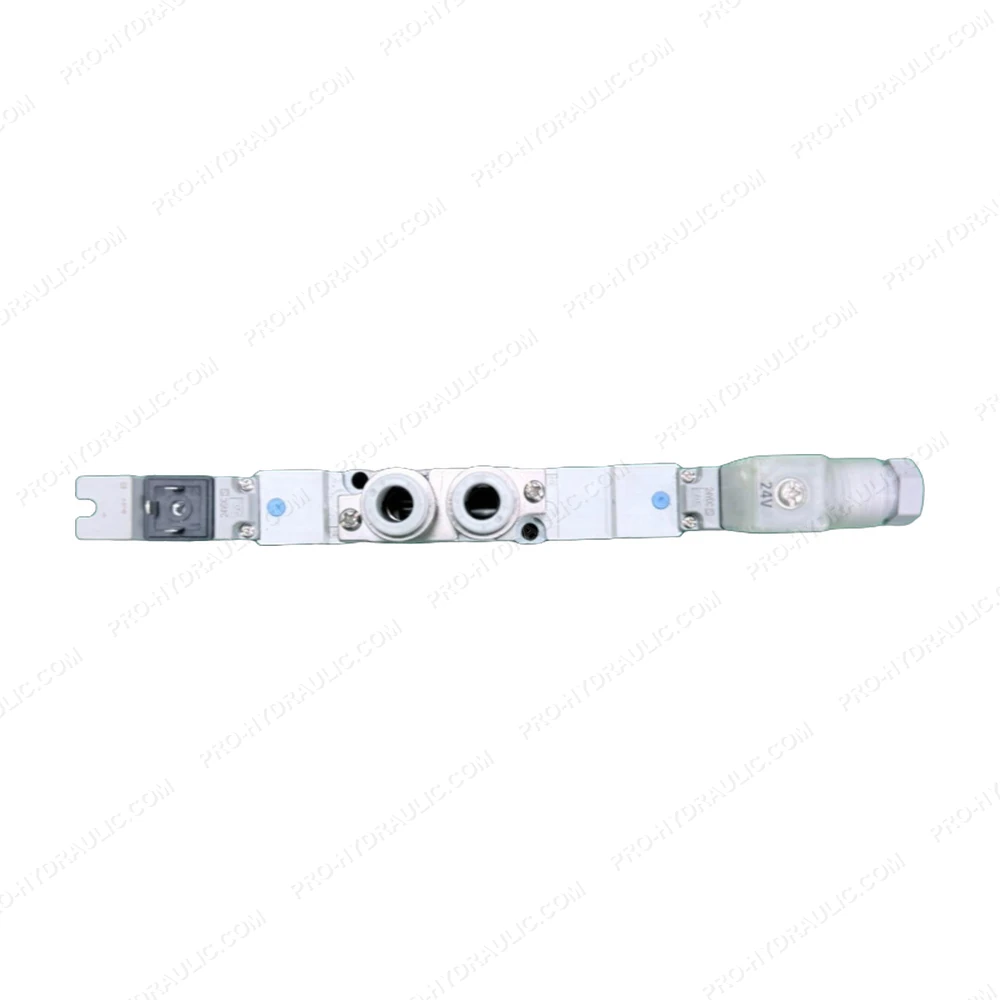

SMC SY7320-5DZ-C8 5-Port Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY7320-5DZ-C8 Solenoid Valve. This Japan-made 24VDC hydraulic component features a 5-port 2-position solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
