Product Overview
The SMC SY7320-5LZ-C10 is a 5-port pneumatic solenoid valve from the SMC SY series, engineered for precise directional control of compressed air in automated industrial systems. Utilizing a spool-and-sleeve actuation principle, this valve directs and exhausts airflow across five ports (P, A, B, EA, EB) to drive double-acting pneumatic cylinders and rotary actuators. Its compact body, high cycle life, and fast response make it a reliable control component for factory automation, packaging machinery, and process equipment requiring repeatable directional air control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | SY7320-5LZ-C10 |
| Valve Function | 5-port, 2-position / 3-position directional control (spool type) |
| Operating Pressure | Standard pneumatic range (approx. 0.1 to 0.7 MPa) |
| Port Size / Connection | C10 = 1/8″ port connection, SMC manifold / body ported interface |
| Mounting & Connection | Manifold or body mounting per SMC SY series standard |
Engineering Features & Advantages
- Precision Performance: Spool-and-sleeve design delivers fast, repeatable directional switching with minimal pressure drop across the five ports.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with high cycle durability and consistent sealing.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC SY series OEM standards for drop-in service.
Typical Industrial Applications
Commonly deployed in automated assembly lines, packaging and labeling machinery, plastic injection molding machine auxiliaries, and general factory automation systems where reliable 5-port pneumatic directional control of double-acting actuators is required.
PRODUCT IMAGES

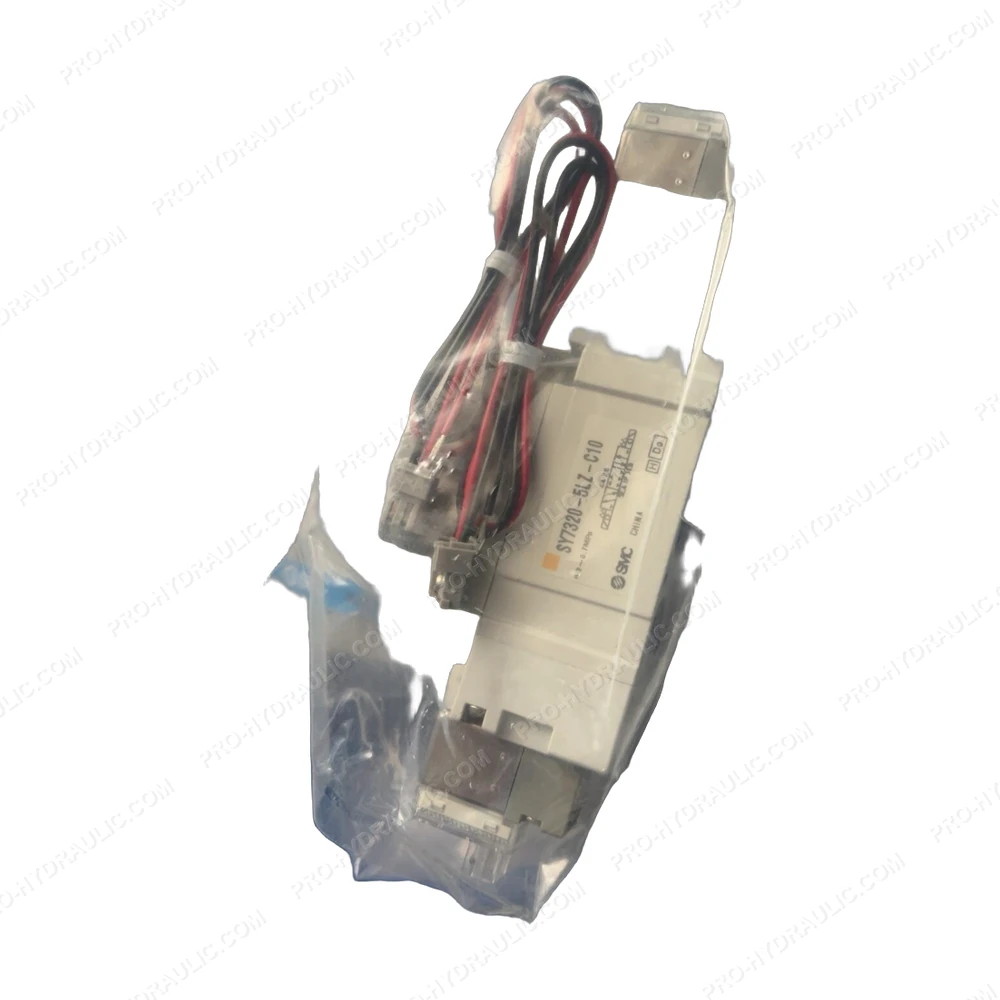

SMC SY7320-5LZ-C10 5-Port Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY7320-5LZ-C10 Solenoid Valve. This Japan-made 24VDC hydraulic component features a 5/2-way solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
