Product Overview
The SMC SY9320-5DD-03 is a high-performance 5-port pneumatic solenoid valve from the SMC SY9000 series, engineered for precise directional control of compressed air in industrial automation and process systems. Utilizing a spool-and-sleeve actuation principle, this valve directs airflow between five ports (one pressure supply, two exhaust, and two cylinder ports) to extend and retract double-acting pneumatic actuators. The SY9320-5DD-03 features a 24 VDC solenoid pilot with a compact body design, offering fast response times and reliable shifting even under demanding duty cycles. As a core component within SMC’s modular SY manifold system, it integrates seamlessly into centralized valve banks for space-efficient pneumatic circuit design.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5-Port Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | SY9320-5DD-03 |
| Valve Function | 5/2-way, double solenoid, spring return |
| Operating Pressure | 0.1 to 0.7 MPa (1 to 7 bar) standard pneumatic range |
| Pilot Supply | Internal pilot, 24 VDC solenoid coil |
| Port Size | 03 (1/8 inch / Rc1/8 or NPT equivalent) |
| Mounting & Connection | Manifold base mount, SMC SY9000 series modular interface |
| Response Time | Fast actuation (typically ≤ 20 ms) for high-cycle automation |
| Seal Material | NBR (Nitrile) standard, compatible with filtered dry air |
Engineering Features & Advantages
- Precision Spool Actuation: The balanced spool-and-sleeve design ensures consistent shifting forces and minimal leakage, delivering accurate directional control for double-acting cylinders and rotary actuators.
- Compact Modular Architecture: The SY9000 series body allows direct stacking on SMC manifolds with common supply and exhaust galleries, reducing tubing complexity and installation footprint in dense control panels.
- High Cycling Durability: Rated for millions of operations with low-wear solenoid pilot and spring return mechanism, suitable for continuous industrial duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC SY9320 series OEM specifications, ensuring drop-in replacement without manifold modification.
- Fast Electrical Interface: 24 VDC coil with standard DIN or plug-in connector options for quick wiring and integration with PLC control systems.
Typical Industrial Applications
PRODUCT IMAGES

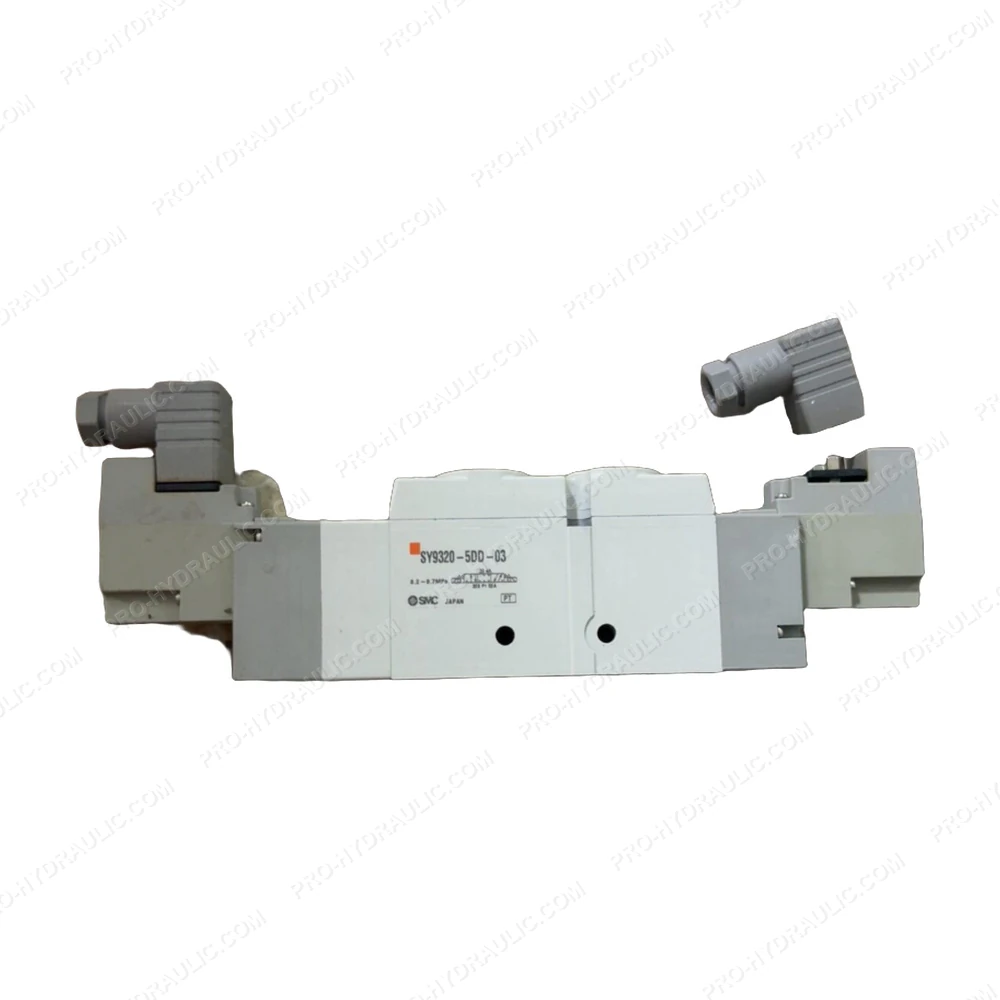

SMC SY9320-5DD-03 5-Port Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC SY9320-5DD-03 Solenoid Valve. This Japan-made 24VDC hydraulic component features a 5-port 2-position solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
