Product Overview
The SMC VCW41-5DL-3-02-V-B-X27 is a 3-port fluid control solenoid valve engineered by SMC Corporation, a global leader in pneumatic and process valve technology. This valve operates on a direct-acting solenoid principle, using an electromagnetic coil to shift an internal spool or poppet mechanism that controls the flow path between three fluid ports. Designed for precise ON/OFF and directional control of compatible process fluids and gases, it serves as a critical control element in automated industrial systems where reliable media isolation, fast response, and repeatable actuation are essential. The VCW series is purpose-built for fluid control applications requiring a compact, chemically resistant valve body with dependable solenoid operation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 3-Port Fluid Control Solenoid Valve (Process & Pneumatic Valve) |
| Model Designation | VCW41-5DL-3-02-V-B-X27 |
| Port Configuration | 3-Port (Supply, Output, Exhaust/Return) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per SMC VCW series) |
| Actuation Type | Direct-Acting Solenoid |
| Mounting & Connection | Standard SMC Interface / Port Connection per Model Code |
Engineering Features & Advantages
- Precision Fluid Control: Direct-acting solenoid design delivers fast, repeatable switching of process fluids and gases with minimal pressure drop across the 3-port flow path.
- Sealed Media Isolation: Valve construction isolates the solenoid actuator from the process media, protecting the coil and ensuring consistent operation with compatible fluids.
- Industrial Reliability: Built for continuous duty operation under demanding industrial conditions, with robust coil insulation and wear-resistant internal sealing.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC VCW series original specifications for drop-in service and minimal downtime.
Typical Industrial Applications
This SMC 3-port fluid control solenoid valve is commonly deployed in semiconductor and electronics manufacturing equipment for precise chemical and gas delivery, analytical and laboratory instrumentation requiring accurate media switching, medical and pharmaceutical process systems demanding clean fluid control, and general automated process machinery where reliable 3-port directional control of compatible fluids or gases is required.
PRODUCT IMAGES

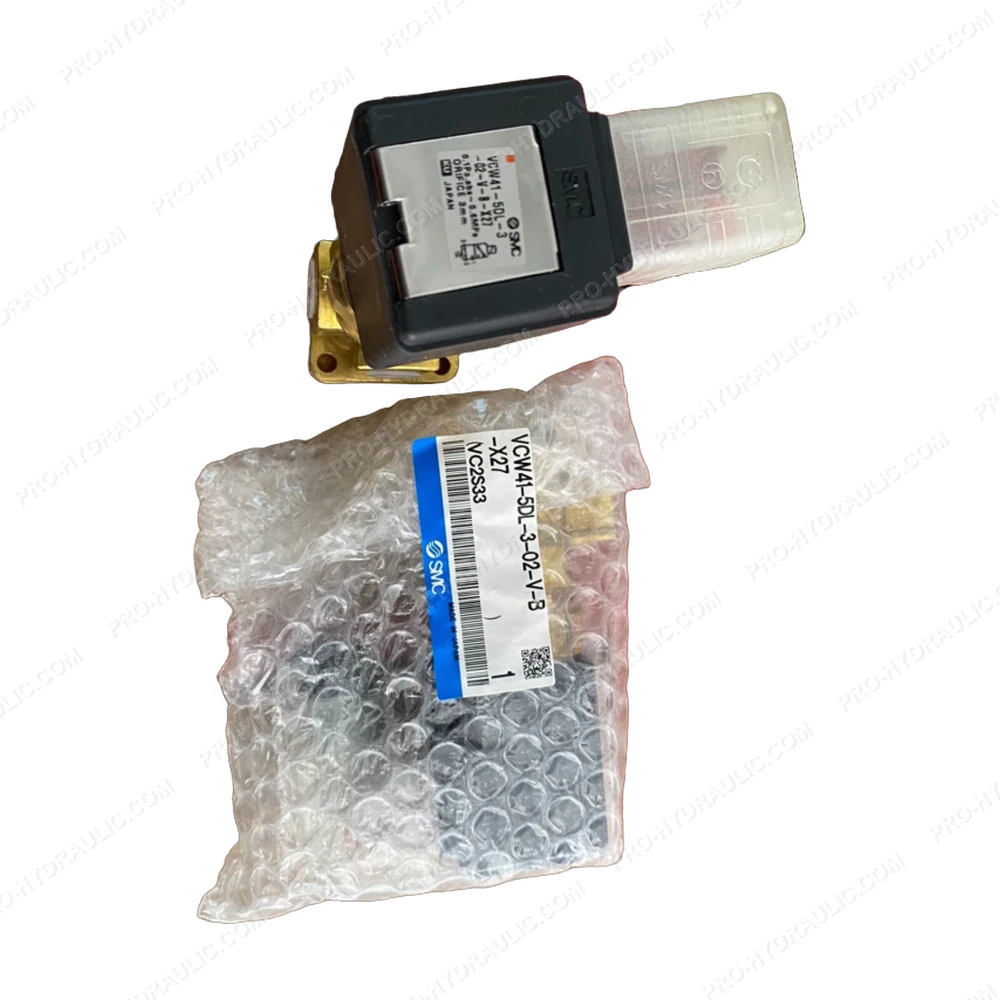

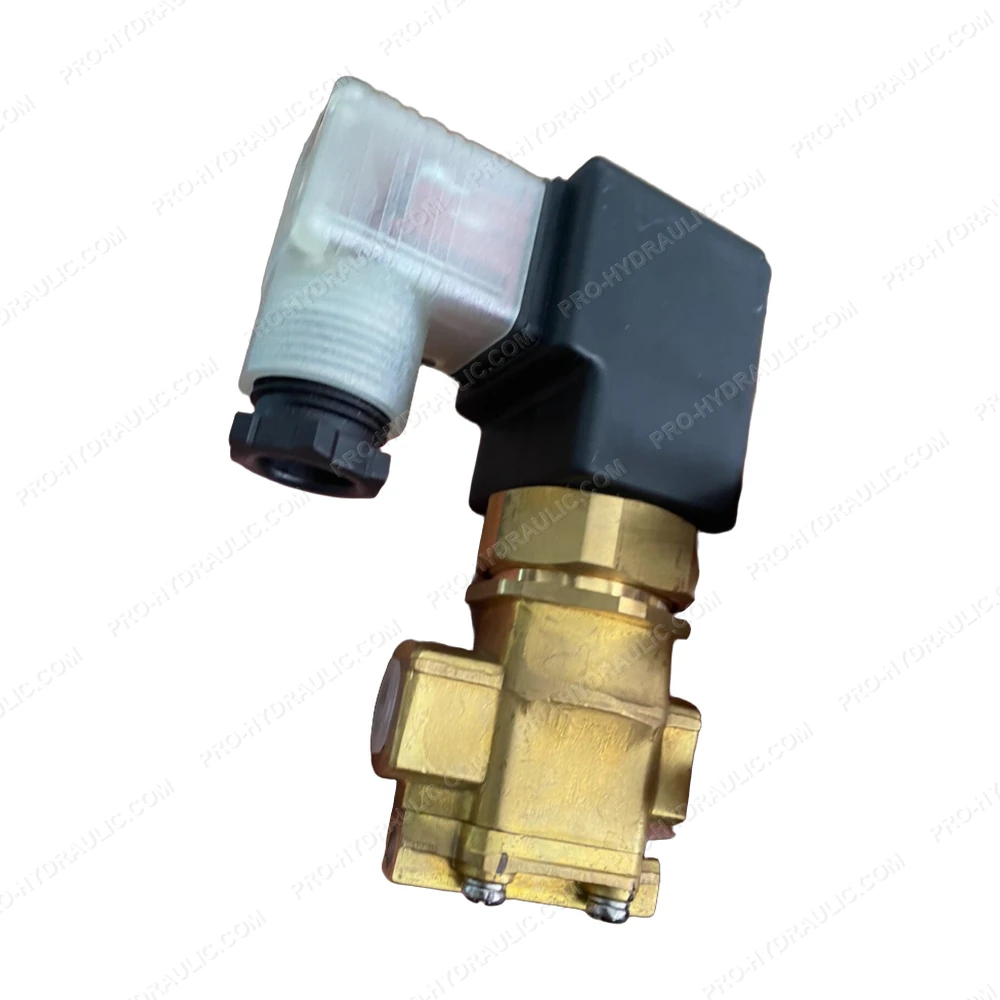

SMC VCW41-5DL-3-02-V-B-X27 3-Port Fluid Control Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VCW41-5DL-3-02-V-B-X27 Solenoid Directional Valve. This Japan-made 24 VDC hydraulic component features a 5-port 2-position spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
