Product Overview
The SMC VEX3702-124DZ is a high-performance 3-port pneumatic power valve engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This valve operates as a direct-acting, solenoid-piloted directional control component designed to manage compressed air flow with exceptional precision and repeatability. As part of the VEX series, it is specifically engineered for high-flow applications requiring rapid response and reliable switching in automated industrial systems. The 3-port configuration (normally closed, 2-position) makes it ideal for pressurizing and exhausting single-acting actuators, blow-off circuits, and vacuum switching applications. Its robust construction and compact design allow seamless integration into manifold assemblies and standalone pneumatic control panels, ensuring optimal performance in demanding manufacturing environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 3-Port Pneumatic Power Valve (Solenoid Directional Control Valve) |
| Model Designation | VEX3702-124DZ |
| Operating Pressure | 0.1 to 1.0 MPa (1 to 10 bar) — Standard Industrial Grade |
| Port Configuration | 3-Port, 2-Position (Normally Closed) |
| Mounting & Connection | Manifold / Sub-base Mounting, Standard SMC Interface |
| Solenoid Voltage | 24 VDC (Standard Industrial Coil) |
| Seal Material | NBR (Nitrile Rubber) — Compatible with standard compressed air |
| Body Material | Die-cast Aluminum Alloy |
Engineering Features & Advantages
- Precision Flow Control: The 3-port poppet valve design ensures fast, repeatable switching with minimal pressure drop, delivering consistent air flow for critical blow-off, clamping, and actuator control tasks.
- High-Speed Response: Direct solenoid actuation provides rapid opening and closing times, enabling high-cycle automation and precise timing in synchronized pneumatic sequences.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable die-cast aluminum body and NBR seals that resist wear and contamination in compressed air systems.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VEX series manifolds and OEM standards, ensuring drop-in replacement without modification.
- Compact & Modular Design: Space-saving form factor allows high-density mounting on manifolds, reducing installation footprint and simplifying maintenance in complex pneumatic panels.
Typical Industrial Applications
The SMC VEX3702-124DZ is widely deployed across heavy industrial sectors requiring reliable pneumatic control. Common applications include: plastic injection molding machines for mold clamping and ejection sequencing; metallurgical presses for air-over-oil actuation and safety interlocks; CNC
PRODUCT IMAGES

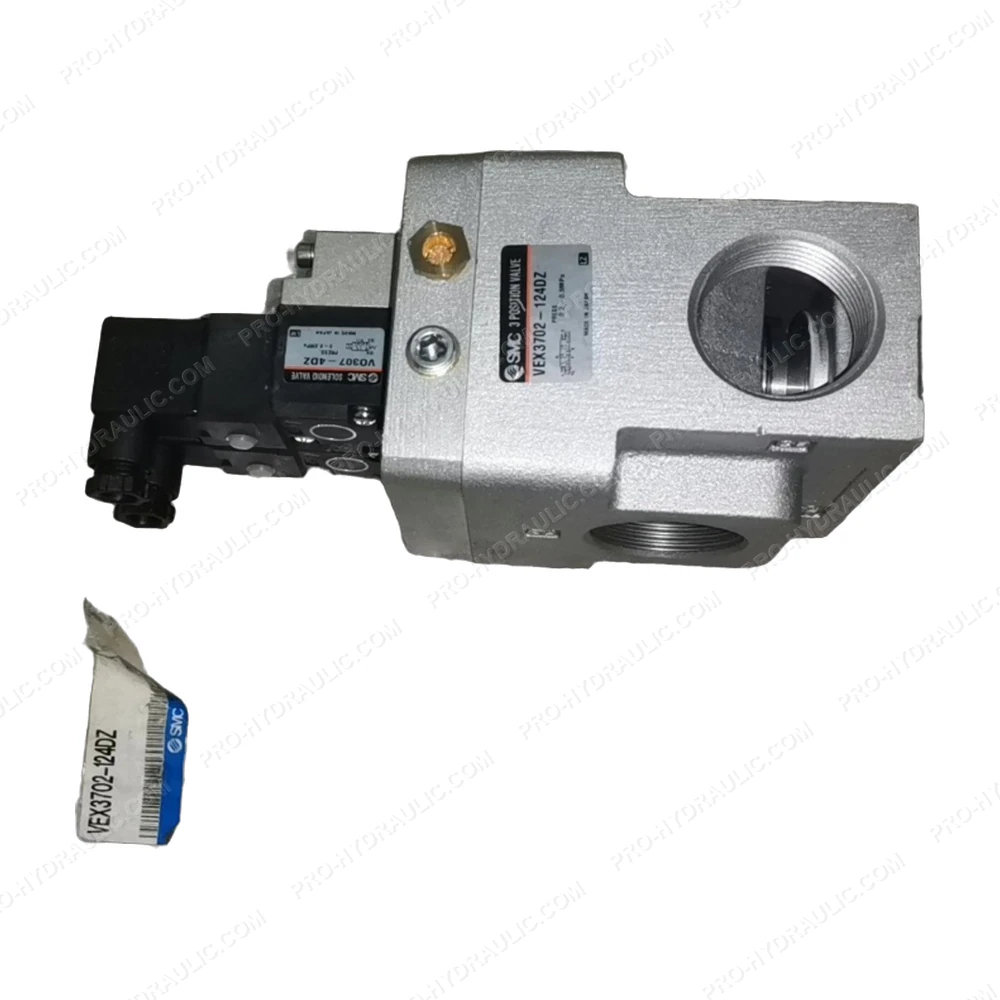

SMC VEX3702-124DZ 3-Port Pneumatic Power Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VEX3702-124DZ Solenoid Valve. This Japan-made 24VDC hydraulic component features a 3-port poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
