Product Overview
The SMC VFA5220-03 is a 5-port air operated valve from the SMC VFA series, designed for reliable directional control of compressed air and inert gas in industrial pneumatic systems. This valve utilizes an external pilot air signal to shift the internal spool, providing precise directional control of actuator motion without the need for electrical solenoids at the valve location. With a 5-port, 2-position configuration, the VFA5220-03 is engineered for compact installation, high cycle life, and consistent response in automated process and pneumatic control circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valves > Process & Pneumatic Valves > SMC Pneumatics |
| Model Designation | VFA5220-03 |
| Valve Type | 5-Port, 2-Position Air Operated Directional Valve |
| Actuation Method | External Pilot Air Operated (no integral solenoid) |
| Port Size | 03 (3/8 inch standard port connection) |
| Operating Pressure | Standard Industrial Grade (up to rated bar for pneumatic service) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Balanced spool design ensures consistent shifting force and reliable directional control across the full operating pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with high cycle life and minimal maintenance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards for SMC VFA series pneumatic valve installations.
Typical Industrial Applications
This SMC VFA5220-03 air operated valve is commonly used in automated assembly and packaging machinery, pneumatic actuator control circuits, process valve piloting systems, and general industrial automation where remote or hazardous-location valve actuation is required.
PRODUCT IMAGES

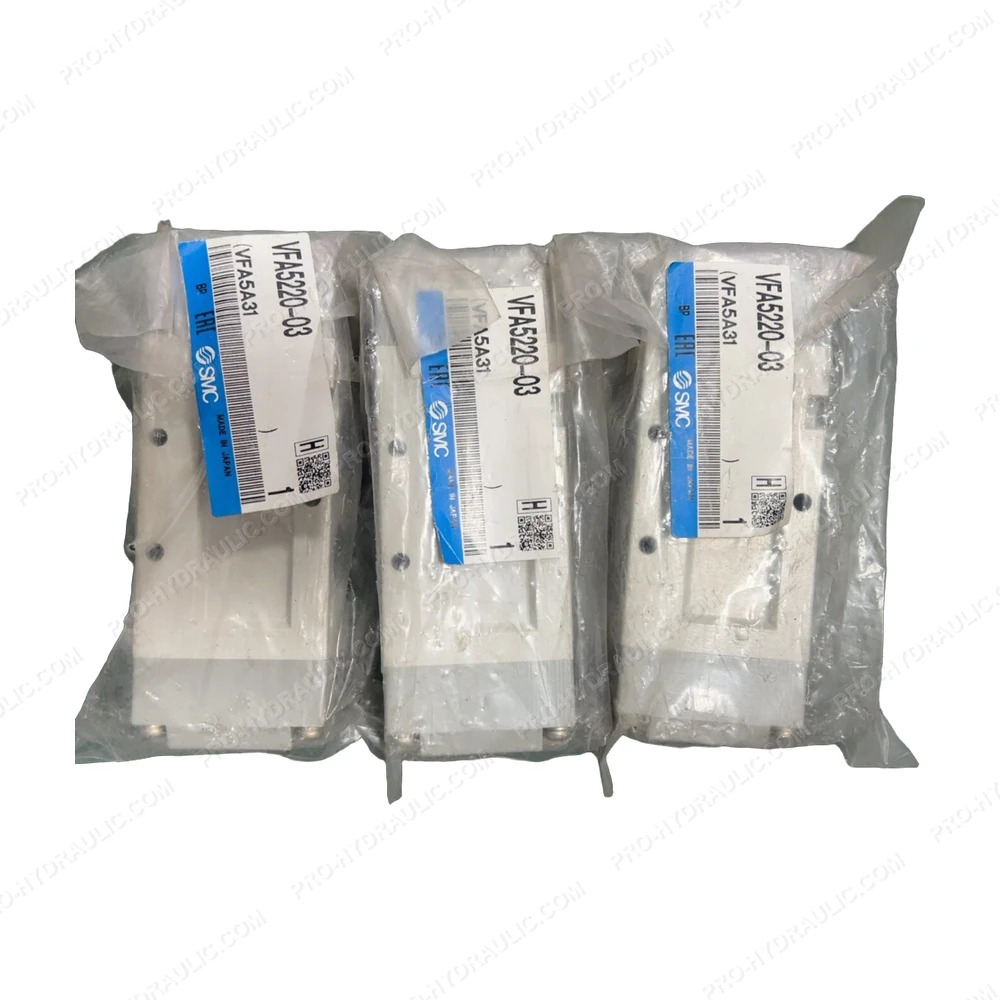

SMC VFA5220-03 5-Port Air Operated Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VFA5220-03 Solenoid Valve. This Japan-made 24V DC hydraulic component features a 5-port 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
