Product Overview
The SMC VFR5110-5D-06 is a 5-port pneumatic solenoid valve from the SMC VFR5000 series, engineered for precise directional control of compressed air in industrial automation and process systems. This valve utilizes a spool-and-sleeve actuation principle, where an electrical solenoid signal shifts the internal spool to redirect airflow between five ports (one pressure supply, two exhaust, and two cylinder output ports). The 5/2 configuration enables dual-direction control of pneumatic actuators, making it a fundamental component in factory automation, packaging machinery, and process control loops. The VFR5000 series is recognized for its high flow capacity, compact body design, and reliable solenoid operation, providing fast response times and consistent switching performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5-Port, Directional Control) |
| Model Designation | VFR5110-5D-06 |
| Valve Function | 5/2 Way (5 ports, 2 positions) |
| Operating Pressure | 0.15 – 0.7 MPa (Standard Industrial Grade) |
| Port Size | 1/8 (06 = 1/8 inch port connection) |
| Solenoid Voltage | 24 VDC (5D = 24VDC solenoid rating) |
| Mounting & Connection | Manifold / Sub-base Mounting, ISO Standard Interface |
| Actuation Type | Electrical Solenoid with Spring Return |
| Body Material | Aluminum Alloy (Corrosion-Resistant) |
Engineering Features & Advantages
- Precision Spool Actuation: The balanced spool design ensures rapid, consistent shifting with minimal pressure drop, delivering reliable directional control for pneumatic cylinders and rotary actuators.
- High Flow Capacity: Optimized internal porting and large effective orifice area provide high flow rates (Cv value) for fast actuator response without compromising pressure stability.
- Industrial Reliability: Built for continuous duty operation with a durable solenoid coil and wear-resistant spool assembly, ensuring millions of switching cycles under severe industrial conditions.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC VFR5000 series manifolds and sub-bases, allowing drop-in replacement without system modification.
- Compact & Lightweight: Space-saving body design reduces panel footprint and simplifies integration into dense pneumatic control cabinets.
Typical Industrial Applications
This SMC VFR5110-5D-06 solenoid valve is
PRODUCT IMAGES

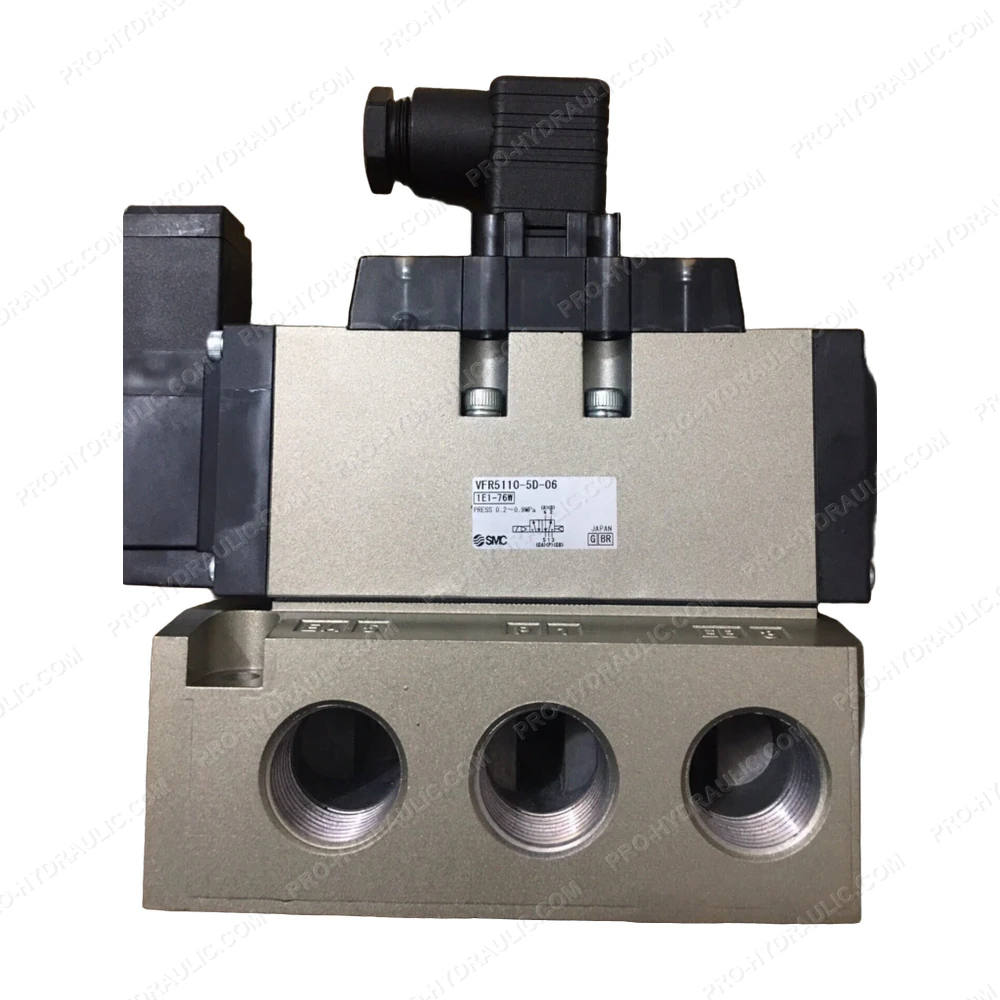

SMC VFR5110-5D-06 5-Port Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VFR5110-5D-06 Solenoid Directional Control Valve. This Japan-made 24V DC pneumatic component features a 5-port 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
