Product Overview
The SMC VFR5310-5DZB-06 is a 5-port pilot operated pneumatic solenoid valve from the SMC VFR5000 series, engineered for precise directional control of compressed air in industrial automation and process systems. Utilizing a balanced spool and pilot-operated actuation principle, this valve delivers reliable high-flow switching with minimal power consumption at the solenoid. The 5-port, 3-position configuration (5/3) enables cylinder extend, hold, and retract functions, making it a core control component in pneumatic valve manifolds, actuator circuits, and factory automation networks. Its robust body construction and proven SMC sealing technology ensure consistent response and long service life in demanding continuous-duty environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Pneumatic Solenoid Valve (5-Port, 5/3) |
| Model Designation | VFR5310-5DZB-06 |
| Series | SMC VFR5000 Series |
| Port Configuration | 5-Port (P, A, B, EA, EB), 3-Position |
| Actuation Type | Pilot Operated Solenoid / Spring Return |
| Operating Pressure | Standard Industrial Grade (0.1 – 0.7 MPa typical for VFR series) |
| Port Size | 06 (1/8″ or equivalent per SMC sizing) |
| Mounting & Connection | Manifold / Sub-base Mounting, SMC Standard Interface |
| Media | Filtered Compressed Air (non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Directional Control: Balanced spool design ensures accurate flow path switching with minimal pressure drop across the 5-port configuration, enabling smooth 3-position actuator control.
- Pilot Operated Efficiency: Low solenoid power requirement combined with high flow capacity, reducing electrical load on control systems while maintaining rapid response times.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with SMC’s proven sealing and wear-resistant spool technology.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VFR5000 series manifolds and OEM standards.
- Compact Modular Design: Space-efficient body suitable for dense manifold assemblies and multi-valve automation panels.
Typical Industrial Applications
This SMC pilot operated solenoid valve is widely deployed in pneumatic automation and process control environments, including: plastic injection molding machines (mold clamping and
PRODUCT IMAGES

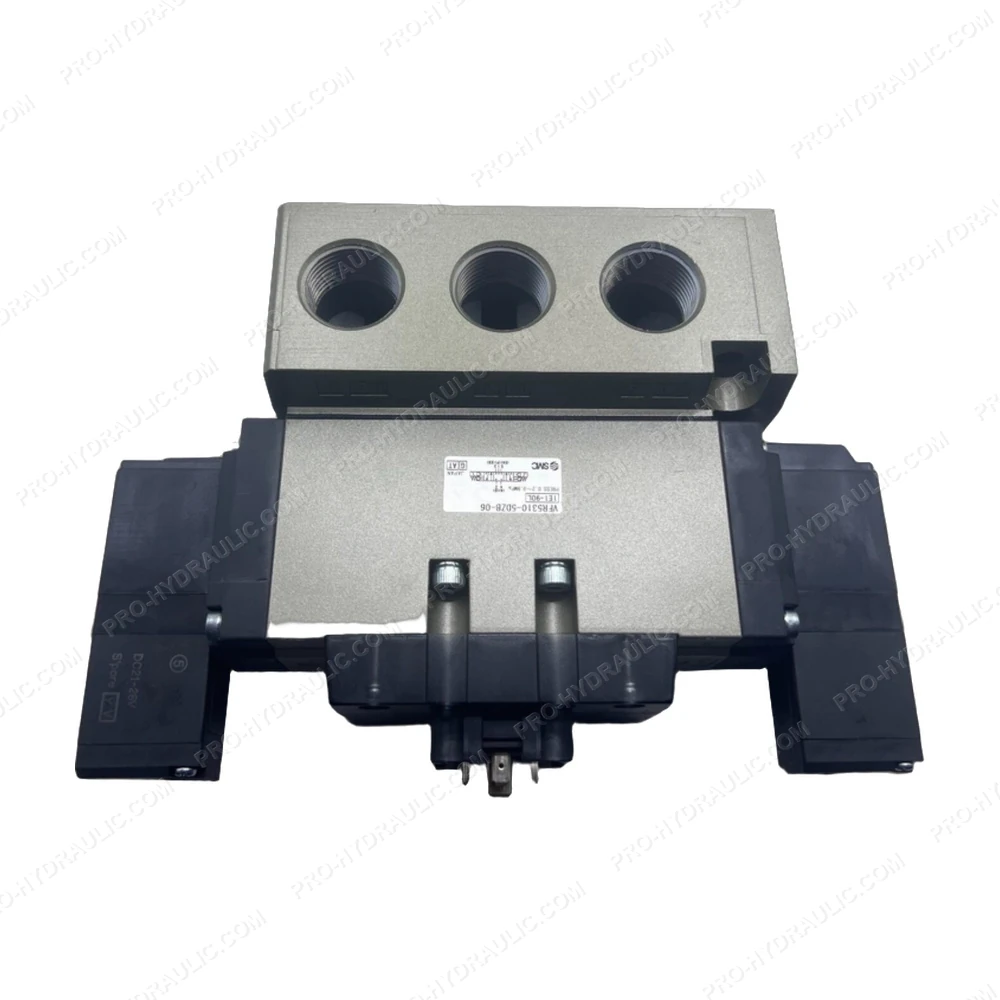

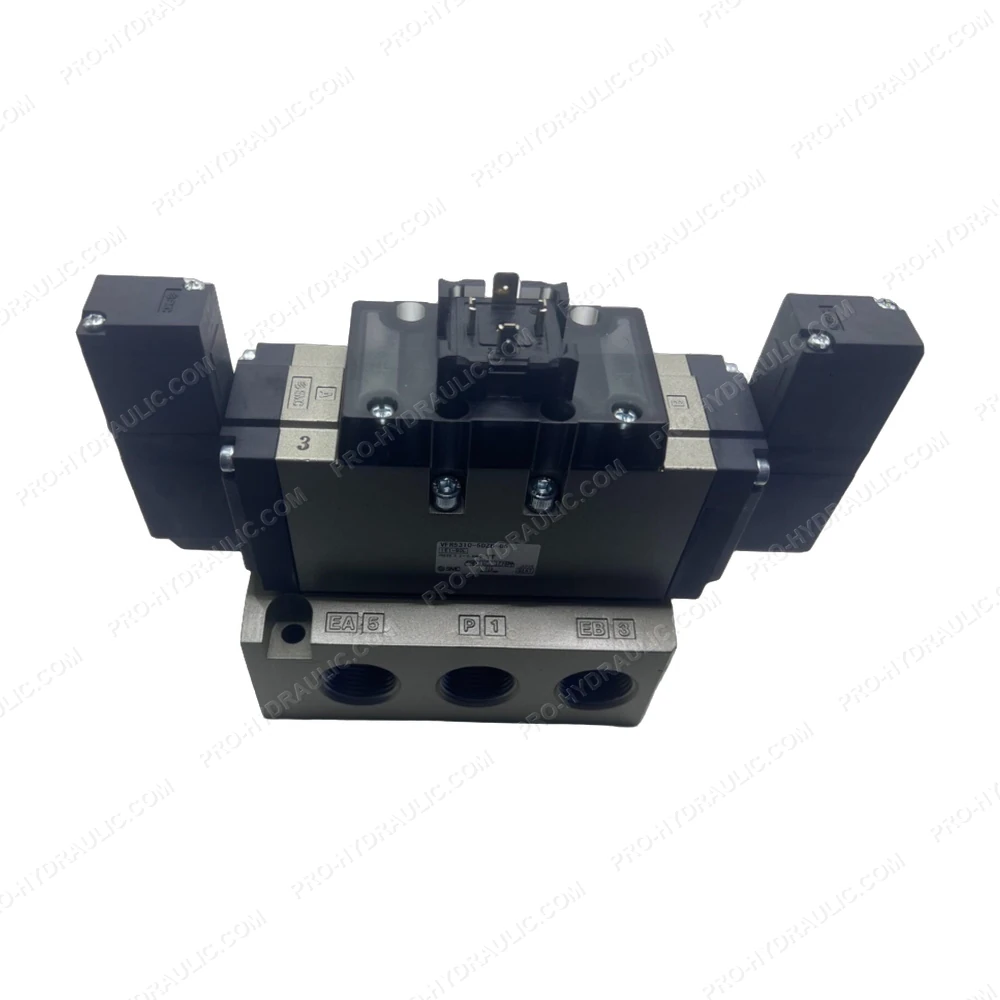

SMC VFR5310-5DZB-06 5-Port Pilot Operated Pneumatic Solenoid Valve
