Product Overview
The SMC VFS1120-5DZB-01 is a 5-port pilot operated pneumatic solenoid valve from the SMC VFS1000 series, engineered for precise directional control of compressed air in industrial automation systems. Utilizing a balanced spool and pilot-operated actuation principle, this valve delivers reliable high-flow switching with minimal power consumption at the solenoid. The 5-port, 2-position configuration (5/2) enables full control of double-acting pneumatic actuators, allowing extend, retract, and exhaust functions through a single compact manifold-mountable body. Its robust construction and fast response characteristics make it a preferred choice for demanding process and pneumatic control circuits where repeatability and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5-Port, Pilot Operated) |
| Model Designation | VFS1120-5DZB-01 |
| Valve Function | 5/2 (5-Port, 2-Position), Pilot Operated |
| Operating Pressure | 0.1 – 0.9 MPa (1 – 9 bar) standard pneumatic range |
| Coil Voltage | 24 VDC (standard DZB coil designation) |
| Port Size | 1/8 (01 suffix — Rc/NPT/G thread per configuration) |
| Mounting & Connection | Manifold / Sub-base mount, ISO-compatible interface |
| Seal Material | NBR (Nitrile) standard, suitable for filtered compressed air |
Engineering Features & Advantages
- Precision Performance: Pilot-operated spool design ensures fast, consistent shifting with low solenoid holding power, delivering reliable directional control even under fluctuating supply pressure.
- High Flow Capacity: Optimized internal flow paths in the 5-port body minimize pressure drop, supporting rapid actuation of double-acting cylinders and high-cycle automation sequences.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable coil and wear-resistant spool bore rated for millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VFS1000 series manifold standards, ensuring drop-in interchangeability without modification.
- Compact Manifold Design: Space-efficient body allows high-density valve stacking, reducing cabinet footprint in multi-actuator control panels.
Typical Industrial Applications
This SMC VFS1120-5DZB-01 solenoid valve is widely deployed across heavy industrial and process automation environments, including plastic injection molding machines for mold open/close and ejector sequencing, packaging and assembly lines for double-acting cylinder control, CNC machine tools for tool clamping and coolant valve actuation, and general factory automation systems requiring reliable 5/2 directional air control. Its pilot-operated, manifold
PRODUCT IMAGES

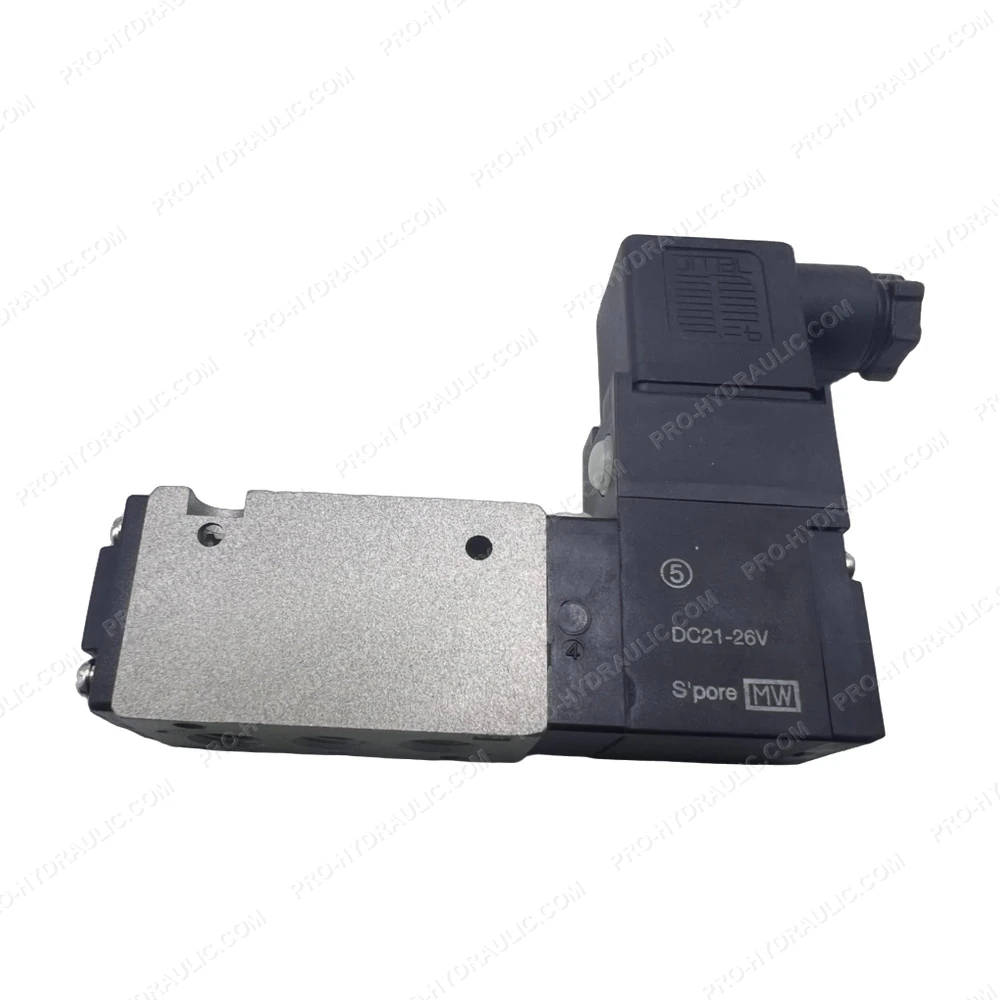

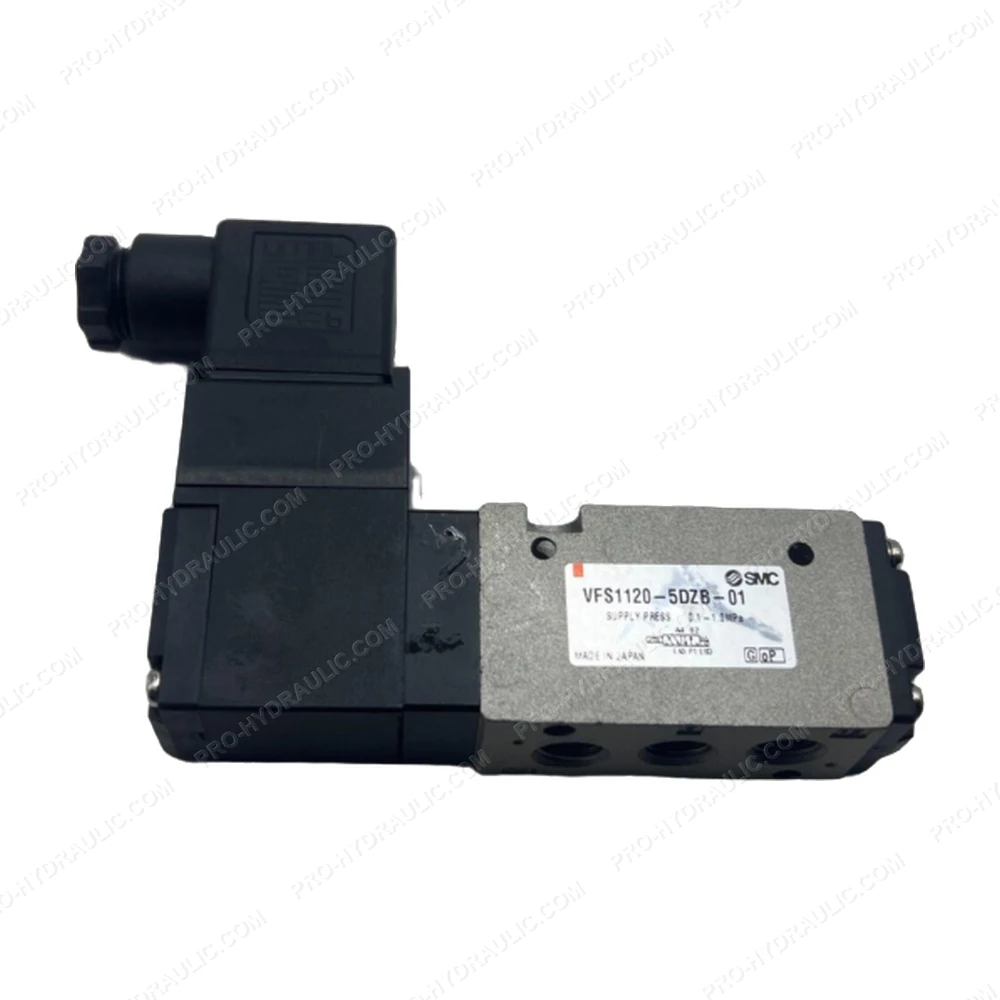

SMC VFS1120-5DZB-01 5-Port Pilot Operated Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VFS1120-5DZB-01 Solenoid Directional Control Valve. This Japan-made 24VDC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
