Product Overview
The SMC VHS40-04 is a 3-port residual pressure release valve engineered by SMC Corporation, a global leader in pneumatic and process valve technology. This manually operated valve is designed to safely exhaust trapped residual pressure from pneumatic circuits before maintenance or disassembly, preventing hazardous actuator movement and ensuring operator safety. With its 3-port configuration (supply, outlet, and exhaust), the VHS40-04 provides a reliable lockout and pressure release function for downstream equipment, making it an essential safety component in industrial air preparation and control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Process & Pneumatic Valve (Residual Pressure Release Valve) |
| Model Designation | VHS40-04 |
| Port Configuration | 3-Port (Supply, Outlet, Exhaust) |
| Port Size | 1/2 (04) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Manual rotary actuation provides reliable and controlled release of residual downstream pressure, ensuring safe system depressurization before maintenance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing and durable body construction for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification.
Typical Industrial Applications
Ideally suited for pneumatic safety circuits in plastic injection molding machines, metallurgical presses, packaging and assembly automation, CNC machine tools, and general factory air preparation systems where controlled residual pressure release is required before servicing downstream equipment.
PRODUCT IMAGES

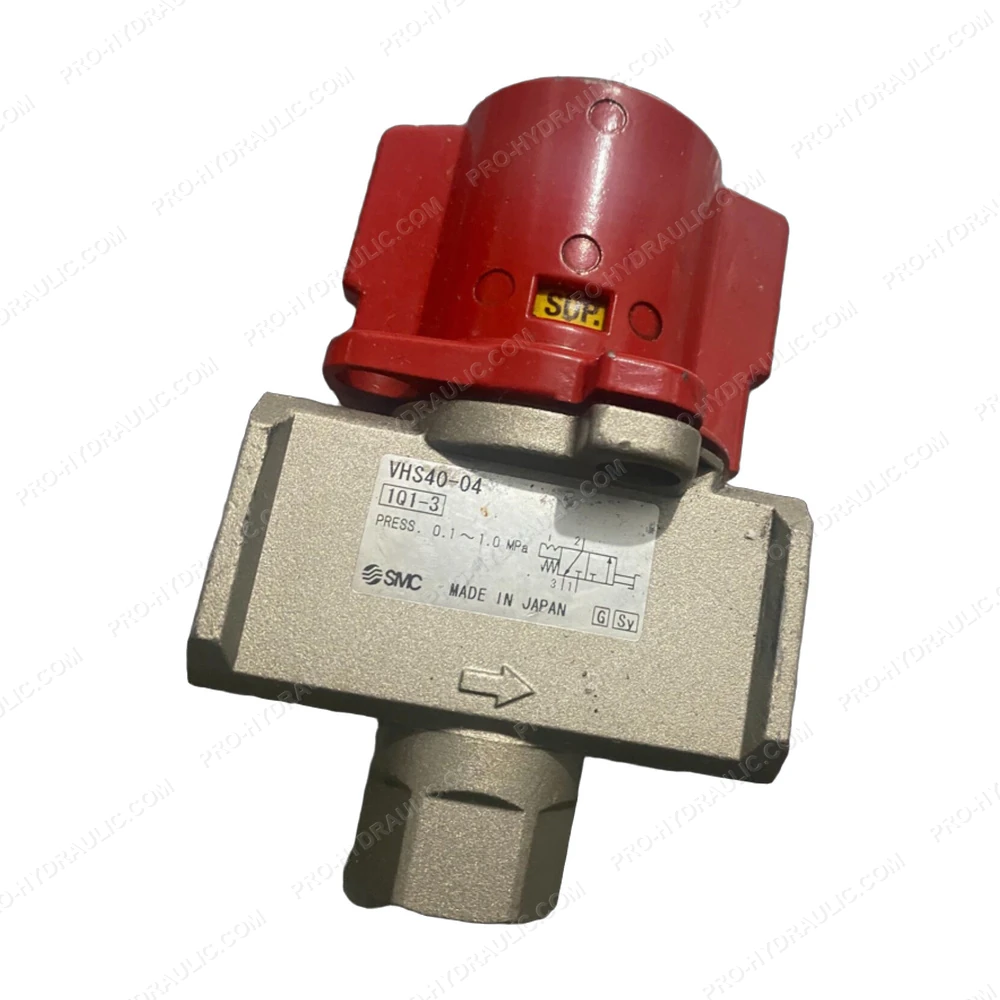

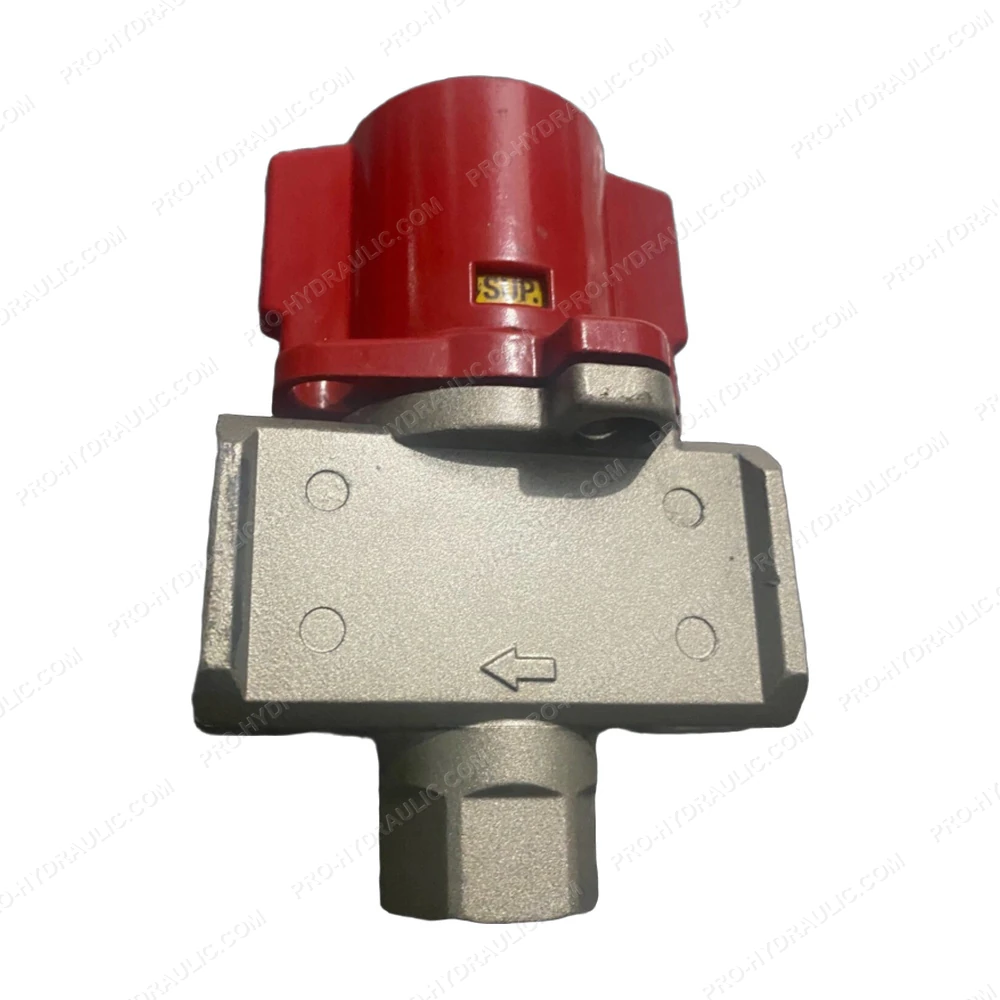

SMC VHS40-04 3-Port Residual Pressure Release Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VHS40-04 Residual Pressure Release Valve. This Japan-made pneumatic component features a manual release mechanism, delivering leak-free, reliable pressure control for heavy-duty industrial systems.
