Product Overview
The SMC VNB214A-F15A-5DZB is a high-performance 2-port process solenoid valve engineered by SMC Corporation, a global leader in pneumatic and process automation components. Operating on a direct-acting or pilot-operated solenoid principle, this valve is designed to control the flow of compatible media in industrial process lines. As a 2-port (2/2-way) normally closed configuration, it provides reliable on/off isolation and shutoff functionality. The VNB series is specifically constructed for fluid and gas process control, featuring a robust body and diaphragm or piston seal design that ensures bubble-tight shutoff and long service life. This valve is a critical component in automated process systems, offering precise electrical actuation for demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 2-Port Process Solenoid Valve (2/2-Way) |
| Model Designation | VNB214A-F15A-5DZB |
| Operating Pressure | Standard Industrial Grade (Up to 1.0 MPa / 10 bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Threaded Port Connection) |
| Port Size | 1/2″ (F15A designation) |
| Voltage / Coil Rating | 5DZB (24 VDC standard industrial coil) |
| Seal Material | NBR / FKM (dependent on media compatibility) |
| Body Material | Stainless Steel / Brass (corrosion-resistant process grade) |
Engineering Features & Advantages
- Precision Performance: Direct-acting or pilot-operated solenoid mechanism ensures rapid response times and precise on/off control for critical process media, with zero differential pressure operation capability.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring a robust coil insulation class and high cycle life expectancy exceeding 10 million operations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing piping or electrical interfaces.
- Leak-Tight Sealing: Advanced diaphragm or piston seal design provides bubble-tight shutoff, preventing media loss and ensuring process safety.
- Versatile Media Compatibility: Suitable for a wide range of neutral gases, water, and light oils when configured with appropriate seal materials.
Typical Industrial Applications
This SMC process solenoid valve is widely deployed in heavy industrial scenarios including: plastic injection molding machines for cooling and media control circuits; metallurgical presses for hydraulic fluid and coolant isolation; construction and marine hydraulic systems for pilot and process line control; CNC machine tools for coolant and lubrication management; and general process automation in chemical, food, and pharmaceutical industries where precise fluid shutoff is required.
PRODUCT IMAGES

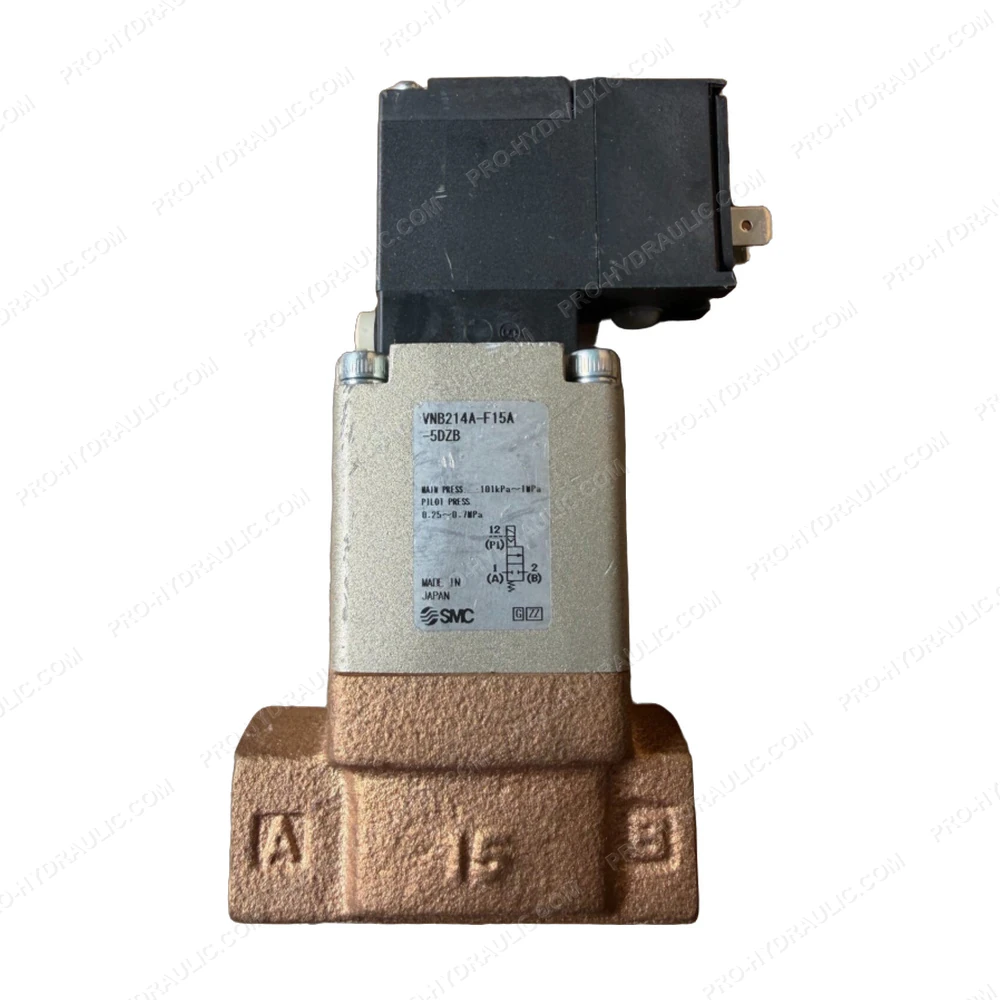

SMC VNB214A-F15A-5DZB 2-Port Process Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VNB214A-F15A-5DZB Solenoid Valve. This Japan-made 24V DC hydraulic component features a 2-position, 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
