Product Overview
The SMC VND300D-20A is a 3-port air-operated process valve engineered for precise control of compressed air and neutral gas media in industrial automation systems. Manufactured by SMC Pneumatics, a global leader in pneumatic control technology, this valve utilizes an external pilot air signal to actuate a poppet-type sealing mechanism, delivering reliable on/off and directional flow control without electrical solenoids at the valve body. The VND300D-20A is designed for inline mounting within process air circuits, offering high flow capacity relative to its compact body size and ensuring minimal pressure drop across the valve. Its air-operated actuation principle makes it particularly suited for hazardous or wash-down environments where electrical components are undesirable, and its 3-port configuration supports both normally closed and directional diverting functions depending on porting arrangement.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Process & Pneumatic Valve (3-Port Air Operated) |
| Model Designation | VND300D-20A |
| Manufacturer | SMC Pneumatics |
| Port Configuration | 3-Port (Supply, Output, Exhaust) |
| Actuation Method | External Air Pilot Operated |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Seal Material | NBR / FKM (media dependent) |
| Body Material | Aluminum Alloy / Resin Composite |
Engineering Features & Advantages
- Precision Performance: Poppet-type sealing mechanism ensures bubble-tight shutoff and consistent flow characteristics across the operating pressure range, with fast response to pilot air signals for accurate process control.
- Air-Operated Actuation: Eliminates electrical components at the valve body, making it ideal for explosive atmospheres, high-humidity environments, and wash-down applications where solenoid valves are unsuitable.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust construction that resists vibration, thermal cycling, and contaminant ingress.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing piping or mounting arrangements.
- Compact 3-Port Design: Space-efficient body allows installation in tight manifold assemblies while maintaining high flow capacity and low pressure loss.
Typical Industrial Applications
The SMC VND300D-20A is widely deployed in automated manufacturing environments requiring reliable pneumatic process control
PRODUCT IMAGES

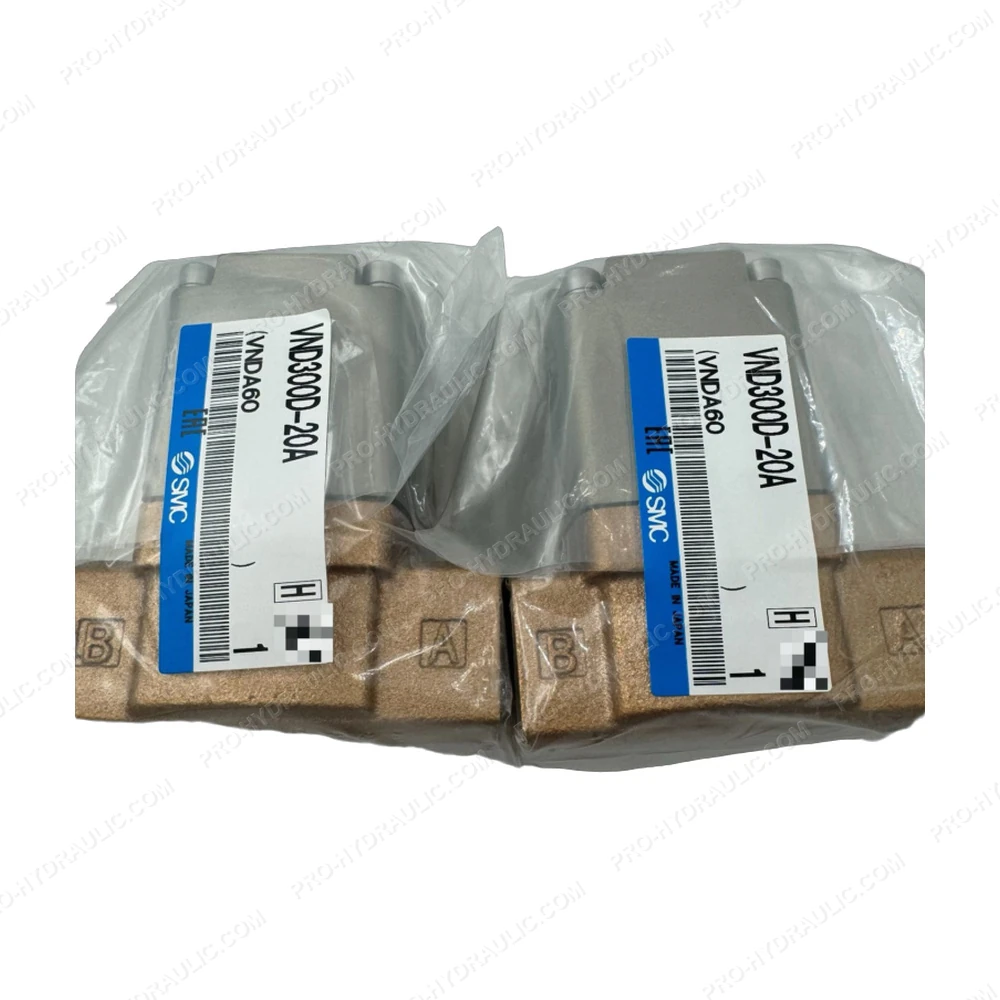

SMC VND300D-20A 3-Port Air Operated Process Valve
