Product Overview
The SMC VP542-5DZ1-03-X536 is a precision-engineered pneumatic solenoid valve from the SMC VP500 series, designed for reliable directional control of compressed air in industrial automation and process systems. This 5-port, 2-position (5/2) valve utilizes a spool-and-sleeve actuation mechanism driven by a single solenoid with spring return, providing fast, repeatable switching of pneumatic actuators, cylinders, and air-operated process equipment. The VP542 series is recognized for its compact body, high flow capacity, and long service life, making it a direct-fit solution for OEM and MRO pneumatic control panels. The “-X536” suffix denotes an SMC factory special specification variant, ensuring exact compatibility with the original equipment configuration.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | VP542-5DZ1-03-X536 |
| Valve Function | 5/2 (5-port, 2-position), single solenoid, spring return |
| Operating Pressure | Standard pneumatic range (0.1 – 0.7 MPa typical for VP500 series) |
| Port Size | 03 = 3/8″ (Rc/NPT/G thread per configuration) |
| Solenoid Voltage | Standard SMC coil options (24 VDC / 100 VAC / 110 VAC / 220 VAC depending on suffix) |
| Mounting & Connection | Manifold or individual body mounting, SMC standard interface |
| Seal Material | NBR (standard), compatible with filtered, lubricated or non-lubricated air |
Engineering Features & Advantages
- Precision Spool Actuation: Balanced spool-and-sleeve design ensures fast, consistent response times and minimal pressure drop across the valve, delivering accurate directional control for high-cycle pneumatic applications.
- High Flow Capacity: Optimized internal flow paths provide excellent Cv values for the 3/8″ port size, supporting rapid cylinder actuation without compromising system pressure.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust solenoid coil and wear-resistant seals rated for millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VP542 OEM standards, including the -X536 special specification, ensuring drop-in replacement without modification.
- Compact Modular Design: Space-saving body allows dense manifold mounting, reducing panel footprint and simplifying pneumatic circuit integration.
Typical Industrial Applications
The SMC VP542-5DZ1-03-X536 is widely deployed in heavy industrial and process environments, including plastic injection molding machines for mold open/close and ejector sequencing, metallurgical
PRODUCT IMAGES

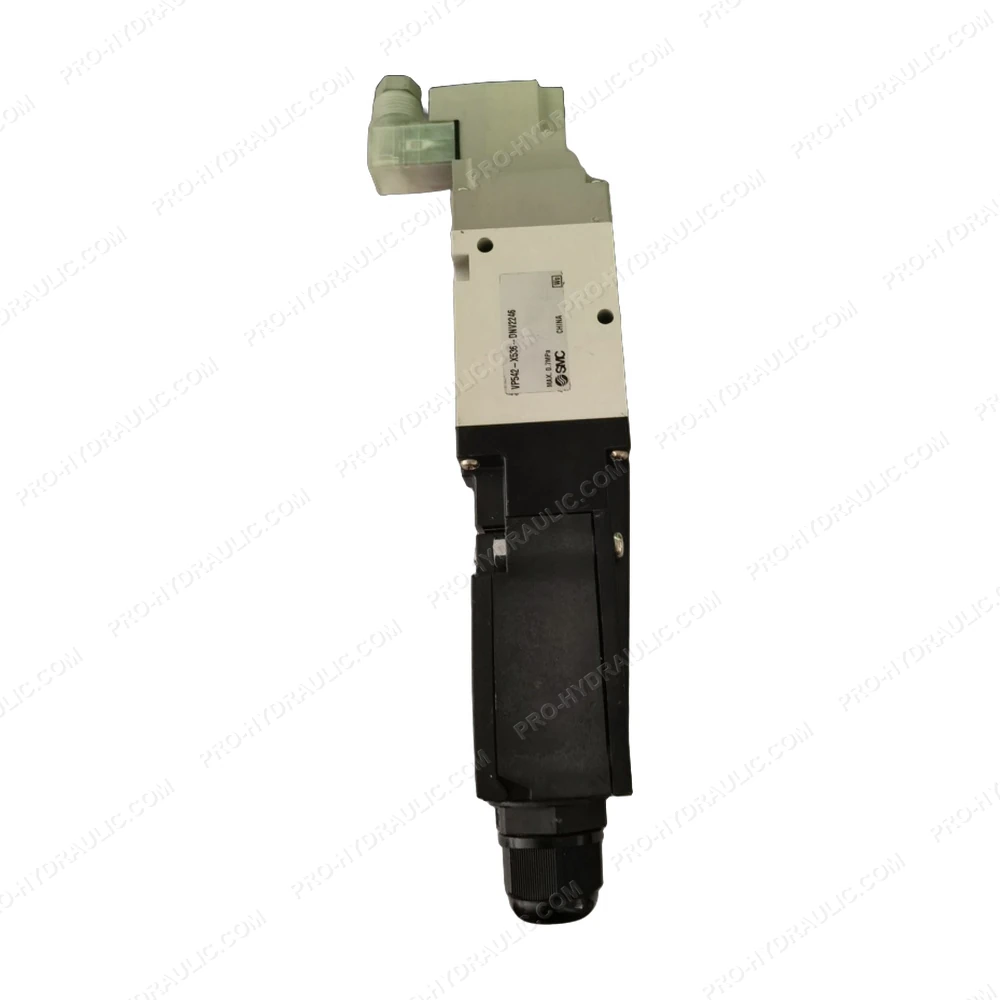

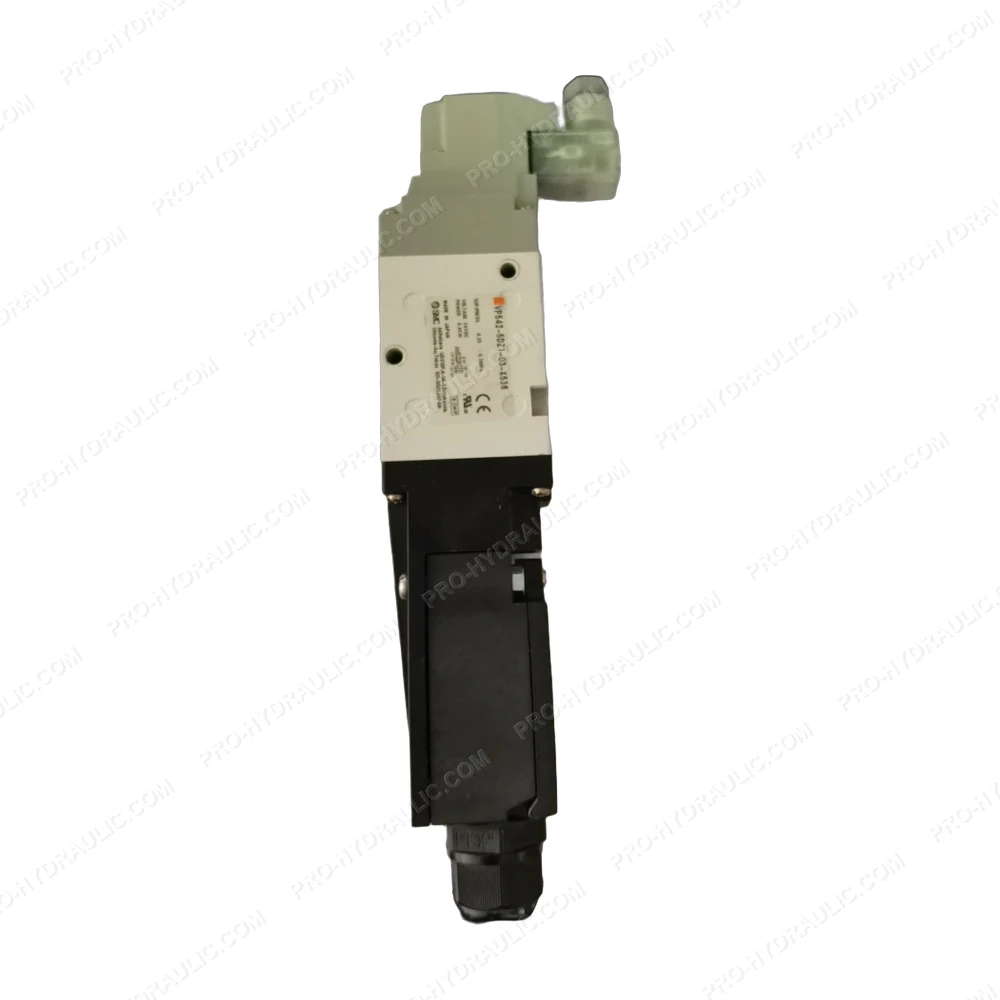

SMC VP542-5DZ1-03-X536 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VP542-5DZ1-03-X536 Solenoid Valve. This Japan-made 24 VDC hydraulic component features a 5-port 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
