Product Overview
The SMC VQC4201-5 is a high-performance 5-port pneumatic solenoid valve from the VQC4000 series, engineered for precise directional control of compressed air in automated industrial systems. Utilizing a spool-and-sleeve actuation principle, this valve delivers rapid, repeatable switching of pneumatic actuators, cylinders, and air-operated process equipment. Its compact body design, combined with a single solenoid pilot configuration, makes it a direct-fit solution for OEM machinery and MRO replacement applications requiring dependable directional air control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5-Port, 2-Position) |
| Model Designation | VQC4201-5 |
| Operating Pressure | Standard Industrial Grade (0.1 to 0.7 MPa) |
| Mounting & Connection | Manifold / Sub-Plate Mounting, SMC Standard Interface |
| Valve Function | 5/2 Single Solenoid, Spring Return |
| Pilot Supply | Internal Pilot, Solenoid Actuated |
| Coil Voltage | 24 VDC (Standard SMC Coil) |
| Port Size | 1/4″ (Rc/NPT depending on configuration) |
Engineering Features & Advantages
- Precision Performance: Spool-and-sleeve design ensures fast, consistent response times and minimal pressure drop across the valve for reliable actuator cycling.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with a durable coil and wear-resistant internal sealing mechanism.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VQC4000 series manifold standards, allowing drop-in replacement without modification.
- Compact Manifold Design: Space-efficient body enables high-density valve stacking on multi-station manifolds, reducing cabinet footprint.
- Low Power Consumption: Energy-efficient solenoid coil reduces heat generation and supports extended duty cycles.
Typical Industrial Applications
This pneumatic solenoid valve is widely deployed in automated assembly lines, packaging machinery, CNC machine tool air circuits, and general factory automation systems. It is also commonly used in plastic injection molding machine handling equipment, textile machinery, and semiconductor manufacturing tools where precise, high-cycle directional air control is critical.
PRODUCT IMAGES

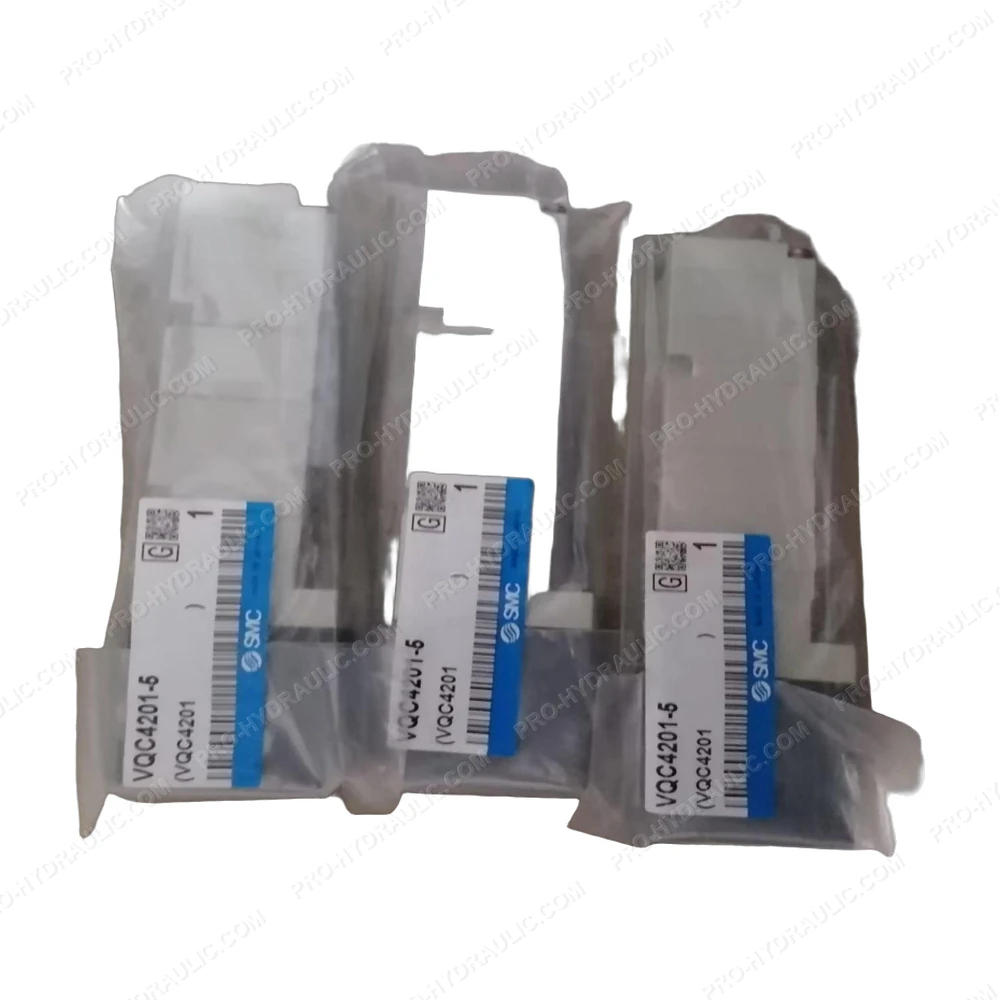

SMC VQC4201-5 Pneumatic Solenoid Valve
