Product Overview
The SMC VVQC4000-1A-D-C10 is a modular pneumatic valve manifold from the SMC VVQC4000 series, engineered to consolidate multiple directional control valves into a single compact, centralized air distribution platform. Designed around SMC’s proven VQC-series solenoid valve architecture, this manifold base provides a common supply and exhaust gallery, allowing up to ten valve stations to be mounted and piped through one unified body. The unit functions as the pneumatic interface between a machine’s control system and its actuators, directing compressed air to cylinders, rotary actuators, and air-blow circuits with fast, repeatable response. Its manifold construction reduces individual fittings, tubing runs, and leak points, making it a preferred solution for OEM machine builders and plant maintenance teams seeking a dense, serviceable pneumatic valve cluster.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Valve Manifold (Process & Pneumatic Valves) |
| Model Designation | VVQC4000-1A-D-C10 |
| Series / Family | SMC VVQC4000 Series Modular Manifold |
| Valve Station Capacity | 10-station configuration (C10 designation) |
| Operating Pressure | Standard pneumatic industrial grade (typically 0.1–0.7 MPa) |
| Actuation / Control | Solenoid pilot actuation with centralized electrical connection |
| Mounting & Connection | Standard SMC manifold interface with common supply/exhaust ports |
| Media | Filtered, lubricated or non-lubricated compressed air |
Engineering Features & Advantages
- Precision Performance: The VVQC4000 manifold delivers consistent spool response and repeatable flow metering across all ten valve stations, ensuring synchronized actuation in multi-cylinder pneumatic circuits.
- Centralized Air Distribution: A single common supply and exhaust gallery eliminates redundant piping, reduces pressure drop, and simplifies troubleshooting across the entire valve cluster.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust manifold body construction resistant to vibration, thermal cycling, and contaminated plant air.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VVQC4000 OEM standards, allowing drop-in replacement without reworking existing brackets, tubing, or wiring.
- Compact Modular Footprint: High valve density per unit area frees machine envelope space and shortens pneumatic response lines to actuators.
Typical Industrial Applications
The SMC VVQC4000-1A-D-C10 pneumatic valve manifold is widely deployed in automated manufacturing and process environments, including plastic injection molding machines, CNC machine tools and automated assembly cells, packaging and material handling equipment, and general factory automation systems requiring centralized control of multiple pneumatic actuators
PRODUCT IMAGES

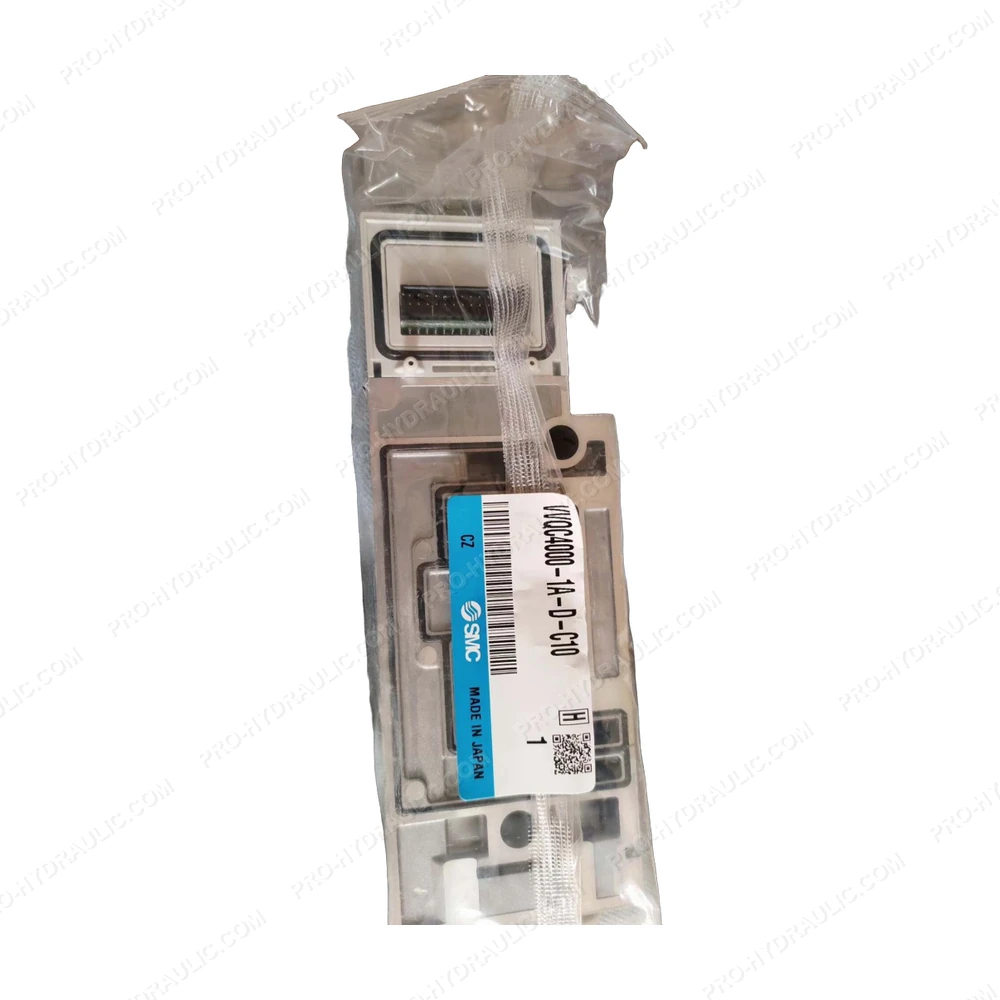

SMC VVQC4000-1A-D-C10 Pneumatic Valve Manifold
