Product Overview
The SMC VXD2130-03-5DL1-B is a pilot operated 2-port solenoid valve engineered for precise on/off control of air, water, and inert gas in industrial fluid handling systems. Manufactured by SMC Corporation, a global leader in pneumatic and process valve technology, this valve utilizes a pilot-operated diaphragm/poppet mechanism that allows a low-power solenoid pilot to control a much larger main flow path. The 2-port (normally closed) configuration provides reliable shutoff and flow control for process lines, making it a direct-fit solution for OEM and MRO applications requiring dependable media isolation and repeatable actuation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated 2-Port Solenoid Valve (Process & Pneumatic) |
| Model Designation | VXD2130-03-5DL1-B |
| Port Size / Connection | 03 (3/8″ port size); threaded connection per SMC standard |
| Coil Voltage / Rating | 5DL1 (24 VDC, DIN terminal with surge suppression) |
| Operating Pressure | Standard industrial grade (pilot-assisted operation, up to rated bar) |
| Mounting & Connection | Standard ISO / SMC interface, direct inline mounting |
Engineering Features & Advantages
- Precision Performance: Pilot-operated design enables stable, high-flow switching with minimal electrical power, ensuring accurate media control and low heat generation in continuous duty cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust diaphragm and seal materials compatible with air, water, and inert gases.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VXD series standards, ensuring drop-in installation without system modification.
Typical Industrial Applications
Commonly deployed in plastic injection molding machines for cooling and media control, metallurgical presses for air and water circuit switching, CNC machine tools for coolant and pneumatic actuation, and general process automation systems requiring reliable 2-port solenoid shutoff and flow control.
PRODUCT IMAGES

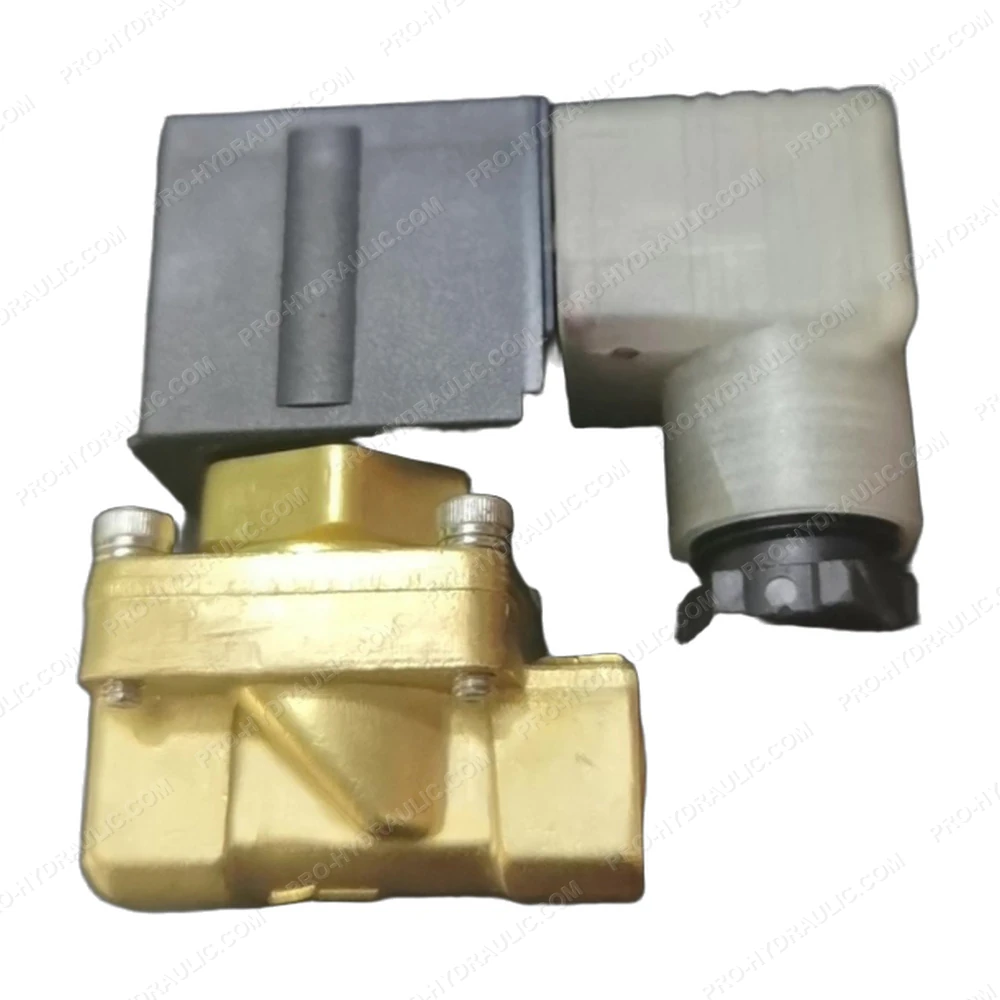

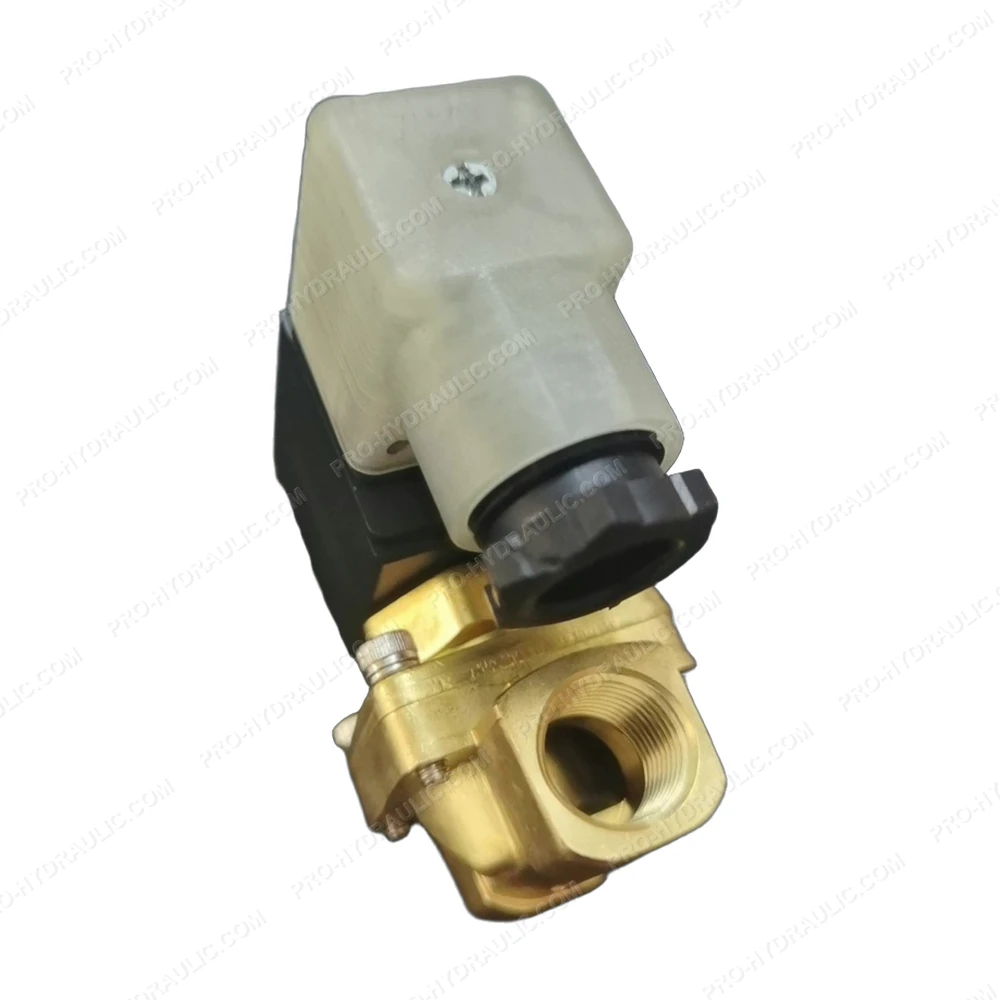

SMC VXD2130-03-5DL1-B Pilot Operated 2-Port Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VXD2130-03-5DL1-B Solenoid Valve. This Japan-made 24VDC hydraulic component features a 2-port pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
