Product Overview
The SMC VXD232CZ1G is a pilot-operated, 2-port solenoid valve engineered for precise on/off control of compatible fluid and gas media within industrial process systems. Manufactured by SMC, a global leader in pneumatic and process valve technology, this valve utilizes an internally piloted diaphragm or piston actuation principle, allowing a low-power solenoid pilot signal to control a much larger main flow path. The VXD232CZ1G is designed for normally closed (N.C.) operation, meaning the main orifice remains sealed until the solenoid coil is energized. Its robust construction and compact body make it ideal for integration into manifolds, control panels, and OEM equipment requiring reliable, repeatable fluid switching. As part of the SMC VXD series, this valve is specifically suited for applications involving water, air, inert gases, and low-viscosity oils where leak-tight sealing and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated 2-Port Solenoid Valve (Process & Pneumatic Valve) |
| Model Designation | VXD232CZ1G |
| Operating Pressure | Standard Industrial Grade (Up to 1.0 MPa / 10 bar rated, depending on port size and media) |
| Mounting & Connection | Standard ISO / SMC Interface (threaded port connection, body or manifold mount) |
| Valve Configuration | 2-Port, Normally Closed (N.C.) |
| Actuation Principle | Internally Piloted Solenoid Actuation |
| Solenoid Voltage | Standard AC/DC coil options (e.g., 24 VDC, 110 VAC, 220 VAC – verify specific coil suffix) |
| Seal Material | NBR (Nitrile) or FKM (Fluororubber) – media dependent |
| Body Material | Corrosion-resistant brass or stainless steel (model dependent) |
Engineering Features & Advantages
- Precision Pilot Actuation: The pilot-operated design enables reliable switching of higher flow rates with minimal electrical power, reducing coil heat and extending solenoid life.
- Leak-Tight Sealing: High-quality elastomeric seals and precision-machined valve seats ensure bubble-tight shutoff, critical for process media containment and energy efficiency.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable coil insulation class and robust body construction resistant to vibration and thermal cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
As part of the SMC VXD series, this valve is specifically suited for applications involving water, air, inert gases, and low-viscosity oils where leak-tight sealing and long service life are critical.
PRODUCT IMAGES

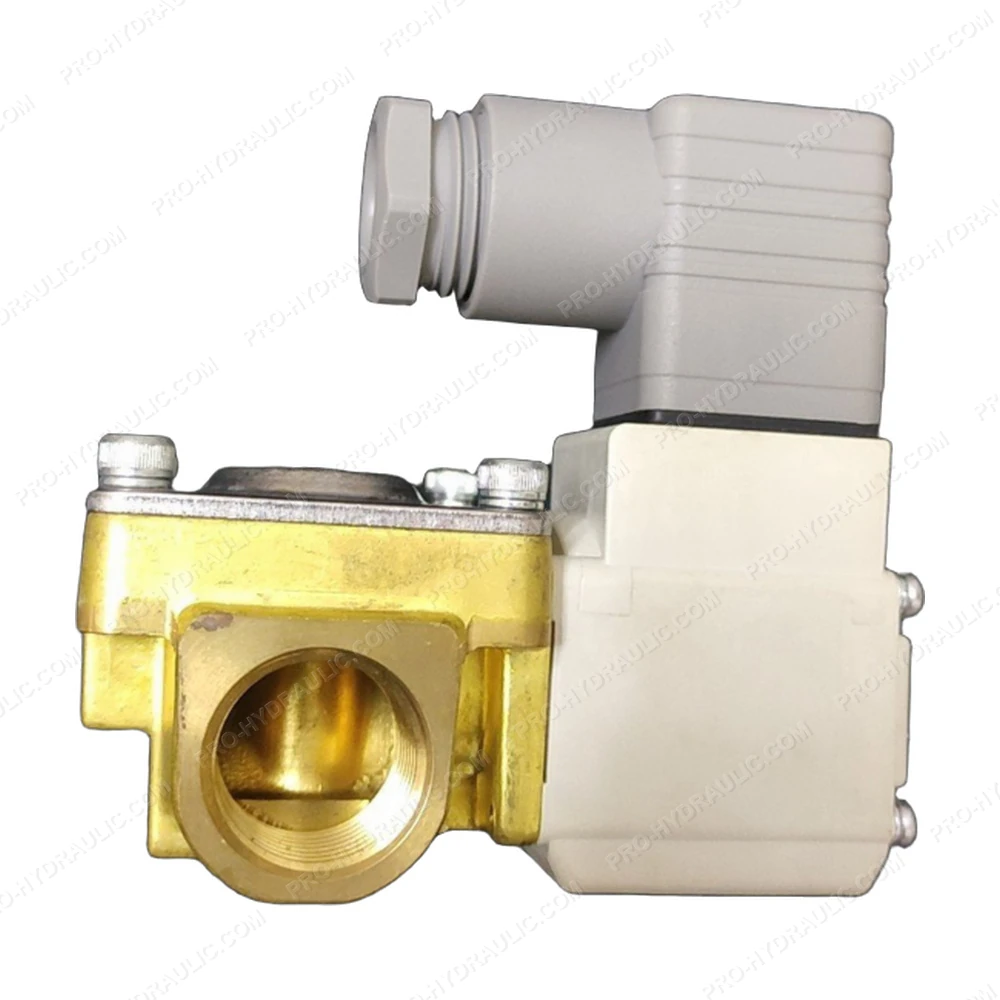

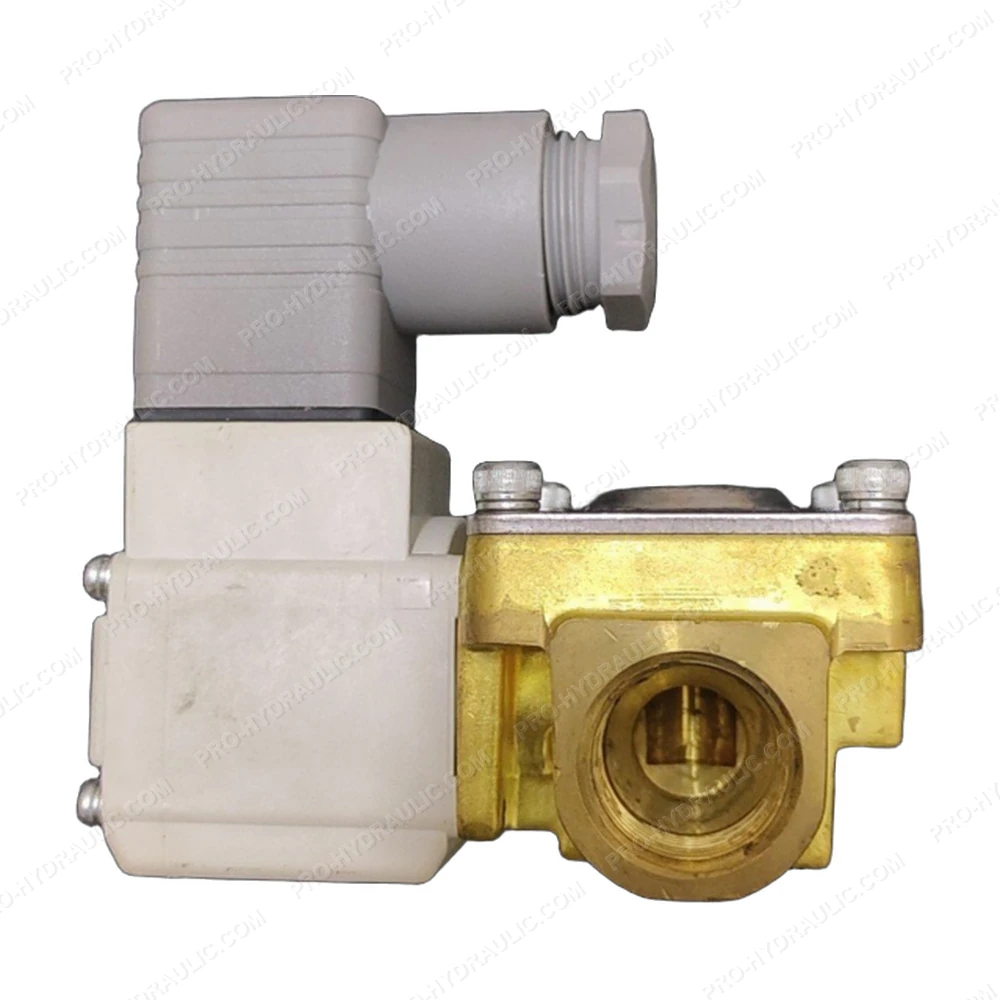

SMC VXD232CZ1G Pilot Operated 2-Port Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VXD232CZ1G Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 2-position, 3-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
