Product Overview
The SMC VY1200-02N-X39 is a precision electro-pneumatic proportional valve engineered by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This valve operates on a direct-acting, solenoid-driven proportional principle, where an electrical input signal (voltage or current) proportionally modulates the internal spool position to deliver infinitely variable flow control of compressed air or neutral gases. Unlike standard on/off directional valves, the VY1200 series provides continuous, analog-style regulation of flow rate, making it an essential component in closed-loop pneumatic control systems requiring precise force, speed, or pressure modulation. The “X39” suffix denotes a specialized factory configuration, typically involving specific electrical connector, seal, or performance characteristics tailored to demanding industrial environments. Its compact 02-size body and robust construction make it ideal for integration into manifold assemblies and modular pneumatic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | VY1200-02N-X39 |
| Operating Pressure | Standard Industrial Grade (Up to 0.9 MPa / 9 bar rated) |
| Mounting & Connection | Standard ISO / SMC Modular Interface (1/4 port size, 02 body) |
| Actuation Method | Direct-acting proportional solenoid with spool positioning |
| Control Signal | Analog voltage (0–10 VDC) or current (4–20 mA) input |
| Flow Characteristics | Infinitely variable, proportional to electrical input signal |
| Fluid Medium | Compressed air or neutral gases (filtered, lubricated or non-lubricated) |
| Seal Material | NBR / FKM (dependent on X39 configuration) |
| Electrical Connection | DIN connector or M12 (per X39 variant) |
| Protection Class | IP65 (standard industrial enclosure) |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic proportional valve (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The “X39” suffix denotes a specialized factory configuration, typically involving specific electrical connector, seal, or performance characteristics tailored to demanding industrial environments.
PRODUCT IMAGES

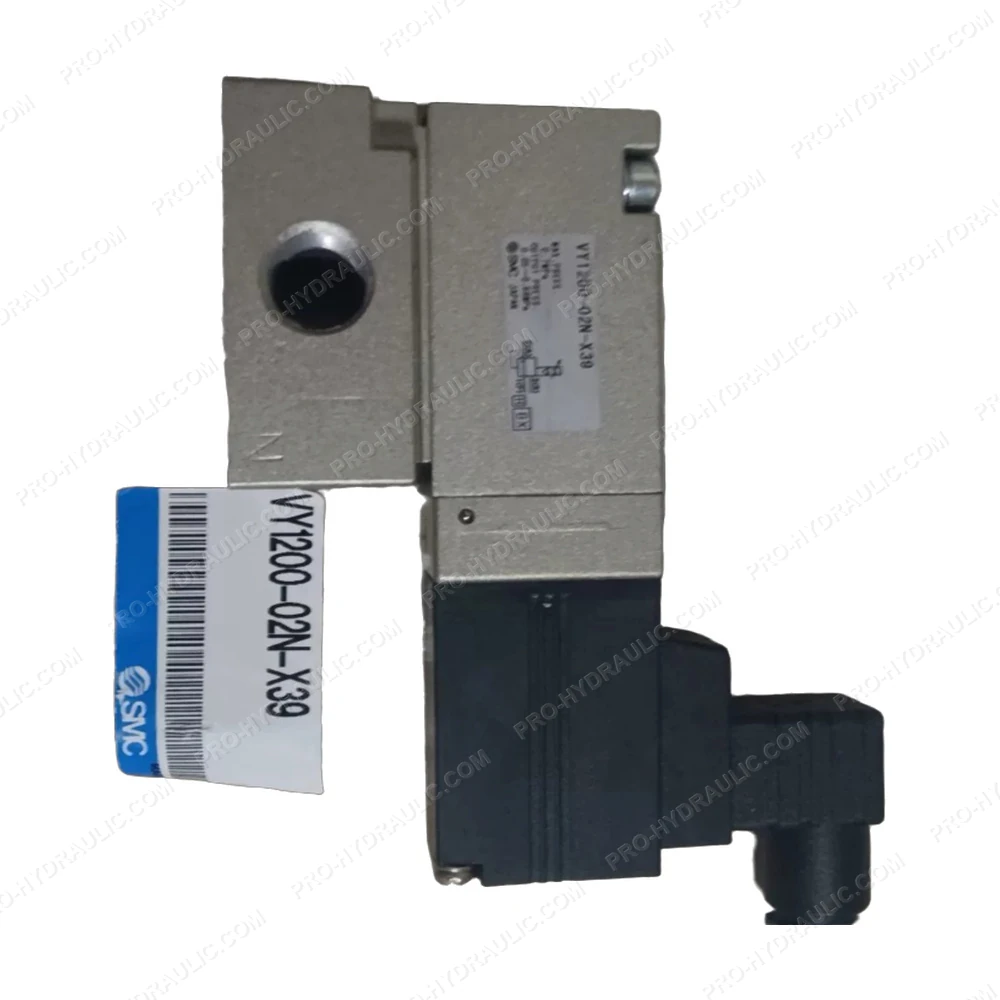

SMC VY1200-02N-X39 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VY1200-02N-X39 Solenoid Valve. This Japan-made 24V DC hydraulic component features a compact, direct-acting design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
