Product Overview
The SMC VZ314-5G-0 is a compact 3-port solenoid valve from the SMC VZ300 series, engineered for precise directional control of compressed air and neutral gases in industrial pneumatic systems. As a direct-acting poppet-type valve, it shifts a sealed poppet element via an electromagnetic solenoid to alternately pressurize and exhaust a single outlet port, making it ideal for single-acting cylinder actuation, blow-off control, vacuum switching, and pilot signal distribution. The VZ314-5G-0 is configured as a normally closed (N.C.) 3-port valve with a 5G solenoid coil rated for 24 VDC, and its ported body design allows direct inline mounting or manifold integration within space-constrained control panels. With a compact footprint, low power consumption, and fast response, this valve is a reliable drop-in component for OEM equipment and MRO replacement in automated production environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 3-Port Solenoid Valve (Process & Pneumatic Valve) |
| Model Designation | VZ314-5G-0 |
| Manufacturer Series | SMC VZ300 Series |
| Valve Function | 3-Port, 2-Position, Normally Closed (N.C.) |
| Actuation Principle | Direct-Acting Solenoid, Poppet-Type |
| Coil Rating | 24 VDC (5G coil designation) |
| Operating Pressure | Standard Industrial Grade (0 to rated bar, direct-acting operation) |
| Port Configuration | 3-Port (Supply, Outlet, Exhaust) |
| Mounting & Connection | Standard ISO / SMC Interface, Inline or Manifold Mount |
| Media Compatibility | Filtered Compressed Air, Inert Gases |
Engineering Features & Advantages
- Precision Performance: Direct-acting poppet design delivers fast, repeatable response times and reliable shifting even at low supply pressures, ensuring consistent pneumatic control across the full operating range.
- Compact & Efficient: Space-saving body construction with low power consumption makes the VZ314-5G-0 ideal for dense manifold installations and energy-conscious control panels.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The SMC VZ314-5G-0 is a compact 3-port solenoid valve from the SMC VZ300 series, engineered for precise directional control of compressed air and neutral gases in industrial pneumatic systems.
PRODUCT IMAGES

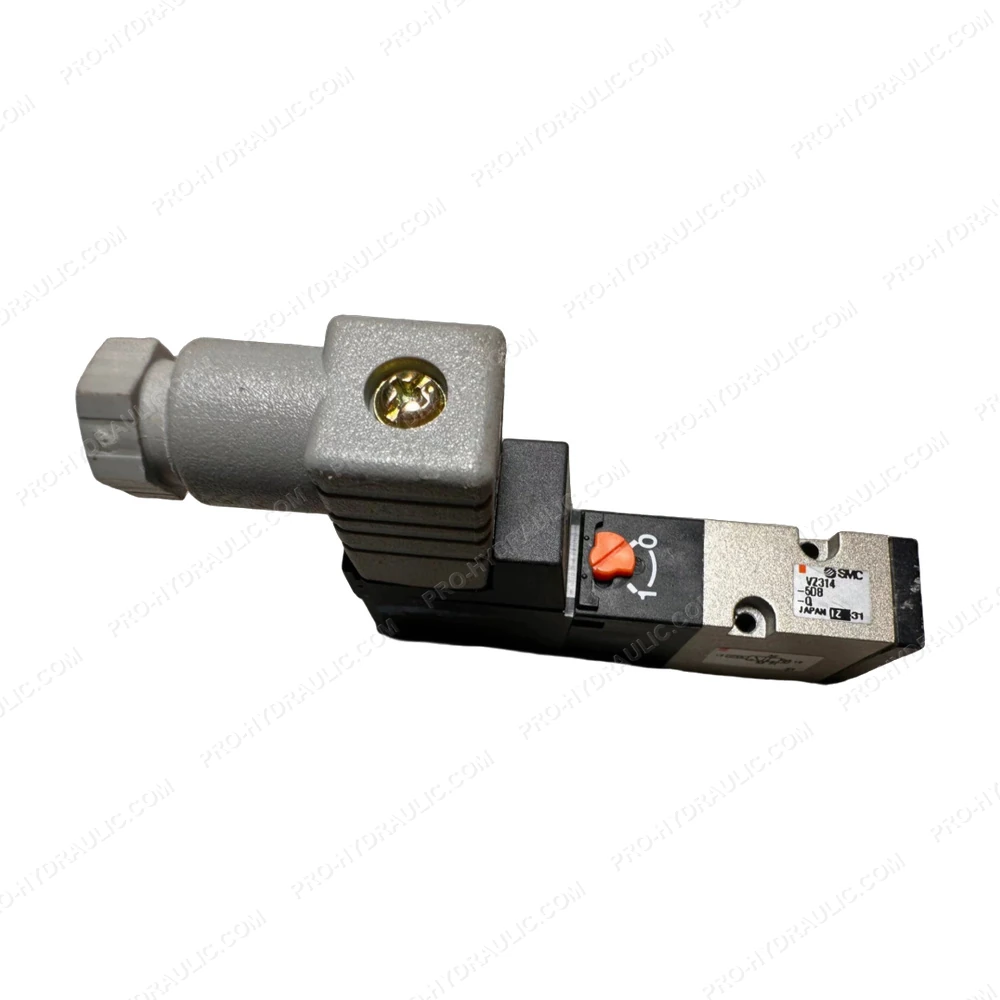

SMC VZ314-5G-0 3-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VZ314-5G-0 Solenoid Valve. This Japan-made 24V DC hydraulic component features a 3-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
