Product Overview
The SMC VZS2250-1H is a 5-port pneumatic solenoid valve from the SMC VZS2000 series, engineered for precise directional control of compressed air in automated industrial systems. Utilizing a spool-and-sleeve actuation principle, this valve directs and exhausts air flow across five ports (pressure supply, two cylinder ports, and two exhaust ports) to drive double-acting pneumatic actuators. Its compact body design and reliable solenoid pilot operation make it a standard choice for machine builders requiring fast, repeatable valve actuation in space-constrained manifolds and control panels.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5-Port, 5/2 Configuration) |
| Model Designation | VZS2250-1H |
| Operating Pressure | Standard Industrial Grade (0.1 – 0.7 MPa typical for VZS series) |
| Mounting & Connection | Manifold / Sub-base Mounting, SMC Standard Interface |
| Port Configuration | 5-Port (P, A, B, EA, EB) — 5/2 Directional Control |
| Actuation Type | Solenoid Pilot Operated (Single Solenoid, Spring Return) |
| Voltage Rating | 1H Coil Designation (Standard SMC Solenoid Coil) |
| Seal Material | NBR / FKM Options per SMC Standard |
Engineering Features & Advantages
- Precision Spool Actuation: The balanced spool-and-sleeve design delivers fast, consistent response times and minimal pressure drop across the valve, ensuring accurate directional control of pneumatic actuators.
- Compact 5-Port Architecture: The integrated 5-port configuration allows direct control of double-acting cylinders without additional plumbing, reducing installation complexity and leak points in manifold assemblies.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable solenoid pilot stage and wear-resistant seals rated for millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC VZS2000 series standards, ensuring drop-in replacement without manifold or piping modification.
Typical Industrial Applications
Commonly deployed in automated assembly lines, packaging machinery, plastic injection molding machines, CNC machine tool clamping circuits, and general pneumatic automation systems where reliable 5/2 directional control of double-acting actuators is required. Also widely used in material handling equipment, textile machinery, and food processing lines where clean, fast solenoid valve response is essential.
PRODUCT IMAGES

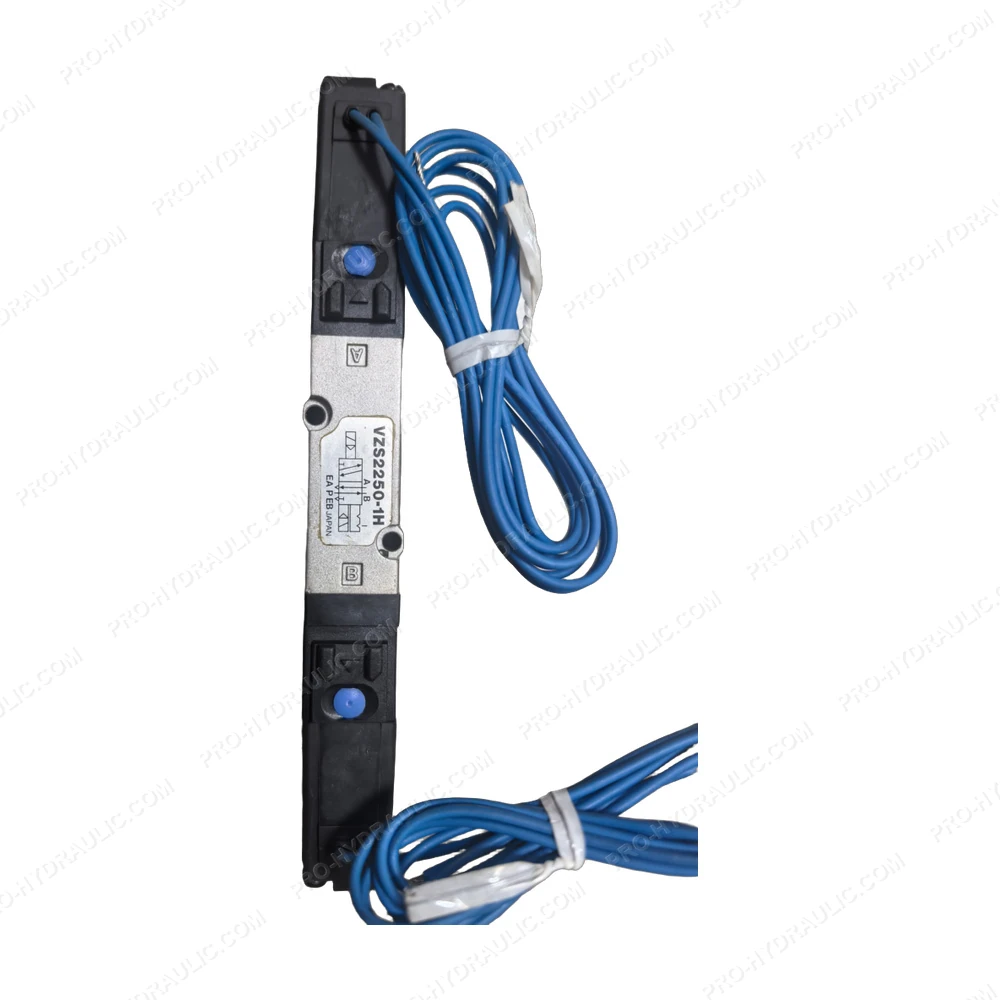

SMC VZS2250-1H 5-Port Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC VZS2250-1H Solenoid Valve. This Japan-made 24V DC hydraulic component features a 2-position solenoid design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
