Product Overview
The SMC ZK2F07K5NL2-08 is a high-efficiency vacuum ejector unit from the SMC ZK2 series, engineered for precision vacuum generation and control in automated industrial systems. Operating on the Venturi principle, this pneumatic vacuum ejector utilizes compressed air to create a reliable vacuum supply for pick-and-place, material handling, and packaging applications. The ZK2F series integrates vacuum generation, filtration, and control functions into a single compact unit, reducing installation footprint and piping complexity. With a 08 port size and integrated solenoid valve, this model delivers consistent vacuum performance with rapid response times, making it an ideal solution for high-cycle automated assembly and robotic end-effector systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Vacuum Ejector Unit (Process & Pneumatic Valve) |
| Model Designation | ZK2F07K5NL2-08 |
| Manufacturer | SMC Pneumatics |
| Operating Pressure | Standard Industrial Grade (0.2 – 0.7 MPa supply range) |
| Port Size | 08 (8 mm tube connection) |
| Mounting & Connection | Standard ISO / SMC Interface with integrated solenoid valve |
| Vacuum Generation | Venturi-type ejector with integrated filter and control |
Engineering Features & Advantages
- Precision Performance: Integrated Venturi ejector design delivers rapid vacuum response and stable suction force for high-speed pick-and-place operations, with precise control via the built-in solenoid valve.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and integrated filtration to protect against contamination in compressed air lines.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC ZK2 series OEM standards, ensuring drop-in replacement without modification.
- Compact Integrated Design: Combines vacuum generation, filtration, and solenoid control in a single unit, reducing piping, installation time, and overall system footprint.
Typical Industrial Applications
This SMC vacuum ejector unit is widely deployed in automated pick-and-place systems for electronics assembly, robotic end-effectors for material handling, packaging machinery for carton and film handling, and automated assembly lines requiring reliable vacuum gripping. It is also suitable for semiconductor wafer handling, plastic injection molding machine take-out robots, and general factory automation where precise vacuum control is critical.
PRODUCT IMAGES

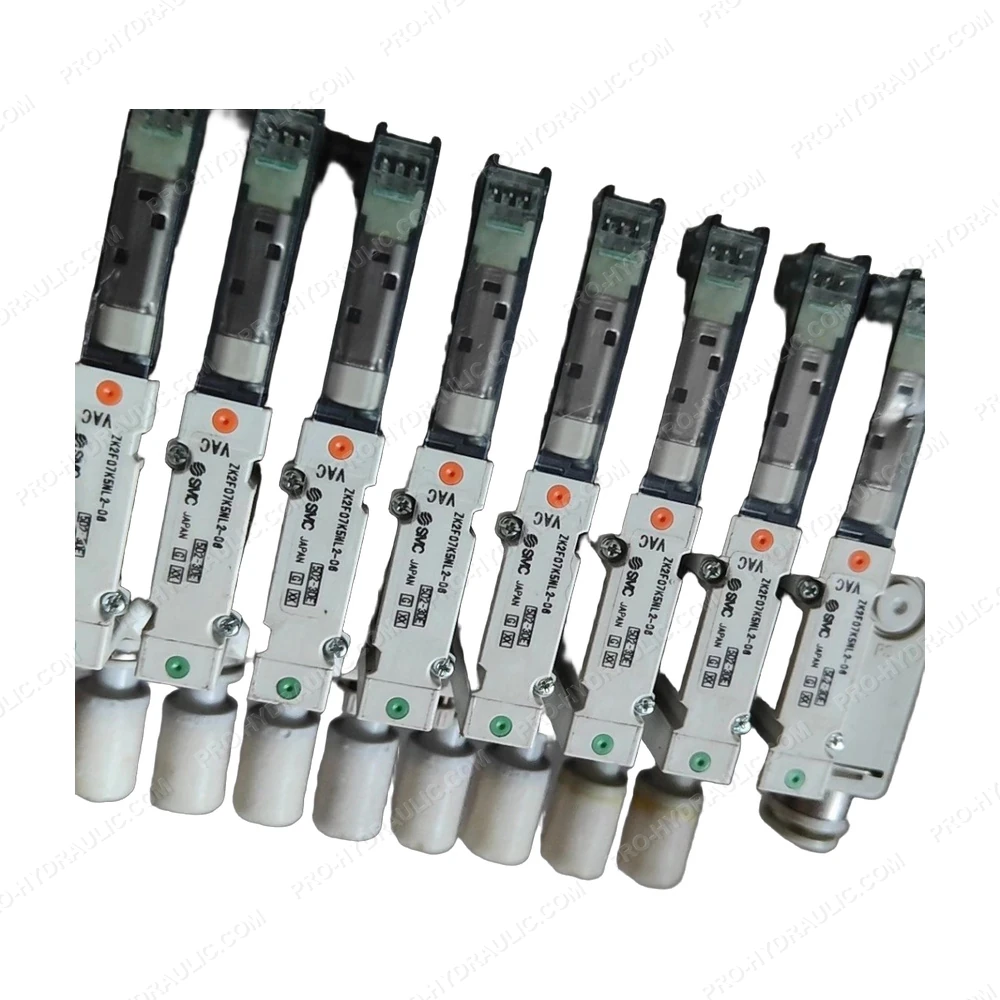

SMC ZK2F07K5NL2-08 Vacuum Ejector Unit
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ZK2F07K5NL2-08 Vacuum Regulator Valve. This Japan-made precision vacuum component features a compact, reliable design, delivering precise pressure control and leak-free operation for industrial automation systems.
