Product Overview
The SMC ZK2P00K5ALA-06 is a compact, high-performance vacuum control valve unit engineered by SMC Corporation, a global leader in pneumatic and vacuum automation technology. This integrated unit combines vacuum generation, filtration, and electronic switching functions within a single modular body, operating on the venturi (ejector) principle to produce vacuum directly from a compressed air supply. As a member of the SMC ZK2 series, it serves as a critical control component in pneumatic vacuum handling systems, providing precise suction and release control for pick-and-place, packaging, and automated assembly operations. The unit features a 24 VDC solenoid pilot valve for electronic vacuum supply and break control, along with a built-in vacuum pressure switch for real-time monitoring and feedback to PLC or machine control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Vacuum Control Valve Unit (Pneumatic Ejector / Vacuum Valve) |
| Model Designation | ZK2P00K5ALA-06 |
| Series | SMC ZK2 Series Vacuum Ejector / Valve Unit |
| Operating Pressure | Standard Industrial Grade (0.2 – 0.7 MPa supply air) |
| Vacuum Range | Up to -90 kPa (typical ejector performance) |
| Solenoid Voltage | 24 VDC |
| Port Size | 06 (6 mm tube connection) |
| Mounting & Connection | Standard SMC modular interface / body ported |
| Vacuum Switch | Integrated solid-state pressure switch with LED indication |
| Filtration | Built-in filter element for vacuum line protection |
Engineering Features & Advantages
- Precision Vacuum Control: Integrated solenoid pilot valve delivers fast and repeatable vacuum supply and break signals, ensuring accurate workpiece release and minimal cycle time in high-speed pick-and-place operations.
- Integrated Vacuum Monitoring: Built-in vacuum pressure switch provides real-time feedback for part-present confirmation, preventing mis-picks and reducing scrap rates in automated handling systems.
- Compact Modular Design: Space-saving ejector body combines vacuum generation, filtration, and switching in one unit, reducing piping complexity and installation footprint on robotic end-effectors and gantries.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The unit features a 24 VDC solenoid pilot valve for electronic vacuum supply and break control, along with a built-in vacuum pressure switch for real-time monitoring and feedback to PLC or machine control systems.
PRODUCT IMAGES

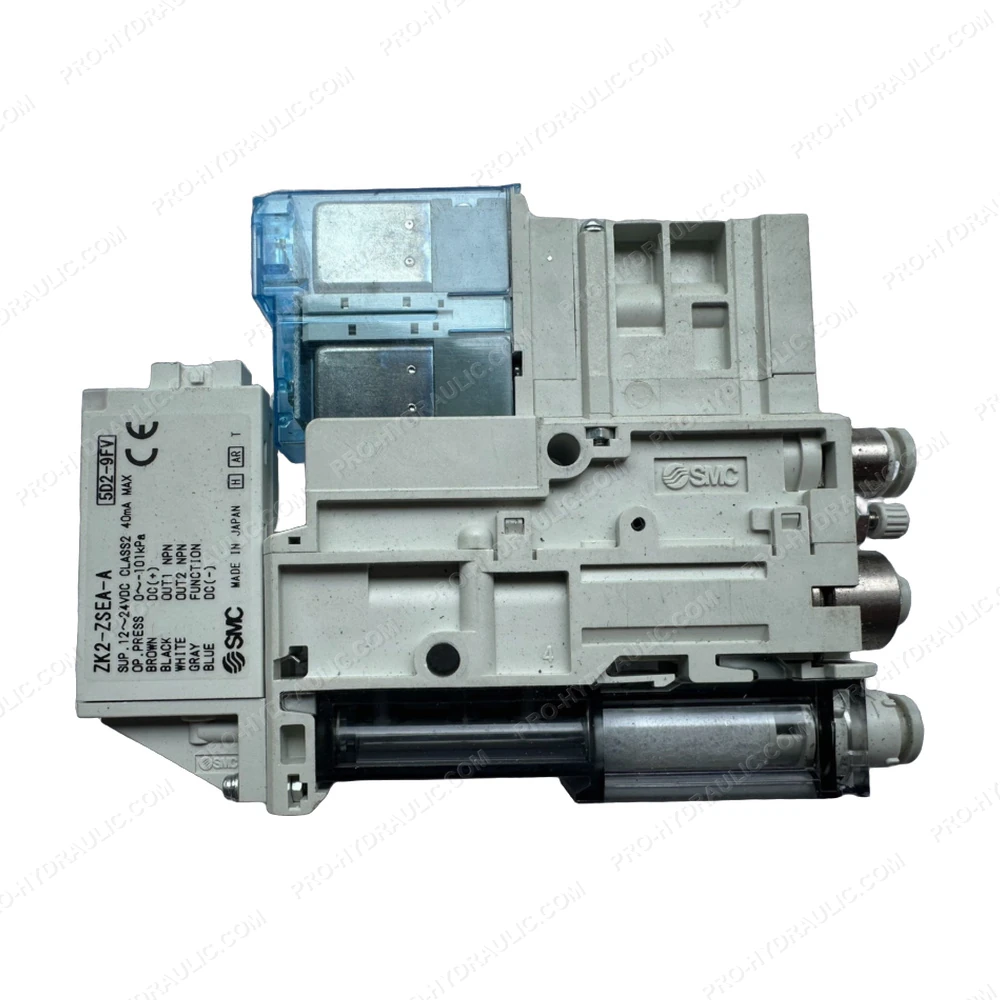

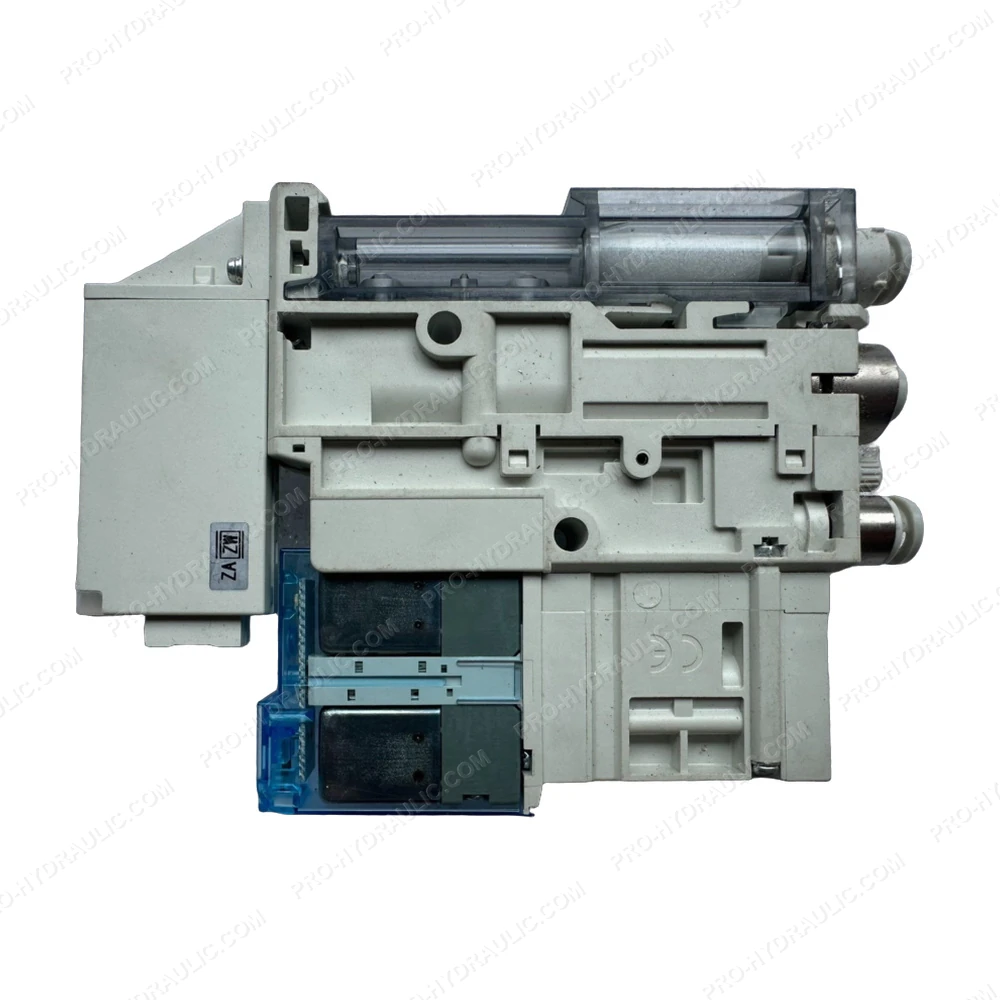

SMC ZK2P00K5ALA-06 Vacuum Control Valve Unit
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ZK2P00K5ALA-06 Vacuum Ejector Valve. This Japan-made 24VDC pneumatic component features a compact ejector design, delivering leak-free, reliable vacuum control for heavy-duty industrial systems.
