Product Overview
The SMC ZR120S1-K15MZB-DPL is a high-performance vacuum ejector unit from SMC’s ZR series, engineered for precision vacuum generation in pneumatic process systems. Utilizing a multi-stage ejector nozzle design, this unit generates vacuum by directing compressed air through a convergent-divergent nozzle, creating a Venturi effect that draws air from the suction port. The ZR120S1-K15MZB-DPL integrates a vacuum pressure switch and solenoid valve for automated vacuum control, making it a complete vacuum management solution for pick-and-place, packaging, and material handling applications. Its compact, modular construction allows for direct manifold mounting or inline installation within pneumatic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Vacuum Ejector Unit |
| Model Designation | ZR120S1-K15MZB-DPL |
| Operating Pressure | 0.2 – 0.7 MPa (2 – 7 bar) supply air |
| Vacuum Range | Up to -90 kPa (depending on supply pressure) |
| Mounting & Connection | Manifold / Inline, Rc (PT) threaded ports |
| Control Interface | Integrated solenoid valve and vacuum switch |
Engineering Features & Advantages
- Precision Performance: Multi-stage ejector nozzle design delivers high vacuum flow rates with minimal air consumption, ensuring rapid response and energy-efficient operation.
- Integrated Control: Built-in vacuum pressure switch and solenoid valve enable automated vacuum generation and release, reducing external component count and simplifying system integration.
- Industrial Reliability: Constructed with corrosion-resistant materials and sealed for continuous operation in demanding industrial environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC ZR series mounting and port configurations, ensuring drop-in replacement without modification.
Typical Industrial Applications
This vacuum ejector unit is ideal for automated pick-and-place systems in electronics assembly, packaging machinery for carton and film handling, robotic end-effectors for material transfer, and general pneumatic vacuum clamping in CNC and woodworking operations. Its compact design and integrated controls make it suitable for space-constrained installations requiring reliable vacuum generation.
PRODUCT IMAGES

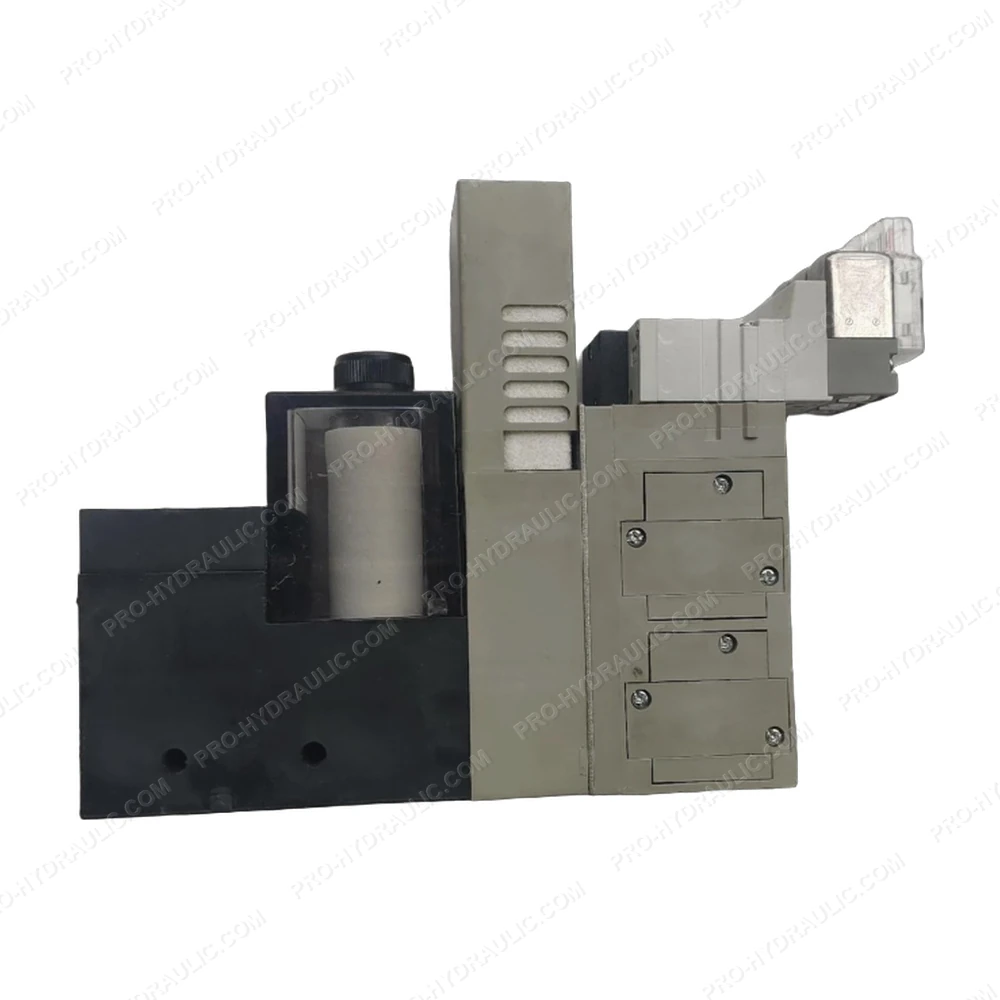

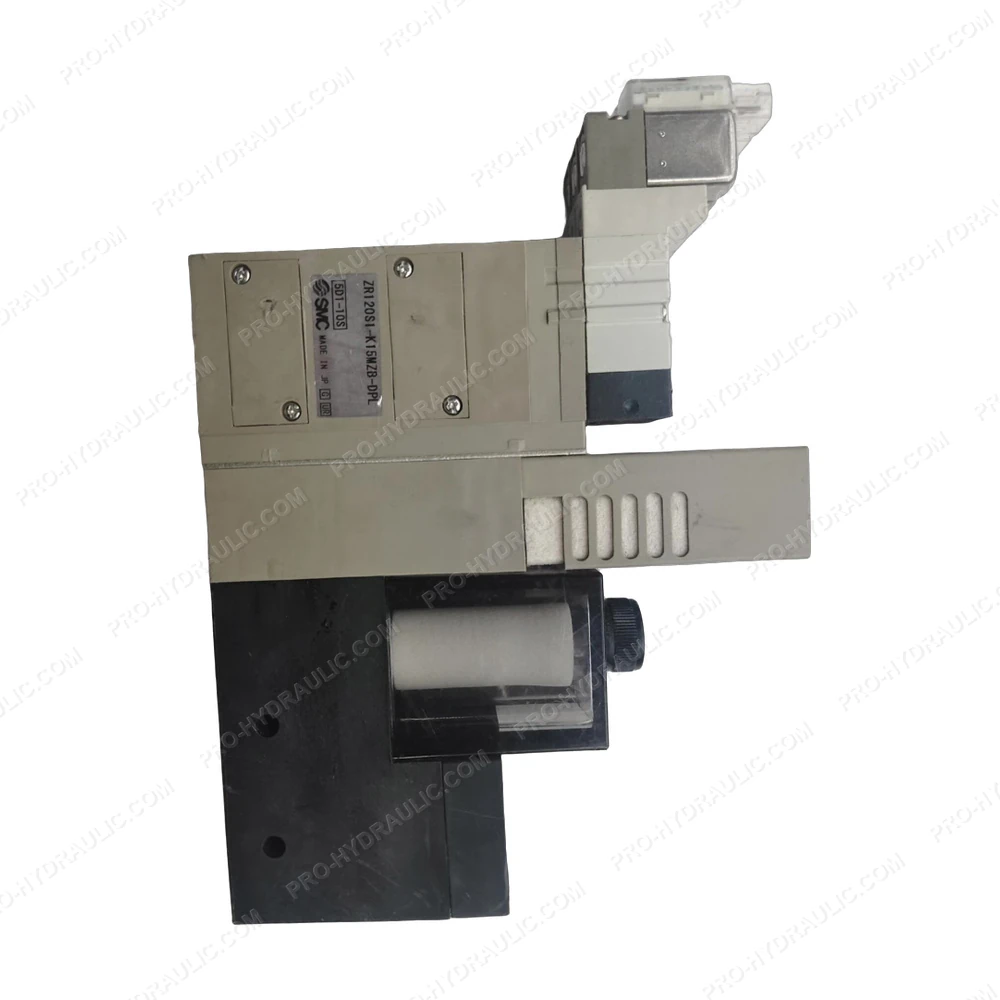

SMC ZR120S1-K15MZB-DPL Vacuum Ejector Unit
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ZR120S1-K15MZB-DPL Vacuum Ejector. This Japan-made pneumatic component features a multi-stage ejector design, delivering efficient vacuum generation and reliable performance for industrial automation systems.
