Product Overview
The SOGEVAC SV25 B is a direct-drive rotary vane vacuum pump engineered for continuous industrial duty in the low to medium vacuum range. Manufactured to the SOGEVAC single-stage rotary vane platform, the SV25 B operates on a proven eccentric rotor and sliding vane working principle: centrifugal force and oil film pressure hold the vanes against the stator ring as the rotor turns, creating expanding and contracting sealed chambers that draw gas from the inlet and discharge it through an integrated exhaust valve. The pump is driven by a flange-mounted motor through a rigid coupling, eliminating belt wear and ensuring stable pumping speed across the operating range. With a nominal displacement of approximately 25 m³/h, the SV25 B serves as a compact, reliable vacuum source for backing turbomolecular pumps, roughing vacuum chambers, and general industrial vacuum services where oil-sealed rotary vane technology is preferred for its low noise, low vibration, and tolerance of condensable vapors when fitted with a gas ballast facility.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Rotary Vane Vacuum Pump (Oil-Sealed, Single-Stage) |
| Model Designation | SOGEVAC SV25 B |
| Nominal Displacement | Approx. 25 m³/h (≈ 14.7 CFM) |
| Ultimate Pressure | ≤ 0.5 mbar (without gas ballast) |
| Working Principle | Eccentric rotor with sliding vanes, oil-lubricated and oil-sealed |
| Drive Configuration | Direct-coupled flange motor, three-phase industrial supply |
| Inlet Connection | Standard ISO-KF / DN flange interface |
| Oil System | Integral oil reservoir with forced lubrication and oil mist separator |
| Gas Ballast | Standard manual gas ballast valve for condensable vapor handling |
| Mounting | Horizontal baseplate mounting, vibration-damped feet |
Engineering Features & Advantages
- Precision Vane Performance: Hardened, high-precision sliding vanes running against a lapped stator ring maintain consistent chamber sealing, delivering stable pumping speed and repeatable ultimate pressure throughout the service interval.
- Low Noise and Low Vibration: The direct-drive rotor assembly and balanced rotating group keep sound pressure levels low, making the SV25 B suitable for installation directly on or adjacent to production equipment.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SOGEVAC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal displacement of approximately 25 m³/h, the SV25 B serves as a compact, reliable vacuum source for backing turbomolecular pumps, roughing vacuum chambers, and general industrial vacuum services where oil-sealed rotary vane technology is preferred for its low noise, low vibration, and tolerance of condensable vapors when fitted with a gas ballast facility.
PRODUCT IMAGES

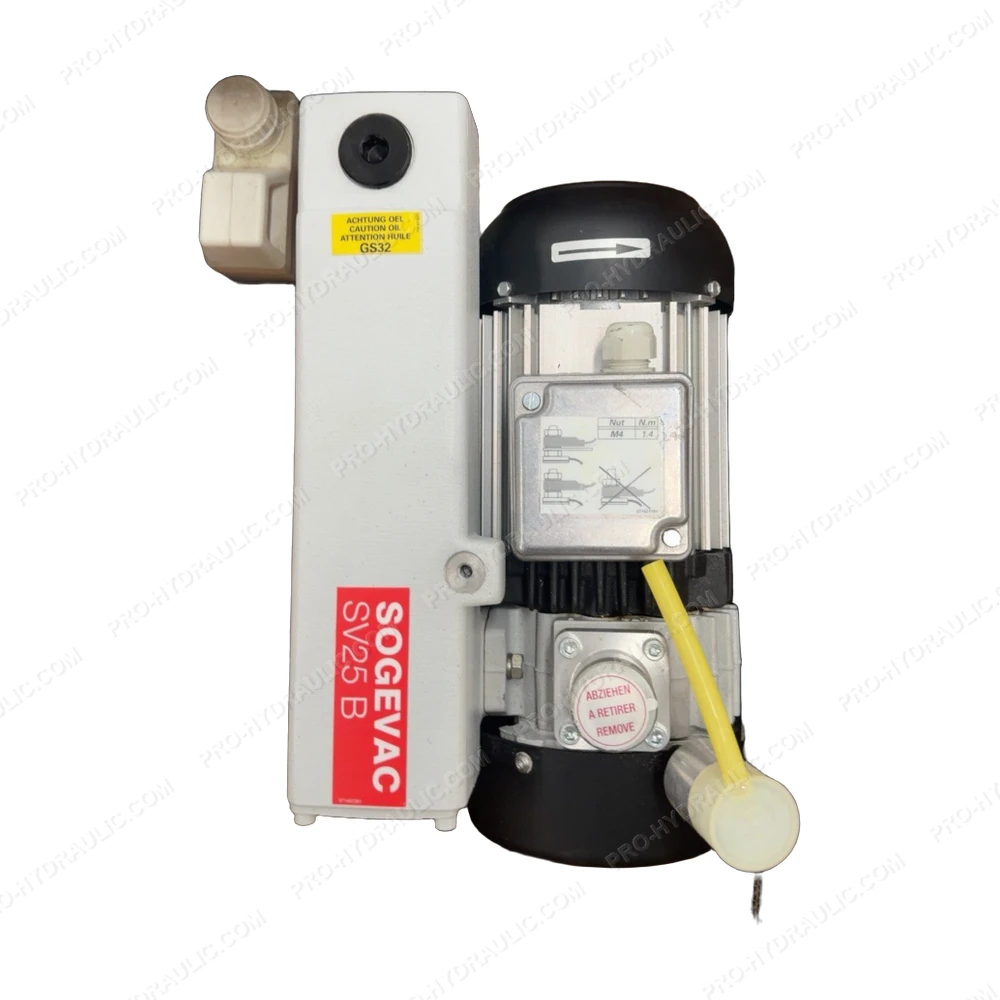

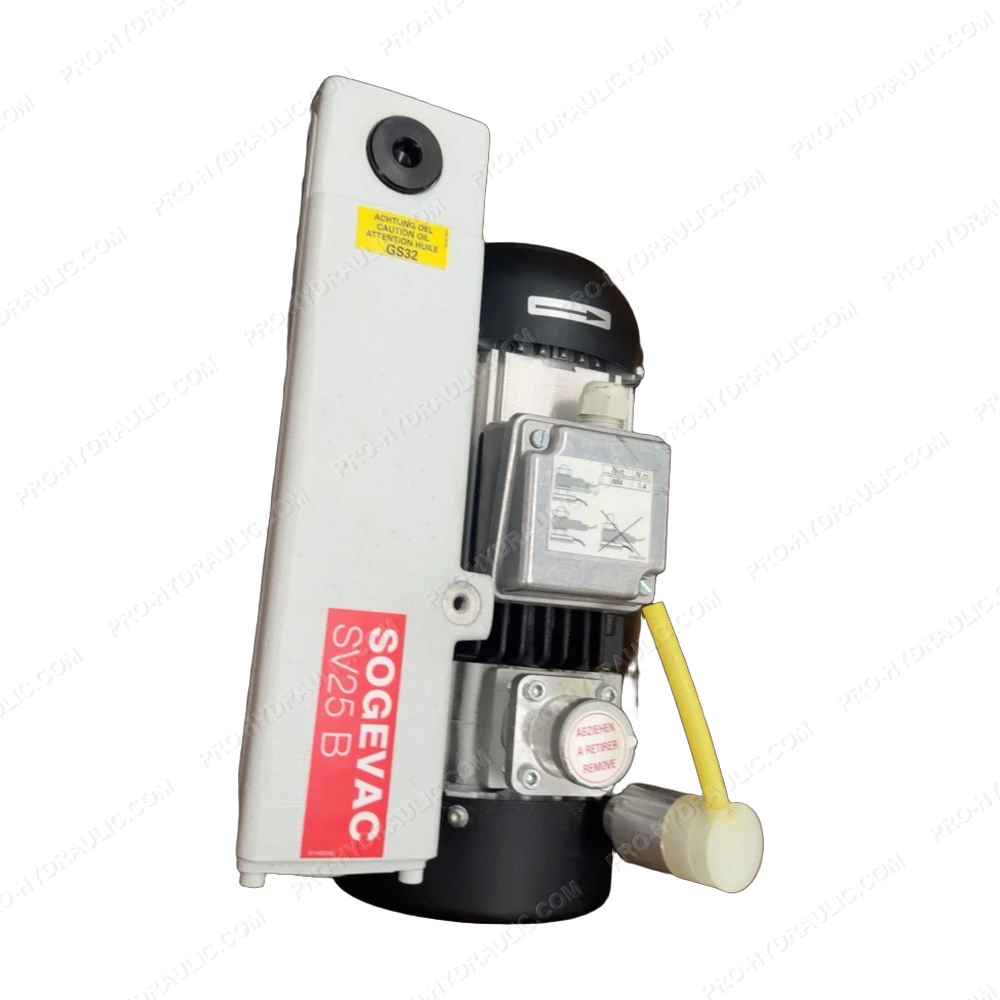

SOGEVAC SV25 B Rotary Vane Vacuum Pump
