The SPIRAX SARCO FT14-14 is a heavy-duty industrial ball float steam trap engineered for reliable condensate removal and energy-efficient steam system operation. It features a mechanical ball float mechanism with a thermostatic air vent, ensuring continuous discharge of condensate and automatic air venting during start-up.
SPIRAX SARCO FT14-14 Technical Specifications
| Type | Ball Float Steam Trap |
|---|---|
| Model | FT14-14 |
| Connection Size | 1/2″ (DN15) to 1″ (DN25) |
| Connection Type | Threaded (BSP/NPT) or Flanged |
| Body Material | Cast Iron (EN-GJL-250) |
| Maximum Operating Pressure | 14 bar (200 psi) |
| Maximum Operating Temperature | 200°C (392°F) |
| Orifice Size | Standard (specific to model) |
| Air Vent Type | Thermostatic capsule |
| Mounting | Horizontal or vertical |
Key Engineering Features
- Mechanical ball float mechanism for continuous condensate discharge
- Integrated thermostatic air vent for automatic air removal
- Robust cast iron body for durability in demanding environments
- Stainless steel internal components for corrosion resistance
- Simple maintenance with replaceable internals
- Designed for steam systems up to 14 bar and 200°C
Industrial Applications
- Steam distribution lines and headers
- Heat exchangers and process equipment
- Steam tracing and jacketed vessels
- Drip legs and steam mains
- Industrial steam systems in chemical, food, and pharmaceutical industries
For technical inquiries, dimensional drawings, or replacement support for SPIRAX SARCO FT14-14, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

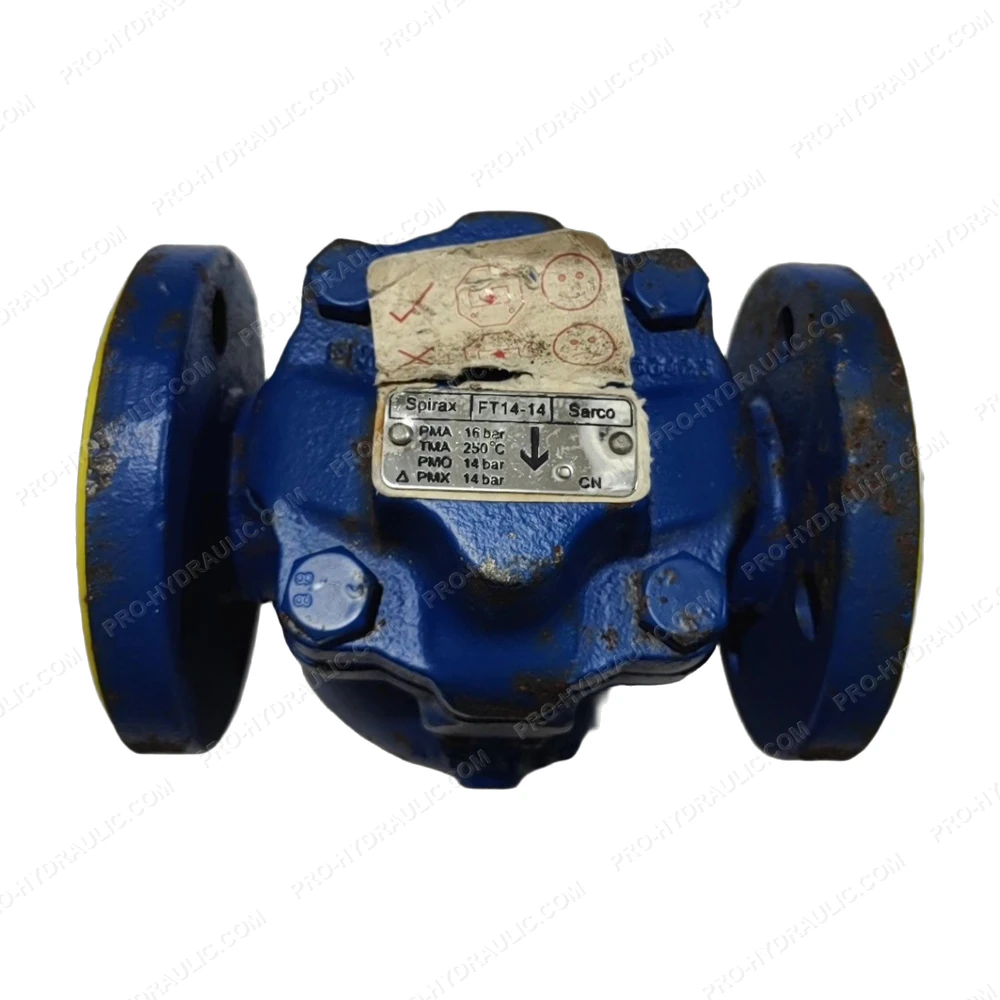

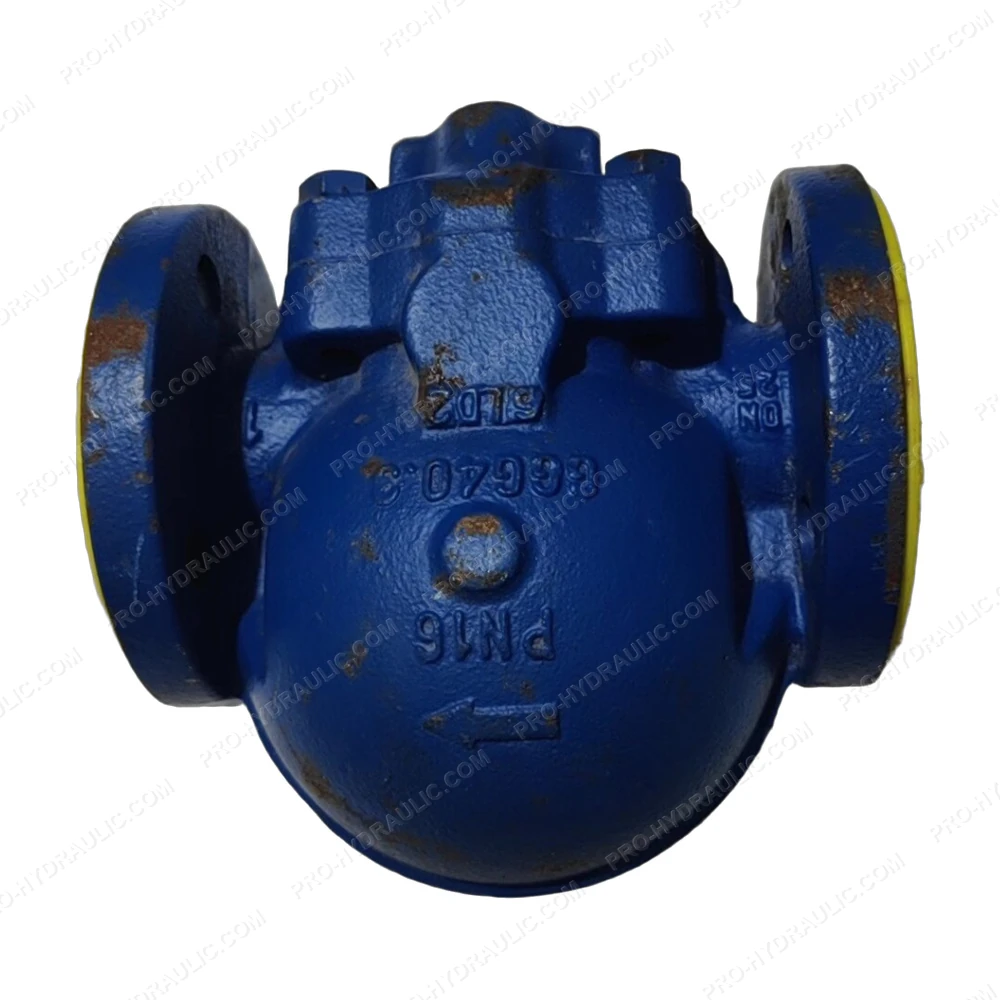

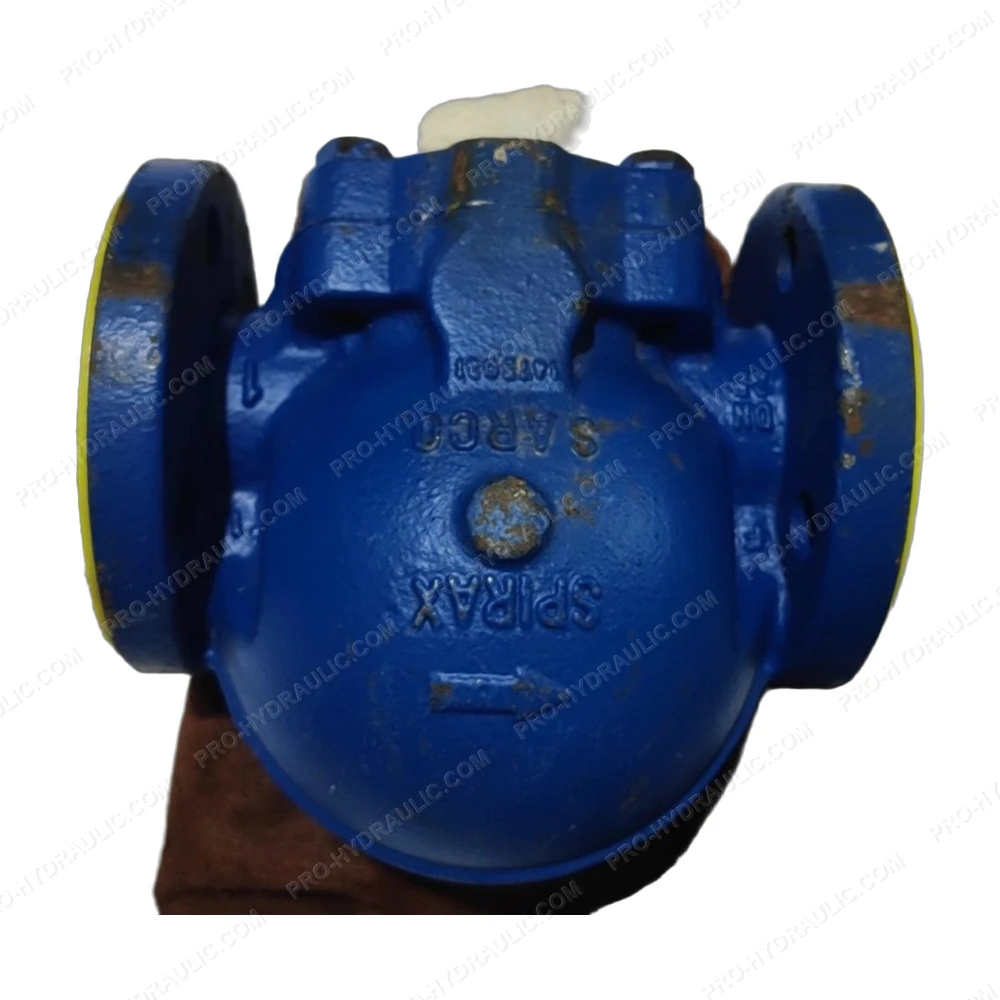

SPIRAX SARCO FT14-14 Ball Float Steam Trap
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the SPIRAX SARCO FT14-14 Ball Float Steam Trap. This precision-engineered industrial component delivers reliable performance and accurate operation for demanding industrial systems.
