Product Overview
The STAR HYDRAULICS 456-0075 is a high-performance electro-hydraulic servo valve engineered for precise, high-frequency control of hydraulic flow and pressure in demanding industrial motion-control systems. Manufactured by Star Hydraulics, a recognized name in precision fluid power components, this two-stage servo valve converts low-power electrical command signals into proportional hydraulic output through a torque-motor-driven pilot stage and a matched spool-and-sleeve second stage. The 456-0075 delivers exceptional resolution, minimal hysteresis, and fast dynamic response, making it the critical control element in closed-loop servo systems where position, velocity, or force must be regulated with repeatable accuracy. It is designed as a direct-fit replacement for OEM servo valve installations and is suited for continuous-duty operation in severe industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Hydraulic Servo Valve (Proportional & Servo Valve) |
| Model Designation | 456-0075 |
| Manufacturer | Star Hydraulics |
| Valve Configuration | Two-stage, torque-motor pilot with spool-and-sleeve second stage |
| Actuation Type | Electrical command signal (analog current/voltage) via torque motor |
| Operating Pressure | Standard Industrial Grade (up to rated system bar per OEM specification) |
| Flow Control | Proportional bidirectional metering, rated flow per model designation |
| Mounting & Connection | Standard ISO / Manufacturer Interface (subplate or manifold mounting) |
| Hydraulic Fluid | Mineral-based hydraulic oil, filtered to servo-grade cleanliness |
Engineering Features & Advantages
- Precision Performance: The torque-motor pilot stage and precision-matched spool-and-sleeve assembly deliver high-resolution flow metering with low hysteresis and excellent repeatability, enabling tight closed-loop control of position, velocity, and force.
- Fast Dynamic Response: Optimized pilot-stage dynamics provide high-frequency response for demanding servo applications requiring rapid command tracking and minimal phase lag.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands elevated pressures, thermal cycling, and contaminated-duty environments when properly filtered.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM servo valve standards, simplifying retrofit and minimizing machine downtime.
- Stable Null Characteristics: Tight null bias and low leakage at center position support accurate holding and smooth reversal in critical motion profiles.
Typical Industrial Applications
The STAR
PRODUCT IMAGES

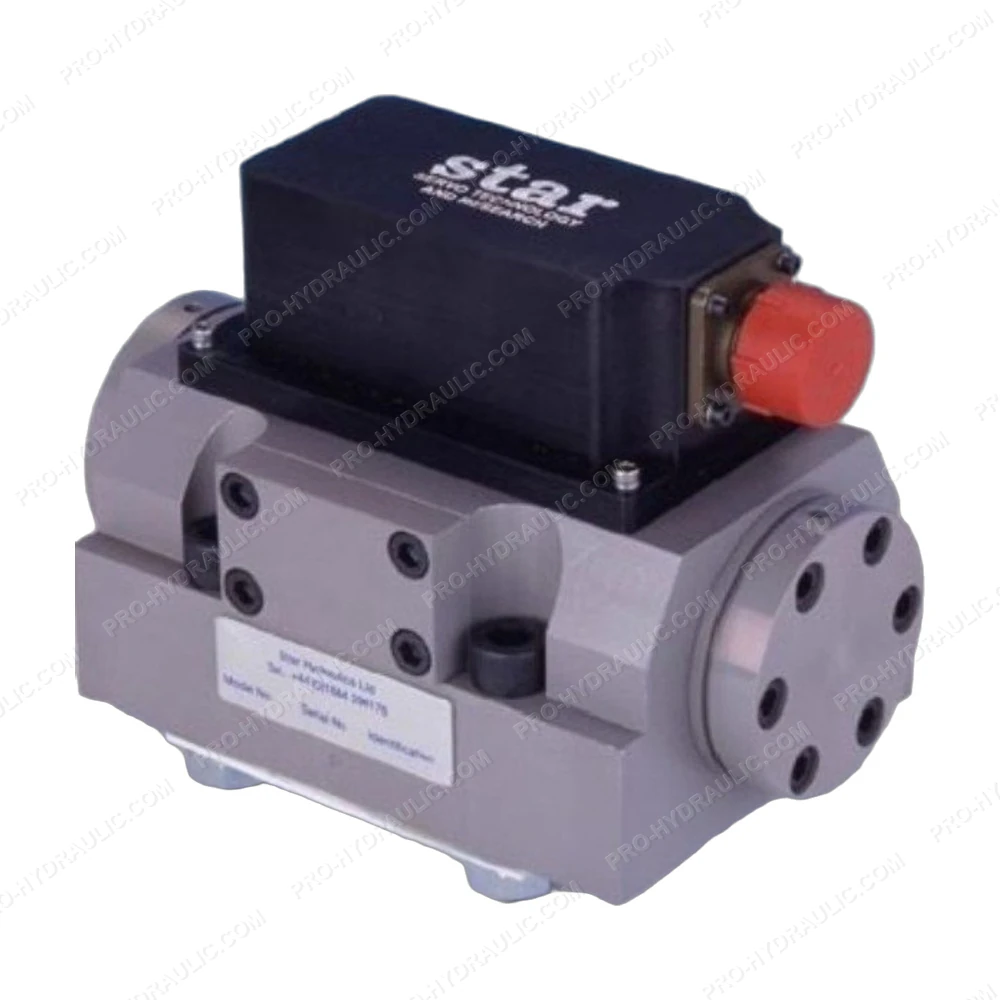

STAR HYDRAULICS 456-0075 Electro-Hydraulic Servo Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine STAR HYDRAULICS 456-0075 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
