Product Overview
The SUN HYDRAULICS DTDF-XCN is a solenoid-operated, 2-position, 3-way directional poppet valve designed for demanding industrial hydraulic circuits requiring leak-free load holding and reliable directional control. Manufactured by Sun Hydraulics, a global leader in high-performance cartridge valve technology, this valve utilizes a poppet-type seating mechanism rather than a sliding spool, delivering virtually zero internal leakage in the closed position. The DTDF-XCN is actuated by a robust wet-armature solenoid and is intended for use in manifold-mounted hydraulic systems where precise flow direction, load holding, and rapid response are critical. Its cartridge-style construction allows for compact integration into custom hydraulic manifolds, making it a preferred choice for mobile and industrial equipment requiring dependable 3-way directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Poppet Valve (3-Way, 2-Position) |
| Model Designation | DTDF-XCN |
| Manufacturer | Sun Hydraulics |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar / 5000 psi rated) |
| Flow Capacity | Up to 30 L/min (8 gpm) nominal |
| Actuation Type | Wet-armature solenoid, push-type |
| Mounting & Connection | Standard Sun Hydraulics T-11A cavity, cartridge-style manifold mount |
| Seal Type | Poppet seat, leak-free closed position |
Engineering Features & Advantages
- Precision Performance: The poppet-and-seat design provides virtually zero leakage in the closed position, ensuring reliable load holding and preventing drift in critical hydraulic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a wet-armature solenoid that enhances durability and reduces wear compared to dry-armature designs.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Sun Hydraulics cartridge cavity standards, ensuring drop-in replacement without manifold modification.
- Fast Response: Solenoid actuation delivers rapid shifting for precise directional control in high-cycle industrial applications.
- Compact Cartridge Design: Space-saving manifold mounting reduces system footprint and simplifies hydraulic circuit integration.
Typical Industrial Applications
The SUN HYDRAULICS DTDF-XCN is widely deployed in plastic injection molding machines for mold clamping and ejector circuits, metallurgical presses requiring reliable load holding, construction and marine hydraulic systems for boom and outrigger control, and CNC machine tools where precise directional flow control and leak-free operation are essential. Its robust poppet design also makes it suitable for agricultural equipment, material handling systems, and any manifold-based hydraulic circuit demanding dependable 3-way directional control.
PRODUCT IMAGES

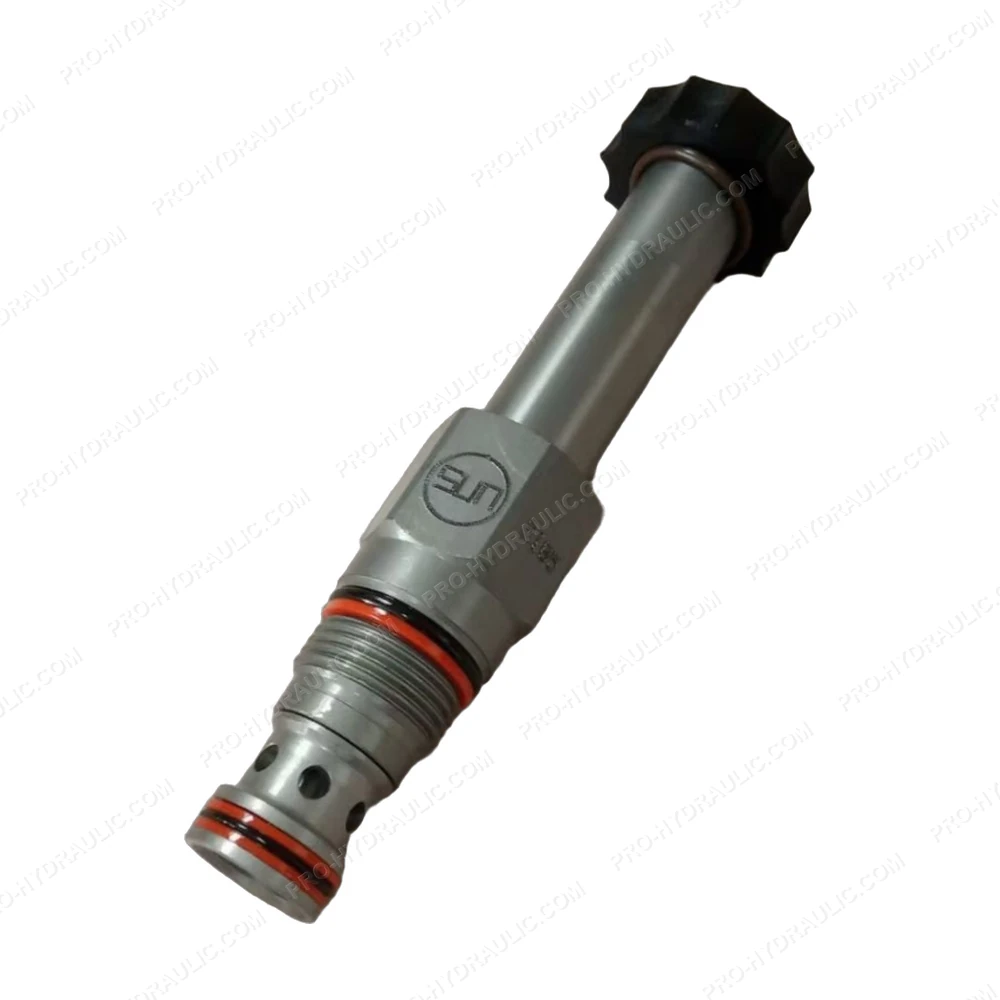

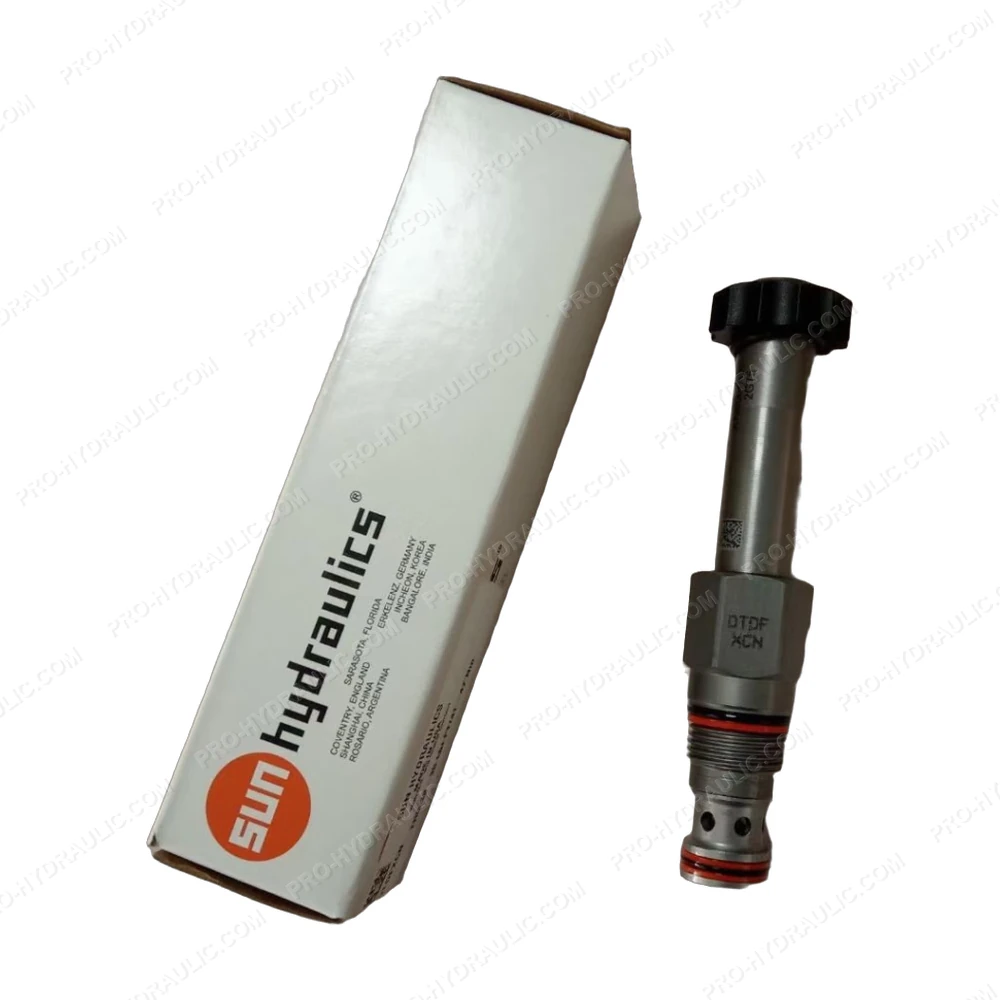

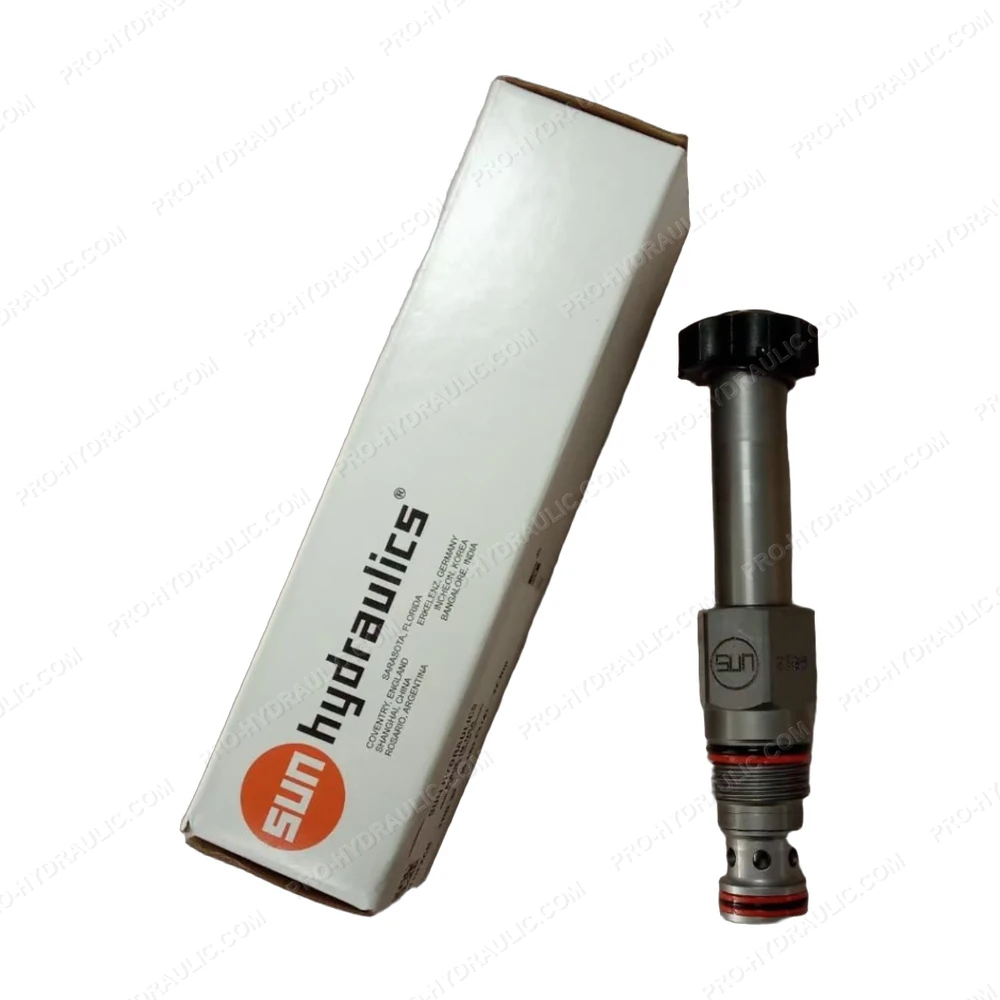

SUN HYDRAULICS DTDF-XCN Solenoid Operated Directional Poppet Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SUN HYDRAULICS DTDF-XCN Solenoid Directional Valve. This USA-made 12 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
