Product Overview
The SUN HYDRAULICS IHC-2CBV-RV-SV-05 is a precision-engineered hydraulic manifold assembly designed for integrated circuit (IC) style hydraulic systems. Manufactured by Sun Hydraulics, a global leader in high-performance hydraulic cartridge valves and manifolds, this assembly serves as a central control hub that houses and interconnects multiple screw-in cartridge valves. The IHC-2CBV-RV-SV-05 integrates a 2-port cavity body with relief (RV) and solenoid valve (SV) functions, providing precise flow control, pressure regulation, and directional logic within a compact, leak-proof package. It is specifically engineered for demanding industrial circuits requiring high flow capacity, minimal pressure drop, and reliable operation in continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Manifold Assembly / Modular Valve Block |
| Model Designation | IHC-2CBV-RV-SV-05 |
| Operating Pressure | Up to 350 bar (5,000 psi) rated working pressure |
| Mounting & Connection | Standard ISO 4401 / Sun Hydraulics cavity interface |
| Cavity Configuration | 2-port body with integrated relief and solenoid valve cavities |
| Flow Capacity | Optimized for high-flow industrial circuits (up to 60 L/min depending on cartridge selection) |
| Seal Material | Nitrile (Buna-N) / Viton options available for high-temperature compatibility |
| Body Material | High-strength ductile iron or aluminum alloy (corrosion-resistant coating) |
Engineering Features & Advantages
- Precision Performance: The manifold’s internal passages are CNC-machined to exacting tolerances, ensuring minimal pressure drop and precise flow metering across all integrated cartridge valves. The RV (relief valve) and SV (solenoid valve) cavities are machined to Sun Hydraulics’ exact specifications for optimal valve response and sealing.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the IHC-2CBV-RV-SV-05 features a robust body construction that withstands high-pressure cycling, vibration, and thermal stress. The integrated design eliminates external piping and potential leak points, enhancing system safety and reliability.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Sun Hydraulics standards, ensuring drop-in replacement without modification to existing hydraulic circuits or mounting interfaces.
- Modular Flexibility: The manifold accepts a wide range of Sun Hydraulics screw-in cartridge valves, allowing for customizable pressure, flow, and directional control configurations to suit specific application requirements.
- Space-Saving Design: Consolidates multiple hydraulic control functions into a single compact block, reducing overall system footprint and simplifying plumbing in dense industrial installations.
Typ
PRODUCT IMAGES

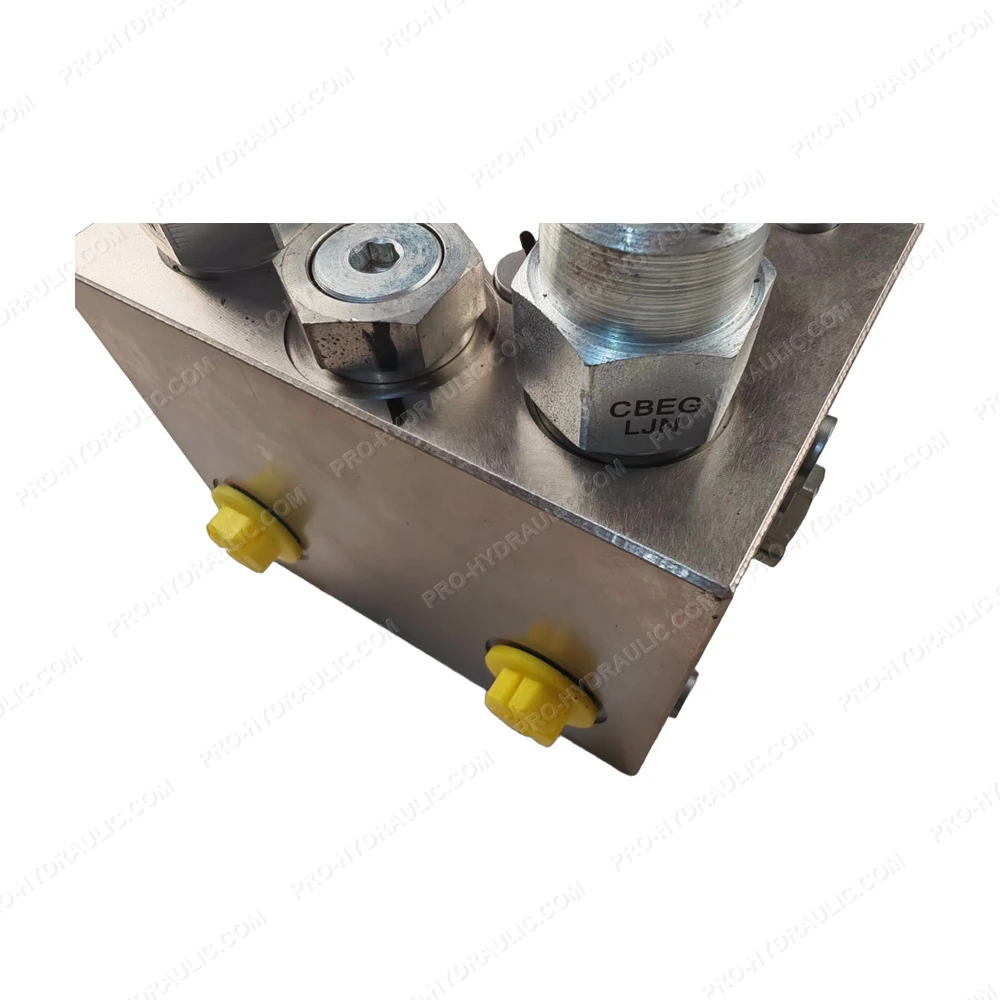

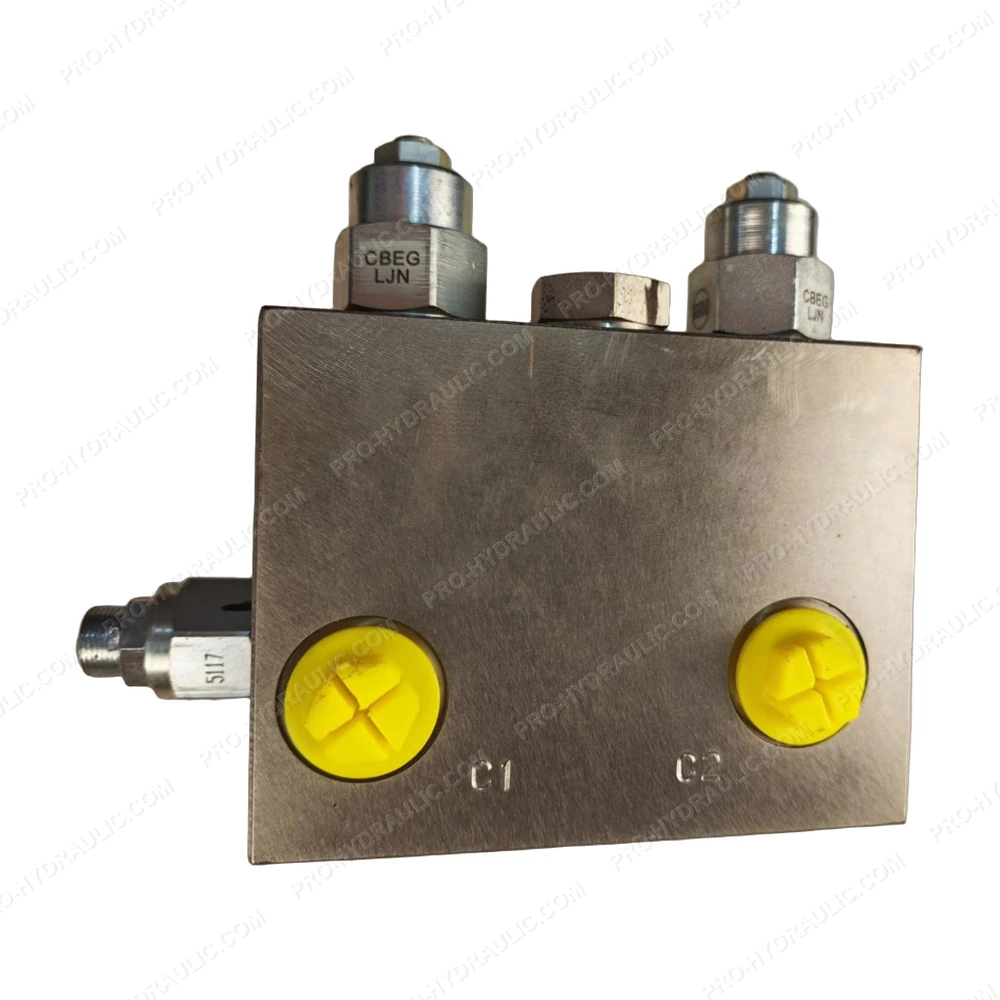

SUN HYDRAULICS IHC-2CBV-RV-SV-05 Hydraulic Manifold Assembly
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SUN HYDRAULICS IHC-2CBV-RV-SV-05 Solenoid Directional Valve. This USA-made 24 VDC hydraulic component features a 2-way normally closed poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
