Product Overview
The SUN Hydraulics PBFB-8WV is a direct-acting, screw-in cartridge pressure reducing valve designed to maintain a constant reduced outlet pressure regardless of fluctuations in inlet pressure or downstream flow demand. As part of the SUN Hydraulics PBFB series, this valve utilizes a balanced poppet and adjustable spring mechanism to deliver precise pressure regulation in hydraulic circuits where secondary pressure must be held below the main system pressure. The 8WV designation indicates a specific spring range and adjustment configuration, making it suitable for demanding industrial applications requiring stable, repeatable pressure control. This cartridge-style valve is engineered for integration into SUN’s modular manifold systems or standard industrial hydraulic blocks, providing reliable performance in continuous-duty operations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Pressure Control Valve (Pressure Reducing) |
| Model Designation | PBFB-8WV |
| Operating Pressure | Up to 350 bar (5000 psi) inlet; reduced pressure range per 8WV spring setting |
| Mounting & Connection | SUN cartridge cavity (8-size, 3/4-16 UNF); manifold or block mounting |
| Adjustment Style | Adjustable screw with locknut (W adjustment option) |
| Flow Capacity | Up to 30 L/min (8 gpm) nominal |
| Seal Material | Buna-N (standard); Viton available on request |
Engineering Features & Advantages
- Precision Pressure Regulation: Balanced poppet design ensures accurate reduced pressure control with minimal hysteresis and excellent repeatability, even under varying inlet pressures and flow demands.
- Industrial Reliability: Constructed from hardened steel with precision-machined components, built for continuous operation in severe industrial hydraulic environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SUN Hydraulics 8-size cartridge cavities, allowing drop-in replacement without manifold modification.
- Compact Cartridge Design: Screw-in cartridge format minimizes space requirements and simplifies integration into custom hydraulic manifolds and integrated circuits.
- Adjustable Spring Range: The 8WV spring option provides a specific reduced pressure range, field-adjustable via screw and locknut for application flexibility.
Typical Industrial Applications
The SUN Hydraulics PBFB-8WV pressure reducing valve is widely used in hydraulic systems requiring stable secondary pressure, including plastic injection molding machines, metallurgical presses, CNC machine tool clamping circuits, and construction equipment pilot pressure control. It is also suitable for marine hydraulics, agricultural machinery, and any industrial application where precise pressure reduction and reliable cartridge valve performance are critical.
PRODUCT IMAGES

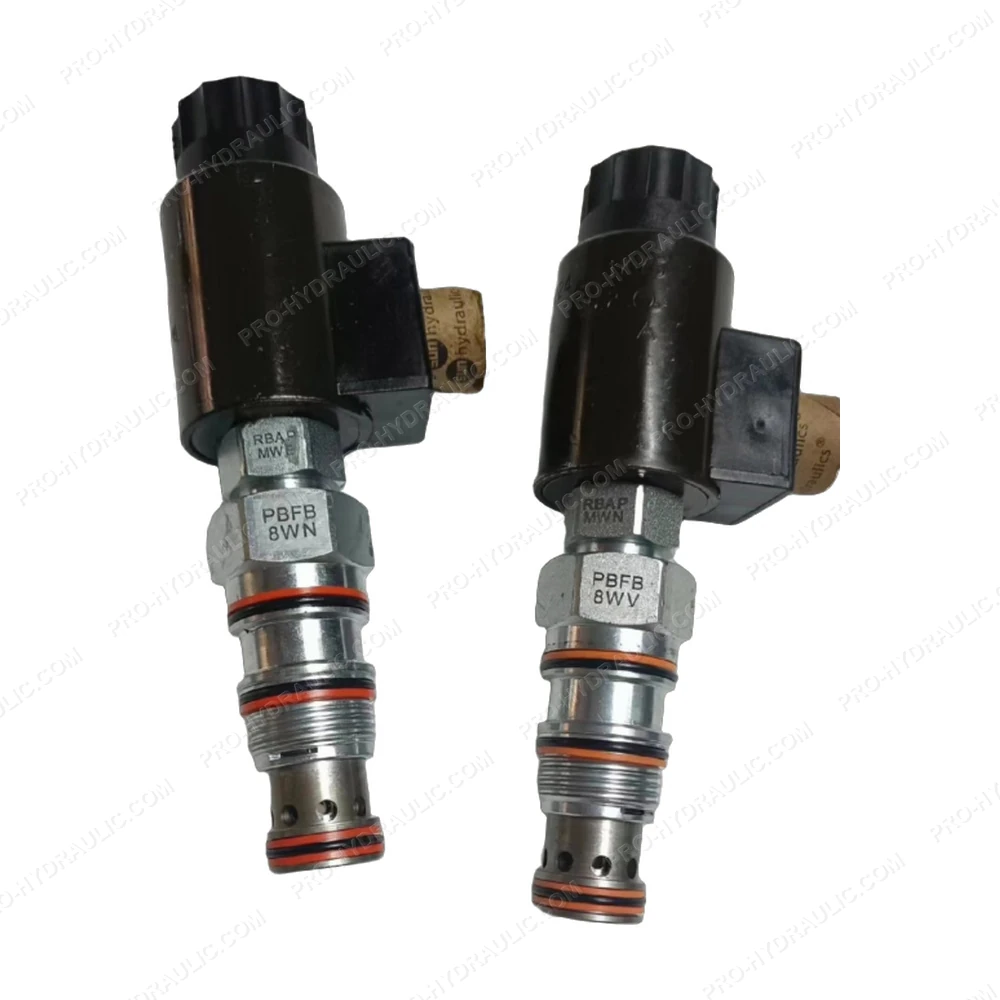

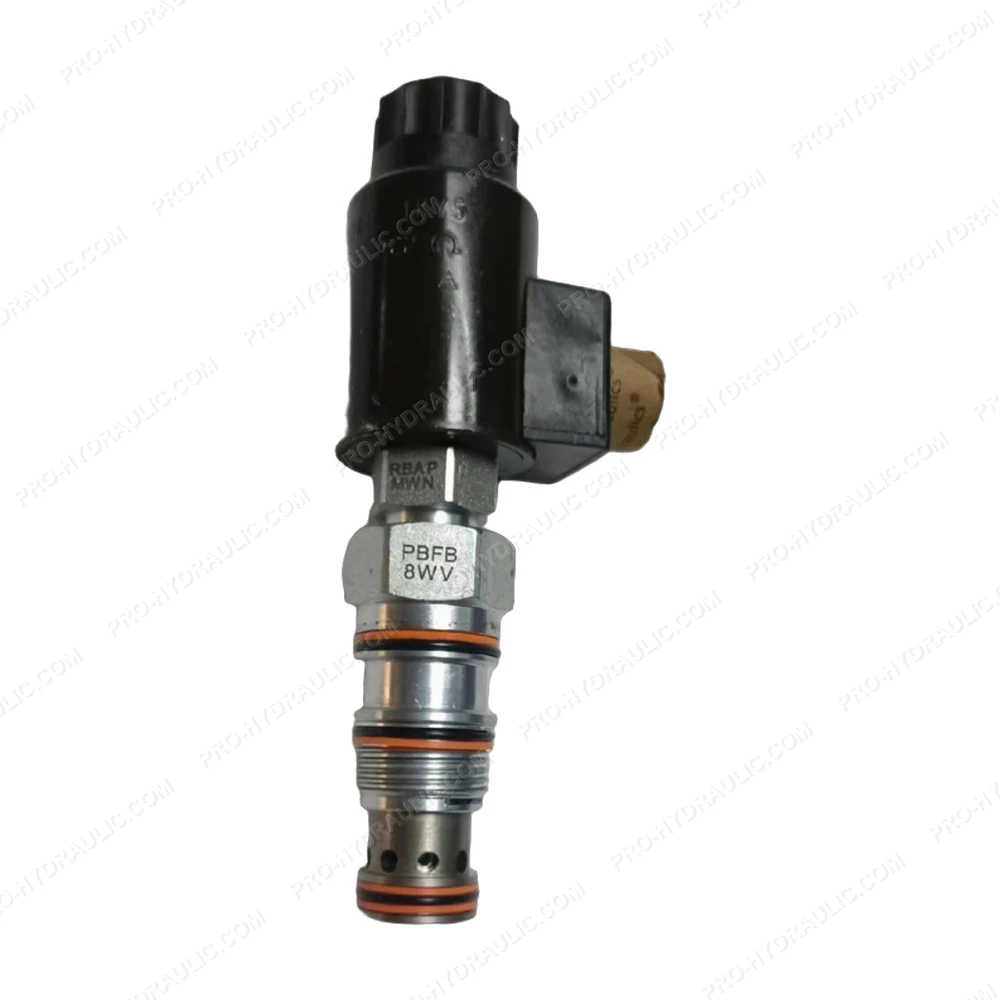

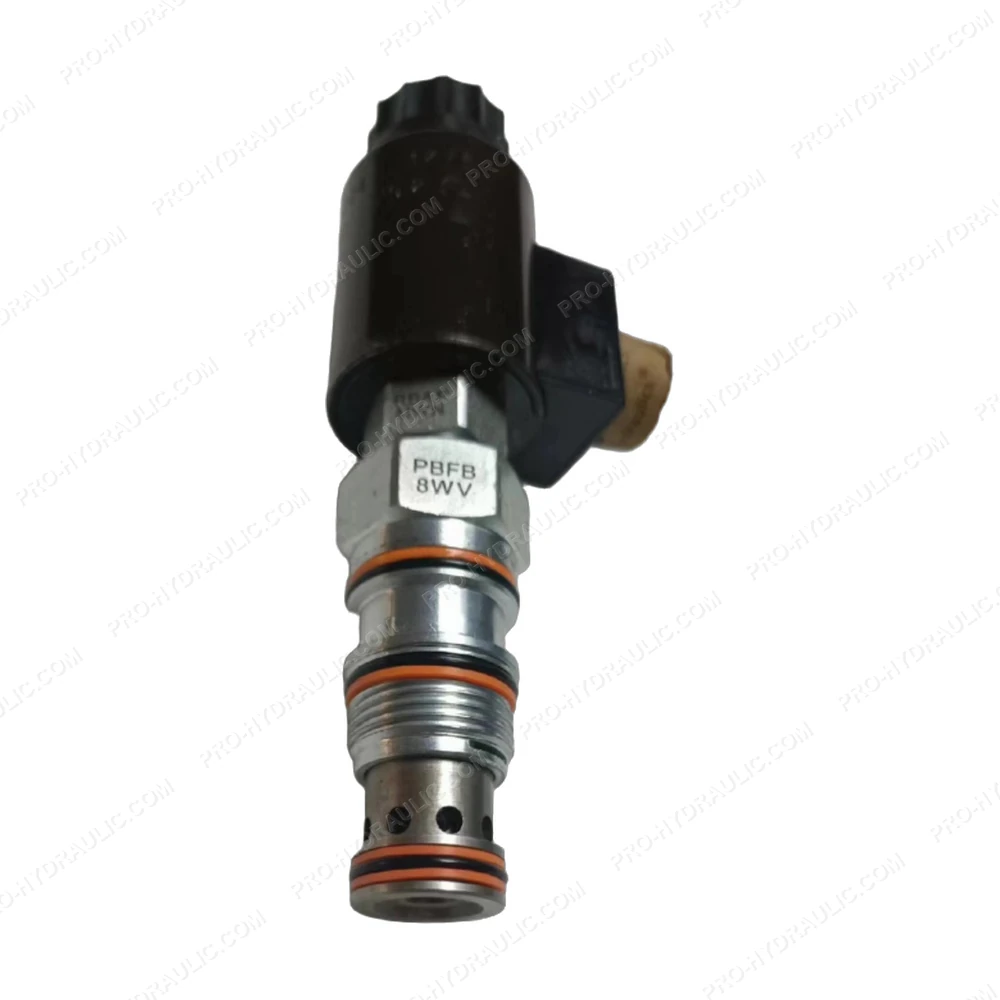

SUN HYDRAULICS PBFB-8WV Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SUN HYDRAULICS PBFB 8WV Pilot Operated Check Valve. This USA-made hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
