Product Overview
The SUN Hydraulics PRDB-LBN is a pilot-operated relief valve designed for precise pressure control in demanding hydraulic circuits. Manufactured by Sun Hydraulics, a global leader in high-performance cartridge valve technology, this valve operates on a two-stage pilot-operated principle: a pilot stage senses system pressure and modulates the main poppet, allowing smooth, stable relief of excess flow to tank once the adjustable set pressure is reached. Its balanced poppet design minimizes the effects of backpressure and flow forces, delivering consistent pressure regulation across a wide flow range. The PRDB-LBN is a direct-acting, screw-in cartridge style valve intended for integration into Sun Hydraulics’ standardized cavities, making it a reliable choice for system overload protection, pressure limiting, and circuit unloading in industrial hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Pilot-Operated Relief Valve (Pressure Control) |
| Model Designation | PRDB-LBN |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, adjustable via pilot stage) |
| Mounting & Connection | Screw-in cartridge, Sun Hydraulics standard cavity (T-11A or equivalent) |
| Adjustment Style | Pilot-operated, adjustable pressure setting |
| Seal Material | Buna-N (standard), optional Viton for high-temperature service |
Engineering Features & Advantages
- Precision Performance: Pilot-operated two-stage design provides accurate, repeatable pressure relief with minimal hysteresis and stable operation across varying flow rates.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and a balanced poppet that resists contamination-induced sticking.
- Direct Fit Replacement: Exact dimensional and functional compatibility with Sun Hydraulics standard cavities and original OEM specifications, ensuring drop-in installation without modification.
- Low Pressure Overshoot: Fast pilot response minimizes pressure spikes during sudden flow changes, protecting downstream components.
- Versatile Adjustment: Field-adjustable pressure setting allows fine-tuning to match specific system requirements.
Typical Industrial Applications
The SUN Hydraulics PRDB-LBN is widely used in hydraulic systems requiring reliable pressure limiting and overload protection. Typical applications include plastic injection molding machines, metallurgical presses, construction and marine hydraulic circuits, CNC machine tools, and general industrial power units where precise pressure control and long service life are critical.
PRODUCT IMAGES

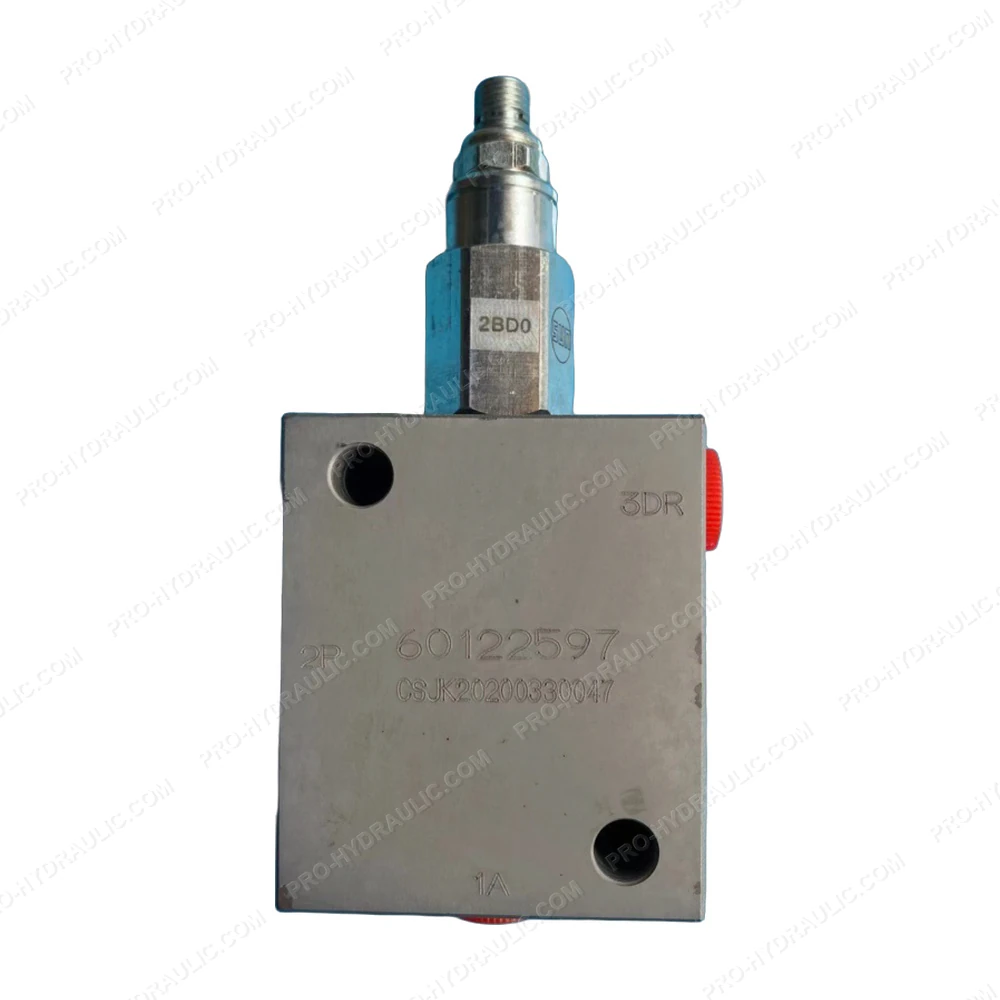

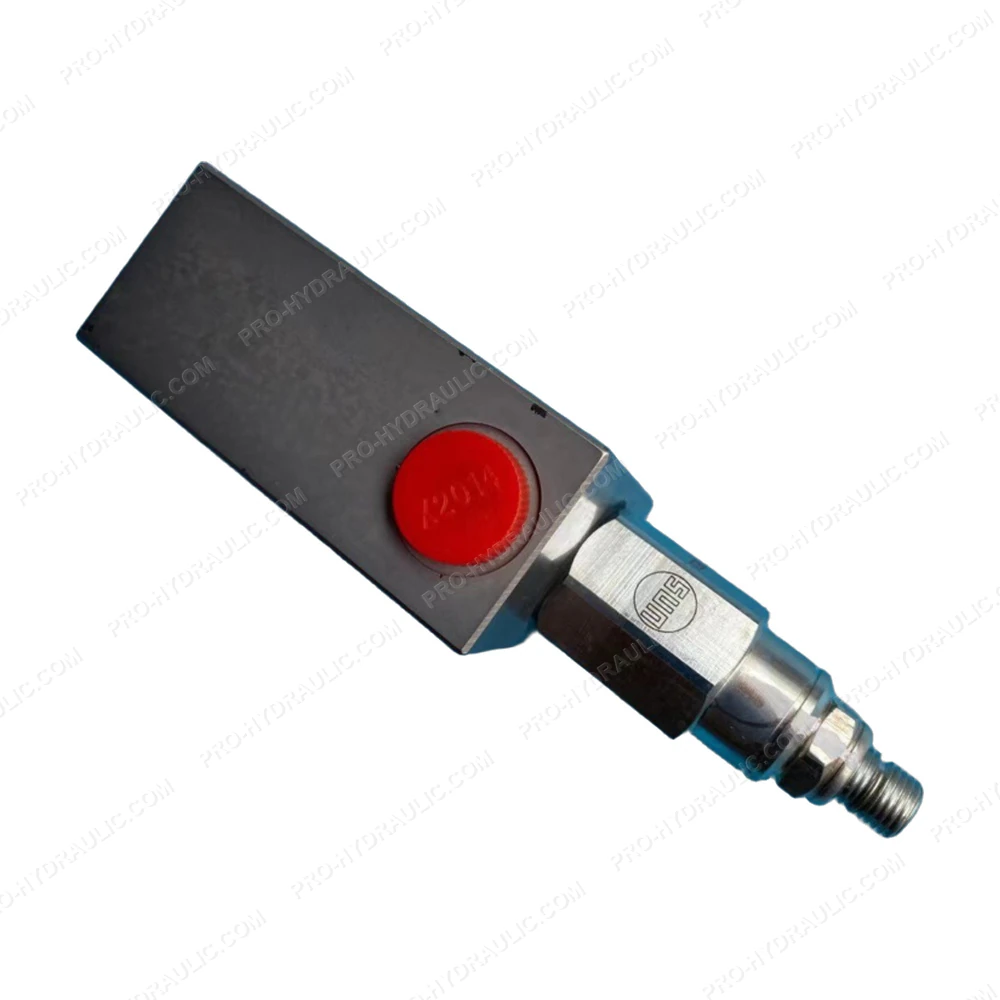

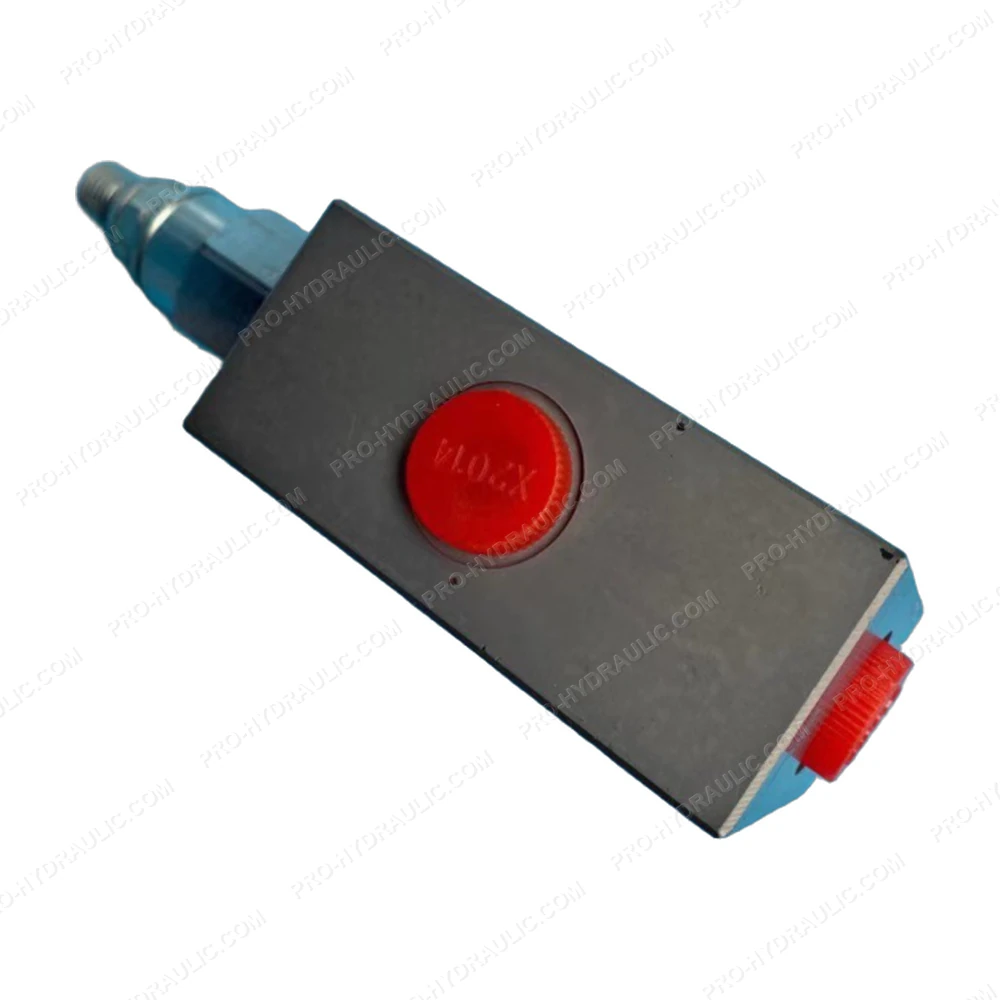

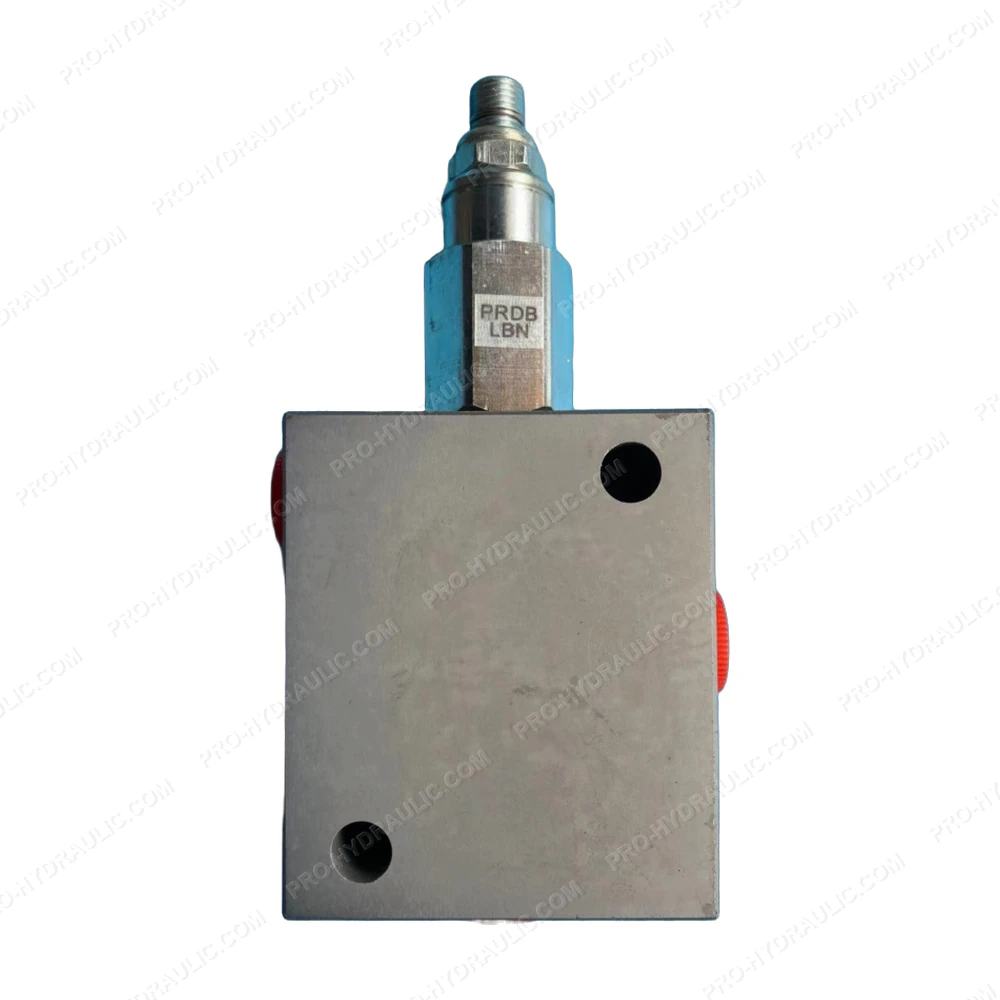

SUN HYDRAULICS PRDB-LBN Pilot-Operated Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SUN HYDRAULICS PRDB-LBN Pilot-Operated Relief Valve. This USA-made hydraulic component features a balanced piston design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
