Product Overview
The SUN HYDRAULICS RPGT-LWN is a pilot operated relief valve engineered for precise pressure control in demanding hydraulic circuits. Manufactured by Sun Hydraulics, a global leader in high-performance cartridge valve technology, this valve utilizes a two-stage pilot operated design that delivers smooth, stable pressure regulation with minimal override pressure rise across the full flow range. The RPGT-LWN functions as a normally closed pressure control element, opening only when system pressure exceeds the adjustable spring setting, thereby protecting downstream components from overpressure conditions. Its balanced poppet and pilot stage architecture ensures consistent cracking pressure and rapid reseat, making it an ideal choice for industrial systems requiring accurate and repeatable pressure limiting.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pilot Operated Pressure Control Relief Valve |
| Model Designation | RPGT-LWN |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Sun Hydraulics cartridge specification) |
| Mounting & Connection | Standard Sun Hydraulics T-11A cavity, cartridge-style interface |
| Valve Function | Normally closed, pilot operated pressure relief |
| Adjustment Style | Adjustable spring cartridge with locknut |
| Seal Material | Buna-N (Nitrile) standard, Viton optional |
Engineering Features & Advantages
- Precision Performance: Two-stage pilot operated design provides exceptionally flat pressure versus flow characteristics, maintaining stable system pressure even under varying flow demands.
- Industrial Reliability: Hardened, precision-ground internal components resist wear and contamination, ensuring long service life in continuous-duty hydraulic systems.
- Direct Fit Replacement: Manufactured to exact Sun Hydraulics T-11A cavity dimensions for drop-in compatibility with original OEM cartridge valves.
- Low Override Pressure: Pilot stage minimizes pressure rise above the set point, protecting sensitive downstream components from pressure spikes.
- Fast Reseat: Balanced poppet design ensures rapid, positive closing with minimal leakage after relief, reducing system energy loss.
Typical Industrial Applications
The SUN HYDRAULICS RPGT-LWN pilot operated relief valve is widely deployed in plastic injection molding machines, metallurgical presses, construction and marine hydraulic systems, and CNC machine tool power units. It serves as a critical pressure-limiting safeguard in manifold blocks, power units, and custom hydraulic circuits where precise, reliable overpressure protection is essential for equipment safety and process consistency.
PRODUCT IMAGES

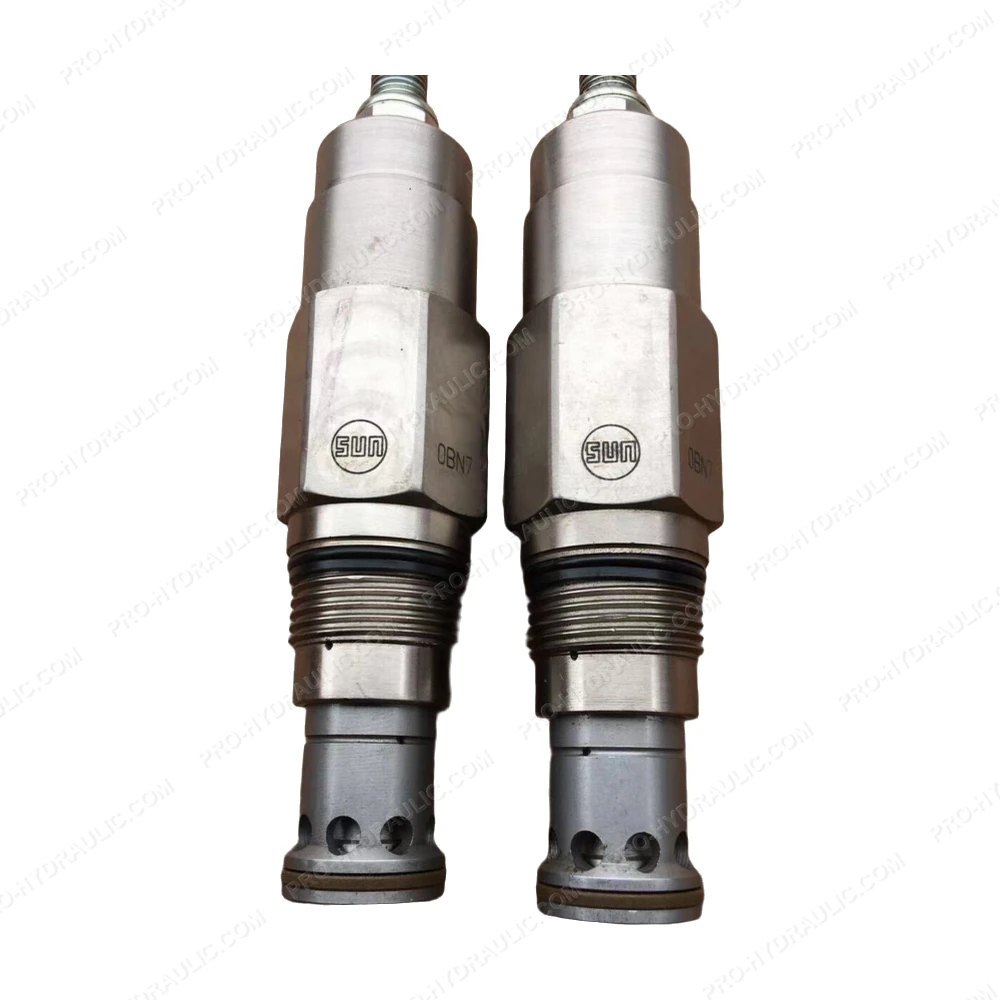

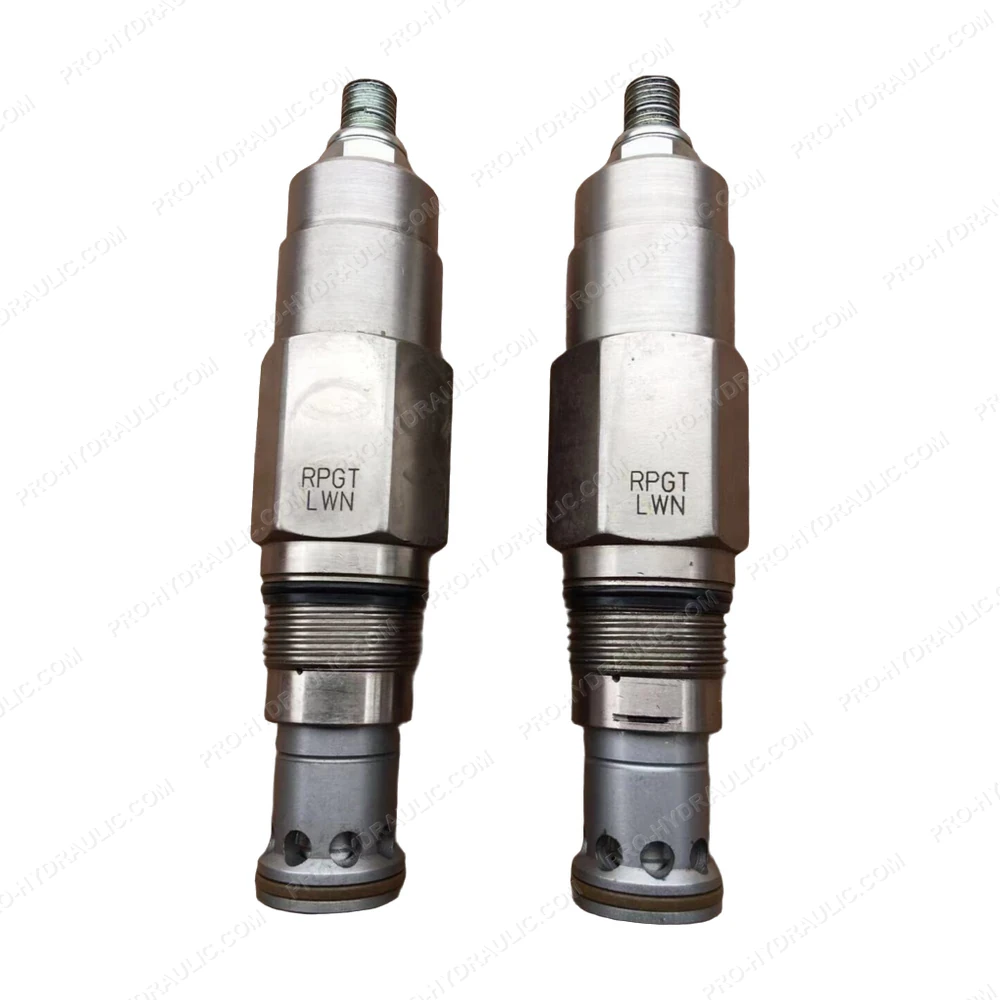

SUN HYDRAULICS RPGT-LWN Pilot Operated Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SUN HYDRAULICS RPGT-LWN Cartridge Check Valve. This US-made hydraulic component features a pilot-operated, spring biased closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
