Product Overview
The SUN Hydraulics TCE120F35S3 is a high-performance solenoid-operated directional control valve engineered for precise flow management in demanding industrial hydraulic circuits. As part of Sun Hydraulics’ renowned cartridge valve platform, this 3-position, 4-way directional valve utilizes a robust solenoid actuation mechanism to shift an internal spool, directing pressurized fluid to the designated work ports with exceptional repeatability. The TCE120F35S3 is designed to deliver reliable, leak-resistant performance in continuous-duty applications, making it a critical component for system architects requiring precise motion control, load holding, and directional sequencing within complex hydraulic manifolds.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | TCE120F35S3 |
| Operating Pressure | Up to 350 bar (5075 psi) rated working pressure |
| Flow Capacity | Optimized for nominal flow up to 120 L/min (dependent on spool configuration) |
| Actuation Type | High-force solenoid with manual override option |
| Mounting & Connection | Standard Sun Hydraulics cartridge cavity (T-11A or equivalent) / ISO 4401 interface |
| Seal Material | Nitrile (Buna-N) / Fluorocarbon (Viton) options available |
Engineering Features & Advantages
- Precision Spool Metering: The TCE120F35S3 features a hardened, precision-ground spool that ensures minimal internal leakage and accurate flow metering, enabling smooth acceleration and deceleration of hydraulic actuators.
- Rapid Solenoid Response: Engineered for fast shifting times, the solenoid actuator provides quick directional changes essential for high-cycle industrial machinery, reducing cycle times and improving overall system throughput.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the valve’s robust construction resists contamination and withstands high shock pressures, ensuring long service life in harsh environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Sun Hydraulics OEM standards, allowing for drop-in replacement without manifold modification.
- Versatile Circuit Integration: The 4-way, 3-position configuration supports advanced circuit functions including cylinder extension/retraction, motor reversal, and load holding when paired with appropriate check valves.
Typical Industrial Applications
The SUN Hydraulics TCE120F35S3 solenoid directional valve is ideally suited for a wide range of heavy industrial scenarios, including plastic injection molding machines where precise injection and clamp control are critical; metallurgical presses requiring high-pressure directional sequencing; construction and marine hydraulic systems for boom, arm, and steering functions; and CNC machine tools where accurate tool positioning and rapid traverse are essential. Its robust design also makes it a preferred choice for automated assembly lines, material handling equipment, and offshore drilling systems demanding reliable, repeatable directional control.
PRODUCT IMAGES

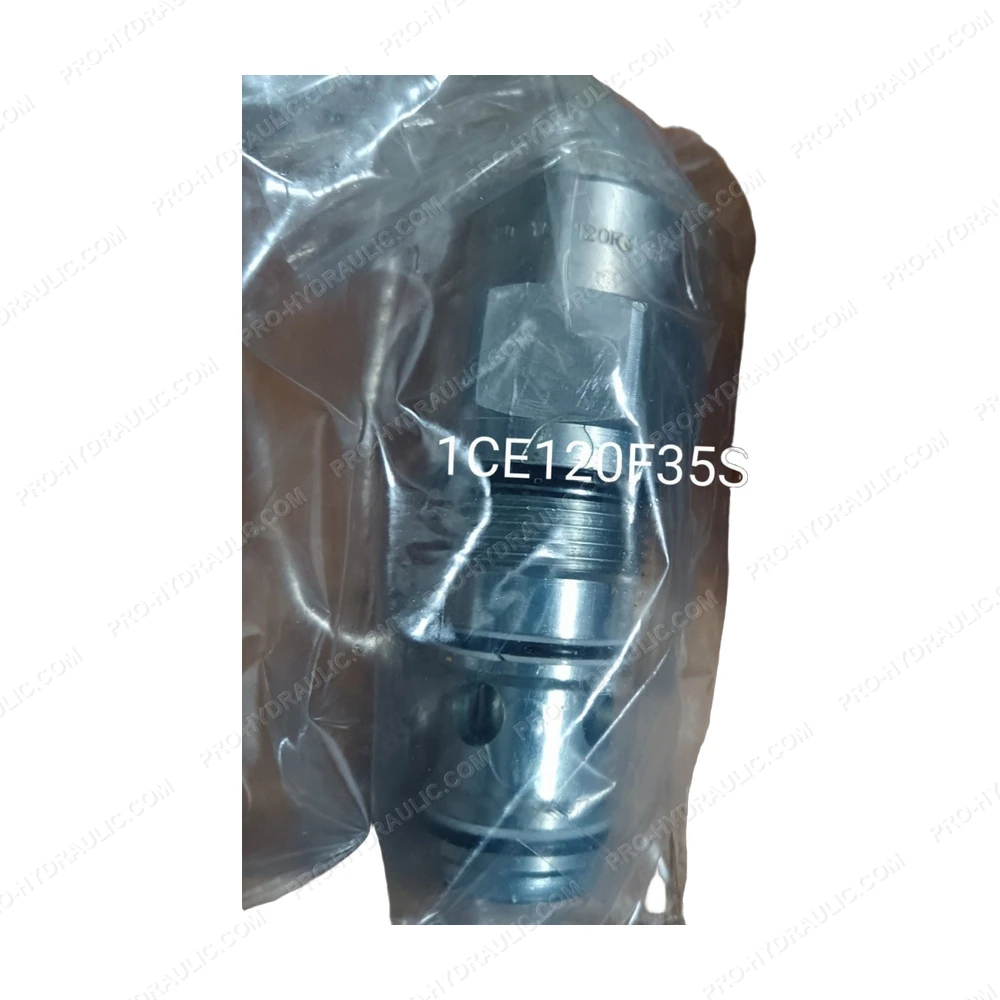

SUN HYDRAULICS TCE120F35S3 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SUN HYDRAULICS TCE120F35S3 Solenoid Directional Valve. This USA-made 120V hydraulic component features a 3-position 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
