Product Overview
The HydraForce SV38-38P is a high-performance solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial circuits. As part of HydraForce’s SV series, this valve utilizes a robust wet-armature solenoid design that shifts a precision-ground spool within a hardened cage assembly to direct, block, or divert hydraulic flow. The SV38-38P is a direct-acting, two-position or three-position directional valve designed for standard industrial mounting interfaces, delivering reliable actuation and leak-resistant sealing in continuous-duty applications. Its compact cartridge-style construction makes it ideal for integration into manifold blocks, custom hydraulic power units, and mobile or stationary machinery requiring responsive directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Standard Directional Control Valve) |
| Model Designation | SV38-38P |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar / 5075 psi rated) |
| Mounting & Connection | Standard ISO / HydraForce Cartridge Interface (38 size cavity) |
| Actuation Type | Solenoid-Pilot or Direct-Acting Wet Armature Solenoid |
| Spool Configuration | Precision-ground spool with hardened cage (2-position or 3-position options) |
| Flow Rating | Up to 45 L/min (12 GPM) nominal depending on spool type |
| Response Time | Fast actuation (typically 20–50 ms) for precise circuit control |
Engineering Features & Advantages
- Precision Performance: The SV38-38P features a hardened, precision-ground spool and cage assembly that ensures minimal internal leakage, consistent metering, and repeatable directional shifting under high-pressure conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the wet-armature solenoid design provides superior heat dissipation and long service life, even in high-duty-cycle applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original HydraForce SV38 series cartridge cavities and standard ISO manifold interfaces, allowing drop-in replacement without system modification.
- Robust Solenoid Construction: Encapsulated coil and corrosion-resistant housing protect against moisture, contaminants, and mechanical shock, ensuring stable electromagnetic actuation.
- Flexible Circuit Integration: Available in multiple spool configurations (open center, closed center, tandem, float) to suit a wide range of directional control requirements.
Typical Industrial Applications
The HydraForce SV38-38P solenoid directional valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold open/close and ejector sequencing, metallurgical presses for ram advance/retract and pressure holding, construction and marine hydraulics for boom, bucket, and steering circuits, and CNC machine
PRODUCT IMAGES

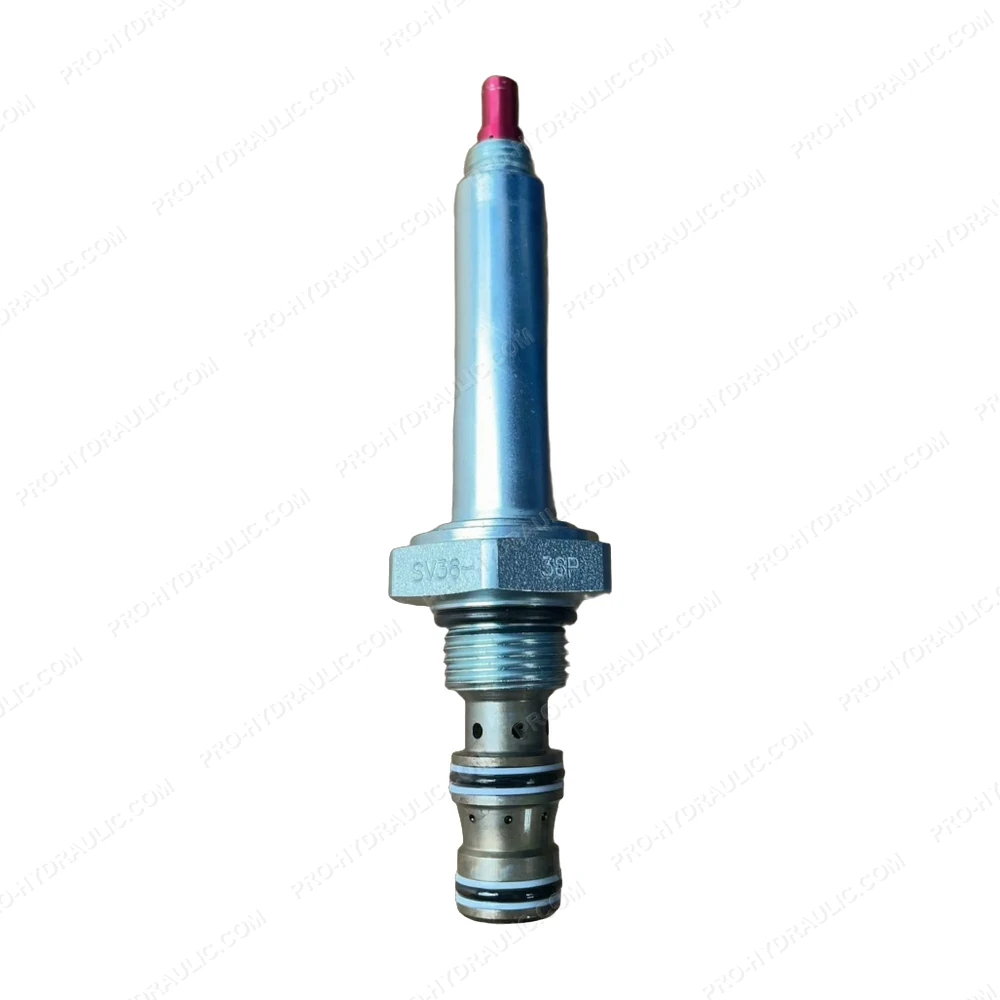

HydraForce SV38-38P Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SV38-38P Hydraulic Valve. This precision-made hydraulic component features a robust design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
