The SWAGELOK 6LVV-MSM-DFV-HF2-P-C is a heavy-duty industrial diaphragm valve engineered for high-purity and process applications requiring zero dead volume and minimal particle generation. Its manual actuation and robust diaphragm seal ensure leak-tight performance in critical fluid handling systems.
SWAGELOK 6LVV-MSM-DFV-HF2-P-C Technical Specifications
| Valve Type | Diaphragm Valve, Manual |
| Body Material | 316L Stainless Steel |
| Diaphragm Material | PTFE (or PFA) |
| Port Size | 1/4 in. |
| Connection Type | Swagelok Tube Fitting |
| Pressure Rating | Up to 300 psig (20.7 bar) |
| Temperature Range | -20°F to 300°F (-29°C to 149°C) |
| Flow Coefficient (Cv) | 0.4 |
| Actuation | Manual Handwheel |
| Mounting | Panel Mount |
Key Engineering Features
- High-purity design with minimal dead volume and smooth flow path
- PTFE diaphragm for excellent chemical resistance and long cycle life
- Leak-tight shutoff and precise flow control
- 316L stainless steel body for corrosion resistance
- Swagelok tube fitting connections for secure, repeatable installation
Industrial Applications
- Semiconductor manufacturing and high-purity gas delivery
- Pharmaceutical and biotech process systems
- Analytical instrumentation and laboratory equipment
- Food and beverage processing
- Chemical and petrochemical sampling systems
For technical inquiries, dimensional drawings, or replacement support for SWAGELOK 6LVV-MSM-DFV-HF2-P-C, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

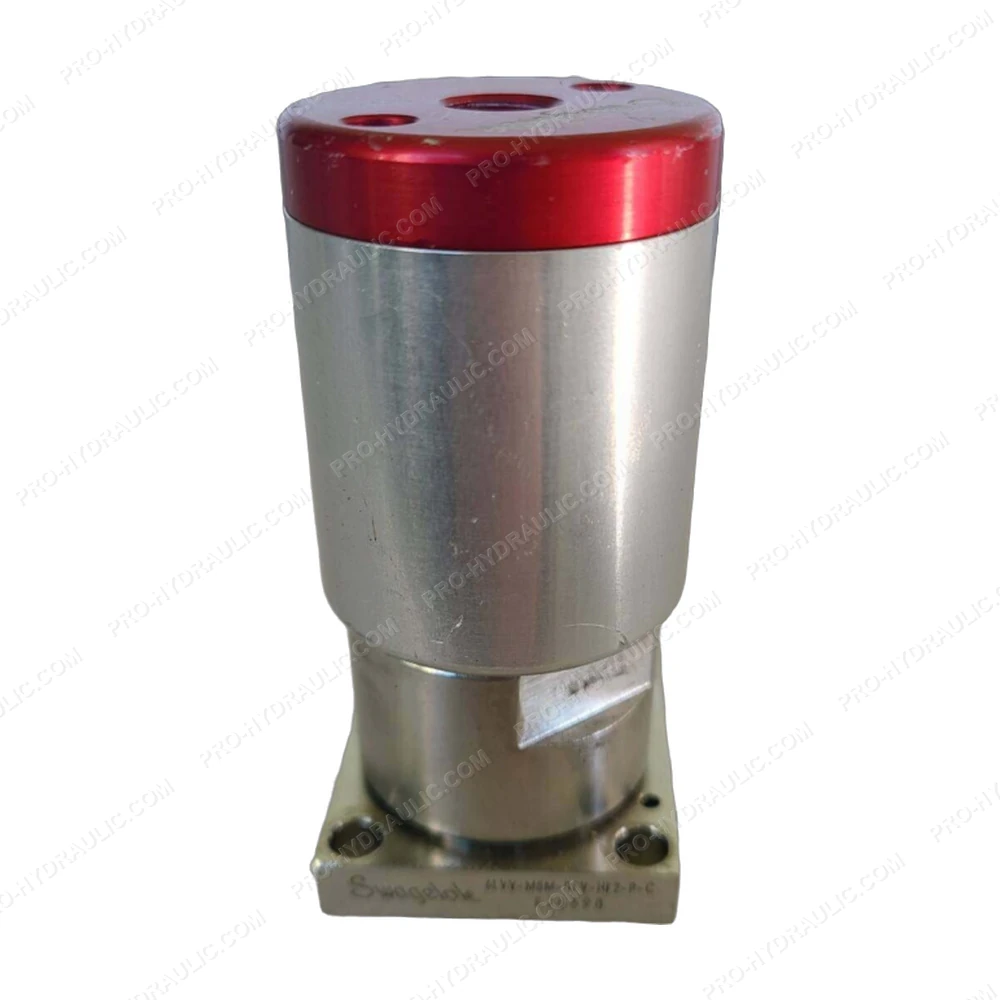

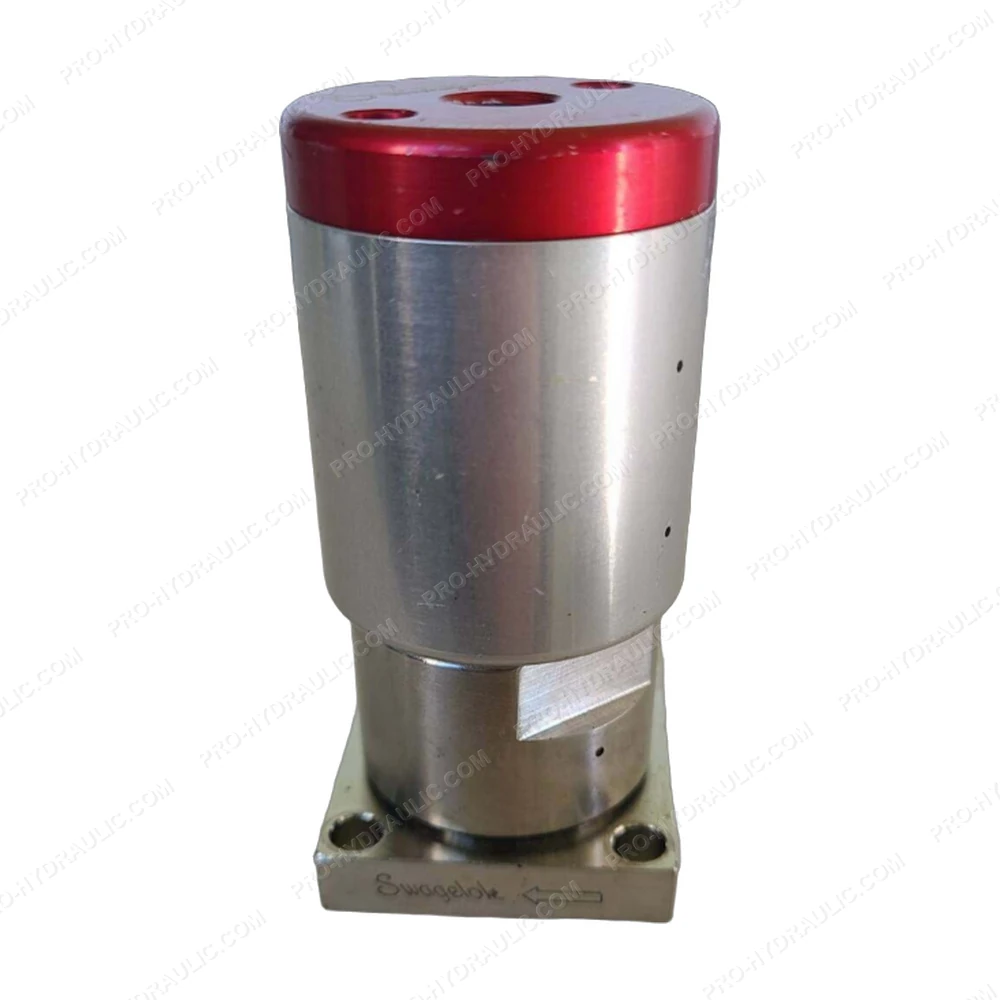

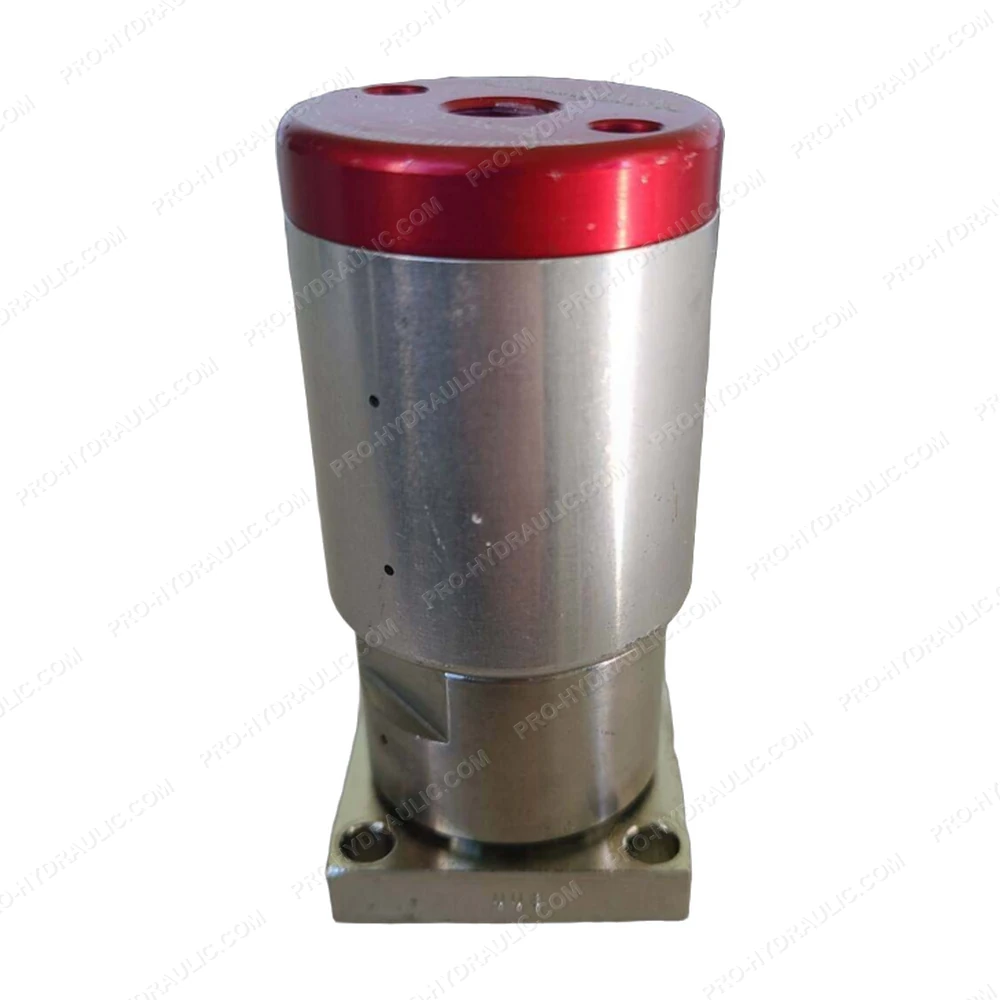

SWAGELOK 6LVV-MSM-DFV-HF2-P-C Diaphragm Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the SWAGELOK 6LVV-MSM-DFV-HF2-P-C Diaphragm Valve. This precision-engineered high-purity valve delivers reliable fluid control for critical process systems.
