The SWAGELOK SS-1RF2 is a heavy-duty industrial instrumentation needle valve engineered for precise flow regulation in high-pressure fluid systems. Constructed from 316 stainless steel with a 1/4 in. Swagelok tube fitting connection, it provides reliable shutoff and fine metering control in analytical, process, and pneumatic circuits.
SWAGELOK SS-1RF2 Technical Specifications
| Body Material | 316 Stainless Steel |
|---|---|
| Connection Type | Swagelok Tube Fitting |
| Connection Size | 1/4 in. |
| Maximum Working Pressure | 5000 psig (345 bar) |
| Temperature Range | -20 to 400 °F (-28 to 204 °C) |
| Orifice Size | 0.125 in. |
| Flow Coefficient (Cv) | 0.09 |
| Stem Type | Regulating, non-rotating |
| Packing Material | PTFE |
| Handle Type | Knurled knob |
Key Engineering Features
- 316 stainless steel construction for corrosion resistance
- Non-rotating stem tip prevents galling and ensures repeatable flow control
- PTFE packing for low torque and extended service life
- Swagelok tube fitting design for leak-tight connections without re-torquing
- Compact body suitable for panel mounting and confined installations
Industrial Applications
- Analytical instrumentation and sampling systems
- Process control and pilot plants
- Pneumatic and hydraulic test stands
- Research and development laboratories
- Oil and gas instrumentation
For technical inquiries, dimensional drawings, or replacement support for SWAGELOK SS-1RF2, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

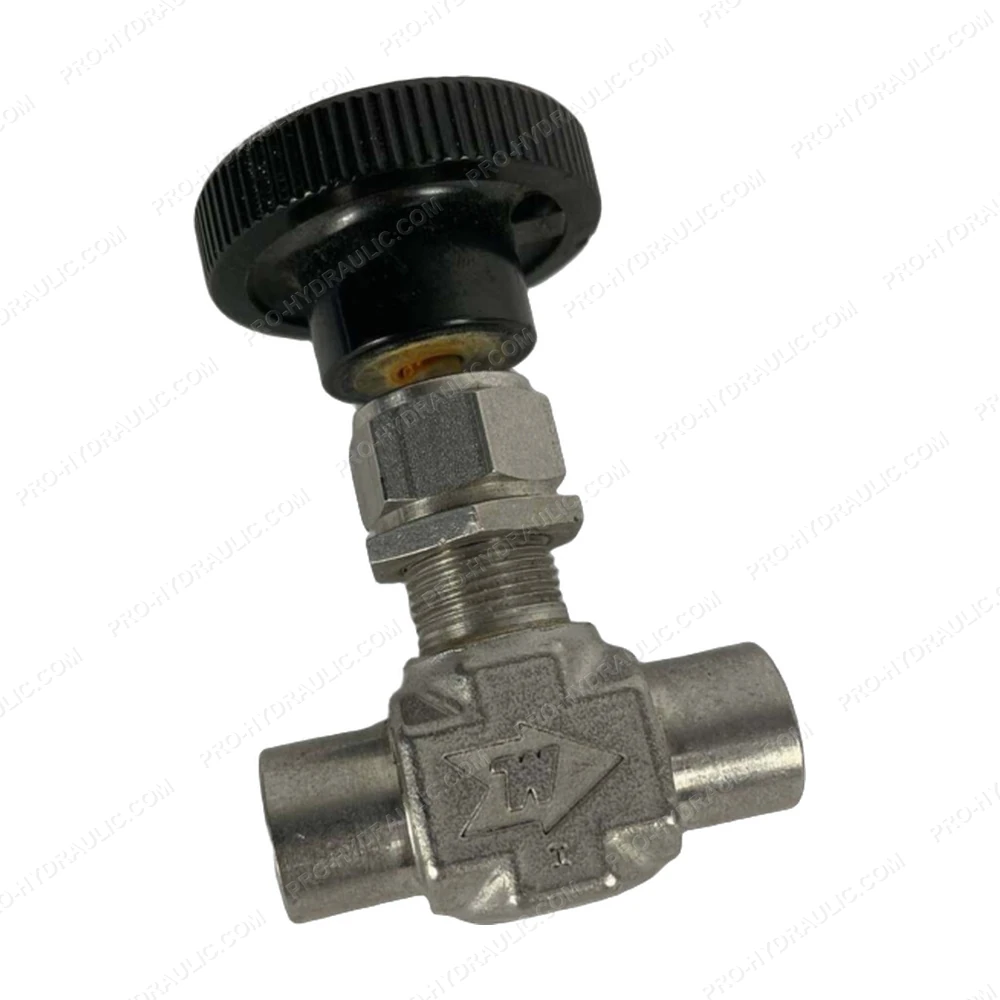

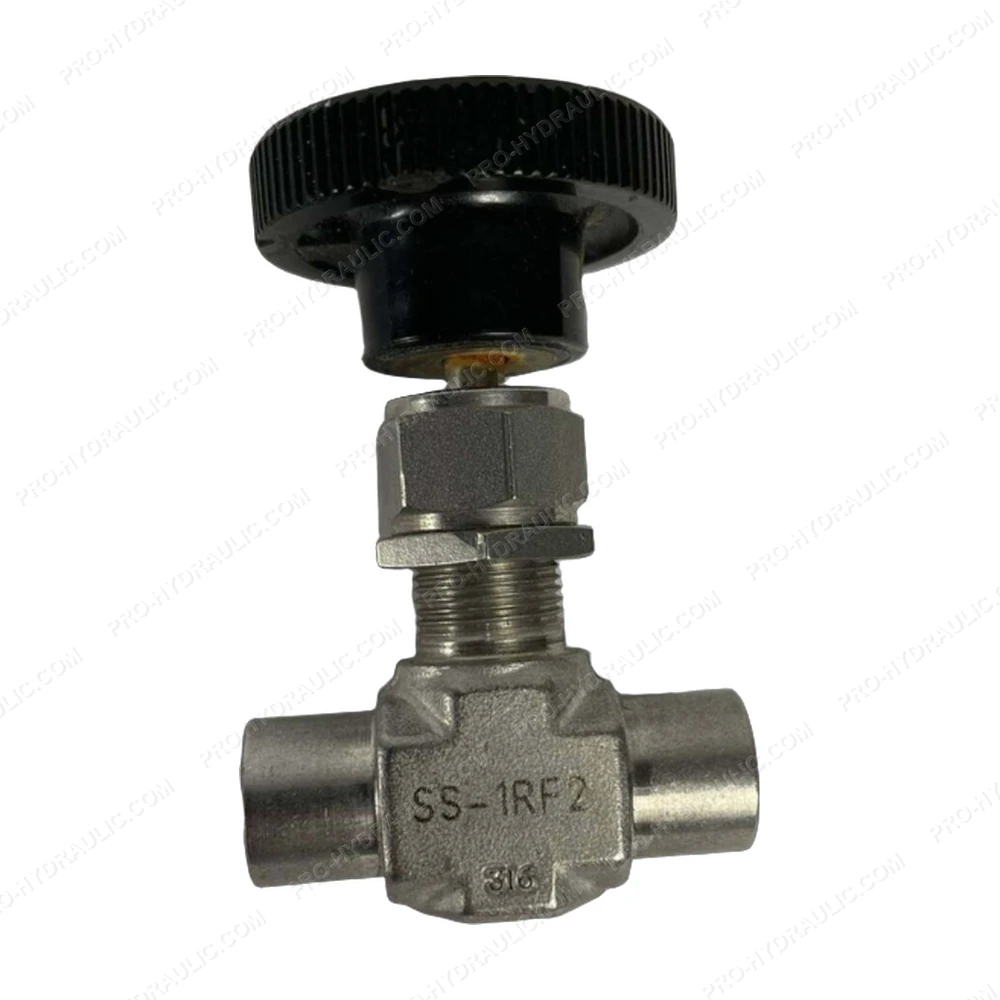

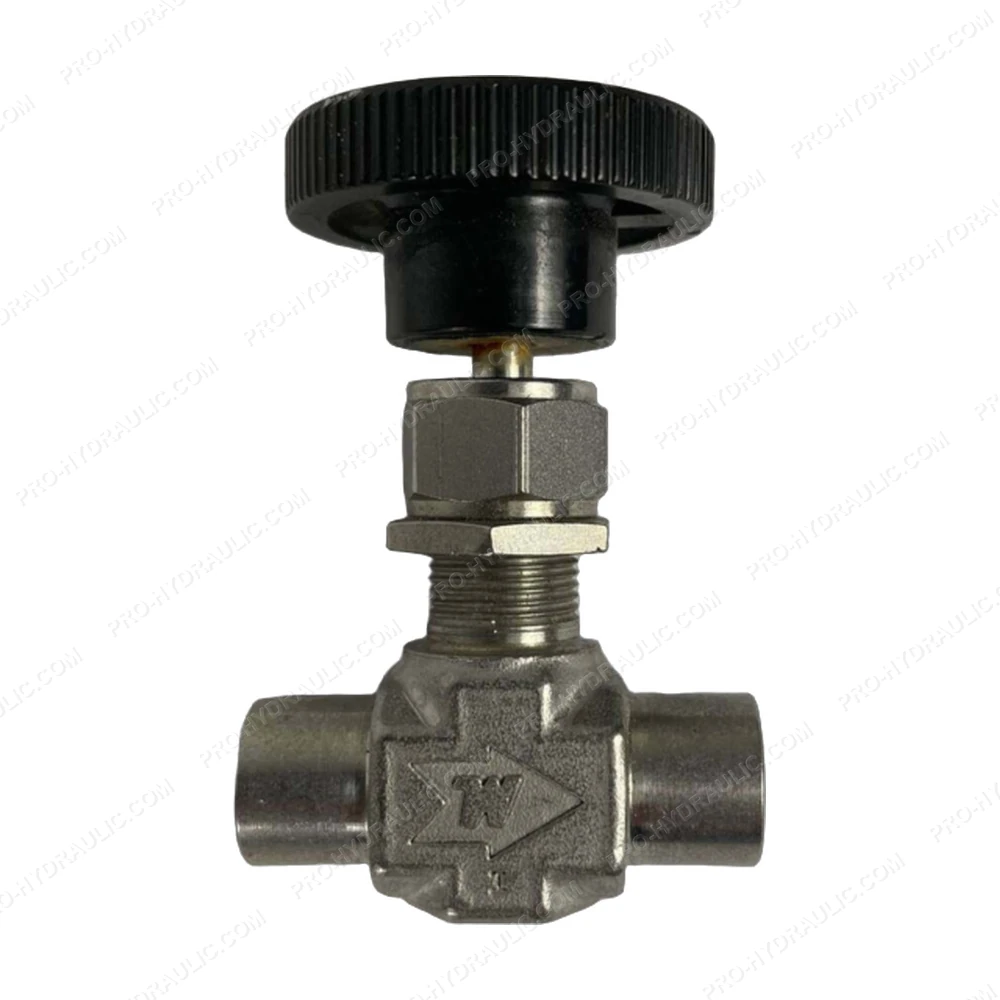

SWAGELOK SS-1RF2 Instrumentation Needle Valve
