The SWAGELOK SS-1RM6-S6 is a heavy-duty industrial manual needle valve engineered for precise flow regulation in high-pressure instrumentation and process systems. Constructed from 316 stainless steel with a 1/4 in. Swagelok tube fitting connection, it provides reliable shutoff and fine metering control for demanding fluid applications.
SWAGELOK SS-1RM6-S6 Technical Specifications
| Body Material | 316 Stainless Steel |
|---|---|
| Connection Type | Swagelok Tube Fitting |
| Connection Size | 1/4 in. |
| Maximum Working Pressure | 5000 psig (345 bar) |
| Temperature Range | -20 to 400 °F (-29 to 204 °C) |
| Orifice Size | 0.062 in. (1.6 mm) |
| Flow Coefficient (Cv) | 0.09 |
| Stem Type | Regulating, non-rotating |
| Packing Material | PTFE |
| Handle Type | Knurled knob |
Key Engineering Features
- Precision-machined 316 stainless steel body for corrosion resistance and long service life.
- Non-rotating stem tip reduces wear and ensures repeatable flow settings.
- PTFE packing provides low-torque operation and reliable sealing.
- Swagelok tube fitting design enables leak-tight connections without special tools.
- Compact design suitable for panel mounting and space-constrained installations.
Industrial Applications
- Analytical instrumentation and sampling systems.
- Hydraulic and pneumatic control panels.
- Process isolation and flow metering in chemical and petrochemical plants.
- Research and laboratory high-pressure systems.
- Power generation and steam service applications.
For technical inquiries, dimensional drawings, or replacement support for SWAGELOK SS-1RM6-S6, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

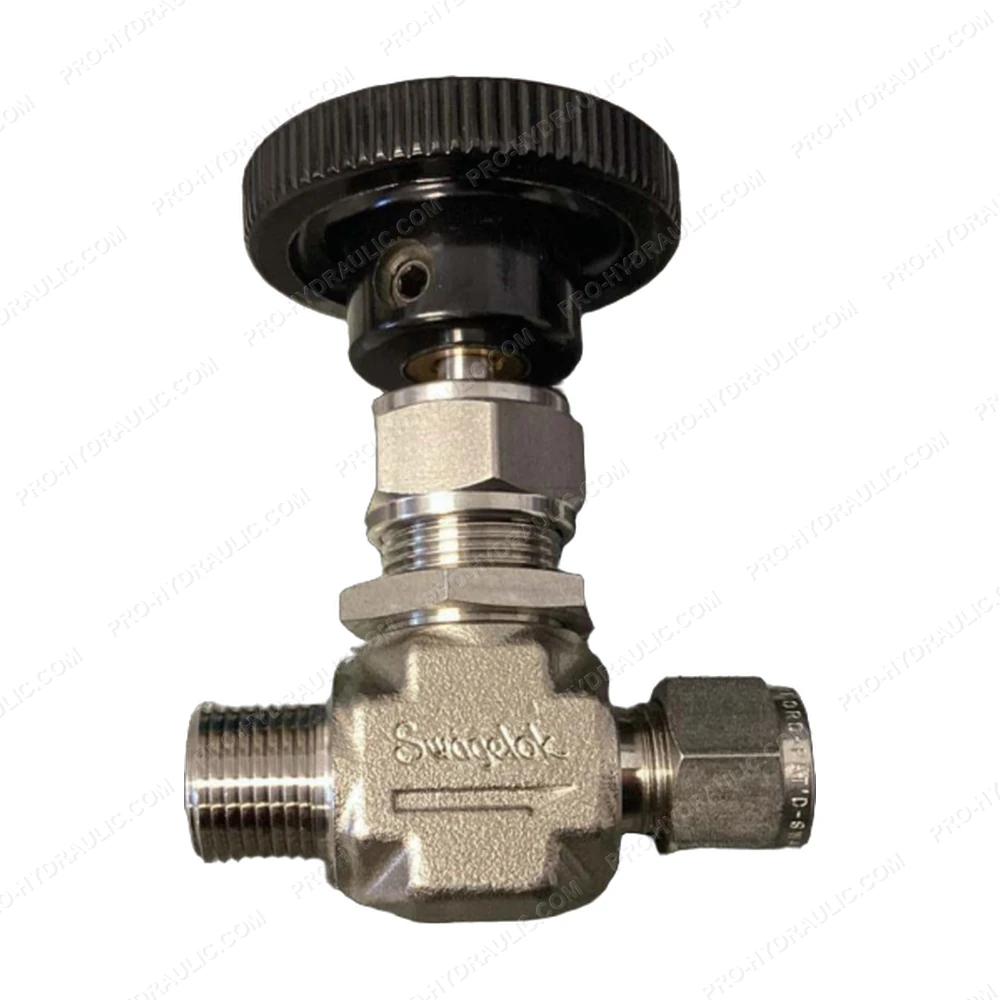

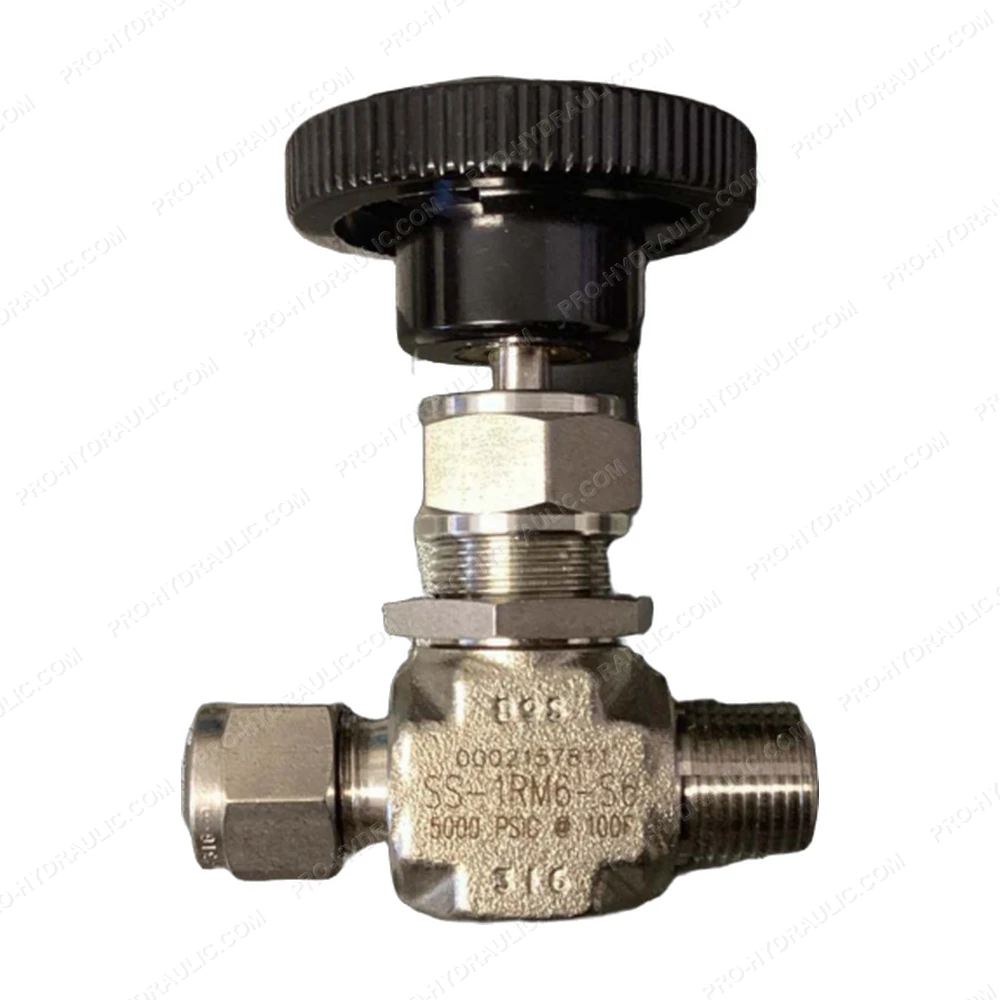

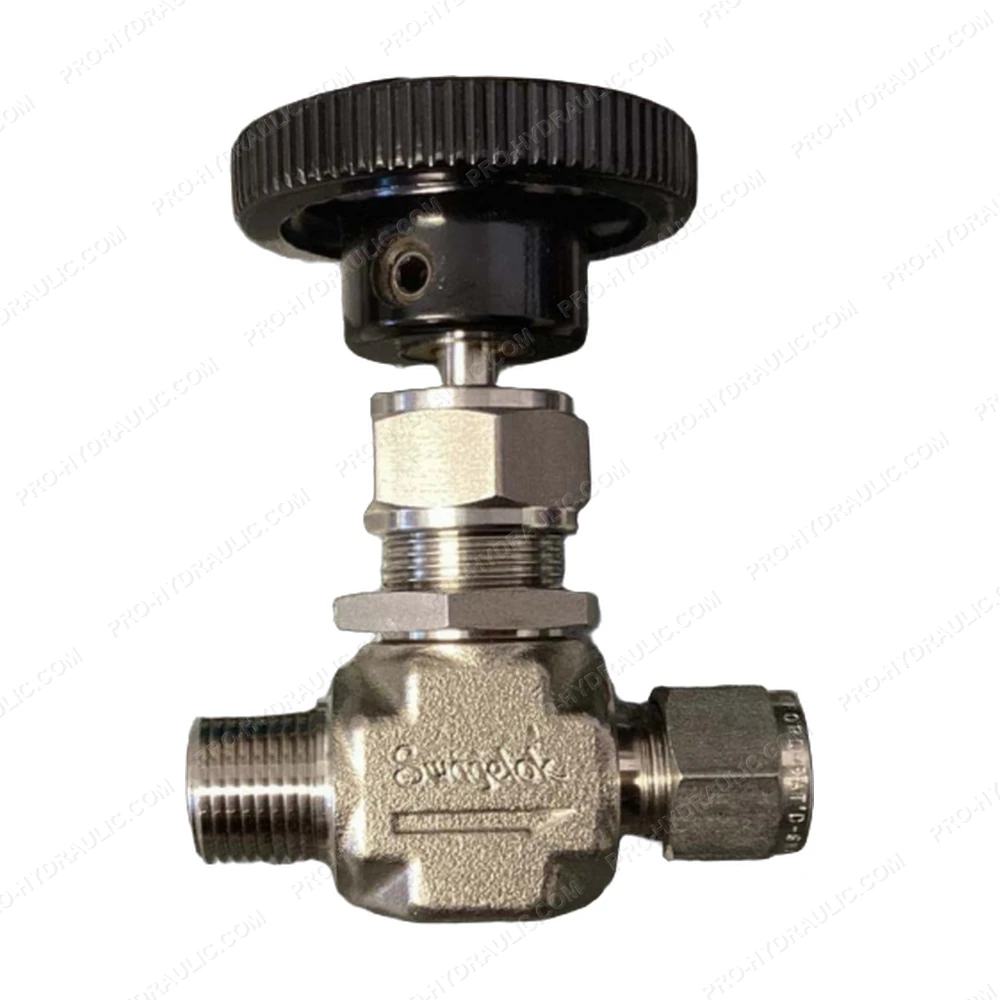

SWAGELOK SS-1RM6-S6 Manual Needle Valve
