The SWAGELOK SS-4BMG-VCR is a heavy-duty industrial metering valve engineered for precise flow control in high-pressure instrumentation systems. Its VCR metal-to-metal face seal connection ensures leak-tight performance in critical gas and liquid applications.
SWAGELOK SS-4BMG-VCR Technical Specifications
| Body Material | 316 Stainless Steel |
|---|---|
| Connection Type | VCR (1/4 in.) |
| Flow Coefficient (Cv) | 0.02 (fully open) |
| Maximum Operating Pressure | 3000 psig (206 bar) |
| Temperature Range | -20°F to 400°F (-28°C to 204°C) |
| Orifice Size | 0.031 in. (0.79 mm) |
| Stem Type | Non-rotating, fine adjustment |
| Seal Material | PTFE packing |
Key Engineering Features
- VCR metal gasket face seal for high-purity and leak-tight connections
- Precision micrometer-style stem for repeatable flow settings
- 316 stainless steel construction for corrosion resistance
- Non-rotating stem tip minimizes wear and extends service life
- Panel-mount capability for secure installation
Industrial Applications
- Analytical instrumentation and sampling systems
- Semiconductor manufacturing equipment
- High-pressure gas and liquid metering
- Research and development test stands
- Pharmaceutical and biotech process lines
For technical inquiries, dimensional drawings, or replacement support for SWAGELOK SS-4BMG-VCR, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

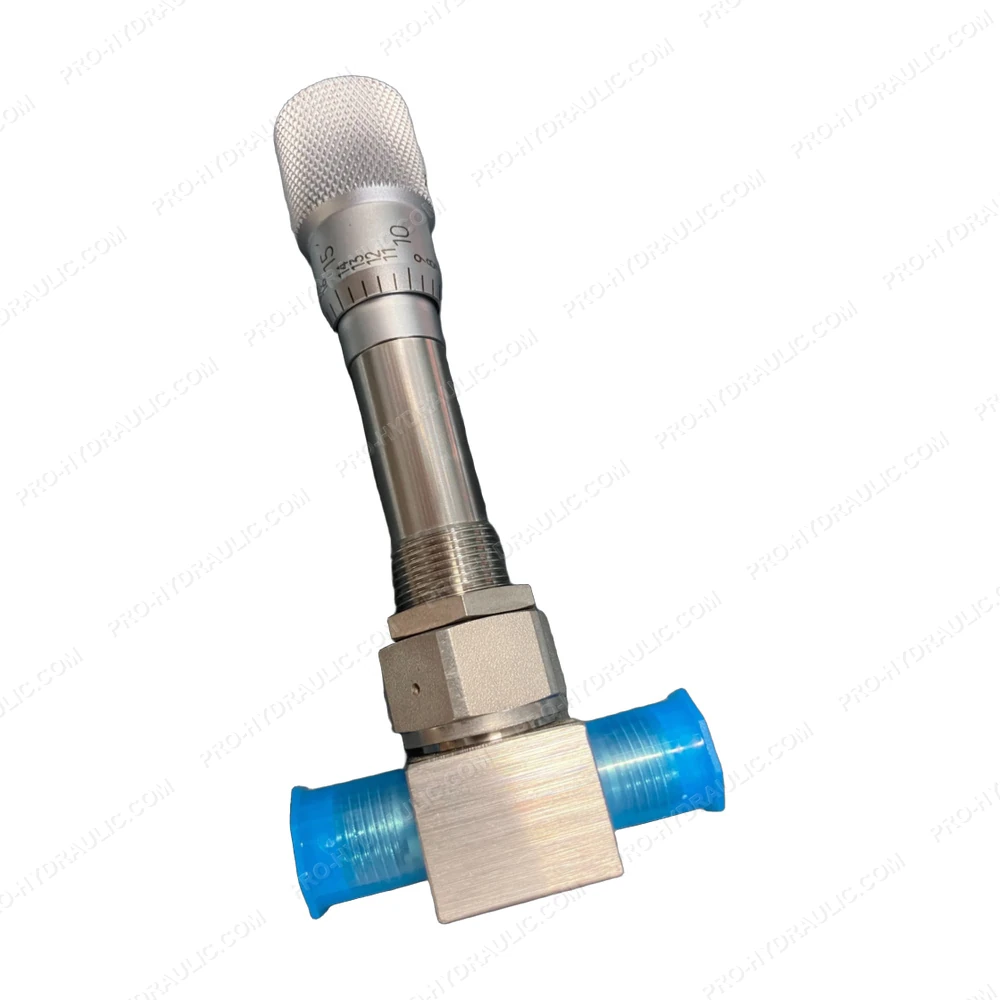

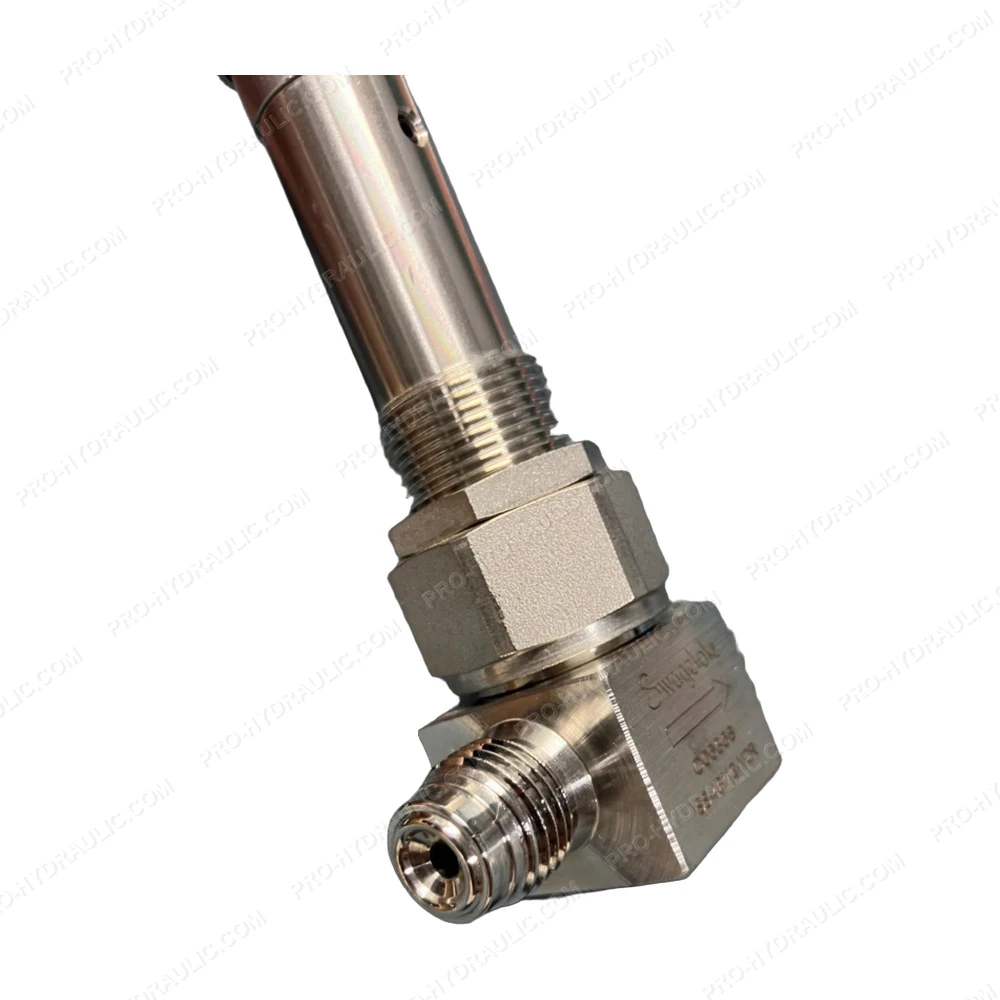

SWAGELOK SS-4BMG-VCR Metering Valve
